Product Details | CONNECTOR ADAPTER
5935-00-518-8097 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: 18891, 1-889-1, 1889-1, 20AS1121, 20AS112-1, 229635, 3318891, 33-1889-1, FB6E, 5935-00-518-8097, 00-518-8097, 5935005188097, 005188097
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-518-8097 | 15091 ( ADAPTER, CONNECTOR ) |

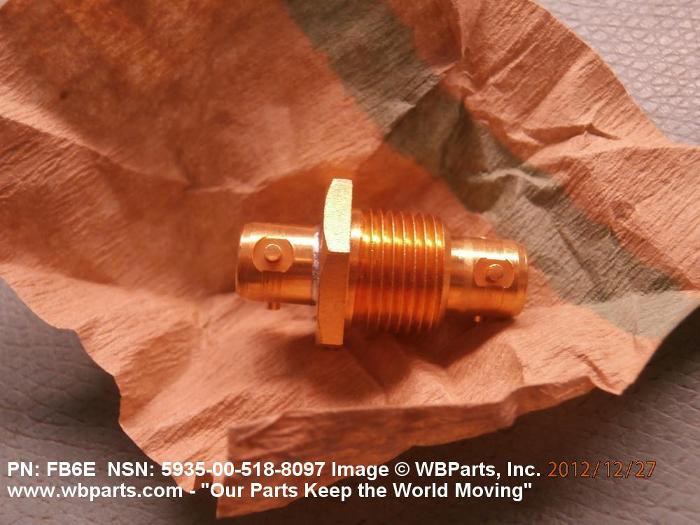

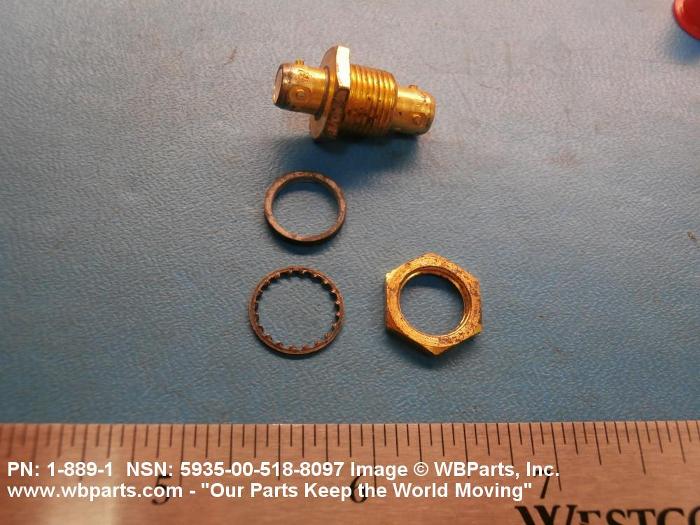

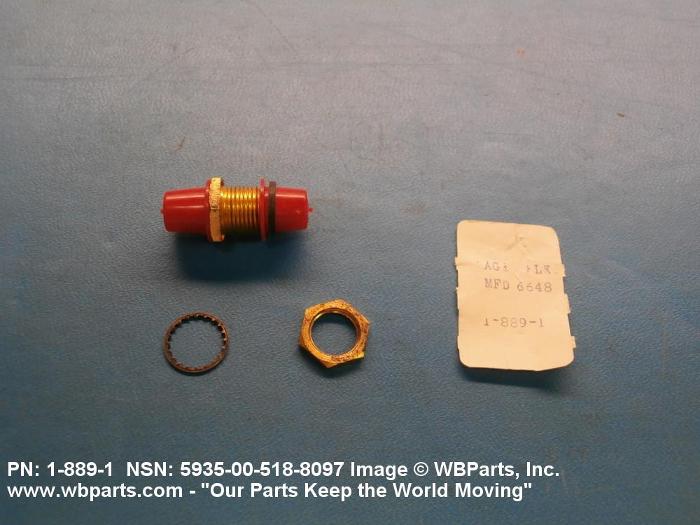

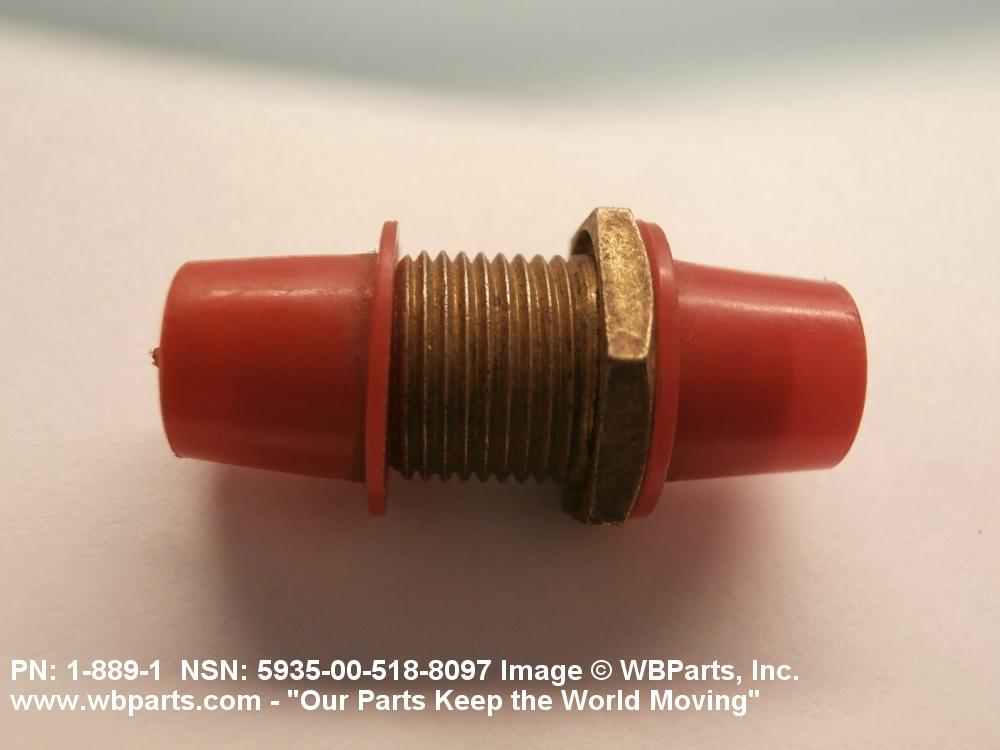

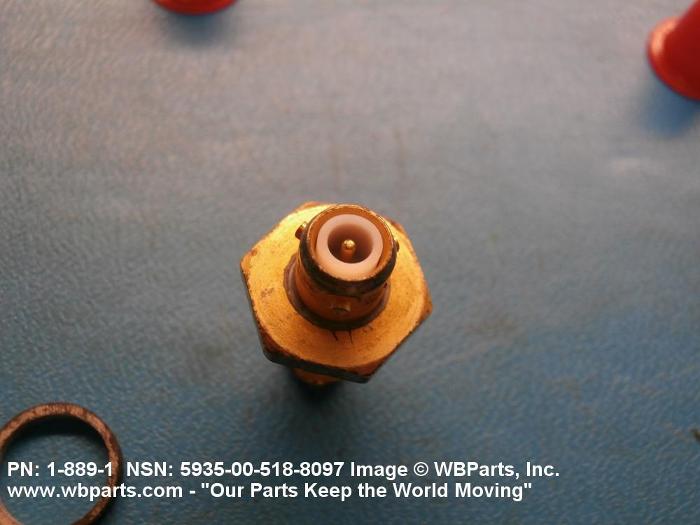

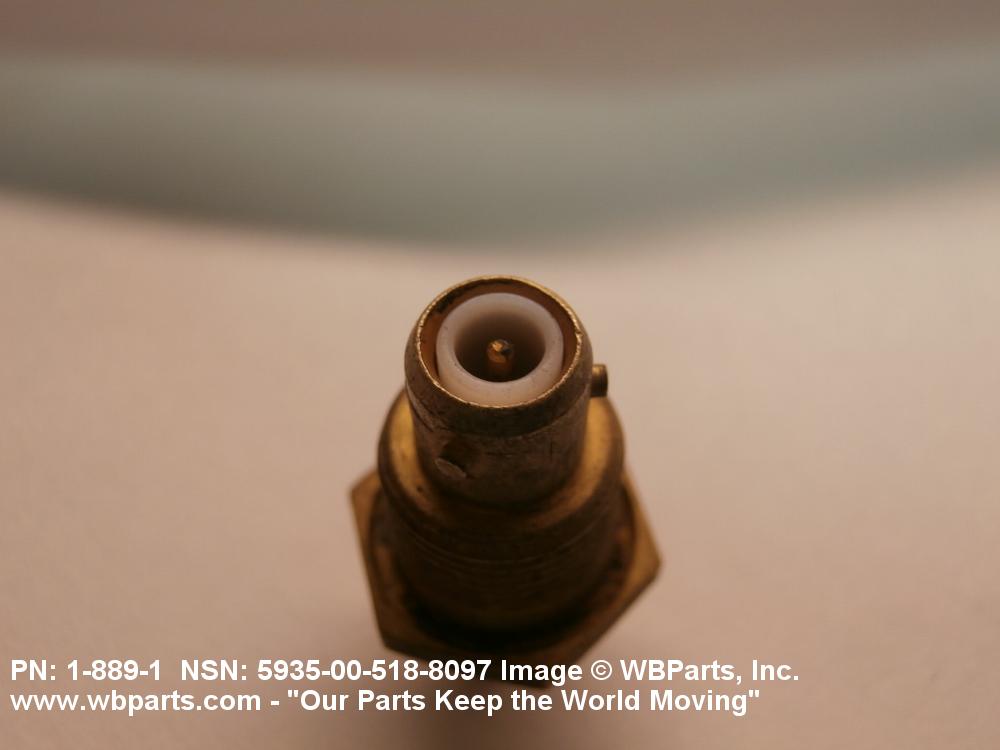

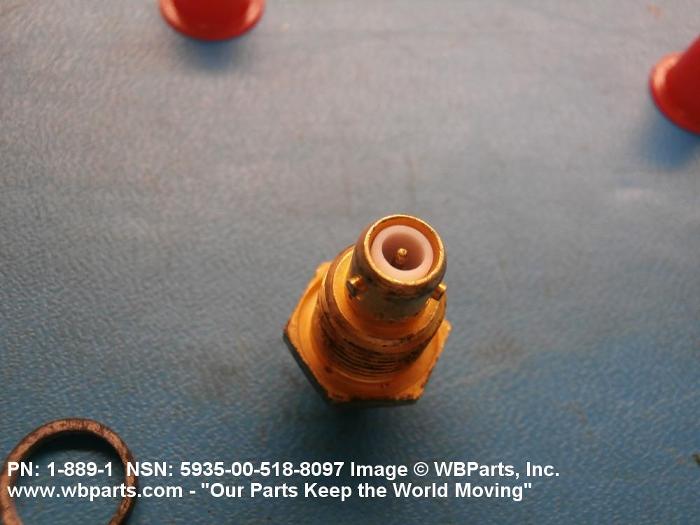

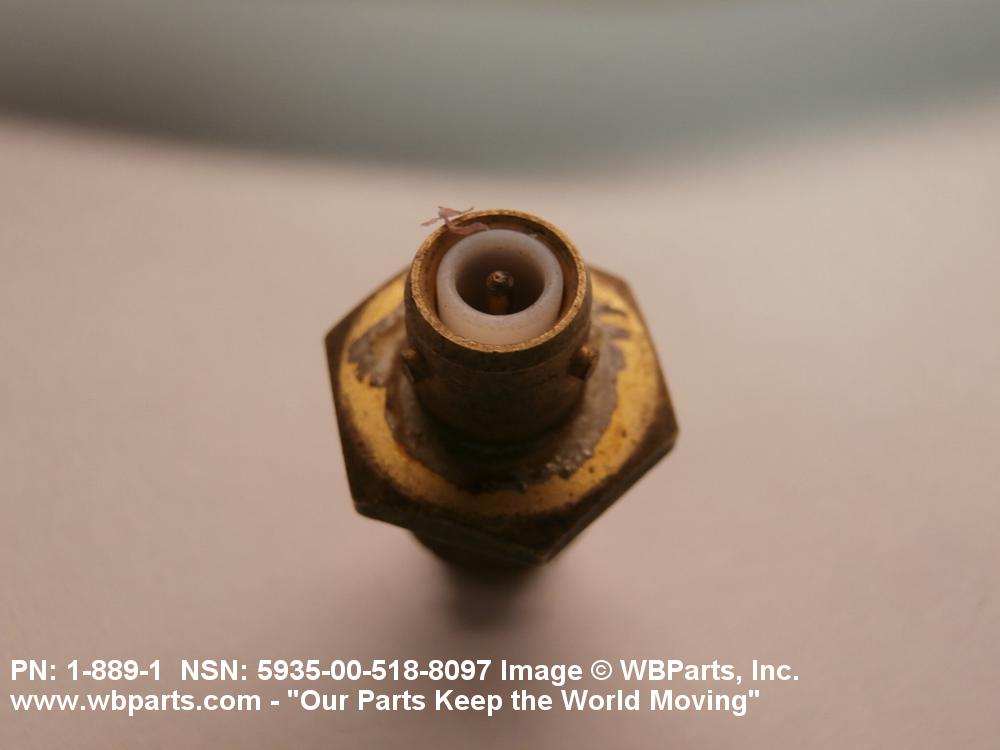

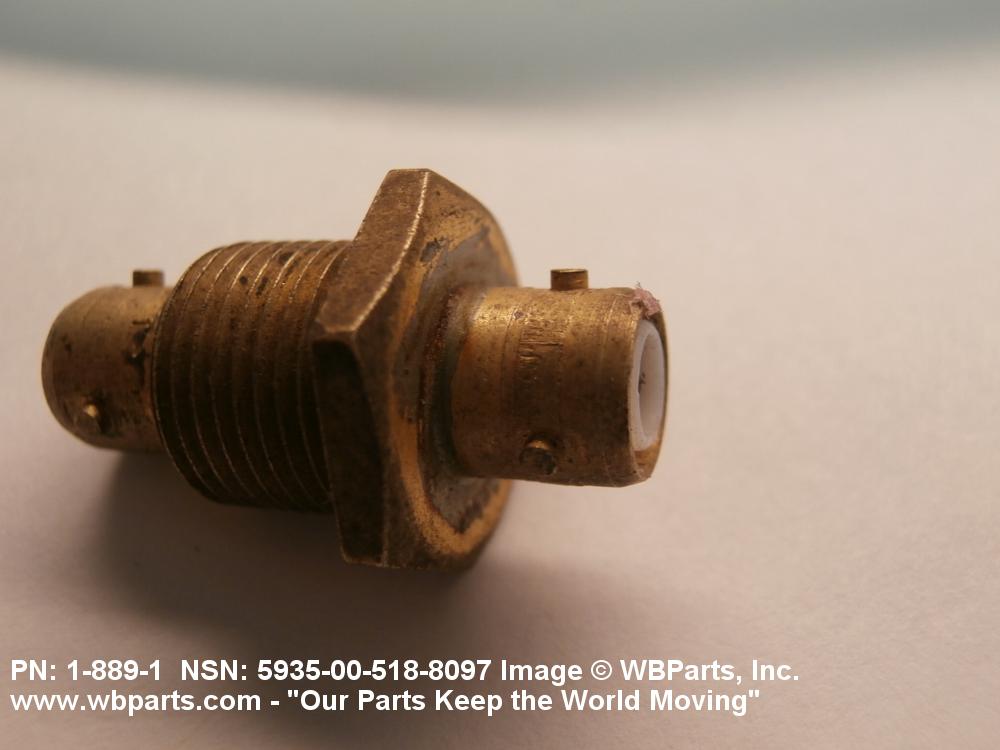

Drawings & Photos | NSN 5935-00-518-8097
Demand History | NSN 5935-00-518-8097
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 33-1889-1 | 2023-06-15 | 30 | DIBBS |
| FB6E | 2023-06-15 | 30 | DIBBS |
| 33-1889-1 | 2022-07-28 | 23 | DIBBS |
| FB6E | 2022-07-28 | 23 | DIBBS |
| 33-1889-1 | 2022-02-03 | 14 | DIBBS |
| FB6E | 2022-02-03 | 14 | DIBBS |
| 5935-00-518-8097 | 2019-04-10 | 8 | India |
| 5935-00-518-8097 | 2017-10-06 | 6 | Malaysia |
| 5935-00-518-8097 | 2017-08-06 | 97 | DIBBS |
| 18891 | 2017-02-01 | 7 | Malaysia |
| 5935-00-518-8097 | 2017-01-24 | 7 | Malaysia |
| 18891 | 2017-01-20 | 7 | Malaysia |
| 5935-00-518-8097 | 2015-03-04 | 47 | DIBBS |
| 1-889-1 | 2015-01-14 | 12 | IN |
| 18891 | 2012-11-27 | 3 | United States |
| 1-889-1 | 2012-06-08 | 3 | United States |
| 1-889-1 | 2012-04-02 | 3 | United States |
| 5935-00-518-8097 | 2010-12-01 | 63 | DIBBS |
| 3318891 | 2010-02-03 | 10 | Italy |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5935-00-518-8097
Related Products | NSN 5935-00-518-8097
5935-00-518-8117, 5935-00-518-8128, 5935-00-518-8161, 5935-00-518-8166, 5935-00-518-8167
Technical Data | NSN 5935-00-518-8097
| Characteristic | Specifications |
|---|---|

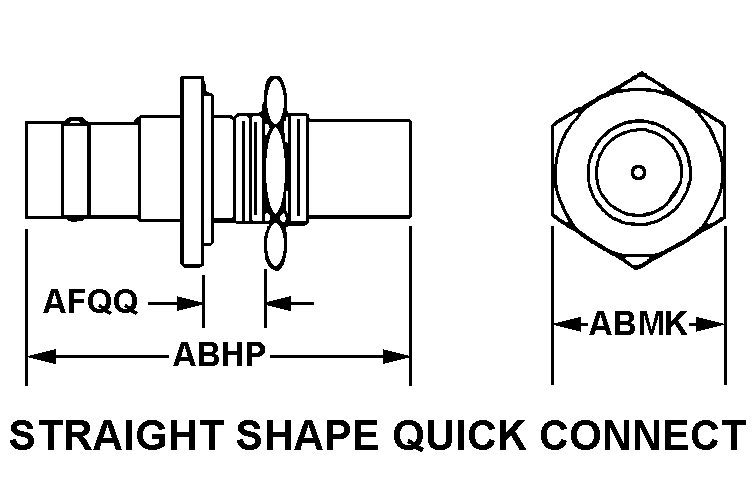

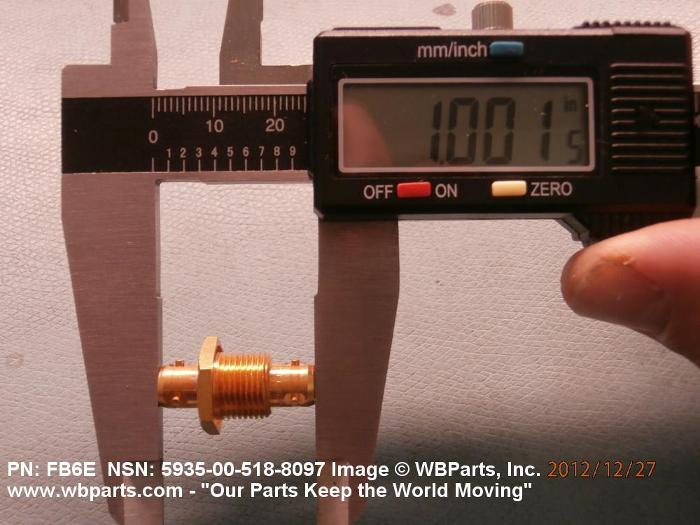

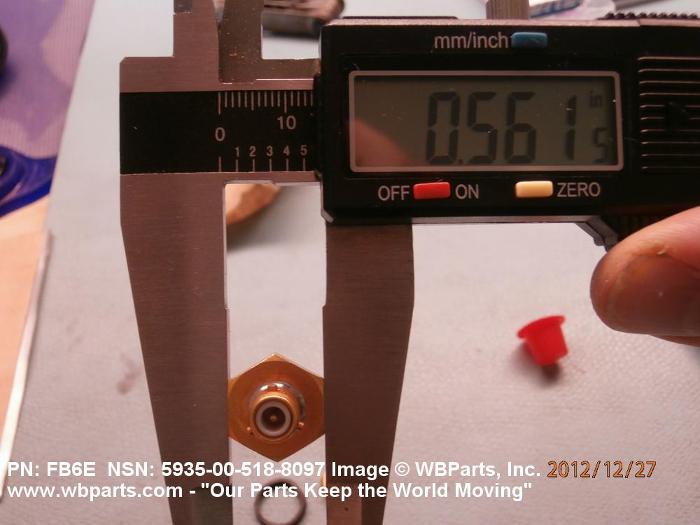

| BODY STYLE | 22N STRAIGHT SHAPE QUICK CONNECT |
| OVERALL LENGTH | 0.812 INCHES NOMINAL |
| OVERALL WIDTH | 0.562 INCHES NOMINAL |
| MOUNTING FACILITY THICKNESS | 0.219 INCHES NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| THREADED DEVICE TYPE | MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.437 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | GOLD AND SILVER |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-S-365 FED SPEC 2ND TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 240.0 |
| MATING END QUANTITY | 2 |
| CONTACT POSITION ARRANGEMENT STYLE | ABBR DM ALL MATING ENDS |
| INSERT MATERIAL | PLASTIC POLYAMIDE ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 1 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-S-365 FED SPEC 2ND TREATMENT RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | PRESSURE PROOF AND WATERTIGHT |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.110 GOLD GRAINS, TROY AND 0.110 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | BODY AND CONTACT SURFACES GOLD AND BODY AND CONTACT SURFACES SILVER |
