NSN 5935-00-534-7548 S010227129, S0-1022-7129, GS8063B1
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-534-7548 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: S010227129, S0-1022-7129, GS8063B1, 5935-00-534-7548, 00-534-7548, 5935005347548, 005347548
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 SEP 1974 | 00-534-7548 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-534-7548
Demand History | NSN 5935-00-534-7548
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-534-7548 | 2013-04-112 | 4 | Canada |
| 5935-00-534-7548 | 2010-12-350 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-534-7548
Technical Data | NSN 5935-00-534-7548
| Characteristic | Specifications |
|---|---|

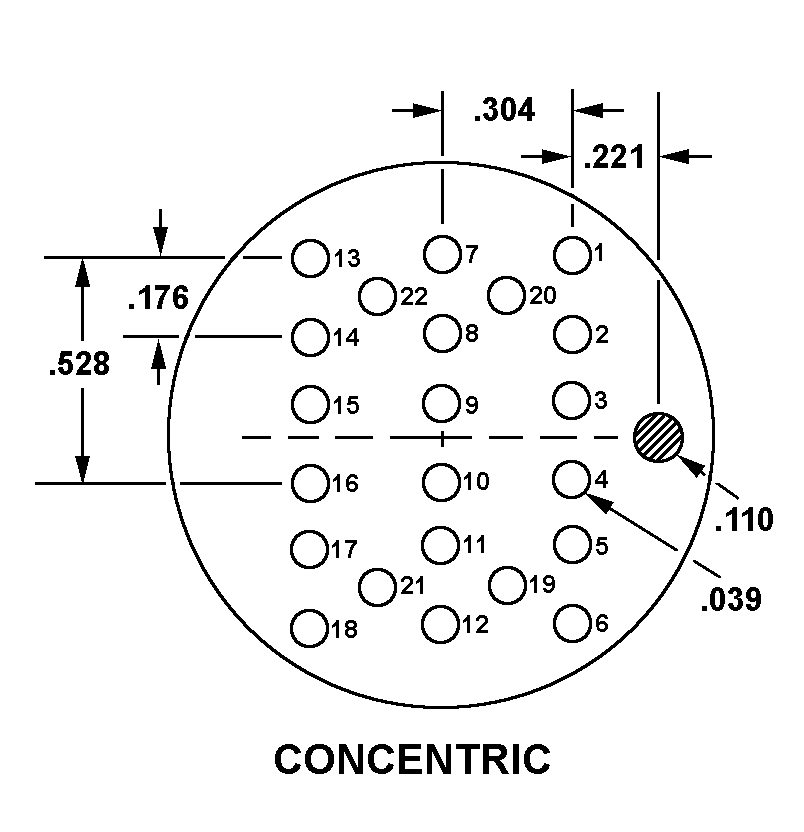

| CONTACT POSITION ARRANGEMENT STYLE | 2200A CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 22 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL |
| BODY STYLE | 17B TOP OR BOTTOM MOUNT W/MOLDED SADDLE AND BUSHING |
| OVERALL LENGTH | 2.218 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.585 INCHES MAXIMUM |
| OVERALL WIDTH | 1.343 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.093 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 22 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE STYLE | 14D ROUND, W/THREE MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.281 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.844 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION TYPE | CONTACT POSITION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.022 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-534-7548
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-534-7548
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
