NSN 5935-00-539-2854 Q7059118, Q70591-18, Z7059118

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-539-2854 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: Q7059118, Q70591-18, Z7059118, Z70591-18, 5965VY, 7418442P1, 8900282, 08170, 08-170, 147053, 147-053, 430252, 5266, 579, 5935-00-539-2854, 00-539-2854, 5935005392854, 005392854

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-539-2854	01938 ( CONNECTOR, PLUG, ELECTRICAL )

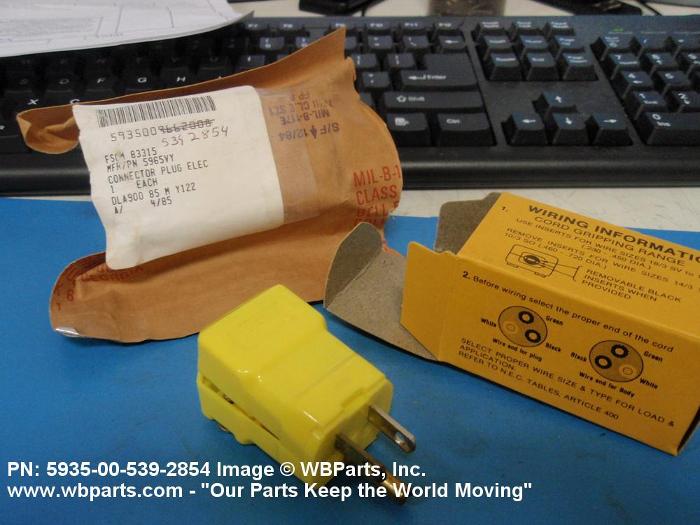

Drawings & Photos | NSN 5935-00-539-2854

Part Number	Request Date	QTY	Origin	SBA
5935-00-539-2854	2013-02-43	6	MANUAL
5965VY	2011-02-56	2	United States

Cross Reference | NSN 5935-00-539-2854

Part Number	Cage Code	Manufacturer
08-170	00816	PALOMAR PRODUCTS, INC.
147-053	92739	AMPEX SYSTEMS CORP
430252	K1182	THALES UK LIMITED DBA THALES UK LTDTRAINING AND SIMULATION
5266	04009	COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV
5266	71183	BRYANT ELECTRIC
5266	74545	HUBBELL INC WIRING DEVICE DIV
579	77881	HUBBELL-RACO INC
5965VY	74545	HUBBELL INC WIRING DEVICE DIV
7418442P1	03538	LOCKHEED MARTIN CORPORATION DIV MST
7418442P1	24446	GENERAL ELECTRIC CO
8900282	18876	U S ARMY AVIATION AND MISSILE COMMAND
Q70591-18	19315	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND
Q70591-18	55974	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
Z70591-18	06840	BENDIX CORP THE
Z70591-18	19315	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND
Z70591-18	59364	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
Z70591-18	77068	ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-539-2854

Compare

Related Products | NSN 5935-00-539-2854

5935-00-539-2856, 5935-00-539-2857, 5935-00-539-2859, 5935-00-539-2889, 5935-00-539-2891

Technical Data | NSN 5935-00-539-2854

Characteristic	Specifications
BODY STYLE	8C STRAIGHT SHAPE W/CLAMP
OVERALL HEIGHT	2.248 INCHES NOMINAL
OVERALL DIAMETER	1.531 INCHES NOMINAL
CONNECTOR LOCKING METHOD	SPRING FRICTION
CONNECTOR CABLE STRAIN RELIEF METHOD	CABLE CLAMP
CABLE ENTRANCE DIAMETER	0.625 INCHES MAXIMUM
POLARIZATION METHOD	CONTACT
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ADDS 3,5-15 SINGLE MATING END
INSERT MATERIAL	RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END 1ST CONTACT GROUPING 2 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	U-PIN SINGLE MATING END 1ST CONTACT GROUPING FLAT PIN SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	15.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	125.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS	125.0 SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	SCREW SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	FRONT SINGLE MATING END ALL CONTACT GROUPINGS

Restrictions/Controls & Freight Information | NSN 5935-00-539-2854

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
No Freight Information

Management | NSN 5935-00-539-2854

Navy

Category	Code	Description
Cognizance Codes	9N	Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg
Source of Supply	S9E	Defense Supply Center Columbus Columbus, OH 43218
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
