NSN 5935-00-578-4735 PG316, PG31-6, 1057
Product Details | TELEPHONE PLUG
5935-00-578-4735 A concentric type electrical fitting consisting of two or more conductors on a common shank. The contacts on two or three conductor plugs are termed sleeve, tip, or ring. It includes multiple shank plugs of this type. Excludes PLUG, TIP.
Part Alternates: PG316, PG31-6, 1057, 118735, 260, 6, 6814, 76, 88455162, 5935-00-578-4735, 00-578-4735, 5935005784735, 005784735
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-578-4735 | 00178 ( PLUG, TELEPHONE ) |
Drawings & Photos | NSN 5935-00-578-4735
Demand History | NSN 5935-00-578-4735
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 260 | 2024-10-289 | 6 | US |
| 76 | 2017-09-269 | 10 | US |
| 6814 | 2011-01-25 | 4 | Hong Kong |
| 5935-00-578-4735 | 2008-09-267 | 14 | DIBBS |
| 5935-00-578-4735 | 2007-02-47 | 14 | DIBBS |
Cross Reference | NSN 5935-00-578-4735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1057 | 71218 | BUD INDUSTRIES, INC. |
| 118735 | 37942 | YOSEMITE INVESTMENT INC DBA NORTH AMERICAN CAPACITOR CO |
| 260 | 82389 | SWITCHCRAFT INC. |
| 6 | 80331 | UTAH-AMERICAN CORP |
| 6814 | 35351 | GE AVIATION SYSTEMS LLC |
| 6814 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 76 | 76055 | MALLORY CONTROLS CO SUB OF EMHART INDUSTRIES INC |
| 88455162 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| PG31-6 | 80331 | UTAH-AMERICAN CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-578-4735
Related Products | NSN 5935-00-578-4735
Technical Data | NSN 5935-00-578-4735
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | THREE CONDUCTOR, CONE TIP SINGLE FINGER |
| FINGER LENGTH | 1.188 INCHES NOMINAL SINGLE FINGER |
| FINGER DIAMETER | 0.250 INCHES NOMINAL SINGLE FINGER |

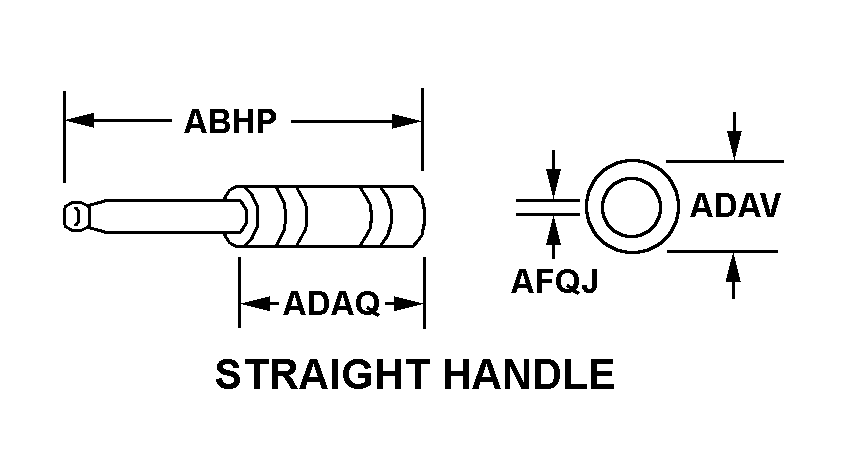

| BODY STYLE | 7 STRAIGHT HANDLE |
| OVERALL LENGTH | 2.891 INCHES NOMINAL |
| BODY LENGTH | 1.703 INCHES NOMINAL |
| OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.266 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | BRASS FINGER PLASTIC HANDLE PLASTIC INSULATOR |
| SURFACE TREATMENT | NICKEL FINGER |
| IDENTIFICATION CODE COLOR | BLACK |
| TERMINAL TYPE | SCREW |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
| MANUFACTURERS CODE | 82389 |
| DESIGN CONTROL REFERENCE | 260 |
Restrictions/Controls & Freight Information | NSN 5935-00-578-4735
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063300 | TELEPHONE TELEPHONE PART ARTICLE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 774 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-578-4735
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
