Product Details | TIP PLUG
5935-00-578-9230 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: 674P, 5935-00-578-9230, 00-578-9230, 5935005789230, 005789230
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-578-9230 | 15046 ( PLUG, TIP ) |
Drawings & Photos | NSN 5935-00-578-9230
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-578-9230
Technical Data | NSN 5935-00-578-9230
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | BANANA SPRING SINGLE FINGER |
| FINGER LENGTH | 1.000 INCHES NOMINAL SINGLE FINGER |
| FINGER DIAMETER | 0.500 INCHES NOMINAL SINGLE FINGER |

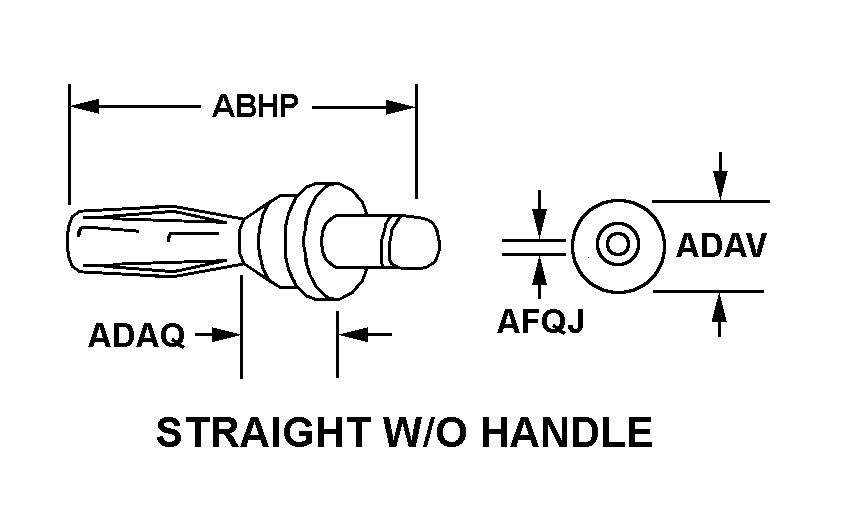

| BODY STYLE | 9 STRAIGHT W/O HANDLE |
| OVERALL LENGTH | 1.532 INCHES NOMINAL |
| BODY LENGTH | 0.532 INCHES NOMINAL |
| OVERALL DIAMETER | 0.625 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | BERYLLIUM COPPER FINGER |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | SOLDER WELL |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
