NSN 5935-00-583-2297 G-913, L01019, 922715-0002-000
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-583-2297 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: G-913, L01019, 922715-0002-000, G913, 850644, 09359140, 100243, 12511757, 1251-1757, 126220, 126-220, 2350199, 301233, 551221, 551-221, 5935-00-583-2297, 00-583-2297, 9227150002000, 5935005832297, 005832297
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-583-2297 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-583-2297
Cross Reference | NSN 5935-00-583-2297
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 09359140 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 100243 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
| 1251-1757 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1251-1757 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 126-220 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 126-220 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 2350199 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 301233 | 02145 | RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C. |
| 551-221 | 13848 | JOHNSON E F CO COMCO/COMMUNICATIONS CO DIV |
| 850644 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 922715-0002-000 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| G-913 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
| L01019 | 16236 | DLA LAND AND MARITIME |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-583-2297
Related Products | NSN 5935-00-583-2297
Technical Data | NSN 5935-00-583-2297
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 6C STRAIGHT SHAPE W/CLAMP |
| OVERALL HEIGHT | 1.422 INCHES NOMINAL |
| OVERALL DIAMETER | 0.750 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | CLIP |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.219 INCHES NOMINAL |
| SHELL TYPE | HOOD, TOP OPENING |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | NICKEL |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

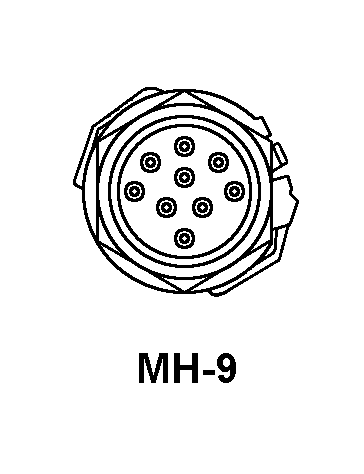

| CONTACT POSITION ARRANGEMENT STYLE | AKAA MH-9 SINGLE MATING END |
