NSN 5935-00-587-1941 SK116A, VBE4063, VBE406-3
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-587-1941 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: SK116A, VBE4063, VBE406-3, 8600426, 860042-6, 481867, 5935-00-587-1941, 00-587-1941, 5935005871941, 005871941
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-587-1941 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-587-1941
Cross Reference | NSN 5935-00-587-1941
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 481867 | F0057 | THALES COMMUNICATIONS & SECURITY S.A.S |
| 860042-6 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 860042-6 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| SK116A | 09975 | UNISYS CORPORATION |
| VBE406-3 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-587-1941
Technical Data | NSN 5935-00-587-1941
| Characteristic | Specifications |
|---|---|

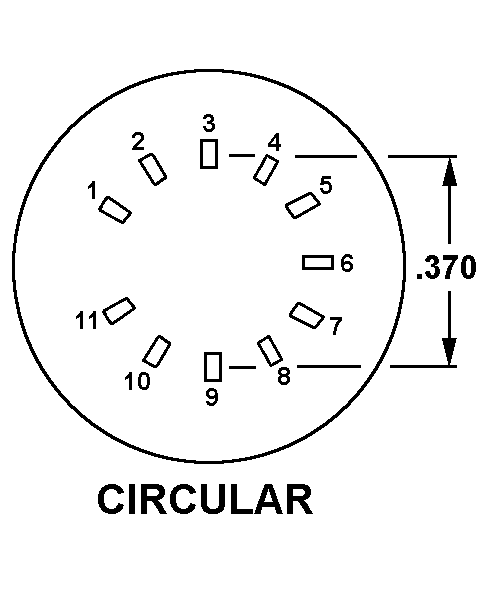

| CONTACT POSITION ARRANGEMENT STYLE | 1101A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 11 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 3B TOP OR BOTTOM MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.094 INCHES NOMINAL |
| OVERALL HEIGHT | 0.437 INCHES NOMINAL |
| OVERALL WIDTH | 0.734 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | ANY ACCEPTABLE |
| BODY MATERIAL | PLASTIC AND MICA |
| TERMINAL TYPE AND QUANTITY | 11 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | 17D TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 1.103 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.875 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT SHAPE |
| III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| III FABRICATION METHOD | MOLDED |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.011 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
