NSN 5935-00-600-5159 185016-401, 21811, 9172308
Product Details | ELECTRICAL CONNECTOR GUIDE
5935-00-600-5159 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Part Alternates: 185016-401, 21811, 9172308, 5935-00-600-5159, 00-600-5159, 5935006005159, 185016401, 006005159
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-600-5159 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-600-5159
Demand History | NSN 5935-00-600-5159
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 21811 | 2018-04-95 | 1 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-600-5159
Technical Data | NSN 5935-00-600-5159
| Characteristic | Specifications |
|---|---|

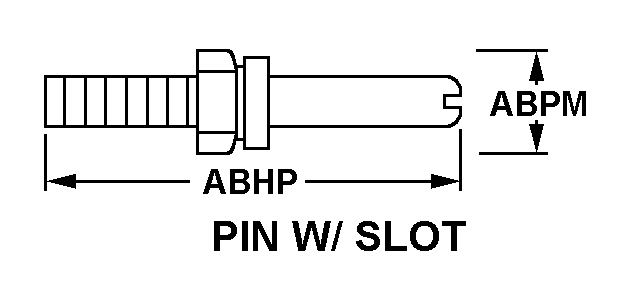

| STYLE DESIGNATOR | 6L PIN W/SLOT |
| OVERALL LENGTH | 0.807 INCHES NOMINAL |
| BODY DIAMETER | 0.187 INCHES NOMINAL |
| MATERIAL | BRASS |
| SURFACE TREATMENT | GOLD FLASH AND SILVER PLATED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BODY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.330 INCHES |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.100 GOLD GRAINS, TROY AND 0.100 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | BODY SURFACE GOLD AND BODY SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-600-5159
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | C | Item contains two or more precious metals |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
