NSN 5935-00-602-1597 27805, 27-805, 00-602-1597
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-602-1597 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 27805, 27-805, 5935-00-602-1597, 00-602-1597, 5935006021597, 006021597
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JAN 1975 | 00-602-1597 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-602-1597
Cross Reference | NSN 5935-00-602-1597
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27-805 | 74868 | AMPHENOL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-602-1597
Technical Data | NSN 5935-00-602-1597
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5D STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.266 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | SILVER |
| MATING END QUANTITY | 1 |

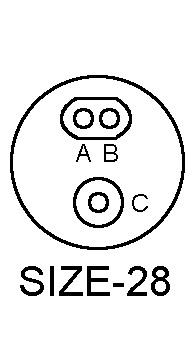

| CONTACT POSITION ARRANGEMENT STYLE | ADDB SIZE-28 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
Restrictions/Controls & Freight Information | NSN 5935-00-602-1597
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
