NSN 5935-00-632-4006 00-632-4006, 006324006
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-632-4006 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 5935-00-632-4006, 00-632-4006, 5935006324006, 006324006
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-632-4006 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-632-4006
Cross Reference | NSN 5935-00-632-4006
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12079 | 74545 | HUBBELL INC WIRING DEVICE DIV |
| 122-234-200 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 2340 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 589642-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 727825 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| ES0678078-1 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| ES0678078-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| ES0678078-1 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| ES0678078-1 | 70408 | AT AND T CORP |
| V82-5005P3 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| V82-5005P3 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-632-4006
Technical Data | NSN 5935-00-632-4006
| Characteristic | Specifications |
|---|---|

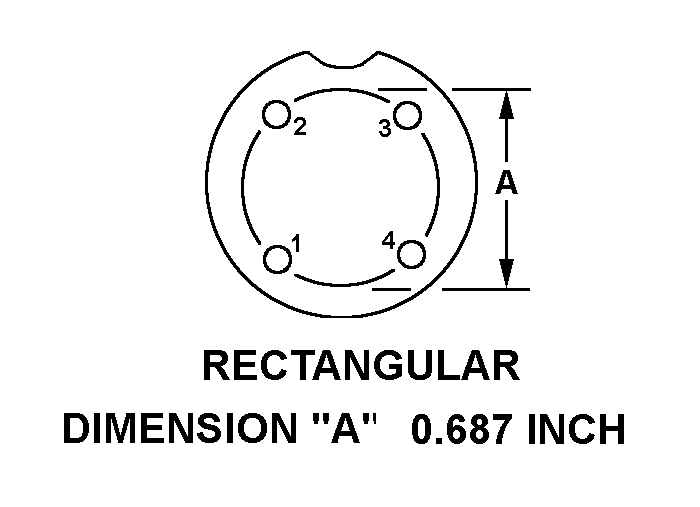

| CONTACT POSITION ARRANGEMENT STYLE | 407A RECTANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | SILVER |
| BODY STYLE | 67B TOP MOUNT |
| OVERALL HEIGHT | 0.312 INCHES NOMINAL |
| OVERALL DIAMETER | 3.188 INCHES MINIMUM AND 3.312 INCHES MAXIMUM |
| BODY MATERIAL | CERAMIC |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | 17D TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.812 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| III BODY SURFACE TREATMENT | GLAZED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.020 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-632-4006
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
