NSN 5935-00-683-1419 14RS1, 2036214017, 203-62-14-017
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-683-1419 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 14RS1, 2036214017, 203-62-14-017, 2036214017MOD, 2036214085, 203-62-14-085, 45648781, 4564878-1, 47003, 54A17687, 7415185P001, 7415185P1, 74306681, 7430668-1, 9059700 , 92101001, 92101-001, TMDC , 5935-00-683-1419, 00-683-1419, 5935006831419, 006831419
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-683-1419 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-683-1419
Demand History | NSN 5935-00-683-1419
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 47003 | 2019-08-227 | 1 | United States |
Cross Reference | NSN 5935-00-683-1419
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14RS1 | 71785 | CINCH CONNECTORS, INC. |
| 203-62-14-017 | 71785 | CINCH CONNECTORS, INC. |
| 203-62-14-085 | 71785 | CINCH CONNECTORS, INC. |
| 2036214017 | 71785 | CINCH CONNECTORS, INC. |
| 2036214017MOD | 71785 | CINCH CONNECTORS, INC. |
| 4564878-1 | 28528 | ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS |
| 4564878-1 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| 47003 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 54A17687 | 71785 | CINCH CONNECTORS, INC. |
| 7415185P001 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7415185P1 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7415185P1 | 24446 | GENERAL ELECTRIC CO |
| 7430668-1 | 24446 | GENERAL ELECTRIC CO |
| 7430668-1 | 99142 | GENERAL ELECTRIC CO INDUSTRIAL ELECTRONICS DIVISION |
| 92101-001 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-683-1419
Related Products | NSN 5935-00-683-1419
Technical Data | NSN 5935-00-683-1419
| Characteristic | Specifications |
|---|---|

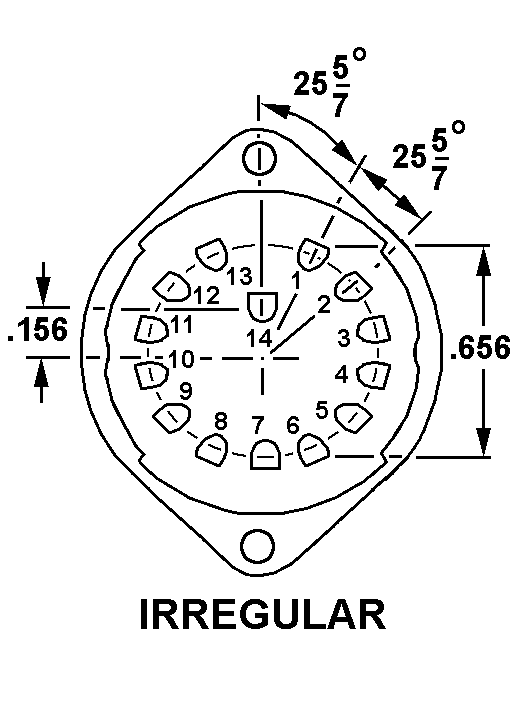

| CONTACT POSITION ARRANGEMENT STYLE | 1408A IRREGULAR |
