NSN 5935-00-686-2435 RP9005G2, 03820023018, 038-20023-018
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-686-2435 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: RP9005G2, 03820023018, 038-20023-018, 2012409, 54A24745, 913B840P1, 5935-00-686-2435, 00-686-2435, 5935006862435, 006862435
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-686-2435 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-686-2435
Demand History | NSN 5935-00-686-2435
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-686-2435 | 2016-05-129 | 51 | DIBBS |
| 5935-00-686-2435 | 2007-08-222 | 19 | DIBBS |
Cross Reference | NSN 5935-00-686-2435
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 038-20023-018 | 12131 | LH ENTERPRISE |
| 2012409 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 54A24745 | 71785 | CINCH CONNECTORS, INC. |
| 913B840P1 | 24446 | GENERAL ELECTRIC CO |
| 913B840P1 | 89954 | BAE SYSTEMS CONTROLS INC. |
| RP9005G2 | 00779 | TYCO ELECTRONICS CORPORATION |
| RP9005G2 | 58614 | TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES |
| RP9005G2 | 71482 | CP CLARE CORP NORTH AMERICAN SALES OPERATIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-686-2435
Technical Data | NSN 5935-00-686-2435
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 802A DUAL IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | SILVER |
| BODY STYLE | 69B TOP MOUNT |
| OVERALL LENGTH | 0.930 INCHES MINIMUM AND 0.950 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.188 INCHES NOMINAL |
| OVERALL HEIGHT | 0.468 INCHES NOMINAL |
| OVERALL WIDTH | 0.553 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |

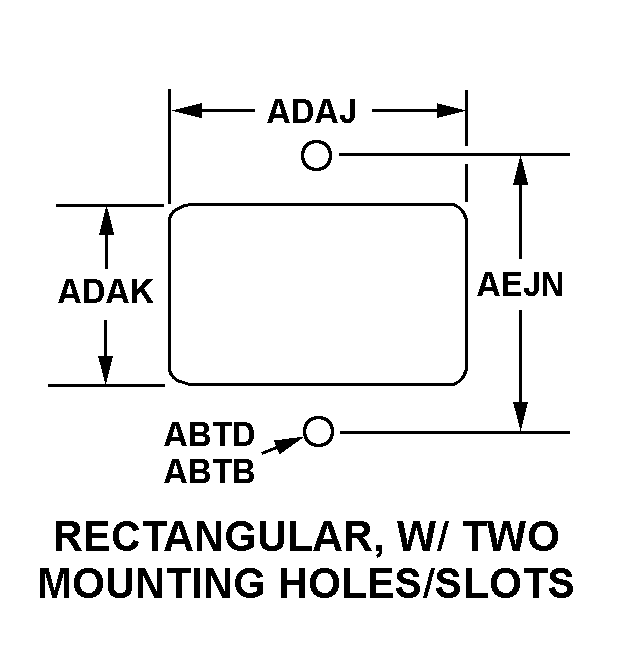

| MOUNTING HOLE STYLE | 26D RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
