NSN 5935-00-686-2617 N20884168, N2088416-8, SM4220P
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-686-2617 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: N20884168, N2088416-8, SM4220P, SM42-20P, 09P23660415, 09P236604-15, 20884168, 2088416-8, 2949123, 2949-123, 5935-00-686-2617, 00-686-2617, 5935006862617, 006862617
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-686-2617 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-686-2617
Cross Reference | NSN 5935-00-686-2617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 09P236604-15 | 98738 | HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS |
| 2088416-8 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| 2088416-8 | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 2949-123 | 11871 | RECON/OPTICAL, INC. |
| 2949-123 | 80294 | BOURNS INSTRUMENTS INC |
| N2088416-8 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| N2088416-8 | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| SM42-20P | 95238 | WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-686-2617
Technical Data | NSN 5935-00-686-2617
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 17G STRAIGHT SHAPE |
| OVERALL LENGTH | 1.810 INCHES NOMINAL |
| OVERALL HEIGHT | 0.530 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.562 INCHES NOMINAL |
| THREADED DEVICE TYPE | MOUNTING STUD |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 56 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| MATING END QUANTITY | 1 |

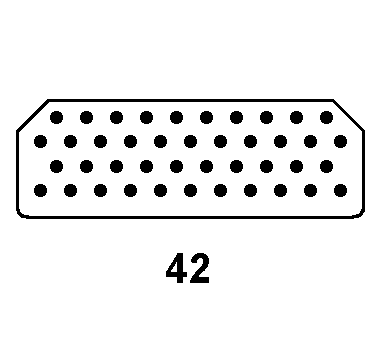

| CONTACT POSITION ARRANGEMENT STYLE | BUAF 42 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-19833 TYPE GDI-30 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 42 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.042 GOLD GRAINS, TROY AND 0.042 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD AND CONTACT SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-686-2617
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5935-00-686-2617
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
