NSN 5935-00-687-1687 DM97003SW, DM9700-3SW, RT97003SW

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-687-1687 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: DM97003SW, DM9700-3SW, RT97003SW, RT9700-3SW , 1115403003, 11-154-03-003, 5935-00-687-1687, 00-687-1687, 5935006871687, 006871687

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-687-1687	01938 ( CONNECTOR, PLUG, ELECTRICAL )

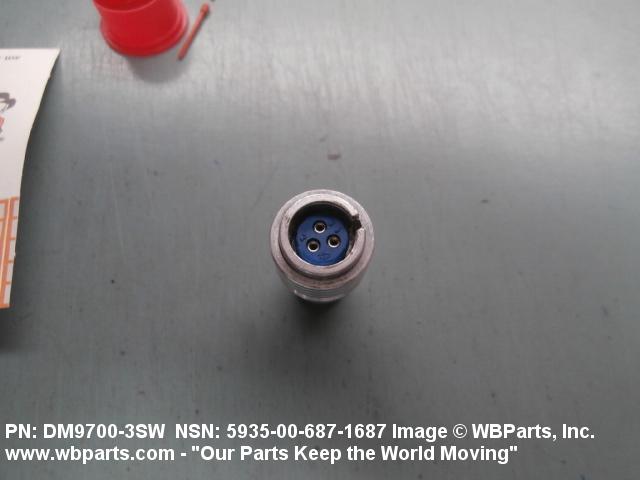

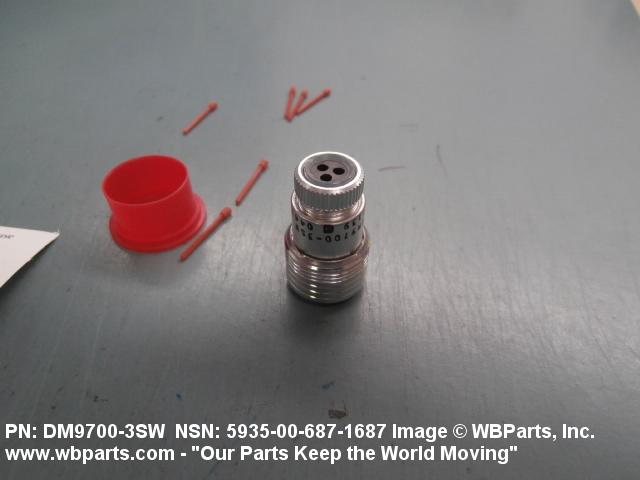

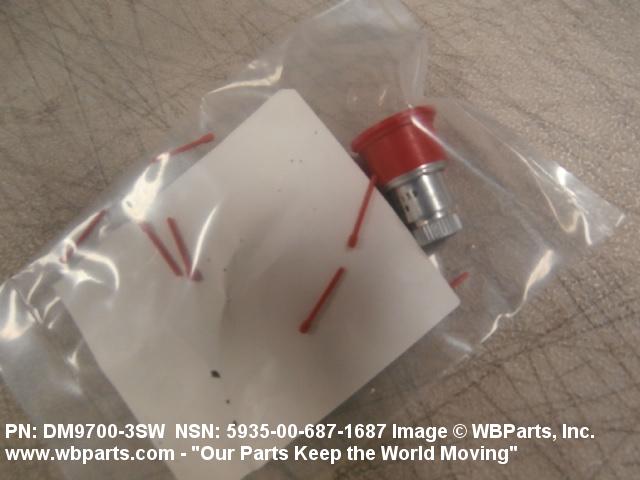

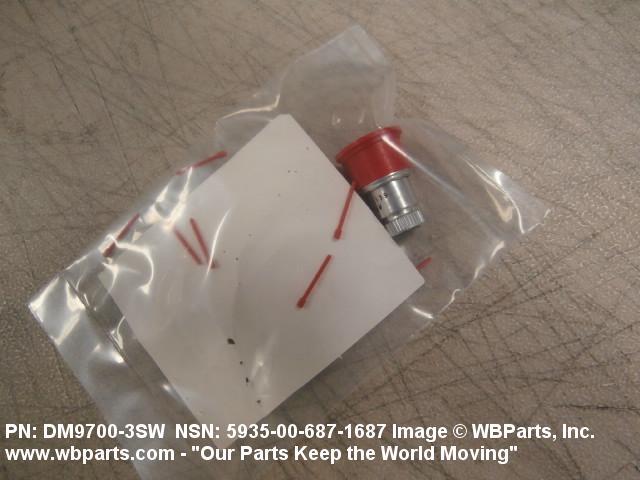

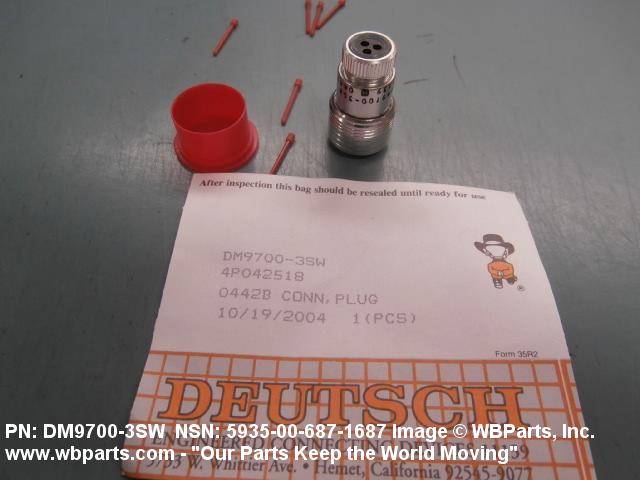

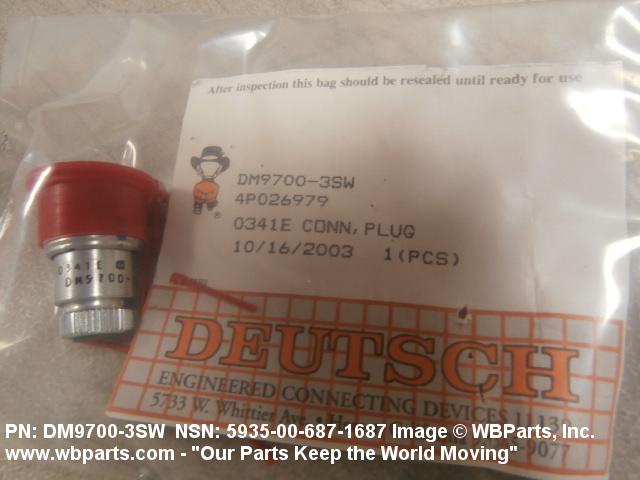

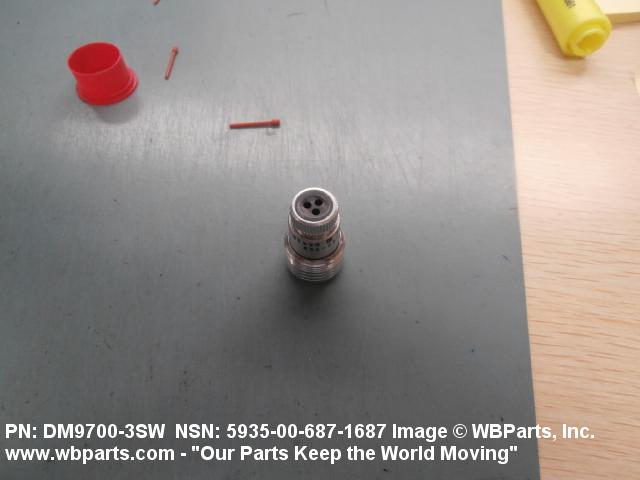

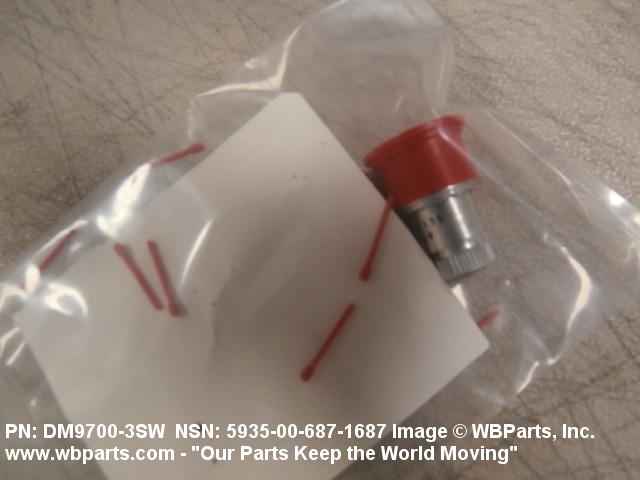

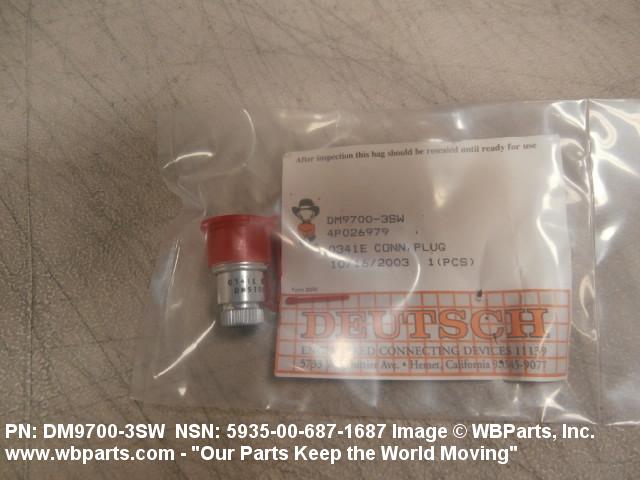

Drawings & Photos | NSN 5935-00-687-1687

Part Number	Request Date	QTY	Origin
DM9700-3SW	2023-05-131	8	DIBBS
RT9700-3SW	2023-05-131	8	DIBBS
DM9700-3SW	2023-04-115	8	DIBBS
RT9700-3SW	2023-04-115	8	DIBBS
DM9700-3SW	2022-04-100	158	DIBBS
RT9700-3SW	2022-04-100	158	DIBBS
DM9700-3SW	2021-05-124	245	DIBBS
RT9700-3SW	2021-05-124	245	DIBBS
DM9700-3SW	2021-04-109	245	DIBBS
RT9700-3SW	2021-04-109	245	DIBBS
5935-00-687-1687	2021-03-74	1	US
DM9700-3SW	2020-04-110	140	DIBBS
RT9700-3SW	2020-04-110	140	DIBBS
DM9700-3SW	2020-01-30	124	DIBBS
RT9700-3SW	2020-01-30	124	DIBBS
DM9700-3SW	2019-11-325	154	DIBBS
RT9700-3SW	2019-11-325	154	DIBBS
DM9700-3SW	2019-10-276	114	DIBBS
RT9700-3SW	2019-10-276	114	DIBBS
DM9700-3SW	2019-08-227	111	DIBBS
RT9700-3SW	2019-08-227	111	DIBBS
DM9700-3SW	2019-03-84	63	DIBBS
RT9700-3SW	2019-03-84	63	DIBBS
DM9700-3SW	2019-03-73	63	DIBBS
RT9700-3SW	2019-03-73	63	DIBBS
DM9700-3SW	2019-02-42	62	DIBBS
RT9700-3SW	2019-02-42	62	DIBBS
DM9700-3SW	2019-01-31	62	DIBBS
RT9700-3SW	2019-01-31	62	DIBBS
5935-00-687-1687	2018-09-253	113	DIBBS
5935-00-687-1687	2018-08-235	113	DIBBS
5935-00-687-1687	2018-05-127	131	DIBBS
5935-00-687-1687	2018-04-116	131	DIBBS
5935-00-687-1687	2017-06-155	52	DIBBS
5935-00-687-1687	2016-03-82	61	DIBBS
5935-00-687-1687	2016-03-75	1	DIBBS-RFPs
5935-00-687-1687	2016-02-35	99	DIBBS
5935-00-687-1687	2015-10-286	100	DIBBS
5935-00-687-1687	2015-05-130	90	DIBBS
5935-00-687-1687	2015-02-33	55	DIBBS
5935-00-687-1687	2014-08-230	94	DIBBS
5935-00-687-1687	2014-08-217	94	DIBBS
5935-00-687-1687	2014-06-170	32	United States
5935-00-687-1687	2014-06-170	24	United States
5935-00-687-1687	2014-06-170	1	United States
5935-00-687-1687	2014-04-112	57	DIBBS
5935-00-687-1687	2013-06-165	90	DIBBS
5935-00-687-1687	2013-05-150	90	DIBBS
5935-00-687-1687	2013-05-134	90	DIBBS
5935-00-687-1687	2011-04-91	44	DIBBS
5935-00-687-1687	2010-09-253	38	DIBBS
5935-00-687-1687	2010-04-96	9	DIBBS
5935-00-687-1687	2010-02-57	16	DIBBS

Cross Reference | NSN 5935-00-687-1687

Part Number	Cage Code	Manufacturer
11-154-03-003	78022	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
DM9700-3SW	11139	DEUTSCH ENGINEERED CONNECTING DEVICES INC
DM9700-3SW	17419	DEUTSCH CO THE
RT9700-3SW	27456	DCX-CHOL ENTERPRISES, INC. DBA TELETRONIC DIVISION OF DCX-CHOL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-687-1687

Compare

Related Products | NSN 5935-00-687-1687

5935-00-687-1688, 5935-00-687-1690, 5935-00-687-1691, 5935-00-687-1692, 5935-00-687-1695

Technical Data | NSN 5935-00-687-1687

Characteristic	Specifications
BODY STYLE	9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL

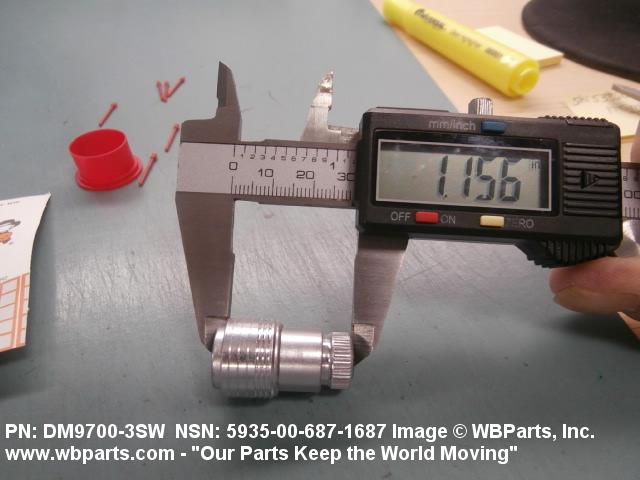

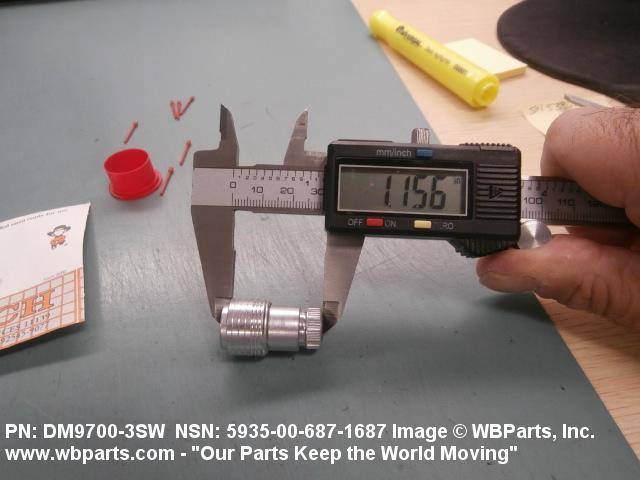

OVERALL LENGTH	1.156 INCHES NOMINAL

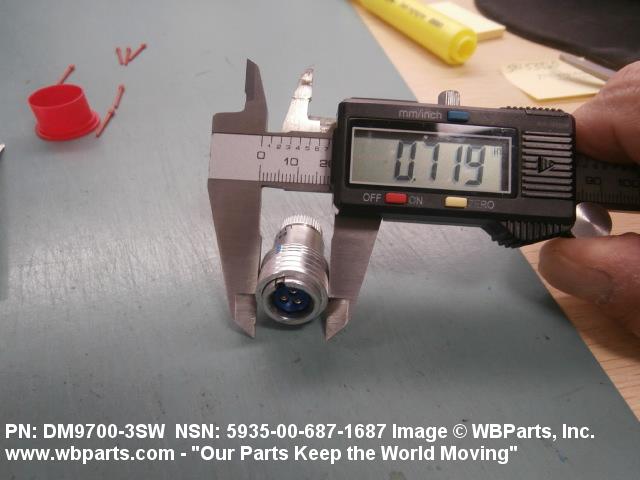

OVERALL DIAMETER	0.719 INCHES NOMINAL
CONNECTOR LOCKING METHOD	PUSH-PULL
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	335.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ADAX 20-3 SINGLE MATING END
INSERT MATERIAL	RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY	3 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	7.5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-S-365 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	HUMIDITY RESISTANT AND CORROSION RESISTANT AND SHOCK RESISTANT AND HEAT RESISTANT AND COLD RESISTANT AND VIBRATION RESISTANT
III PRECIOUS MATERIAL	GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT	0.003 GOLD GRAINS, TROY AND 0.003 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER

Restrictions/Controls & Freight Information | NSN 5935-00-687-1687

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-687-1687

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
