NSN 5935-00-702-4199 MS1610824, MS16108-24, MS161082A

Product Details | TIP JACK

5935-00-702-4199 An electrical fitting with a female contact arranged for the insertion of a PLUG, TIP or a TIP, TEST PROD. It has a single facility for attachment of a conductor or facility for circuit connection through its mounting provisions. The item may or may not be insulated. Excludes multisection types each section of which consists of a single contact spring or telephone-type jack. Excludes CONNECTOR, RECEPTACLE ELECTRICAL; JACK, TELEPHONE; JACK ASSEMBLY, TIP; and POST, BINDING.

Part Alternates: MS1610824, MS16108-24, MS161082A, MS16108-2A, MS161082B, MS16108-2B, MS16108R2A, MS39024102, MS39024-10-2, M39014/10-02, M390141002, M39024/01-02, M39024/10-002, M39024/10-02, M39024/1-02, M39024/10-2, M39024/10A-02, M39024/10C-02, M390240102, M3902410002, M390241002, M390241003, M39024-10-03, M39024102, M3902410A02, M3902410C02, M39024112, M39024-1-12, A3104REVF, B1013310, B10133-10, BA1013310, BA10133-10, BA9815222, BA98152-22, BFR1253P, BFR125-3P, CE78654, HAR00002, HAR-00-002, SA103655, SA10365-5, SV808981 ITEM 3, SV808981ITEM3, TJ103R, MIL-C-39024/10, MILC3902410, MIL-DTL-39024/10 , MILDTL3902410, J0850, J-0850, JK1010RED, KS14523L2, L01421, JN17, F326, 3358-1-0312, 350A, 3600029000, 360-0029-000, 3600150000, 360-0150-000, 450-3381-01-03-12, 50003, 50-003, 73-730831-2 , 7715, 77255322, 772553-22, 77C716830G002, 804031G4A, 8040-31G4A, 8104REVF, 8316101163, 83-1610-1163, 91010802, 910108-02, 121-200-003, 12514357, 1251-4357, 1347H57113, 1347H57-113, 1501RED, 15941091, 1594109-1, 1897717, 2070006RED, 207-0006RED, 230990010277, 230-990010-277, 255RED, 2635-088-38 ITEM 4-5, 263508838ITEM45, 291751, 29175-1, 33210, 33-210, 33210BU, 33-210-BU, 0000958986, 036000453002, 036-000453-002, 105-202-200, 105602, 105-602, 118930B, 1190RED, 119165B, 377-004-002, 3902410B02, 39024-10B02, 4110282, 411028-2, 4118847030, 4118847-030, 4274862, 4274-86-2 , 5935-00-702-4199, 00-702-4199, 5935007024199 , 4503381010312, 121200003, 105202200, 007024199, 335810312, 377004002, 618032002, 737308312

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	09 FEB 1968	00-702-4199	15077 ( JACK, TIP )

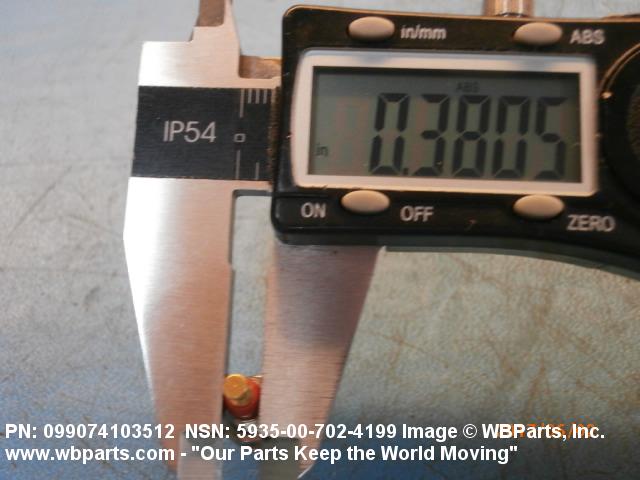

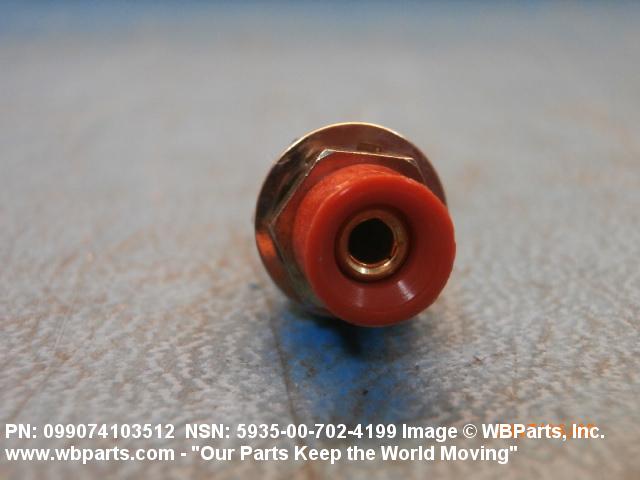

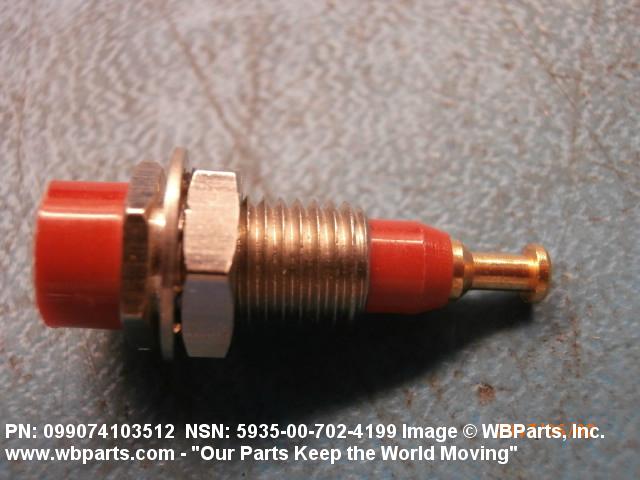

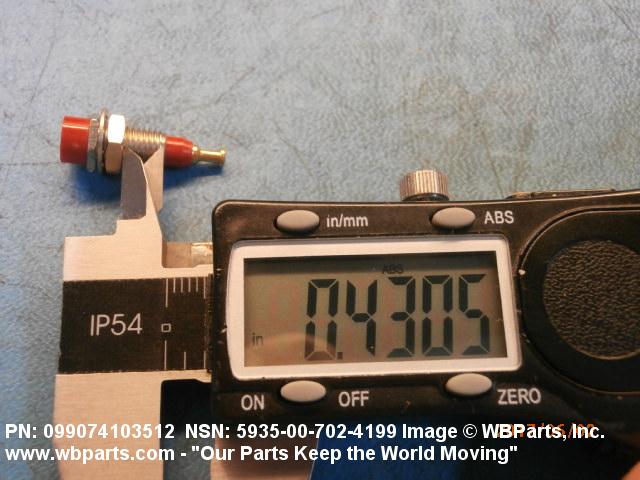

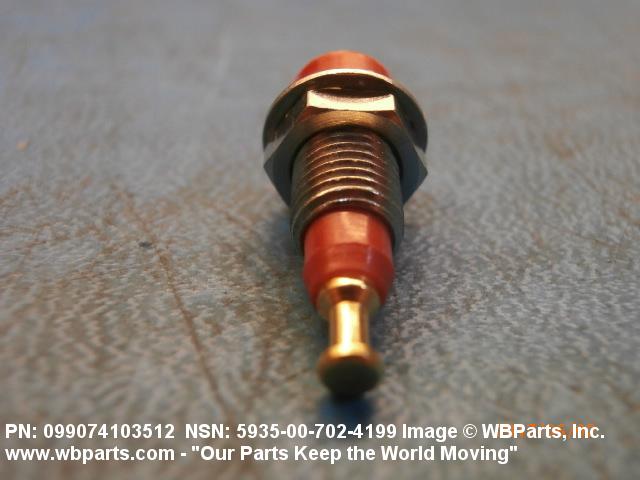

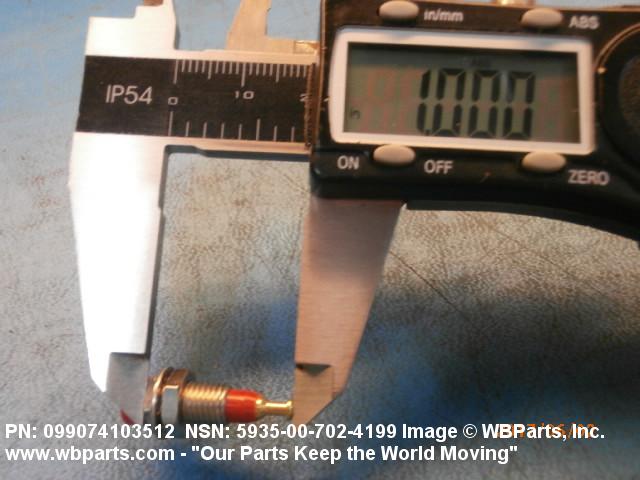

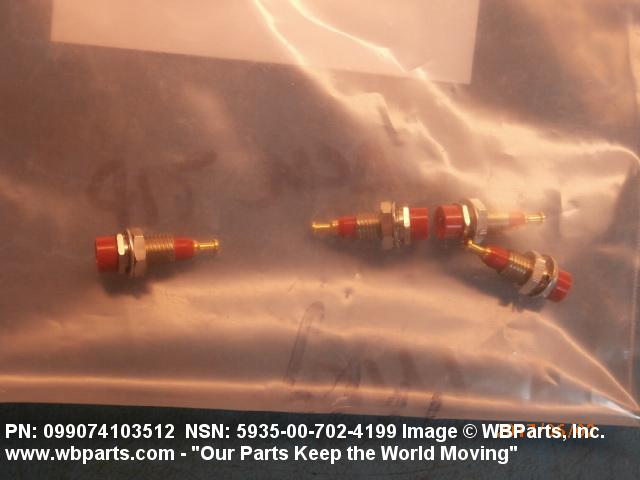

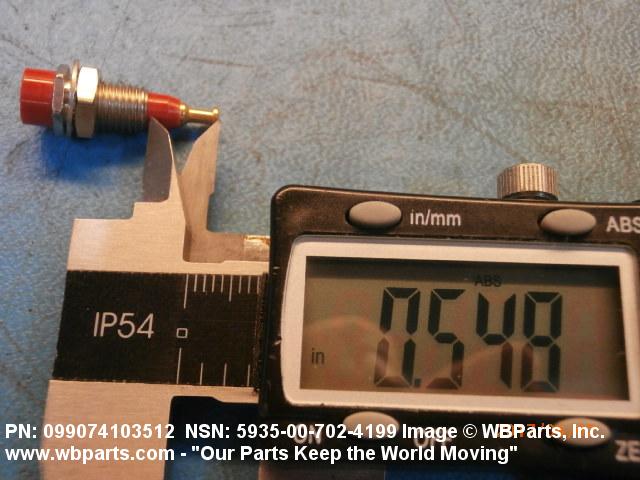

Drawings & Photos | NSN 5935-00-702-4199

Part Number	Request Date	QTY	Origin
5935-00-702-4199	2025-05-140	18	US
5935-00-702-4199	2025-05-126	1	US
5935-00-702-4199	2025-02-41	8	United States
5935-00-702-4199	2024-10-305	500	DIBBS
M390241002	2024-10-284	60	United States
M390241002	2024-06-179	2	US
5935-00-702-4199	2024-01-24	172	DIBBS
5935-00-702-4199	2024-01-04	691	DIBBS
5935-00-702-4199	2023-12-348	286	DIBBS
5935-00-702-4199	2023-12-337	2579	DIBBS
5935-00-702-4199	2023-11-319	572	DIBBS
5935-00-702-4199	2023-10-299	1270	DIBBS
5935-00-702-4199	2022-08-233	1213	DIBBS
5935-00-702-4199	2022-06-172	994	DIBBS
5935-00-702-4199	2022-03-80	2834	DIBBS
5935-00-702-4199	2021-10-280	117	DIBBS
5935-00-702-4199	2021-09-269	117	DIBBS
5935-00-702-4199	2021-09-250	146	DIBBS
5935-00-702-4199	2021-08-221	462	DIBBS
5935-00-702-4199	2021-01-04	117	DIBBS
5935-00-702-4199	2020-12-352	176	DIBBS
5935-00-702-4199	2020-10-287	117	DIBBS
5935-00-702-4199	2020-10-280	350	DIBBS
5935-00-702-4199	2020-09-269	1501	DIBBS
5935-00-702-4199	2020-09-258	1501	DIBBS
5935-00-702-4199	2020-08-238	17	United States
M390241002	2019-10-304	10	United States
M390241003	2019-10-304	8	United States
M390241003	2019-08-241	22	CA
5935-00-702-4199	2018-01-15	2956	DIBBS
5935-00-702-4199	2017-09-273	300	AE
5935-00-702-4199	2017-06-157	1783	DIBBS
5935-00-702-4199	2017-05-144	4	United States
5935-00-702-4199	2015-05-140	6160	DIBBS
5935-00-702-4199	2015-03-63	4	United States
5935-00-702-4199	2013-05-126	2397	DIBBS
5935-00-702-4199	2013-04-100	4	US
5935-00-702-4199	2012-08-237	1749	DIBBS
5935-00-702-4199	2012-02-39	1132	DIBBS
5935-00-702-4199	2011-11-329	4362	DIBBS
5935-00-702-4199	2011-01-03	7668	DIBBS
5935-00-702-4199	2010-08-214	3227	DIBBS
5935-00-702-4199	2010-06-172	8	US
5935-00-702-4199	2010-02-48	3439	DIBBS
5935-00-702-4199	2010-02-36	2613	DIBBS
5935-00-702-4199	2009-09-264	20	United States
5935-00-702-4199	2009-07-201	2460	DIBBS
5935-00-702-4199	2009-04-107	3660	DIBBS
5935-00-702-4199	2007-08-216	37249	DIBBS
5935-00-702-4199	2007-07-201	7318	DIBBS
5935-00-702-4199	2007-06-158	1395	DIBBS
5935-00-702-4199	2007-03-67	6021	DIBBS

Cross Reference | NSN 5935-00-702-4199

Part Number	Cage Code	Manufacturer
0000958986	31751	ELTEK ENERGY LLC
036-000453-002	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
105-202-200	74970	VIKING TECHNOLOGIES, LTD.
105-602	74970	VIKING TECHNOLOGIES, LTD.
118930B	82199	ROHDE & SCHWARZ USA, INC.
1190RED	71002	BIRNBACH CO INC
119165B	83058	TRW ASSEMBLIES AND FASTENERS GROUP FASTENERS DIV
121-200-003	20747	L-3 COMMUNICATIONS CORPORATION DBA GLOBAL NETWORK SOLUTIONS DIV
121-200-003	33214	AYDIN CORP AYDIN CONTROLS DIV
1251-4357	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
1347H57-113	04804	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS
1501RED	83330	DIALIGHT CORPORATION
1501RED	91967	ABBATRON, LLC DIV ABBATRON LLC
1594109-1	53711	NAVAL SEA SYSTEMS COMMAND
1897717	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
207-0006RED	54817	AUTEK SYSTEMS CORP
230-990010-277	38753	CMC ELECTRONICS INC
255RED	74868	AMPHENOL CORPORATION
2635-088-38 ITEM 4-5	53711	NAVAL SEA SYSTEMS COMMAND
29175-1	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
33-210	72653	GC/WALDOM INC
33-210-BU	72653	GC/WALDOM INC
3358-1-0312	71279	INTERCONNECTION PRODUCTS INC
350A	74868	AMPHENOL CORPORATION
360-0029-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
360-0150-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
377-004-002	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
39024-10B02	13497	MASCO MACHINE INC
411028-2	96214	RAYTHEON COMPANY DBA RAYTHEON
4118847-030	05869	RAYTHEON COMPANY DBA RAYTHEON
4274-86-2	61638	ADVANCED INTERCONNECTIONS CORPORATION
450-3381-01-03-12	71279	INTERCONNECTION PRODUCTS INC
50-003	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
5935007024199	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
618032002	55901	DARE ELECTRONICS, INC.
73-730831-2	07397	GENERAL DYNAMICS ADVANCED INFORMATION SYSTEMS INC.
7715	72653	GC/WALDOM INC
772553-22	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
77C716830G002	03538	LOCKHEED MARTIN CORPORATION DIV MST
77C716830G002	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
8040-31G4A	91506	AUGAT INC
8104REVF	01009	ALDEN PRODUCTS COMPANY INC
83-1610-1163	76381	3M COMPANY DBA 3M
910108-02	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
A3104REVF	01009	ALDEN PRODUCTS COMPANY INC
B10133-10	70408	AT AND T CORP
BA10133-10	83330	DIALIGHT CORPORATION
BA10133-10	91967	ABBATRON, LLC DIV ABBATRON LLC
BA98152-22	06KW9	LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP
BFR125-3P	71468	ITT CORPORATION DBA I T T CANNON
CE78654	98230	NATIONAL SECURITY AGENCY
F326	57655	NAUTEL MAINE INC.
HAR-00-002	80103	VEECO INSTRUMENTS INC LAMBDA DIV
J-0850	14304	HARRIS CORPORATION DBA HARRIS RF COMMUNICATION
JK1010RED	83345	AEROLITE ELECTRONIC CORP
JN17	37338	NAUTEL LIMITED
JN17	57655	NAUTEL MAINE INC.
KS14523L2	64959	AMERICAN TELEPHONE AND TELEGRAPH CO
L01421	16236	DLA LAND AND MARITIME
M39014/10-02	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39024+10+2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39024-1-12	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39024-10-03	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39024/01-02	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39024/1-02	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39024/10-002	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39024/10-02	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
M39024/10-02	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39024/10-02	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
M39024/10-2	74970	VIKING TECHNOLOGIES, LTD.
M39024/10A-02	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39024/10C-02	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-39024/10	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS16108-24	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS16108-2A	80048	VICKERS INC ELECTRIC PRODUCTS DIVISION
MS16108-2A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS16108-2A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS16108-2B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS16108R2A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS39024-10-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SA10365-5	07639	GE AVIATION SYSTEMS LLC DBA GE AVIATION
SV808981 ITEM 3	73030	HAMILTON SUNDSTRAND CORPORATION
SV808981 ITEM 3	81412	TREADWELL CORPORATION
TJ103R	07410	BISHOP FREEMAN CO
TJ103R	49956	RAYTHEON COMPANY DBA RAYTHEON
TJ103R	94144	RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-702-4199

Compare

Related Products | NSN 5935-00-702-4199

5935-00-702-4204, 5935-00-702-4207, 5935-00-702-4209, 5935-00-702-4228, 5935-00-702-4387

Technical Data | NSN 5935-00-702-4199

Characteristic	Specifications
ACCOMMODATED FINGER TYPE	TEST PROD SINGLE FINGER
FINGER ACCOMMODATION DIAMETER	0.080 INCHES NOMINAL SINGLE FINGER
FINGER ACCOMMODATION LENGTH	0.500 INCHES NOMINAL SINGLE FINGER
BODY STYLE	28 THREADED BUSHING MOUNTED
OVERALL LENGTH	0.922 INCHES MINIMUM AND 1.000 INCHES MAXIMUM
MOUNTING BUSHING LENGTH	0.375 INCHES MINIMUM AND 0.438 INCHES MAXIMUM
BODY LENGTH	0.500 INCHES MINIMUM AND 0.672 INCHES MAXIMUM
OVERALL DIAMETER	0.406 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
BUSHING ACCOMMODATION HOLE SHAPE	ROUND
BUSHING THRU-HOLE ACCOMMODATION DIAMETER	0.250 INCHES NOMINAL
ELECTRICAL INSULATION FEATURE	INSULATED COMPLETELY
MATERIAL	METAL BODY METAL BUSHING PLASTIC, POLYAMIDE CAP PLASTIC, POLYAMIDE INSULATOR BERYLLIUM COPPER SPRING COPPER ALLOY TERMINAL
SURFACE TREATMENT	GOLD SPRING
IDENTIFICATION CODE COLOR	RED
TERMINAL TYPE	TURRET
MAXIMUM VOLTAGE RATING IN VOLTS	2000.0 AC
CURRENT RATING IN AMPS	5.0
CAPACITANCE IN PICOFARADS	NOT RATED
TEST DATA DOCUMENT	81349-MIL-C-39024 SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND LOCATION	CONTACT SPRING SURFACE GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-39024/10
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M39024/10-02

Restrictions/Controls & Freight Information | NSN 5935-00-702-4199

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-702-4199

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
