NSN 5935-00-703-0976 00-703-0976, 007030976
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-703-0976 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 5935-00-703-0976, 00-703-0976, 5935007030976, 007030976
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-703-0976 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-703-0976
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-703-0976
Technical Data | NSN 5935-00-703-0976
| Characteristic | Specifications |
|---|---|

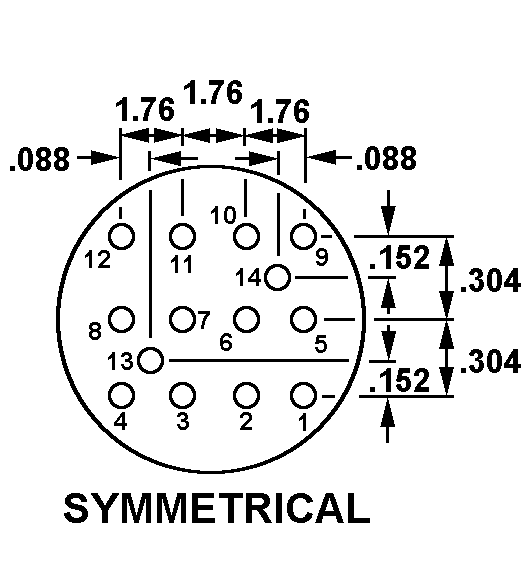

| CONTACT POSITION ARRANGEMENT STYLE | 1400A SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | COPPER |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 22B TOP MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.497 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.341 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | 14D ROUND, W/THREE MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.343 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.844 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
