NSN 5935-00-721-2307 M21097/6-01, M21097601, A1639
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-721-2307 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M21097/6-01, M21097601, A1639, KKM6SC, MILC210976, MILC21097-6, 372-1568-00, 14300601, 143-006-01, 372-1581-00, 3721581000, 372-1581-000, 5935-00-721-2307, 00-721-2307, 5935007212307, 007212307, 372156800, 372158100
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-721-2307 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-721-2307
Demand History | NSN 5935-00-721-2307
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 14300601 | 2011-04-108 | 10 | US |
Cross Reference | NSN 5935-00-721-2307
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 143-006-01 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 143-006-01 | 13511 | AMPHENOL CADRE DIV BUNKER RAMO CORP |
| 143-006-01 | 50738 | WIRE-PRO INC DBA WPI-SALEM DIVISION |
| 143-006-01 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 372-1568-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 372-1581-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 372-1581-00 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 372-1581-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| A1639 | 81535 | AERONAUTICAL COMMUNICATIONS EQUIPMENT INC |
| KKM6SC | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| M21097/6-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC21097-6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-721-2307
Technical Data | NSN 5935-00-721-2307
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 19Q STRAIGHT TYPE |
| OVERALL LENGTH | 1.785 INCHES NOMINAL |
| OVERALL HEIGHT | 0.340 INCHES NOMINAL |
| OVERALL WIDTH | 0.458 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.531 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.142 INCHES NOMINAL |
| POLARIZATION METHOD | FIXED CONTACT TO CONTACT |
| MATING END QUANTITY | 1 |

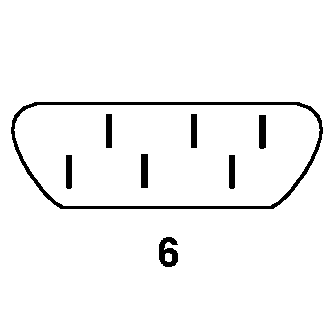

| CONTACT POSITION ARRANGEMENT STYLE | AGBU 6 SINGLE MATING END |
