NSN 5935-00-763-8195 M81511/46FJ01P1, M8151146FJ01P1, A81516F24155P1

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-763-8195 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: M81511/46FJ01P1, M8151146FJ01P1, A81516F24155P1, A81516F24-155P1, A81516F24J01P1, A81516F24-J01P1 , MILC81511, MIL-C-81511, 5935-00-763-8195, 00-763-8195, 5935007638195, 007638195

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	12 APR 1972	00-763-8195	01938 ( CONNECTOR, PLUG, ELECTRICAL )

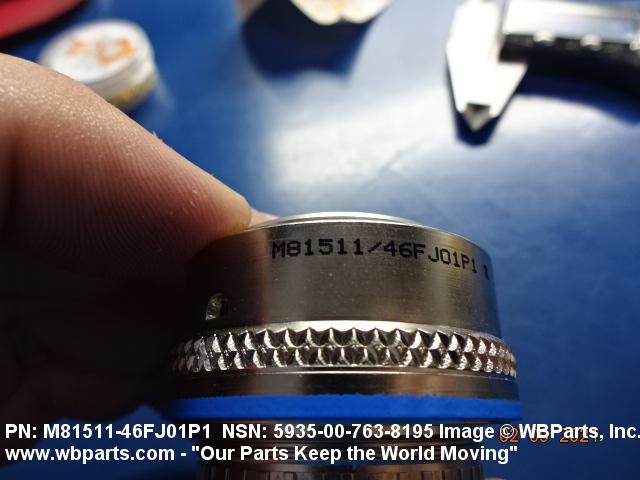

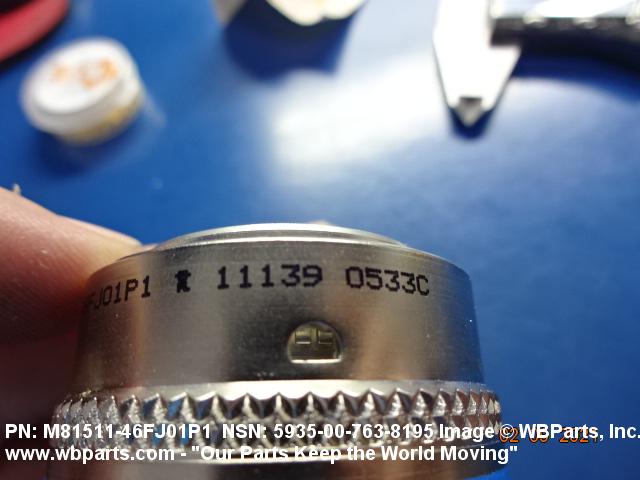

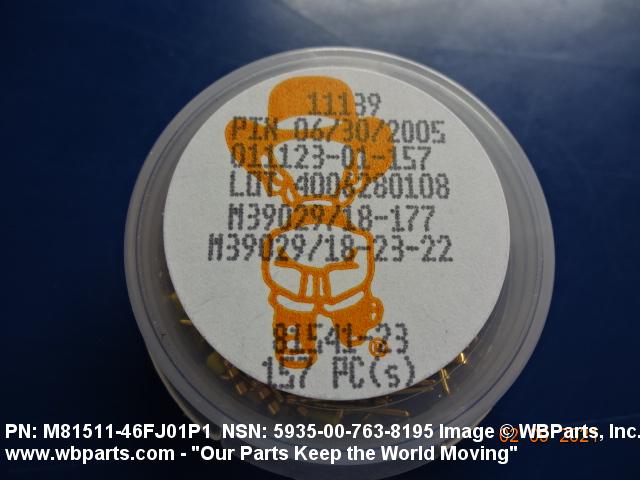

Drawings & Photos | NSN 5935-00-763-8195

Part Number	Request Date	QTY	Origin
5935-00-763-8195	2025-09-261	71	DIBBS
5935-00-763-8195	2025-08-218	29	DIBBS
5935-00-763-8195	2025-06-167	7	DIBBS
5935-00-763-8195	2025-06-156	7	DIBBS
5935-00-763-8195	2025-06-153	4	DIBBS
5935-00-763-8195	2025-05-142	4	DIBBS
5935-00-763-8195	2025-05-128	7	DIBBS
5935-00-763-8195	2025-04-114	29	DIBBS
5935-00-763-8195	2024-05-149	25	DIBBS
5935-00-763-8195	2024-05-137	25	DIBBS
5935-00-763-8195	2024-05-122	30	DIBBS
5935-00-763-8195	2024-03-88	14	DIBBS
5935-00-763-8195	2023-08-229	19	DIBBS
5935-00-763-8195	2023-07-187	21	DIBBS
5935-00-763-8195	2023-05-124	16	DIBBS
5935-00-763-8195	2023-04-96	26	DIBBS
5935-00-763-8195	2023-03-85	26	DIBBS
M8151146FJ01P1	2023-01-16	6	Hong Kong
5935-00-763-8195	2022-12-342	14	DIBBS
M8151146FJ01P1	2022-11-314	6	Hong Kong
5935-00-763-8195	2022-07-209	9	DIBBS
5935-00-763-8195	2022-06-181	15	DIBBS
5935-00-763-8195	2022-04-109	20	DIBBS
5935-00-763-8195	2022-04-108	16	DIBBS
5935-00-763-8195	2022-04-102	10	DIBBS
5935-00-763-8195	2022-04-97	16	DIBBS
5935-00-763-8195	2022-03-62	3	US
5935-00-763-8195	2022-01-27	10	DIBBS
5935-00-763-8195	2021-05-147	11	DIBBS
5935-00-763-8195	2021-04-99	2	IT
5935-00-763-8195	2021-04-91	27	DIBBS
5935-00-763-8195	2021-02-49	22	DIBBS
5935-00-763-8195	2021-02-38	22	DIBBS
5935-00-763-8195	2020-10-303	9	DIBBS
M8151146FJ01P1	2020-10-295	3	United States
5935-00-763-8195	2020-10-293	23	DIBBS
5935-00-763-8195	2020-10-282	23	DIBBS
5935-00-763-8195	2020-06-157	64	DIBBS
5935-00-763-8195	2020-05-142	64	DIBBS
5935-00-763-8195	2020-05-128	11	DIBBS
5935-00-763-8195	2020-04-107	1	DIBBS
5935-00-763-8195	2020-04-97	11	DIBBS
5935-00-763-8195	2020-03-86	11	DIBBS
5935-00-763-8195	2020-03-69	37	DIBBS
5935-00-763-8195	2020-02-58	37	DIBBS
5935-00-763-8195	2019-12-335	17	DIBBS
5935-00-763-8195	2019-10-290	9	DIBBS
5935-00-763-8195	2019-08-234	9	DIBBS
5935-00-763-8195	2018-11-309	12	DIBBS
5935-00-763-8195	2018-10-298	12	DIBBS
5935-00-763-8195	2018-03-88	12	DIBBS
5935-00-763-8195	2018-02-43	10	DIBBS
5935-00-763-8195	2018-02-32	10	DIBBS
5935-00-763-8195	2017-03-80	25	DIBBS
5935-00-763-8195	2017-02-32	11	DIBBS
5935-00-763-8195	2016-12-338	11	DIBBS
5935-00-763-8195	2016-06-158	2	DIBBS
5935-00-763-8195	2016-05-146	2	DIBBS
5935-00-763-8195	2016-04-111	1	DIBBS
5935-00-763-8195	2016-04-98	10	DIBBS
5935-00-763-8195	2016-03-87	10	DIBBS
5935-00-763-8195	2016-02-40	8	DIBBS
5935-00-763-8195	2016-01-04	6	DIBBS
5935-00-763-8195	2015-08-242	24	DIBBS
5935-00-763-8195	2015-04-120	18	DIBBS
5935-00-763-8195	2011-06-155	18	DIBBS
5935-00-763-8195	2011-04-109	16	DIBBS
5935-00-763-8195	2011-04-91	13	DIBBS
5935-00-763-8195	2010-12-354	16	DIBBS
5935-00-763-8195	2010-04-95	17	DIBBS
5935-00-763-8195	2010-01-19	19	DIBBS
5935-00-763-8195	2009-02-35	61	DIBBS
5935-00-763-8195	2009-01-22	29	DIBBS
5935-00-763-8195	2008-12-347	16	DIBBS
5935-00-763-8195	2008-11-316	38	DIBBS
5935-00-763-8195	2008-10-288	15	DIBBS
5935-00-763-8195	2008-09-263	11	DIBBS
5935-00-763-8195	2008-09-263	7	DIBBS
5935-00-763-8195	2008-08-235	4	DIBBS
5935-00-763-8195	2008-08-231	4	DIBBS
5935-00-763-8195	2007-10-278	23	DIBBS
5935-00-763-8195	2007-06-166	26	DIBBS
5935-00-763-8195	2007-04-106	8	DIBBS

Cross Reference | NSN 5935-00-763-8195

Part Number	Cage Code	Manufacturer
A81516F24-155P1	11139	DEUTSCH ENGINEERED CONNECTING DEVICES INC
A81516F24-J01P1	11139	DEUTSCH ENGINEERED CONNECTING DEVICES INC
M81511/46FJ01P1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-81511	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-763-8195

Compare

Related Products | NSN 5935-00-763-8195

5935-00-763-8196, 5935-00-763-8197, 5935-00-763-8198, 5935-00-763-8199, 5935-00-763-8201

Technical Data | NSN 5935-00-763-8195

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING

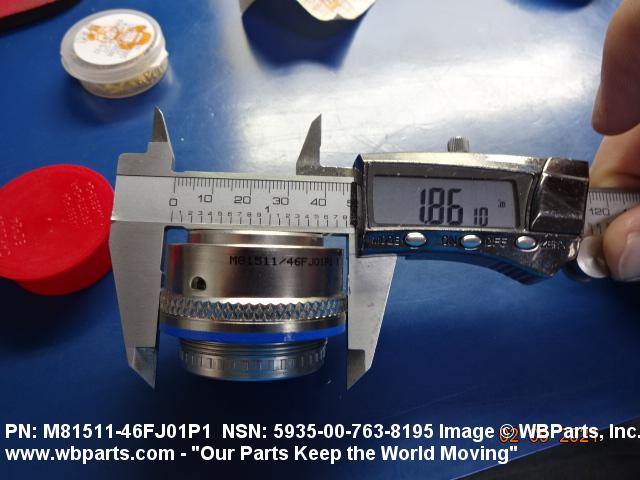

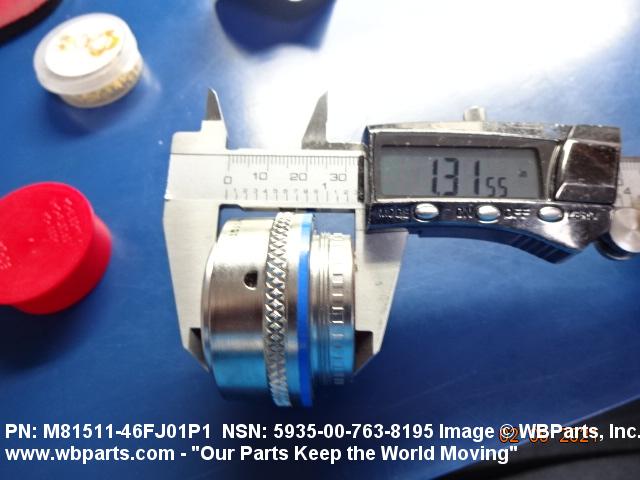

OVERALL LENGTH	1.301 INCHES NOMINAL
OVERALL DIAMETER	1.854 INCHES MINIMUM AND 1.874 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	SPRING FRICTION
THREADED DEVICE TYPE	BACK SHELL
THREAD SERIES DESIGNATOR	UN
NOMINAL THREAD SIZE	1.500 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	28
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY 6061
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	CHROMIUM
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	80.0 AND 142.0 AND 196.0 AND 293.0
MATING END QUANTITY	1

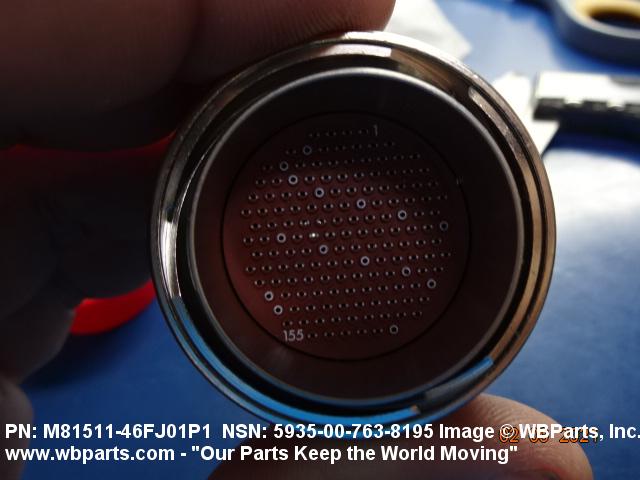

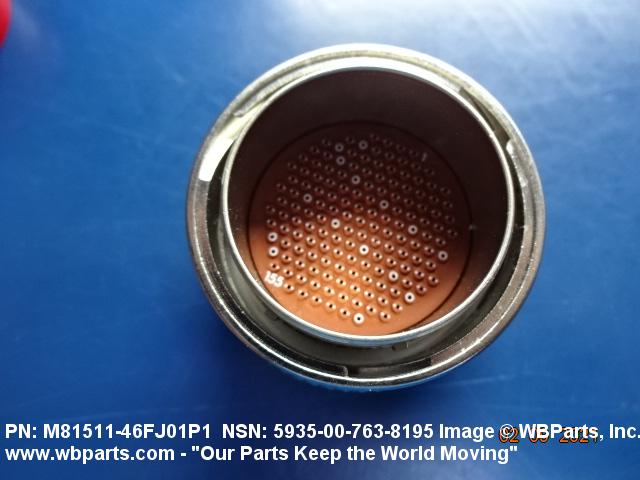

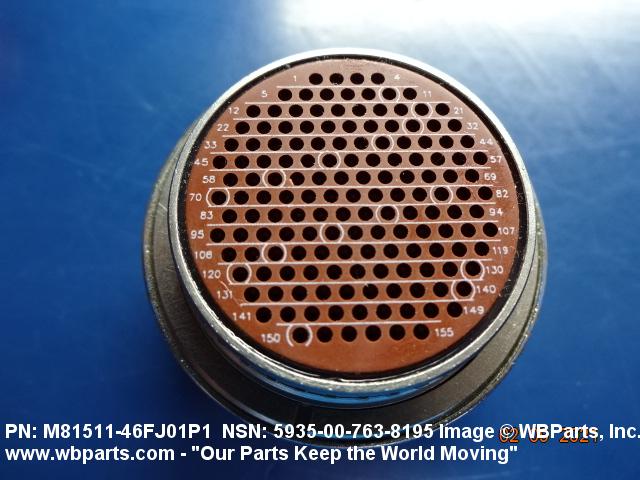

CONTACT POSITION ARRANGEMENT STYLE	GFAA 24-155 SINGLE MATING END
INCLUDED CONTACT QUANTITY	155 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TYPE 1,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-81511 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-81511/46 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.155 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-81511
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M81511/46FJ01P1

Restrictions/Controls & Freight Information | NSN 5935-00-763-8195

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
