NSN 5935-00-772-3307 C0523039, C0-523039, SI7635
Product Details | ELECTRICAL CONNECTOR BUSHING RETAINER NUT
5935-00-772-3307 A metallic item having internal threads and an internal seat designed to retain and compress a resilient sealing medium such as a backing grommet or bushing in the shell of an electrical connector. For items which may perform the same function but have a facility for attachment of another fitting(s) see ADAPTER, CABLE CLAMP TO CONNECTOR. See also PACKING NUT; and PACKING NUT, STUFFING TUBE.
Part Alternates: C0523039, C0-523039, SI7635, TC151533, TC15-1533, 10037005171, 10-037005-171, 1209G6, 1676060, 1755656, 523039, 5293189, 5935PL0733813, 60037005171, 60-037005-171, 66730, 7723307, 8011765-56, 5935-00-772-3307, 00-772-3307, 5935007723307, 007723307, 801176556
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-772-3307 | 20191 ( NUT, BUSHING RETAINER, ELECTRICAL CONNECTOR ) |

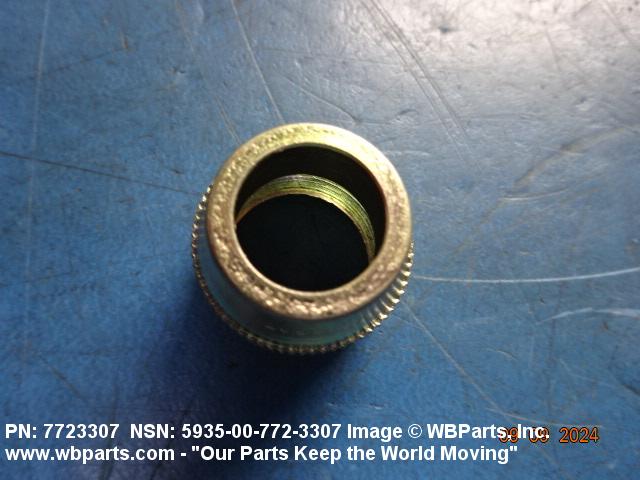

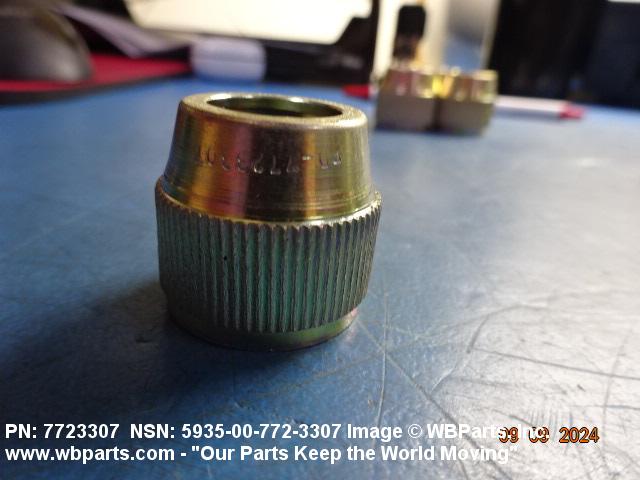

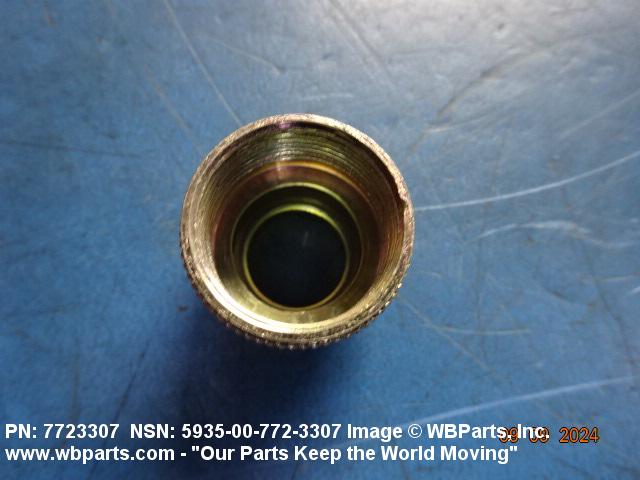

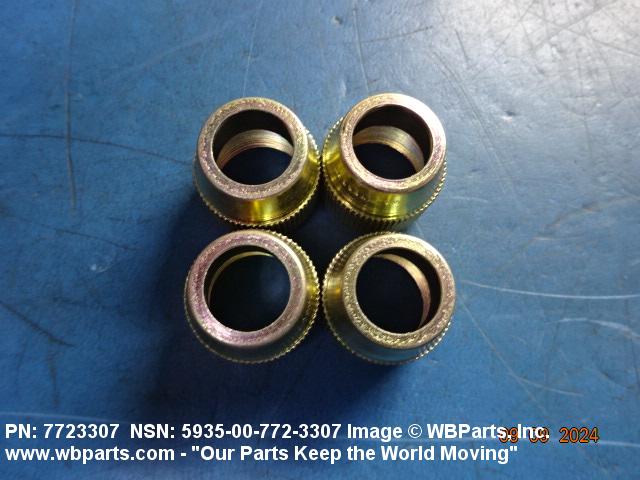

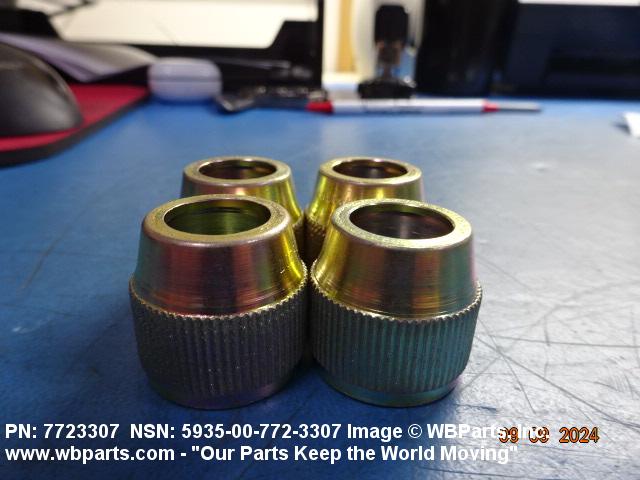

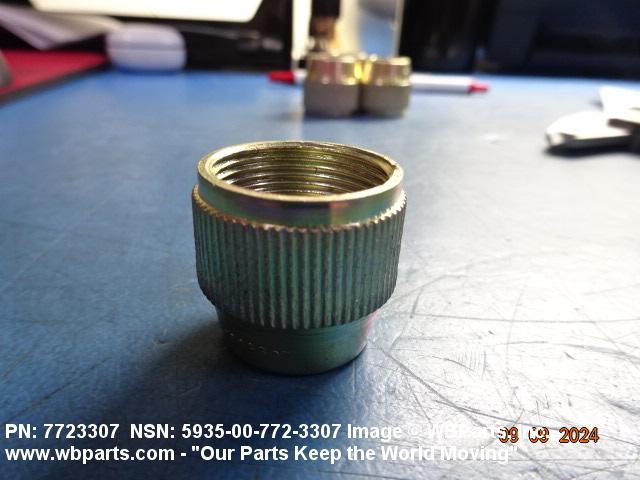

Drawings & Photos | NSN 5935-00-772-3307
Demand History | NSN 5935-00-772-3307
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-772-3307 | 2024-12-365 | 1 | us |
| 5935-00-772-3307 | 2024-08-232 | 4 | Taiwan |
| 5935-00-772-3307 | 2022-07-186 | 70 | US |
| 5935-00-772-3307 | 2017-05-128 | 5 | MANUAL |
| 7723307 | 2017-05-128 | 5 | TW |
| 5935-00-772-3307 | 2013-05-121 | 1857 | DIBBS |
| 5935-00-772-3307 | 2012-09-262 | 214 | DIBBS |
| 5935-00-772-3307 | 2010-01-12 | 190 | Greece |
| 5935-00-772-3307 | 2009-10-278 | 79 | DIBBS |
Cross Reference | NSN 5935-00-772-3307
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-037005-171 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 1209G6 | 56442 | DIAMOND REO TRUCK CO |
| 1676060 | 45152 | OSHKOSH CORPORATION |
| 1676060 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 1755656 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 523039 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| 5293189 | 24617 | GENERAL MOTORS CORP |
| 5293189 | 72582 | MTU AMERICA INC. |
| 5293189 | 77060 | GENERAL MOTORS CORP PACKARD ELECTRIC DIV |
| 5935007723307 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5935PL0733813 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 60-037005-171 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 66730 | 58464 | SHELLER-GLOBE CORP SUPERIOR-LIMA DIV |
| 7723307 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 7723307 | 5A910 | ELC INDUSTRIES CORP. DBA AURORA CORD AND CABLE COMPANY |
| 8011765-56 | 61465 | GARWOOD/FELLER INC GARWOOD WINCH DIV |
| C0-523039 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| SI7635 | 55097 | SHILOH INDUSTRIES, INC. |
| TC15-1533 | 03677 | ANTHONY YORK CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-772-3307
Related Products | NSN 5935-00-772-3307
Technical Data | NSN 5935-00-772-3307
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | CADMIUM PLATED |
| THREAD SIZE | 7/8-20 |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| THREAD CLASS | 2B |
| OVERALL WIDTH | 0.938 INCHES NOMINAL |
| CABLE OPENING DIAMETER | 0.578 INCHES NOMINAL |
| BUSHING SEAT WIDTH | 0.328 INCHES NOMINAL |
| BUSHING SEAT DIAMETER | 0.656 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5935-00-772-3307
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-772-3307
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
