NSN 5935-00-794-4407 AMS5078PHF11S, ST7850HNF, ST78-50HNF
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-794-4407 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: AMS5078PHF11S, ST7850HNF, ST78-50HNF, PA97181, PA97-18-1, 109875, 109-875, 1098753, 109-875-3, 50AS78HNF, 5935-00-794-4407, 00-794-4407, 5935007944407, 007944407
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-794-4407 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

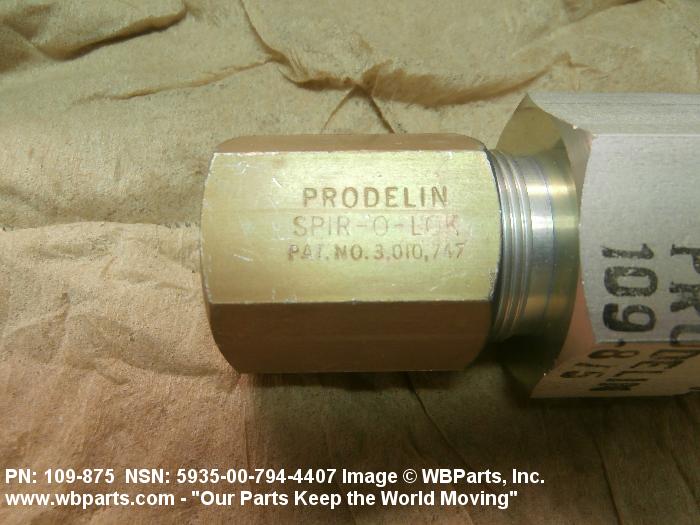

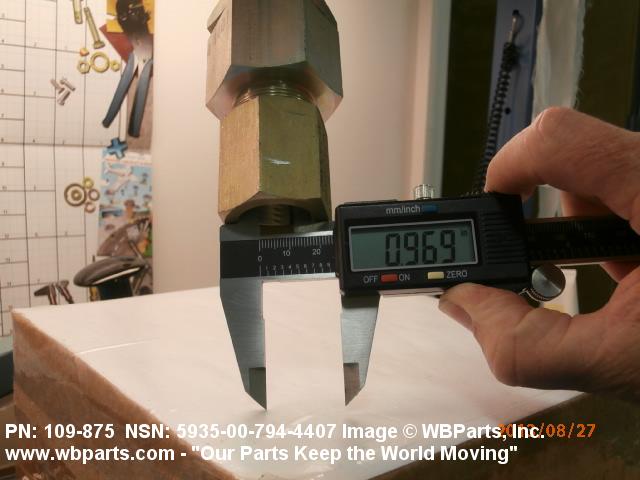

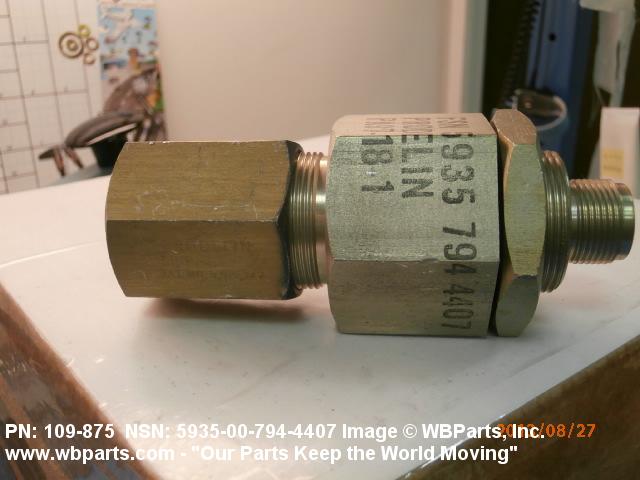

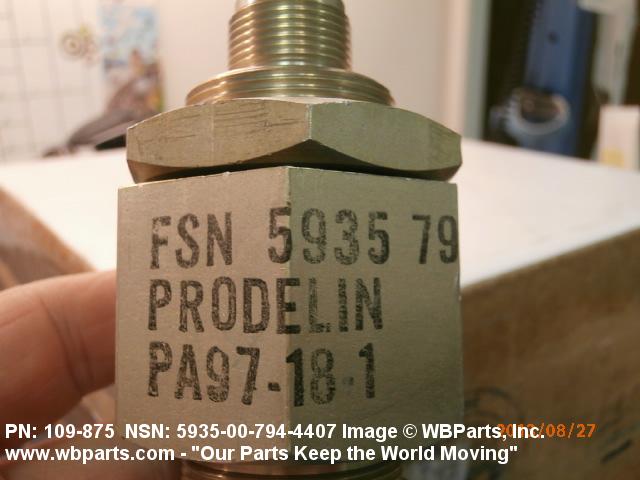

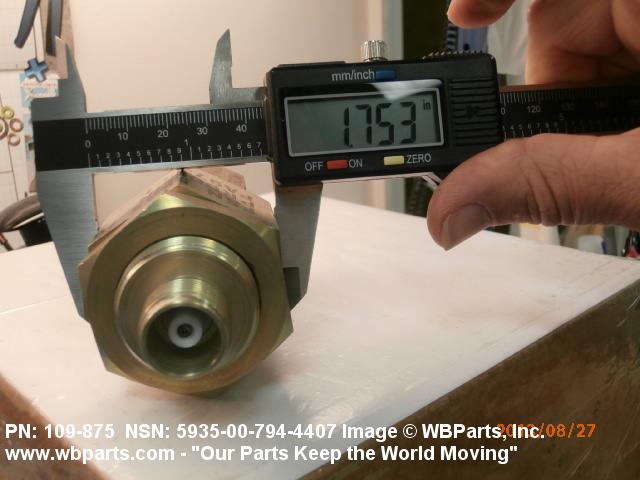

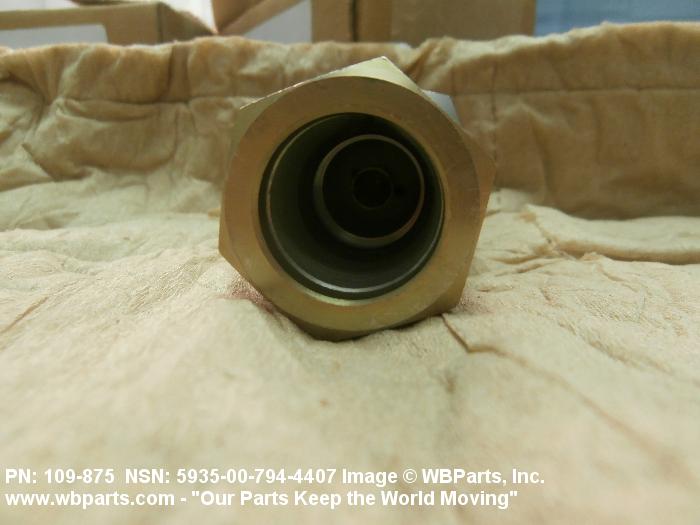

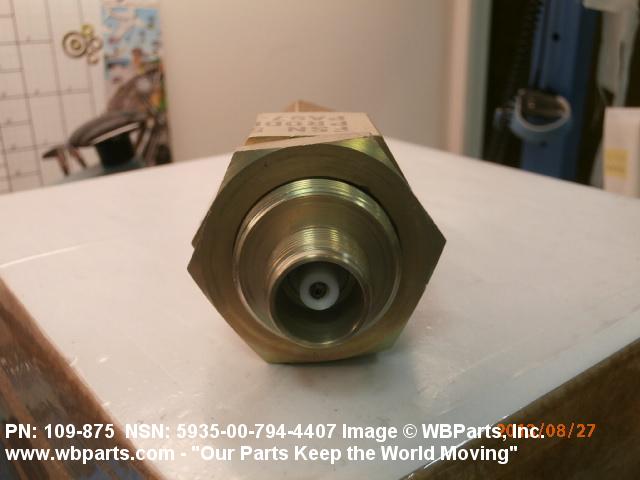

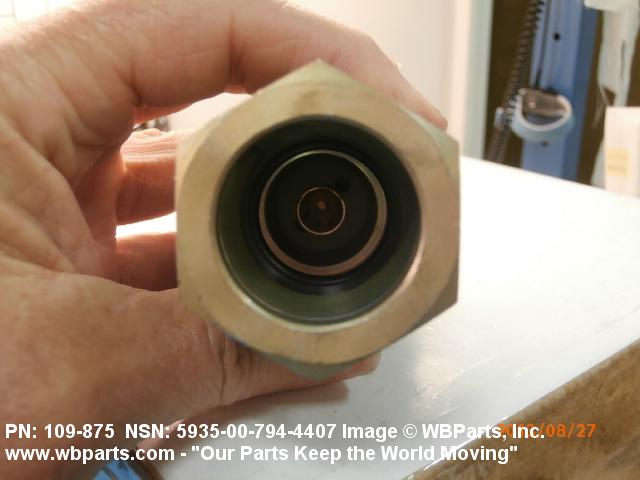

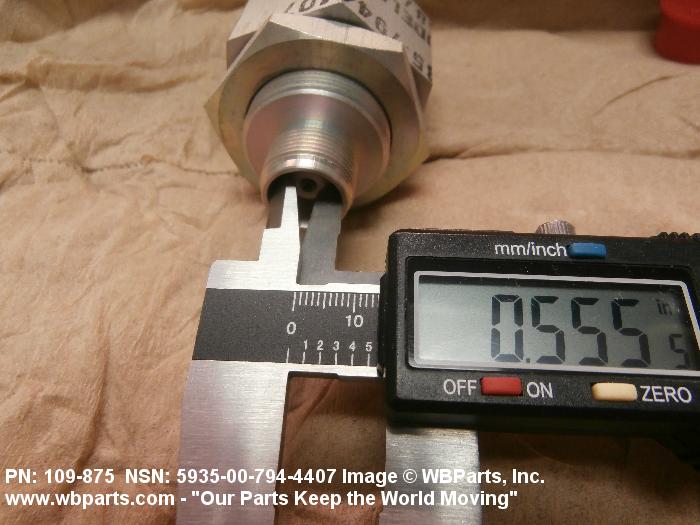

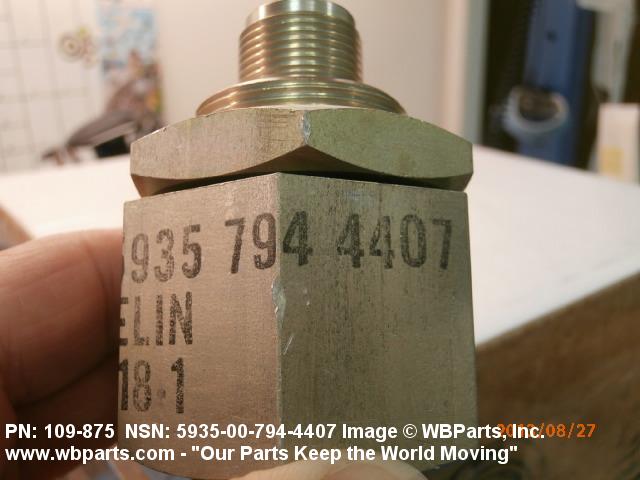

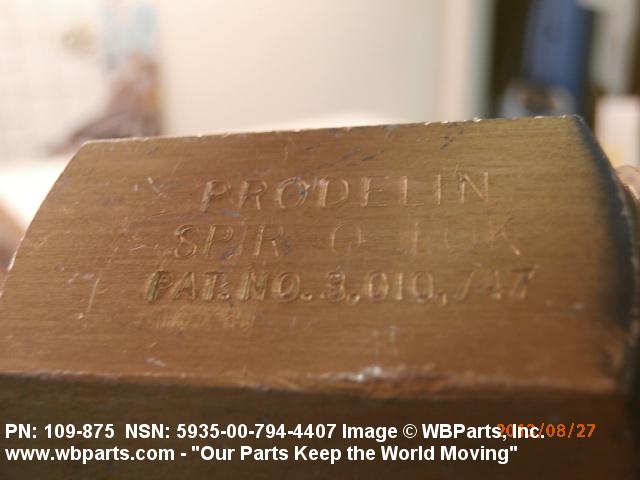

Drawings & Photos | NSN 5935-00-794-4407
Demand History | NSN 5935-00-794-4407
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 109-875 | 2021-03-75 | 7 | DIBBS |
| 109-875-3 | 2021-03-75 | 7 | DIBBS |
| AMS5078PHF11S | 2021-03-75 | 7 | DIBBS |
| 5935-00-794-4407 | 2019-07-210 | 5 | US |
| 109875 | 2019-06-179 | 5 | US |
| 5935-00-794-4407 | 2019-06-179 | 5 | US |
| 109-875 | 2019-06-169 | 3 | DIBBS |
| 109-875-3 | 2019-06-169 | 3 | DIBBS |
| AMS5078PHF11S | 2019-06-169 | 3 | DIBBS |
| 5935-00-794-4407 | 2018-06-176 | 3 | DIBBS |
| 5935-00-794-4407 | 2014-12-343 | 2 | United Kingdom |
| 5935-00-794-4407 | 2014-12-337 | 2 | US |
| 5935-00-794-4407 | 2014-12-335 | 2 | DIBBS |
| 109875 | 2014-06-155 | 2 | United Kingdom |
| 5935-00-794-4407 | 2013-09-262 | 2 | DIBBS |
| 5935-00-794-4407 | 2013-08-233 | 2 | United Kingdom |
| 109875 | 2013-07-193 | 1 | United Kingdom |
| 5935-00-794-4407 | 2013-06-154 | 1 | DIBBS |
| 5935-00-794-4407 | 2013-05-148 | 1 | DIBBS |
| 5935-00-794-4407 | 2011-08-226 | 2 | DIBBS |
Cross Reference | NSN 5935-00-794-4407
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 109-875 | 94661 | GENERAL DYNAMICS SATCOM TECHNOLOGIES, INC. |
| 109-875-3 | 94661 | GENERAL DYNAMICS SATCOM TECHNOLOGIES, INC. |
| 50AS78HNF | 18928 | COMMUNICATION DYNAMICS CORP |
| AMS5078PHF11S | 68999 | TIMES MICROWAVE SYSTEMS, INC. DIV TIMES MICROWAVE SYSTEMS |
| PA97-18-1 | 94661 | GENERAL DYNAMICS SATCOM TECHNOLOGIES, INC. |
| ST78-50HNF | 16733 | RADIO FREQUENCY SYSTEMS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-794-4407
Related Products | NSN 5935-00-794-4407
Technical Data | NSN 5935-00-794-4407
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 13L STRAIGHT SHAPE, EXTERNAL COUPLING |

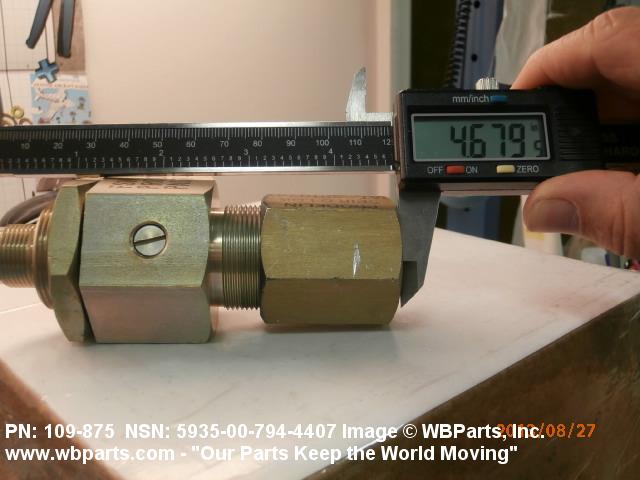

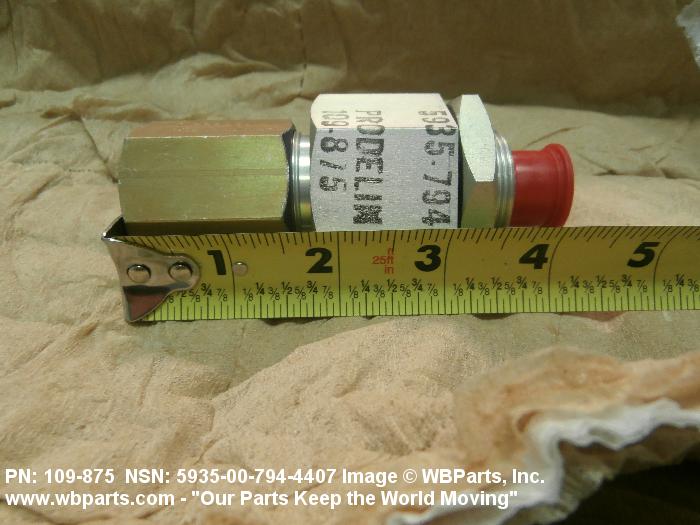

| OVERALL LENGTH | 4.678 INCHES MINIMUM AND 4.698 INCHES MAXIMUM |

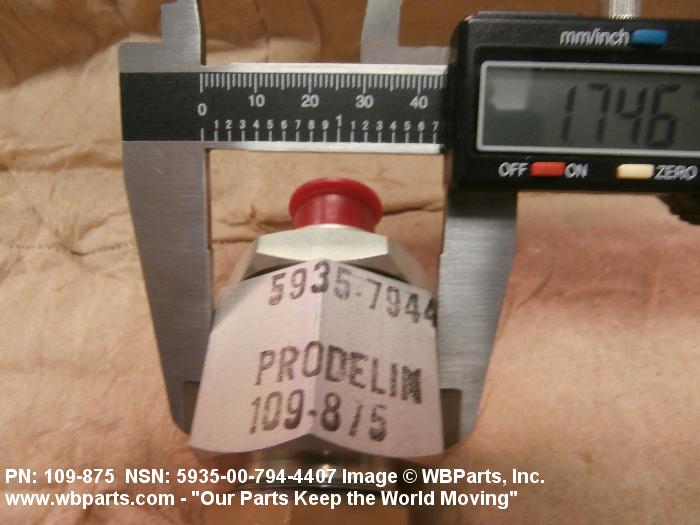

| OVERALL DIAMETER | 1.740 INCHES MINIMUM AND 1.760 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 1.188 INCHES NOMINAL |
| MOUNTING FACILITY THICKNESS | 0.250 INCHES MAXIMUM |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY AND MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | UNEF AND UNEF |
| NOMINAL THREAD SIZE | 1.250 INCHES AND 1.250 INCHES |
| THREAD CLASS | 2A AND 2A |
| THREAD QUANTITY PER INCH | 18 AND 18 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |

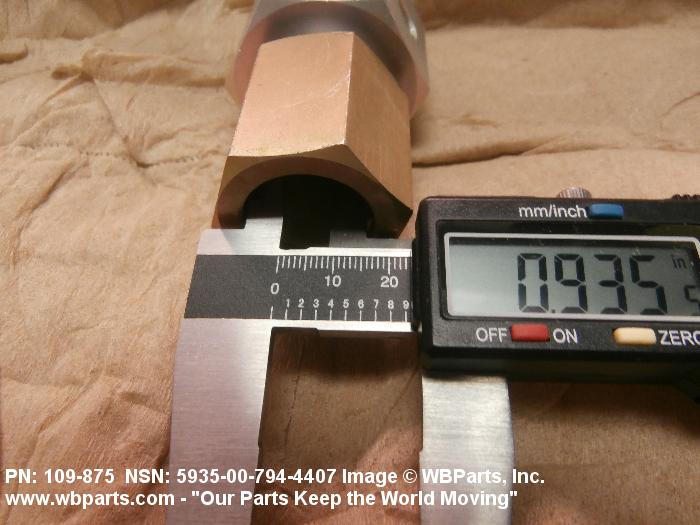

| CABLE ENTRANCE DIAMETER | 0.875 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | OXIDE FILM |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABBS HN SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 5000.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM FREQUENCY RATING | 5700.0 MEGAHERTZ SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-794-4407
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-794-4407
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
