NSN 5935-00-814-3852 00-814-3852, 008143852
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-814-3852 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 5935-00-814-3852, 00-814-3852, 5935008143852, 008143852
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-814-3852 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-814-3852
Cross Reference | NSN 5935-00-814-3852
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 011310 | D0078 | DIEHL BGT DEFENCE GMBH & CO. KG |
| 1782606-14 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 469-187 | 90073 | CMC ELECTRONICS INC |
| 7030-14PSL | 03877 | GILBERT ENGINEERING CO INC/INCON SUB OF TRANSITRON ELECTRONIC CORP |
| MM-14-22-PSL-GD | 95238 | WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS |
| MM14-22PGDSL | 95238 | WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS |
| MM14-22PGDSL50 | 95238 | WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS |
| MM14-22PSL | 95238 | WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS |
| MMP22-14SK2-030DG | 91637 | VISHAY DALE ELECTRONICS, INC. DIV VISHAY ANGSTROHM & DALE |
| MMP22-14SK2030 | 91637 | VISHAY DALE ELECTRONICS, INC. DIV VISHAY ANGSTROHM & DALE |
| UMI14M1KL | 81312 | WINCHESTER ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-814-3852
Technical Data | NSN 5935-00-814-3852
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 22A STRAIGHT SHAPE |
| OVERALL LENGTH | 0.870 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.260 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | JACKSCREW-SOCKET |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD QUANTITY PER INCH | 56 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | JACKSCREW |
| JACKSCREW TYPE AND LOCATION | FEMALE LEFT-HAND AND MALE RIGHT-HAND |
| MATING END QUANTITY | 1 |

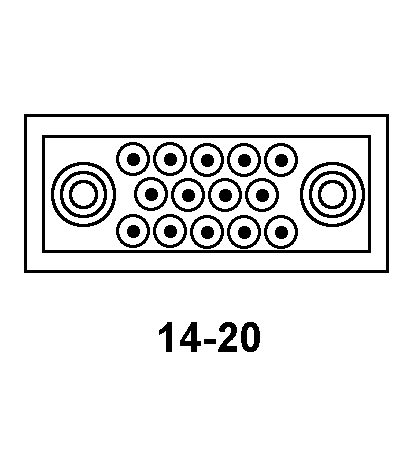

| CONTACT POSITION ARRANGEMENT STYLE | AQCM 14-20 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE GLASS FILLED SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-19833,TYPE GDI-30 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 14 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| FEATURES PROVIDED | PRE-TINNED TERMINAL |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-814-3852
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
