NSN 5935-00-815-2325 M55181/7-03, M55181703, MW10MMD17

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-815-2325 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: M55181/7-03, M55181703, MW10MMD17, SMC161889, SM-C-161889, MILC55181, MIL-C-55181, 10087194 , 1642038P, 164-203-8P, 1642038P520, 164-203-8P520, 8672840001, 867284-0001, 8672841, 867284-1, 5935-00-815-2325, 00-815-2325, 5935008152325 , 008152325

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-815-2325	01938 ( CONNECTOR, PLUG, ELECTRICAL )

Drawings & Photos | NSN 5935-00-815-2325

Part Number	Request Date	QTY	Origin
5935-00-815-2325	2025-10-301	5003	DIBBS
5935-00-815-2325	2025-10-286	5003	DIBBS
5935-00-815-2325	2025-04-97	5063	DIBBS
5935-00-815-2325	2025-03-86	5063	DIBBS
5935-00-815-2325	2024-08-232	2639	DIBBS
5935-00-815-2325	2024-08-221	2639	DIBBS
M55181703	2022-12-350	1	Taiwan
5935-00-815-2325	2022-10-279	425	DIBBS
5935-00-815-2325	2021-03-83	4498	DIBBS
5935-00-815-2325	2021-02-36	1	DIBBS-RFPs
5935-00-815-2325	2020-10-289	608	DIBBS
5935-00-815-2325	2020-04-100	2776	DIBBS
5935-00-815-2325	2020-01-21	1622	DIBBS
5935-00-815-2325	2020-01-16	1622	US
5935-00-815-2325	2020-01-09	1622	DIBBS
5935-00-815-2325	2019-04-94	859	DIBBS
5935-00-815-2325	2019-02-50	711	DIBBS
5935-00-815-2325	2019-02-38	711	DIBBS
5935-00-815-2325	2019-01-24	2514	DIBBS
5935-00-815-2325	2017-02-51	1000	CH
5935-00-815-2325	2016-12-351	1153	DIBBS
5935-00-815-2325	2016-12-340	1153	DIBBS
MW10MMD17	2016-05-138	72	LK
5935-00-815-2325	2015-06-181	925	DIBBS
5935-00-815-2325	2015-06-170	469	DIBBS
5935-00-815-2325	2015-04-93	2791	DIBBS
5935-00-815-2325	2015-02-34	1143	DIBBS
5935-00-815-2325	2014-06-171	3000	DIBBS
MW10MMD17	2014-06-163	71	US
5935-00-815-2325	2014-06-153	7200	DIBBS
5935-00-815-2325	2014-05-139	4000	DIBBS
5935-00-815-2325	2014-03-84	3555	DIBBS
5935-00-815-2325	2013-04-113	1559	DIBBS
5935-00-815-2325	2013-02-32	1485	DIBBS
5935-00-815-2325	2012-11-326	1500	DIBBS
5935-00-815-2325	2012-10-278	2909	DIBBS
5935-00-815-2325	2012-09-262	1001	DIBBS
M55181703	2012-08-234	80	Israel
5935-00-815-2325	2012-05-136	2178	DIBBS
5935-00-815-2325	2012-03-75	1541	DIBBS
5935-00-815-2325	2011-06-155	890	DIBBS
5935-00-815-2325	2011-05-122	334	DIBBS
5935-00-815-2325	2011-04-109	906	DIBBS
5935-00-815-2325	2011-02-49	1	UM
5935-00-815-2325	2011-02-33	594	DIBBS
5935-00-815-2325	2010-08-242	1388	DIBBS
5935-00-815-2325	2010-08-228	957	DIBBS
5935-00-815-2325	2010-04-95	262	DIBBS
5935-00-815-2325	2010-03-85	274	DIBBS
5935-00-815-2325	2008-04-112	1342	DIBBS
5935-00-815-2325	2008-03-63	1204	DIBBS
5935-00-815-2325	2007-12-353	1627	DIBBS
5935-00-815-2325	2007-03-72	1995	DIBBS
5935-00-815-2325	2007-02-53	982	DIBBS

Cross Reference | NSN 5935-00-815-2325

Part Number	Cage Code	Manufacturer
164-203-8P	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
164-203-8P520	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
5935008152325	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
867284-0001	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
867284-1	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
M55181/7-03	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-55181	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MW10MMD17	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
MW10MMD17	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SM-C-161889	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-815-2325

Compare

Related Products | NSN 5935-00-815-2325

5935-00-815-2333, 5935-00-815-2466, 5935-00-815-2567, 5935-00-815-2568, 5935-00-815-2611

Technical Data | NSN 5935-00-815-2325

Characteristic	Specifications
BODY STYLE	16A ANGLE SHAPE
OVERALL LENGTH	2.210 INCHES NOMINAL
OVERALL HEIGHT	3.216 INCHES NOMINAL
OVERALL WIDTH	1.432 INCHES NOMINAL
CONNECTOR LOCKING METHOD	INTERNALLY THREADED SHELL
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UN
NOMINAL THREAD SIZE	1.375 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	16
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.125 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
CABLE ENTRANCE DIAMETER	0.448 INCHES MINIMUM AND 0.531 INCHES MAXIMUM
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CHROMIUM
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1

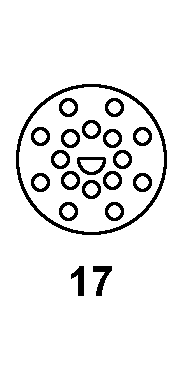

CONTACT POSITION ARRANGEMENT STYLE	ATAW 17 SINGLE MATING END
INSERT MATERIAL	PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY	17 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	7.5 SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
TEST DATA DOCUMENT	81349-MIL-C-55181 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-55181 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-55181
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M55181/7-03

Restrictions/Controls & Freight Information | NSN 5935-00-815-2325

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-815-2325

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
