NSN 5935-00-823-0487 MS3516888E, MS35168-88E, UG88EU
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-823-0487 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3516888E, MS35168-88E, UG88EU, 9460878851, 946087-8851, 0712505, 07-125-05, 1141090002, 114-109-0002, 242203100009, 357-9109-00, 3579292000, 357-9292-000, 4118710017, 4118710-017, 5935-00-823-0487, 00-823-0487, 5935008230487, 357910900, 008230487
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-823-0487 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

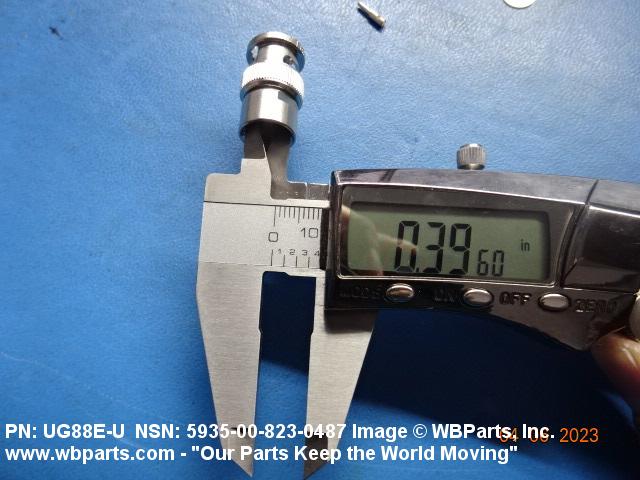

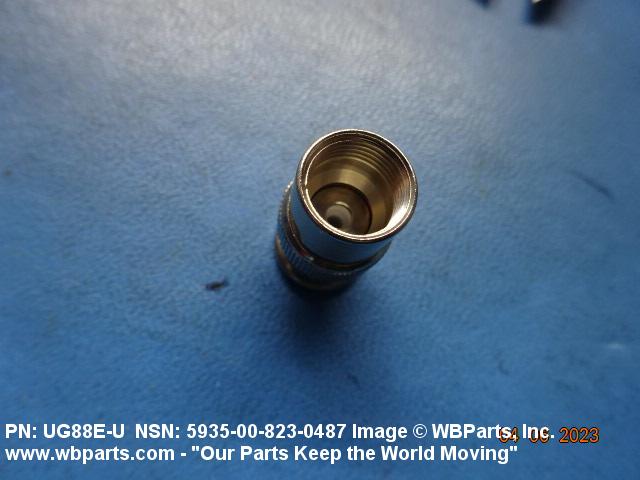

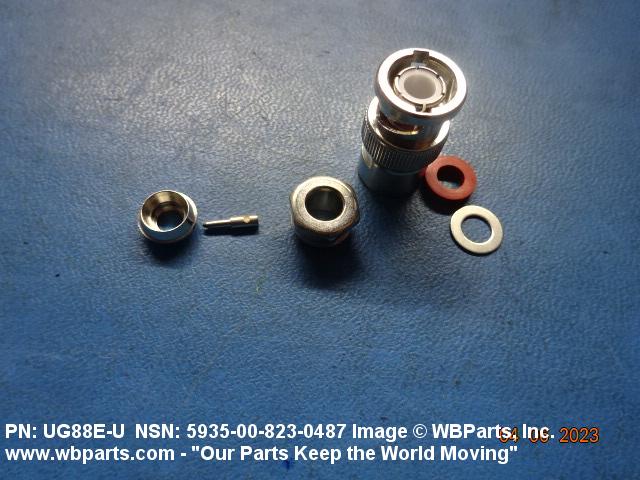

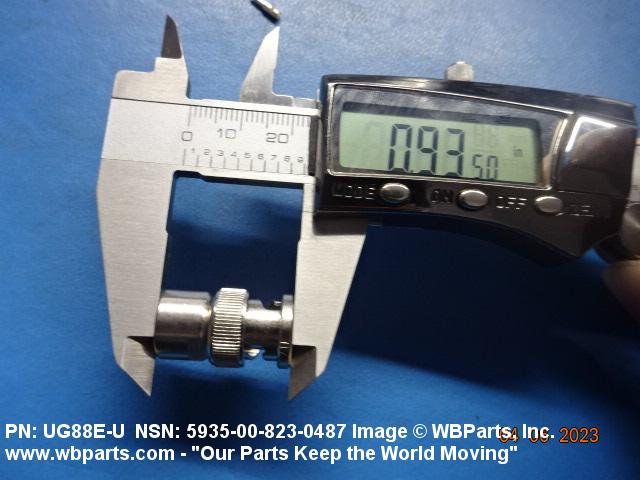

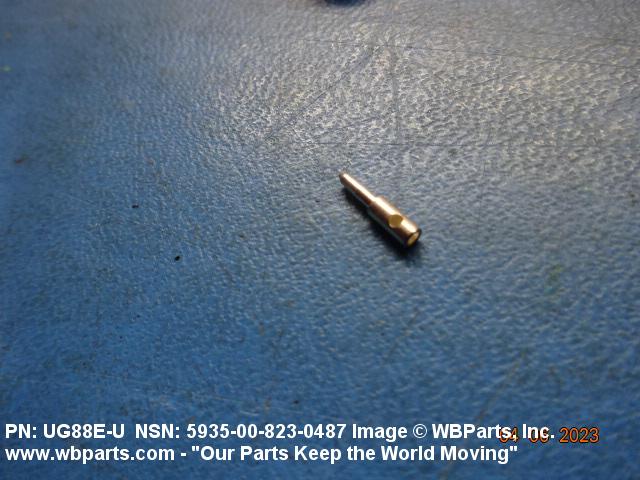

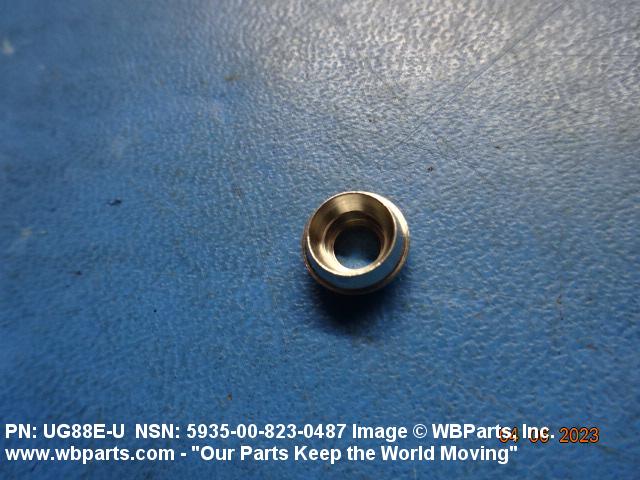

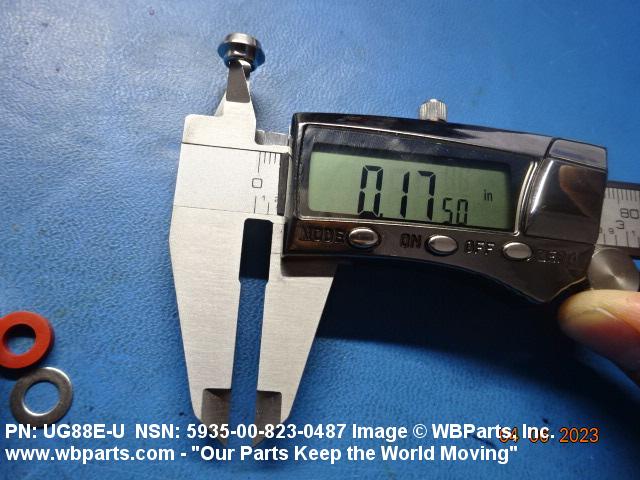

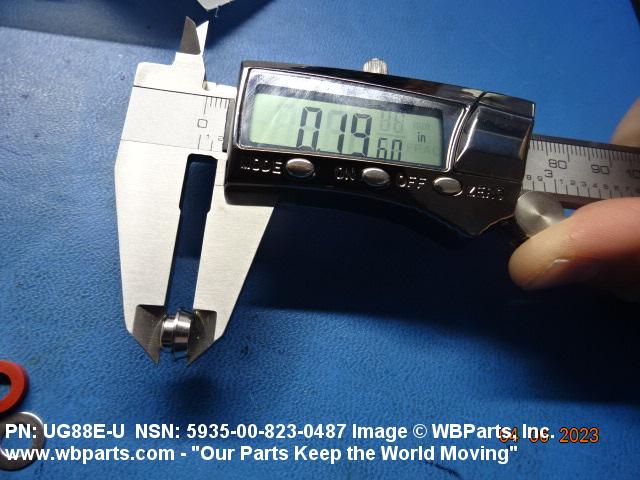

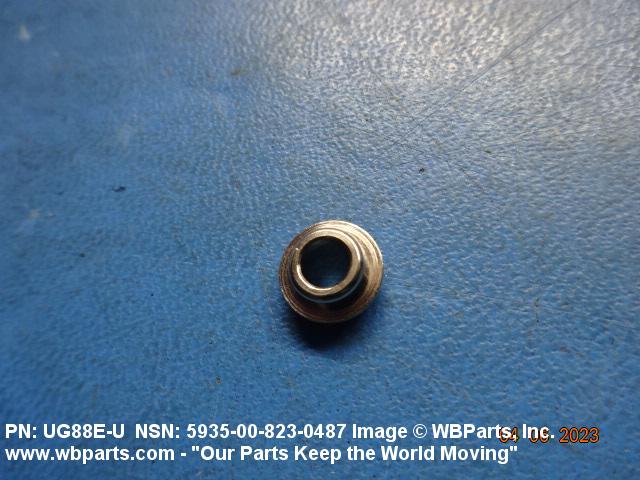

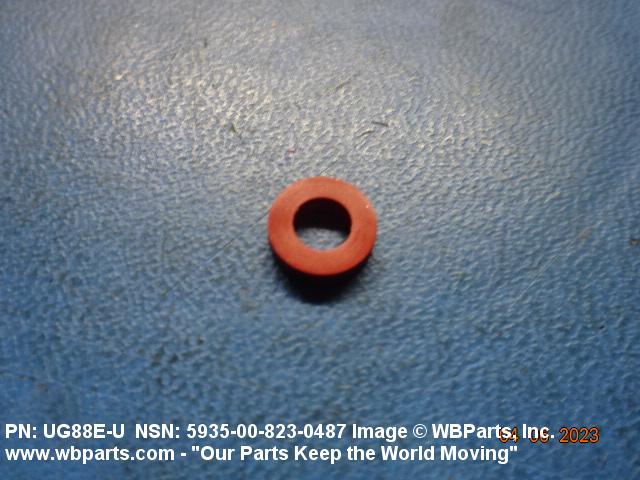

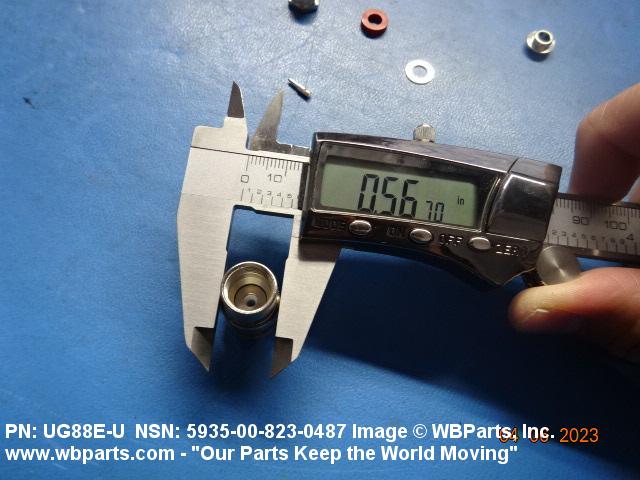

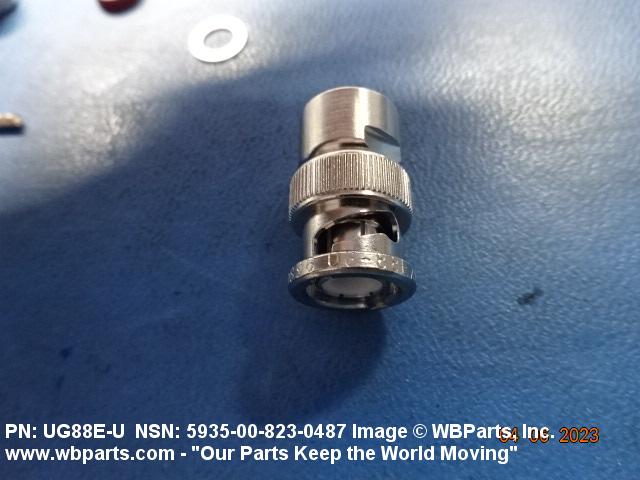

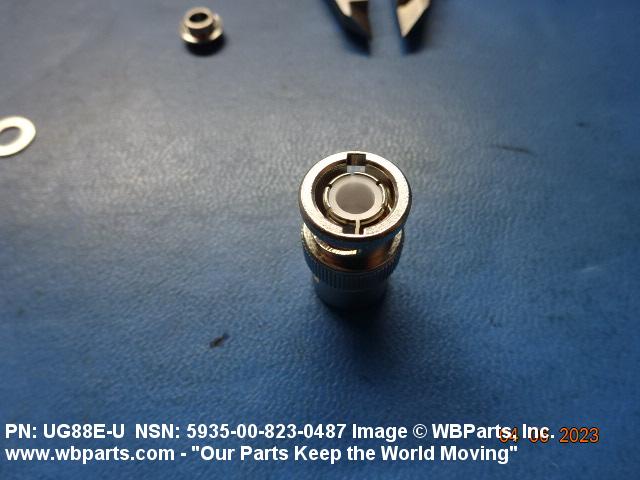

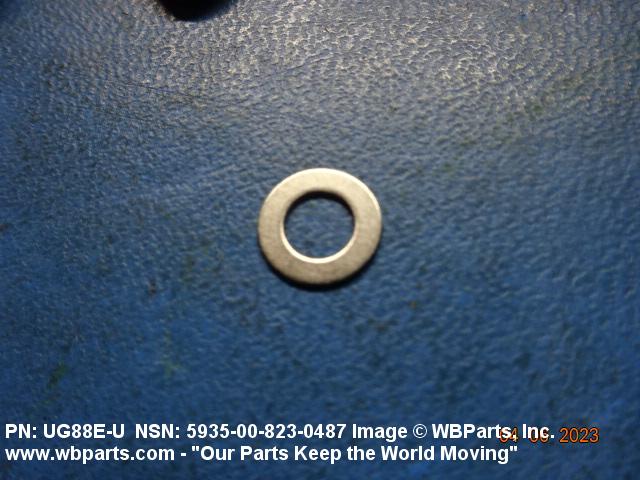

Drawings & Photos | NSN 5935-00-823-0487
Demand History | NSN 5935-00-823-0487
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-823-0487 | 2025-06-164 | 30 | AE |
| 5935-00-823-0487 | 2024-04-104 | 60 | AE |
| 5935-00-823-0487 | 2023-03-88 | 32 | United States |
| 5935-00-823-0487 | 2017-10-278 | 100 | US |
| UG88EU | 2017-04-109 | 5 | Malaysia |
| 3579292000 | 2017-03-63 | 90 | Pakistan |
| 5935-00-823-0487 | 2015-04-117 | 6 | Pakistan |
| 357-9292-000 | 2011-12-355 | 2 | ID |
| 357-9292-000 | 2011-12-355 | 2 | ID |
| 357-9292-000 | 2011-12-355 | 4 | ID |
| 5935-00-823-0487 | 2009-03-74 | 10 | Singapore |
| 3579292000 | 2008-09-256 | 2 | United States |
| 3579292000 | 2008-07-191 | 6 | China |
Cross Reference | NSN 5935-00-823-0487
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 07-125-05 | 99592 | RAYTHEON COMPANY DBA RAYTHEON |
| 114-109-0002 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 242203100009 | H0673 | ALCATEL-LUCENT NETWORK SYSTEMS |
| 357-9109-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 357-9292-000 | 95104 | ALCATEL USA INC. DIV WTPG |
| 357-9292-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 4118710-017 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 946087-8851 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 946087-8851 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| MS35168-88E | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| UG88EU | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| UG88EU | D9422 | FCI DEUTSCHLAND GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-823-0487
Related Products | NSN 5935-00-823-0487
Technical Data | NSN 5935-00-823-0487
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5D STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OVERALL DIAMETER | 0.562 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| CABLE ENTRANCE DIAMETER | 0.223 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | SILVER |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABBJ BNC SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-B-612 COMP 11 FED SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | WEATHERPROOF |
| TEST DATA DOCUMENT | 81349-MILC3608 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-25955 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.105 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT AND BODY SURFACES SILVER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35168-88E |
Restrictions/Controls & Freight Information | NSN 5935-00-823-0487
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-823-0487
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
