NSN 5935-00-838-8419 MS2466814, MS24668-14 , MS35315573B

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-838-8419 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS2466814, MS24668-14 , MS35315573B, MS35315-573B, MS39012/06-0002, MS39012060002, M39012/06-0002, M39012060002, M3901260002, M39012-6-0002, ADBJE1PL74, AD-BJ-E1-PL74, MILC390126, MILC39012-6, MILC39012B60015, MIL-C-39012B-6-0015, UG573, UG-573A/U, UG573AU, UG573B/U, UG573B0, UG573BU, UG573CU, UG628A/U, UG628AU, UG628BU, 05B0717G01, 11253544, 22967527, 229675-27, 301C1800D, 4118700396, 4118700-396, 4G704BU, 4G704B-U, 85-8200337, 5935-00-838-8419, 00-838-8419, 5305008388469 , 5935008388419, 008388419, 858200337

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	16 DEC 1966	00-838-8419	01938 ( CONNECTOR, PLUG, ELECTRICAL )

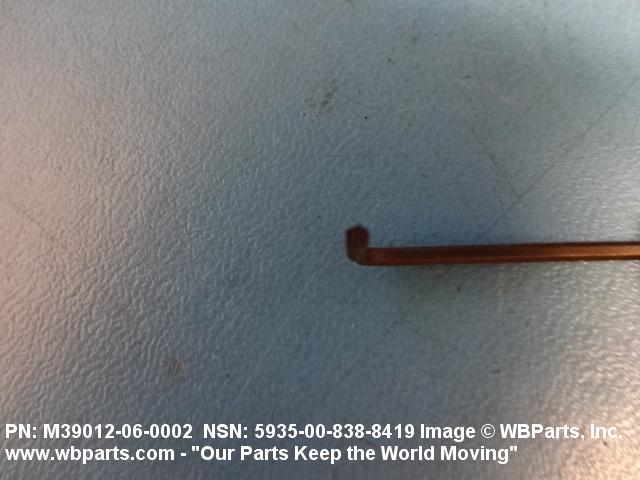

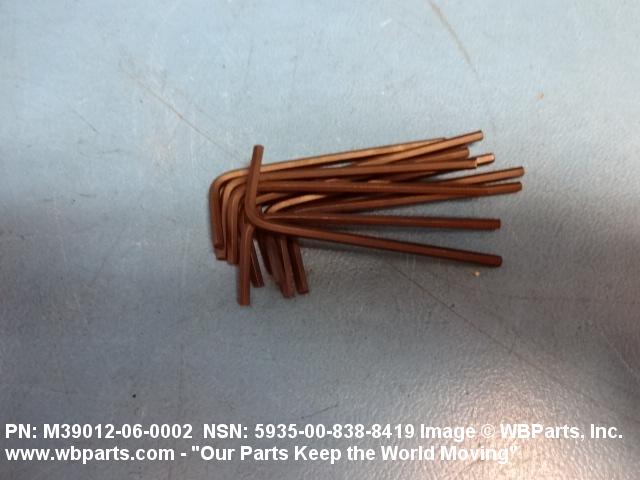

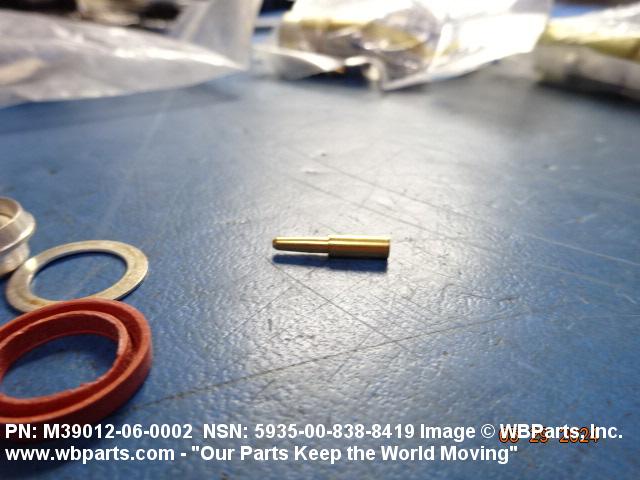

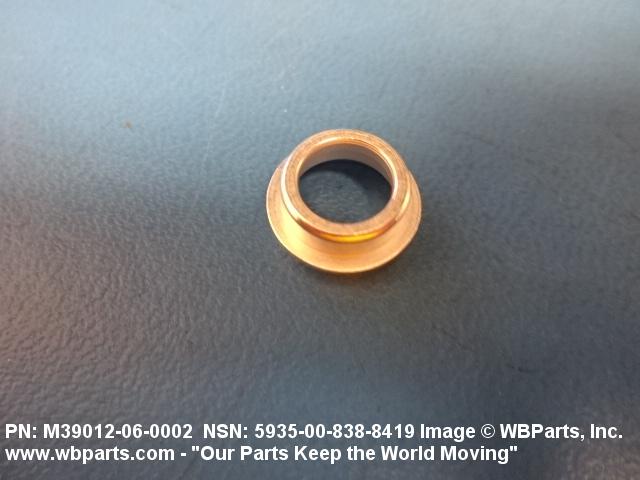

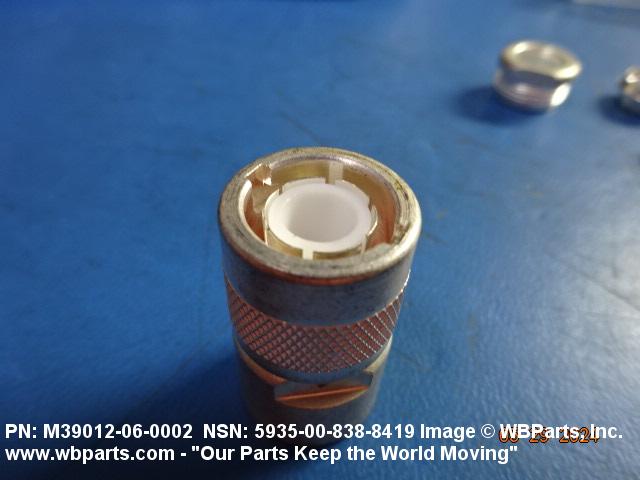

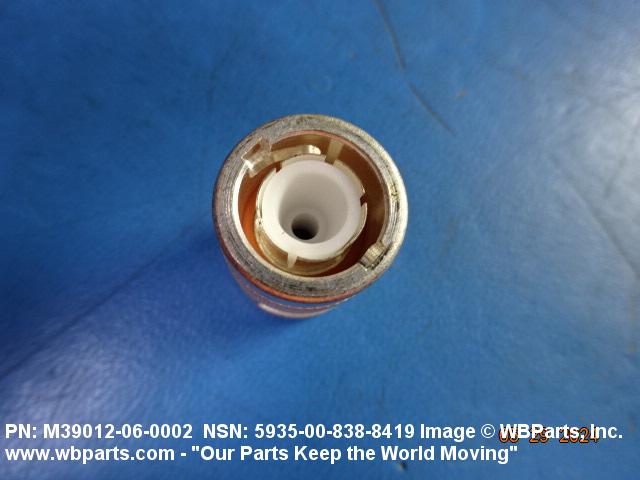

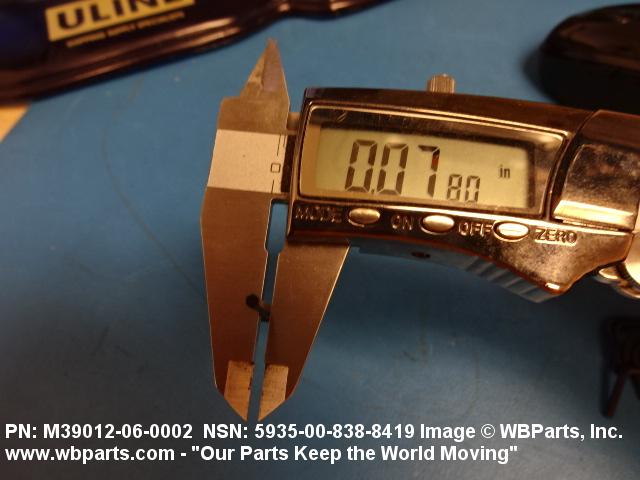

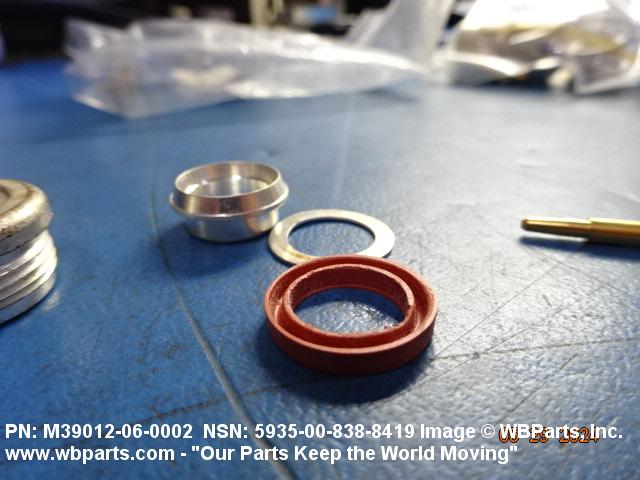

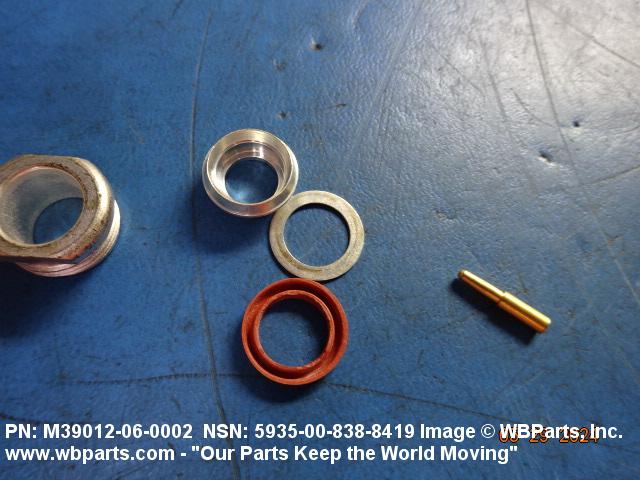

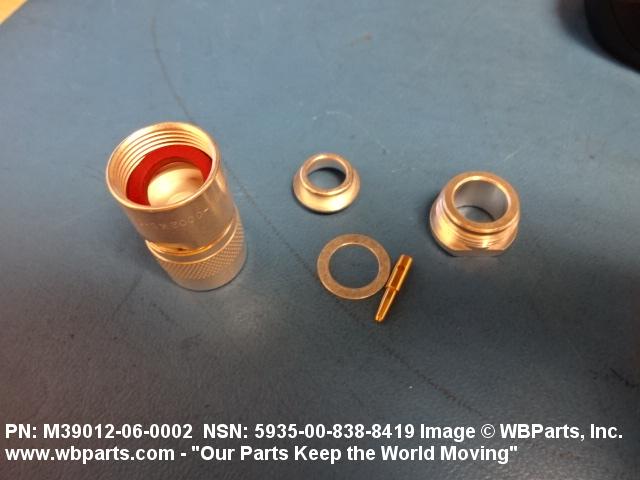

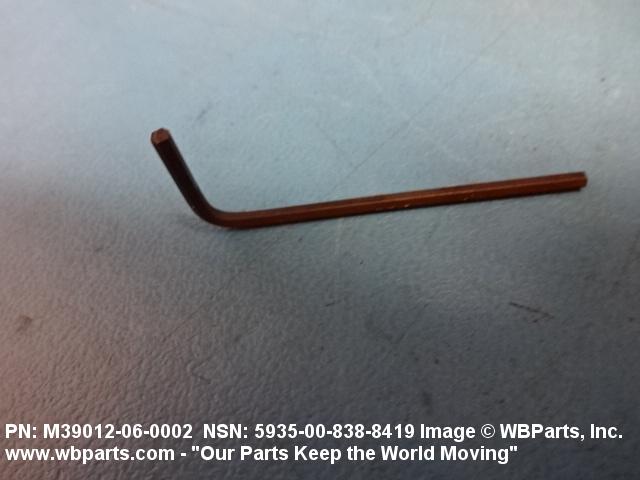

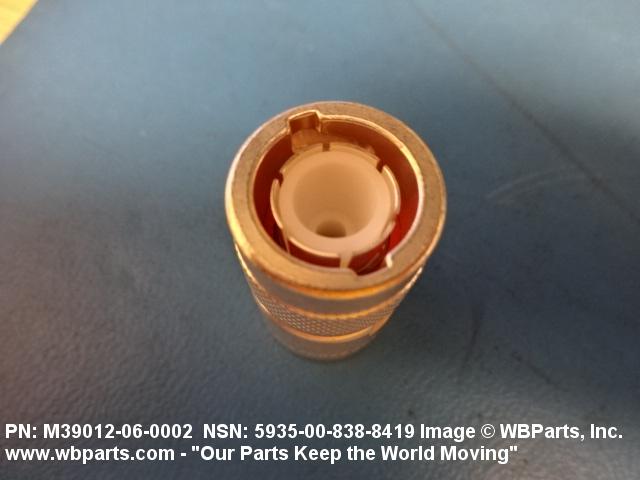

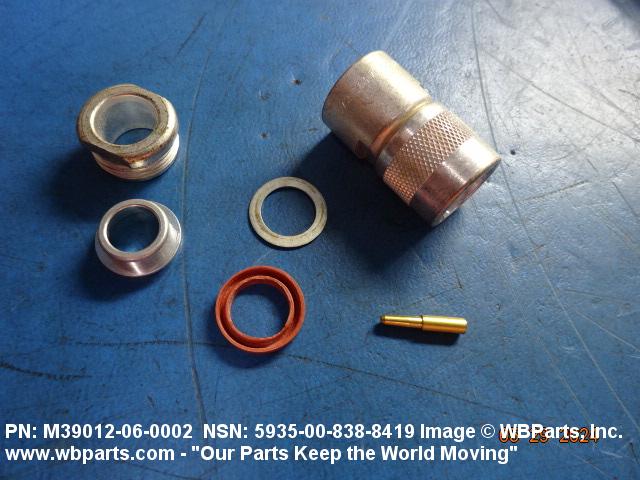

Drawings & Photos | NSN 5935-00-838-8419

Part Number	Request Date	QTY	Origin
MS2466814	2025-10-281	32	Singapore
5935-00-838-8419	2024-08-218	2	DIBBS
5935-00-838-8419	2024-08-218	3	DIBBS
5935-00-838-8419	2024-07-211	30	DIBBS
5935-00-838-8419	2024-05-137	4	United States
5935-00-838-8419	2022-05-138	16	us
M39012060002	2021-12-341	5	United States
5935-00-838-8419	2021-08-223	10	Korea
5935-00-838-8419	2020-11-314	217	DIBBS
5935-00-838-8419	2020-10-303	217	DIBBS
5935-00-838-8419	2020-02-55	9	United States
5935-00-838-8419	2020-02-52	10	TR
5935-00-838-8419	2019-12-338	4	United States
5935-00-838-8419	2019-05-135	11	United States
M39012060002	2019-04-113	9	United States
5935-00-838-8419	2018-06-154	702	DIBBS
5935-00-838-8419	2017-07-198	452	DIBBS
5935-00-838-8419	2017-07-185	452	DIBBS
5935-00-838-8419	2016-06-154	249	DIBBS
5935-00-838-8419	2016-04-95	254	DIBBS
5935-00-838-8419	2016-01-25	58	DIBBS
MS2466814	2011-11-326	100	US
5935-00-838-8419	2009-09-253	800	DIBBS
5935-00-838-8419	2009-05-125	423	DIBBS
5935-00-838-8419	2008-02-32	833	DIBBS
5935-00-838-8419	2008-01-09	816	DIBBS
5935-00-838-8419	2007-12-361	108	DIBBS
5935-00-838-8419	2007-02-41	155	DIBBS

Cross Reference | NSN 5935-00-838-8419

Part Number	Cage Code	Manufacturer
05B0717G01	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
11253544	08718	ITT CANNON ELECTRIC PHOENIX DIV
11253544	17773	BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND
11253544	74868	AMPHENOL CORPORATION
11253544	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
11253544	92180	TRU CORPORATION DBA TRU-CONNECTOR
11253544	94375	AUTOMATIC CONNECTOR
229675-27	24805	ESC TECHNOLOGIES INC
301C1800D	94375	AUTOMATIC CONNECTOR
4118700-396	05869	RAYTHEON COMPANY DBA RAYTHEON
4G704B-U	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
85-8200337	53292	PEGASUS INC
AD-BJ-E1-PL74	K3902	BAE SYSTEMS MARITIME SERVICES
M39012-6-0002	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39012/06-0002	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-39012B-6-0015	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC39012-6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS35315-573B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS39012/06-0002	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
UG-573A/U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG573	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
UG573AU	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
UG573B/U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG573B0	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG573BU	80064	NAVAL SHIP SYSTEMS COMMAND
UG573CU	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
UG628A/U	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
UG628BU	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-838-8419

Compare

Related Products | NSN 5935-00-838-8419

5935-00-838-8441, 5935-00-838-8443, 5935-00-838-8453, 5935-00-838-8468, 5935-00-838-8470

Technical Data | NSN 5935-00-838-8419

Characteristic	Specifications
BODY STYLE	5D STRAIGHT SHAPE, INTERNAL COUPLING

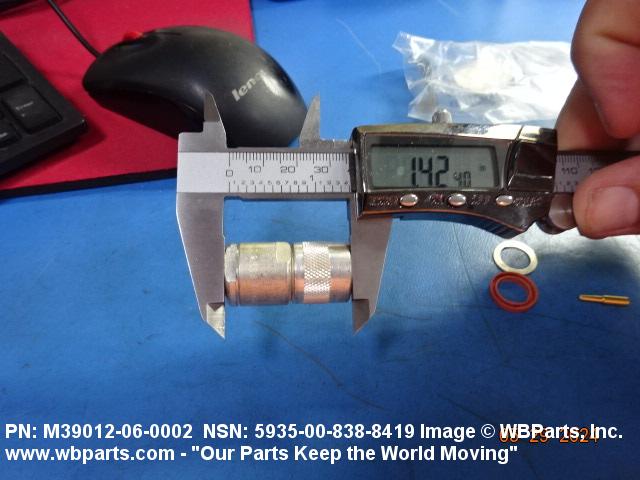

OVERALL LENGTH	1.609 INCHES MAXIMUM

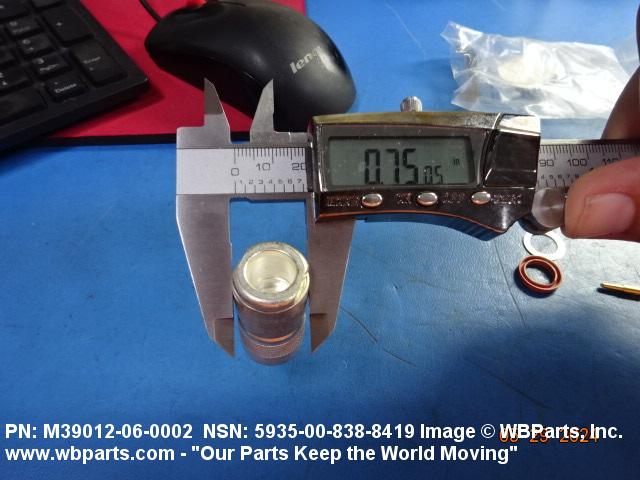

OVERALL DIAMETER	0.766 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	BAYONET LATCH
THREADED DEVICE TYPE	BACK SHELL
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.688 INCHES
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY
SHELL SURFACE TREATMENT	GOLD
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ABDB NONSTD SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-39012 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-39012/06 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILC39012-6
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M39012/06-0002

Restrictions/Controls & Freight Information | NSN 5935-00-838-8419

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-838-8419

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
