NSN 5935-00-846-3884 MS750212, MS75021-2, MS750212S

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-00-846-3884 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS750212, MS75021-2, MS750212S, MS75021-2S, 10500537, 25116, 2HE846, 6003603051S, 60-036030-51S, 60360351S, 60-3603-51S, 811867, 8376209, 5935-00-846-3884, 00-846-3884, 5935008463884, 008463884

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-846-3884	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

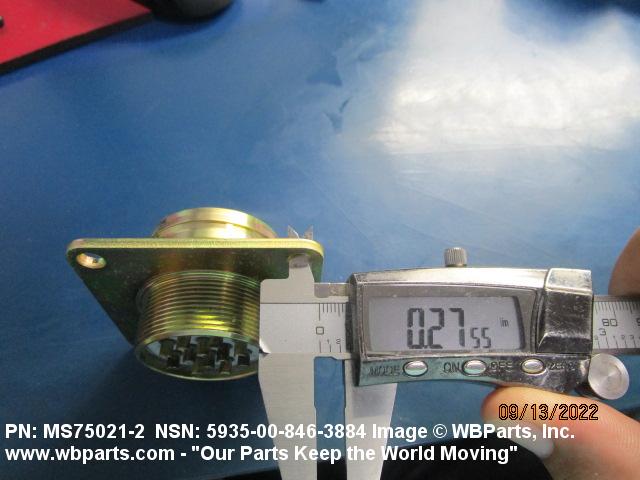

Drawings & Photos | NSN 5935-00-846-3884

Part Number	Request Date	QTY	Origin
5935-00-846-3884	2025-07-209	523	DIBBS
5935-00-846-3884	2025-07-198	523	DIBBS
5935-00-846-3884	2025-06-156	102	DIBBS
5935-00-846-3884	2024-06-164	489	DIBBS
5935-00-846-3884	2022-08-242	41	United States
5935-00-846-3884	2022-08-242	41	United States
5935-00-846-3884	2022-05-137	18	US
5935-00-846-3884	2021-05-131	245	DIBBS
5935-00-846-3884	2019-11-308	2	Denmark
MS750212	2019-10-277	100	CL
5935-00-846-3884	2019-07-185	397	DIBBS
5935-00-846-3884	2019-01-24	437	DIBBS
5935-00-846-3884	2017-11-311	627	DIBBS
5935-00-846-3884	2017-11-306	520	DIBBS
5935-00-846-3884	2017-05-128	5	MANUAL
MS75021-2	2017-05-128	5	TW
5935-00-846-3884	2016-09-246	602	DIBBS
5935-00-846-3884	2016-08-235	602	DIBBS
5935-00-846-3884	2015-11-317	30	US
MS750212	2014-06-160	25	Thailand
5935-00-846-3884	2013-11-317	10	US
MS750212	2011-09-259	15	United States
5935-00-846-3884	2011-03-68	251	MANUAL
5935-00-846-3884	2010-06-159	55	Turkey
5935-00-846-3884	2008-08-225	70	US
5935-00-846-3884	2008-07-212	3970	DIBBS
5935-00-846-3884	2008-02-37	60	US
5935-00-846-3884	2007-07-212	2553	DIBBS
5935-00-846-3884	2007-06-175	7	DIBBS
5935-00-846-3884	2007-05-143	1815	DIBBS
5935-00-846-3884	2007-05-138	47	DIBBS

Cross Reference | NSN 5935-00-846-3884

Part Number	Cage Code	Manufacturer
10500537	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
25116	12472	LOCKWOOD CORP
2HE846	45152	OSHKOSH CORPORATION
2HE846	75Q65	OSHKOSH DEFENSE, LLC
60-036030-51S	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
60-3603-51S	78500	MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS,
811867	34623	AM GENERAL, LLC
8376209	16528	ALTEK SYSTEMS INC
8376209	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
MS75021-2	0FW39	BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
MS75021-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS75021-2S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-846-3884

Compare

Related Products | NSN 5935-00-846-3884

5935-00-846-3886, 5935-00-846-4207, 5935-00-846-4210, 5935-00-846-4212, 5935-00-846-4217

Technical Data | NSN 5935-00-846-3884

Characteristic	Specifications
BODY STYLE	3G STRAIGHT SHAPE, EXTERNAL COUPLING

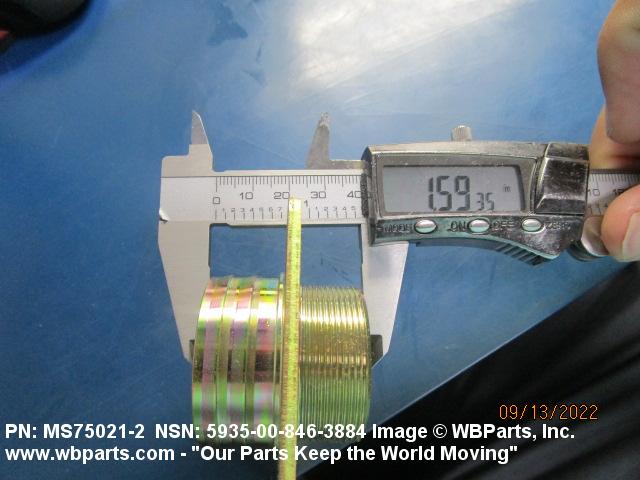

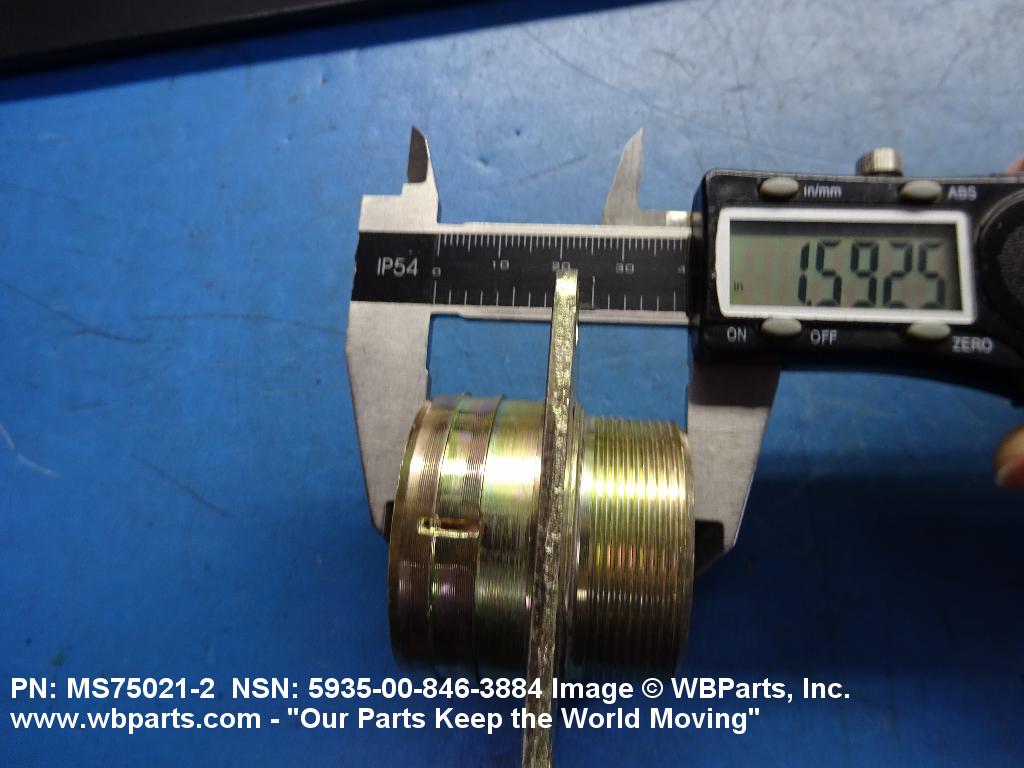

OVERALL LENGTH	1.596 INCHES NOMINAL

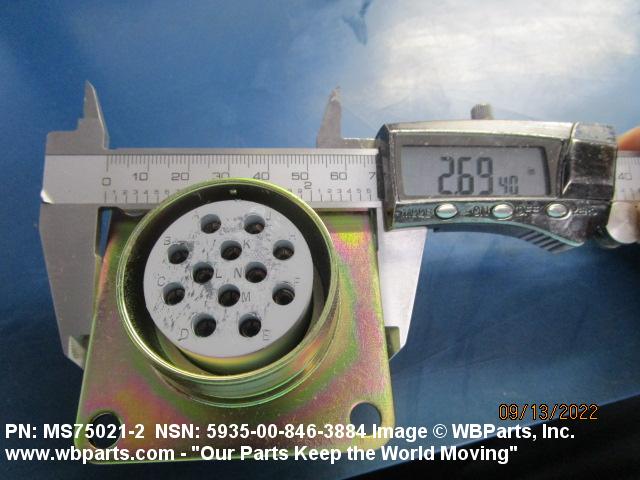

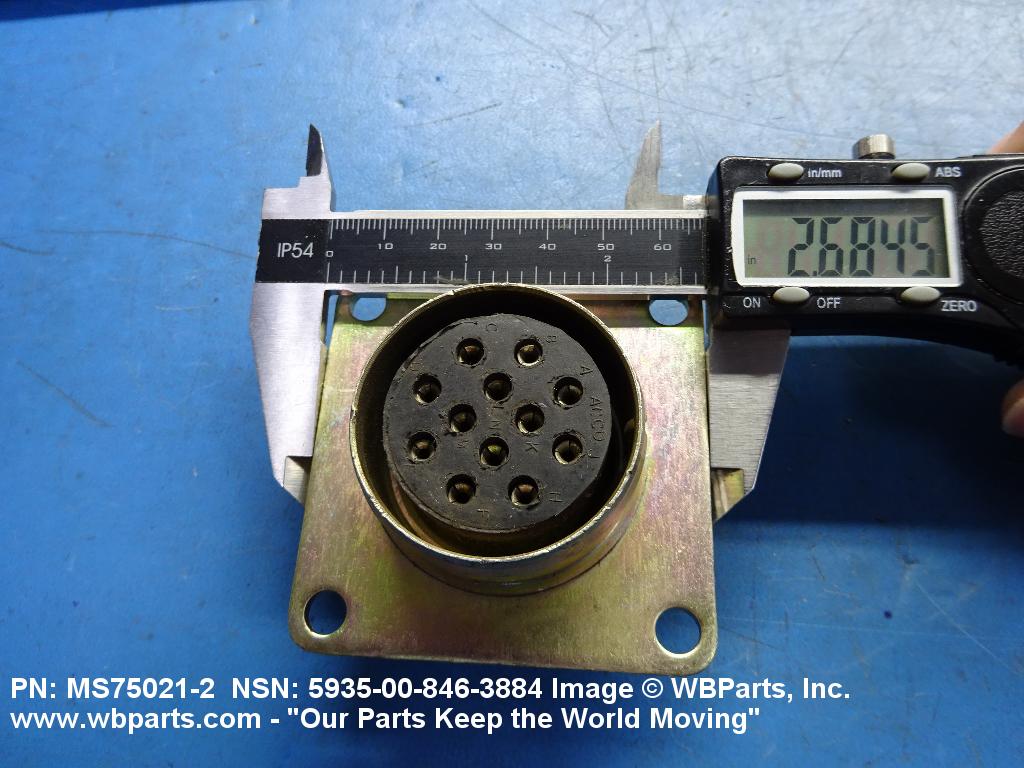

OVERALL HEIGHT	2.688 INCHES NOMINAL
OVERALL WIDTH	2.688 INCHES NOMINAL

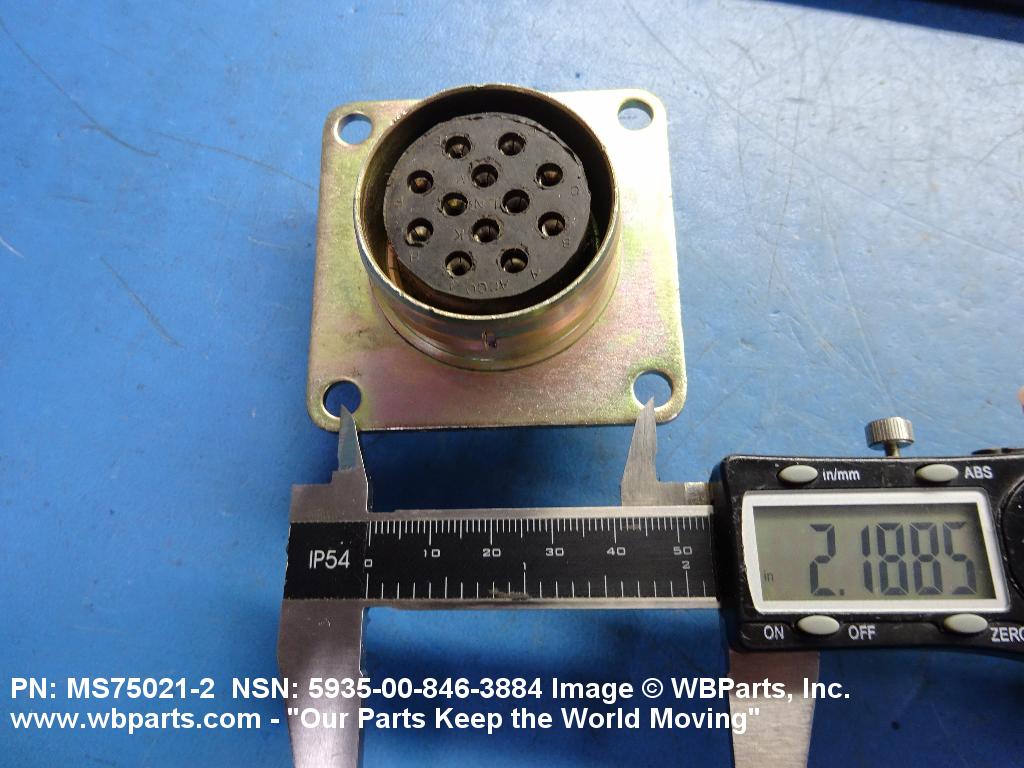

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	2.188 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	2.188 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.750 INCHES NOMINAL
UNTHREADED MOUNTING HOLE DIAMETER	0.269 INCHES NOMINAL
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	1.625 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	18
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1

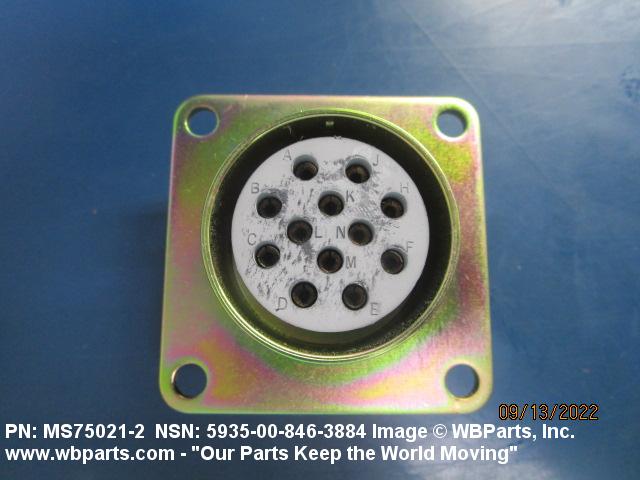

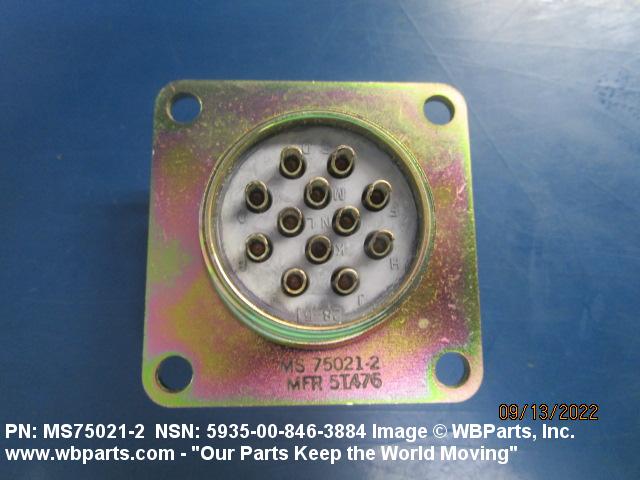

CONTACT POSITION ARRANGEMENT STYLE	ANAD 12-12 SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END 1ST CONTACT GROUPING 11 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END 1ST CONTACT GROUPING NONREMOVABLE SINGLE MATING END 2ND CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS	24.0 SINGLE MATING END 1ST CONTACT GROUPING 24.0 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MATERIAL	COPPER SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	SILVER SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	WATERTIGHT
SPECIAL FEATURES	WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION	FEAT
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND WEIGHT	0.012 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES SILVER
III END ITEM IDENTIFICATION	NSN 2320-01-304-2277 PLS (PALLETIZED LOADING SYSTEM); M9 ARMORED COMBAT EARTHMOVER
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS75021-2

Restrictions/Controls & Freight Information | NSN 5935-00-846-3884

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-846-3884

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	S	Surveillance Target Acquisition and Night Observation (STANO)
Weapons Systems/End Item or Homogeneous Group	SH	Ground Photo
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
