NSN 5935-00-846-8236 GP825CE10, GP825CE1-0, L01750
Product Details | TIP PLUG
5935-00-846-8236 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: GP825CE10, GP825CE1-0, L01750, 99629502, 996295-02, 99762183, 9976218-3, 0130836001, 013-0836-001, 0320065003, 032-0065-003, 1050303001, 105-0303-001, 105303, 105-303, 1053031, 105-303-1, 1053031BLK, 105-303-1BLK, 207AS1221, 207AS122-1, 3100766001, 3100766-001, 3610097000, 361-0097-000, 5935-00-846-8236, 00-846-8236, 5935008468236, 008468236
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-846-8236 | 15046 ( PLUG, TIP ) |

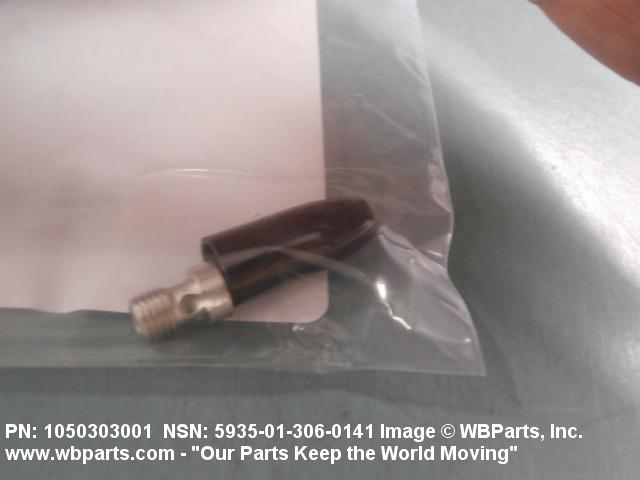

Drawings & Photos | NSN 5935-00-846-8236
Demand History | NSN 5935-00-846-8236
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 105303 | 2019-09-248 | 2 | Italy |
| 1050303001 | 2015-01-12 | 1 | United States |
| 1050303001 | 2014-04-105 | 1 | United States |
| 1050303001 | 2014-04-99 | 1 | United States |
| 207AS1221 | 2011-03-68 | 1 | US |
Cross Reference | NSN 5935-00-846-8236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 013-0836-001 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 032-0065-003 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 105-0303-001 | 71313 | VIKING TECHNOLOGIES, LTD. |
| 105-0303-001 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 105-303 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 105-303-1 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 105-303-1BLK | 74970 | VIKING TECHNOLOGIES, LTD. |
| 207AS122-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 3100766-001 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 361-0097-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 996295-02 | 35351 | GE AVIATION SYSTEMS LLC |
| 9976218-3 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| GP825CE1-0 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| L01750 | 16236 | DLA LAND AND MARITIME |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-846-8236
Technical Data | NSN 5935-00-846-8236
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | TEST PROD STEPPED SINGLE FINGER |
| FINGER LENGTH | 0.562 INCHES NOMINAL SINGLE FINGER |
| FINGER DIAMETER | 0.081 INCHES NOMINAL SINGLE FINGER |
| BODY STYLE | 4 STRAIGHT HANDLE |
| OVERALL LENGTH | 1.437 INCHES NOMINAL |
| BODY LENGTH | 0.875 INCHES NOMINAL |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | ANY ACCEPTABLE |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | BRASS FINGER PLASTIC, POLYAMIDE HANDLE PLASTIC, POLYAMIDE INSULATOR |
| SURFACE TREATMENT | NICKEL FINGER |
| IDENTIFICATION CODE COLOR | BLACK |
| TERMINAL TYPE | PIN |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5935-00-846-8236
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
