NSN 5935-00-849-9455 MPN16002, MPN-1600-2, B901PHSPTD
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-849-9455 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: MPN16002, MPN-1600-2, B901PHSPTD, 12000058, 1200-0058, 12000062, 1200-0062, 12000573, 1200-0573, 12078, 120-78, 1215111060, 121-51-11-060, 1215210107, 121-52-10-107, 3901PHSPTD, 53P22977, 5935-00-849-9455, 00-849-9455, 5935008499455, 008499455
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-849-9455 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-849-9455
Cross Reference | NSN 5935-00-849-9455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 120-78 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 120-78 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 1200-0058 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1200-0058 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 1200-0062 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1200-0062 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 1200-0573 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1200-0573 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 121-51-11-060 | 71785 | CINCH CONNECTORS, INC. |
| 121-52-10-107 | 71785 | CINCH CONNECTORS, INC. |
| 3901PHSPTD | 91662 | AVX CORPORATION |
| 53P22977 | 71785 | CINCH CONNECTORS, INC. |
| B901PHSPTD | 91662 | AVX CORPORATION |
| MPN-1600-2 | 97913 | IEH CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-849-9455
Technical Data | NSN 5935-00-849-9455
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 904A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 9 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | SILVER |
| BODY STYLE | 9B TOP MOUNT W/CENTER THRU HOLE |
| OVERALL HEIGHT | 0.422 INCHES NOMINAL |
| OVERALL DIAMETER | 0.890 INCHES MINIMUM AND 0.900 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | ANY ACCEPTABLE |
| BODY MATERIAL | MICA |
| TERMINAL TYPE AND QUANTITY | 9 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

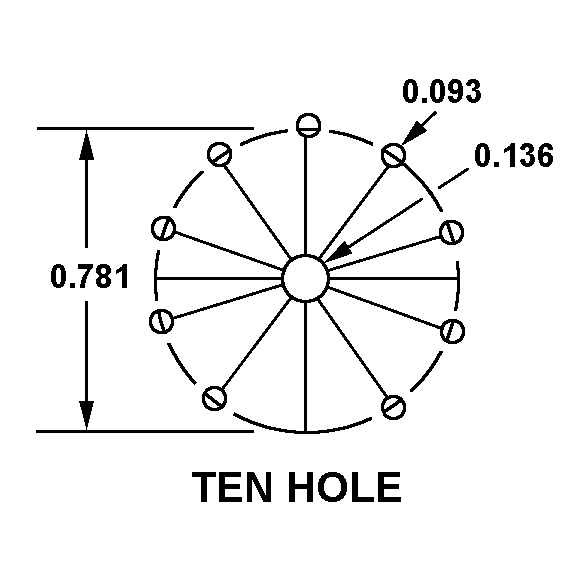

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 1005E TEN HOLE |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| III CONTACT MAXIMUM VOLTAGE IN VOLTS AND CURRENT TYPE | 500.0 AC AND 500.0 DC |
| III FABRICATION METHOD | MOLDED |
| III CONTACT RESISTANCE IN OHMS | 0.300 |
| III END ITEM IDENTIFICATION | STURGEON CLASS SSN (637); TICONDEROGA CLASS CG (47); SPRUANCE CLASS DD (963); FORRESTAL CLASS CV; LOS ANGELES CLASS SSN (688); KIDD CLASS DDG; VIRGINIA CLASS CGN (41); ARLEIGH BURKE CLASS DDG; NIMITZ CLASS CVN |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.009 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 1LQK8 |
| DESIGN CONTROL REFERENCE | 1200-0058 |
Restrictions/Controls & Freight Information | NSN 5935-00-849-9455
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-849-9455
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
