NSN 5935-00-860-0767 HRJA35JV2, HRJA-35JV2, R1091
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-860-0767 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: HRJA35JV2, HRJA-35JV2, R1091, 280006P1, 38761009P154, 3876-1009P154, 911886, 5935-00-860-0767, 00-860-0767, 5935008600767, 008600767
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-860-0767 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

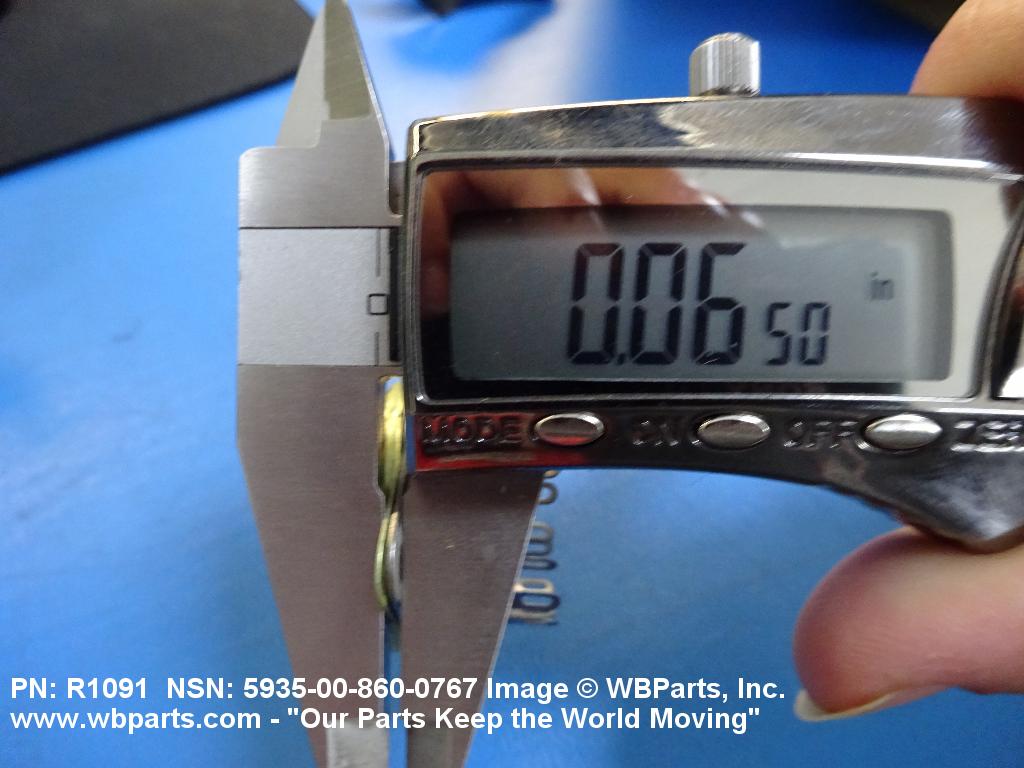

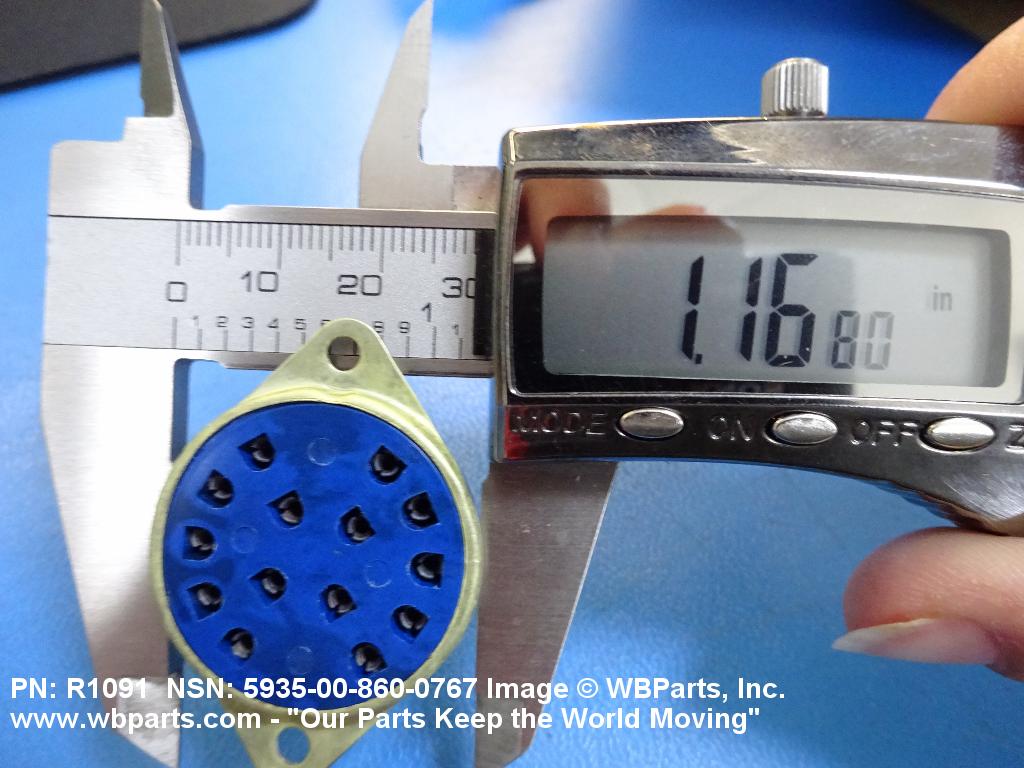

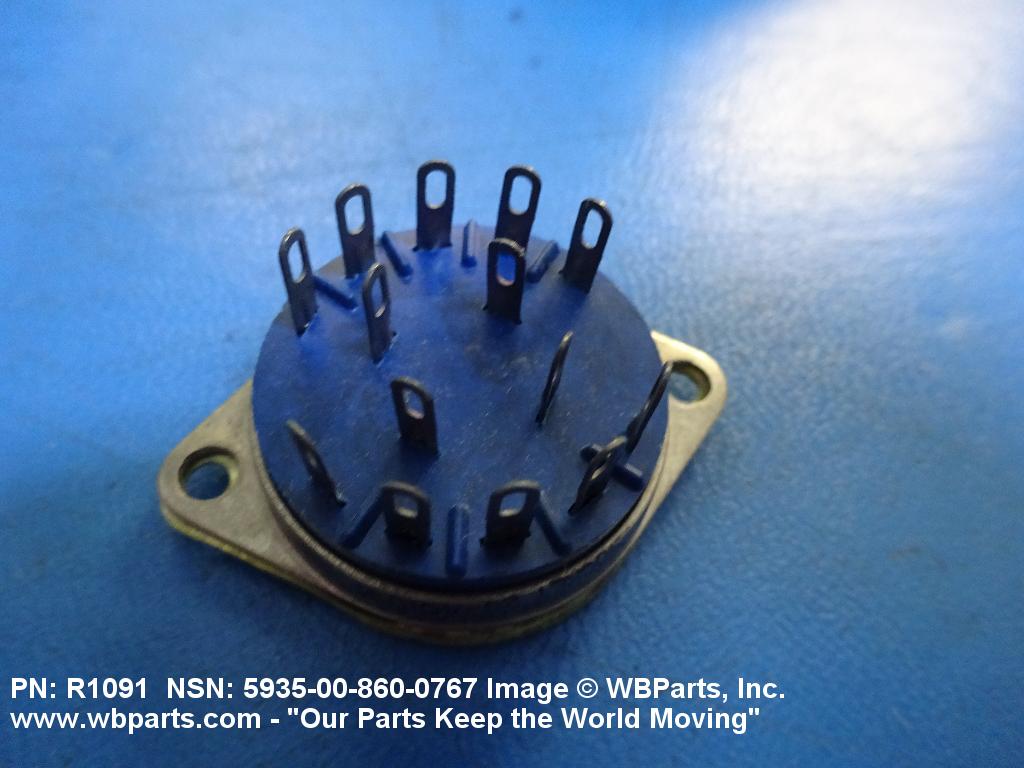

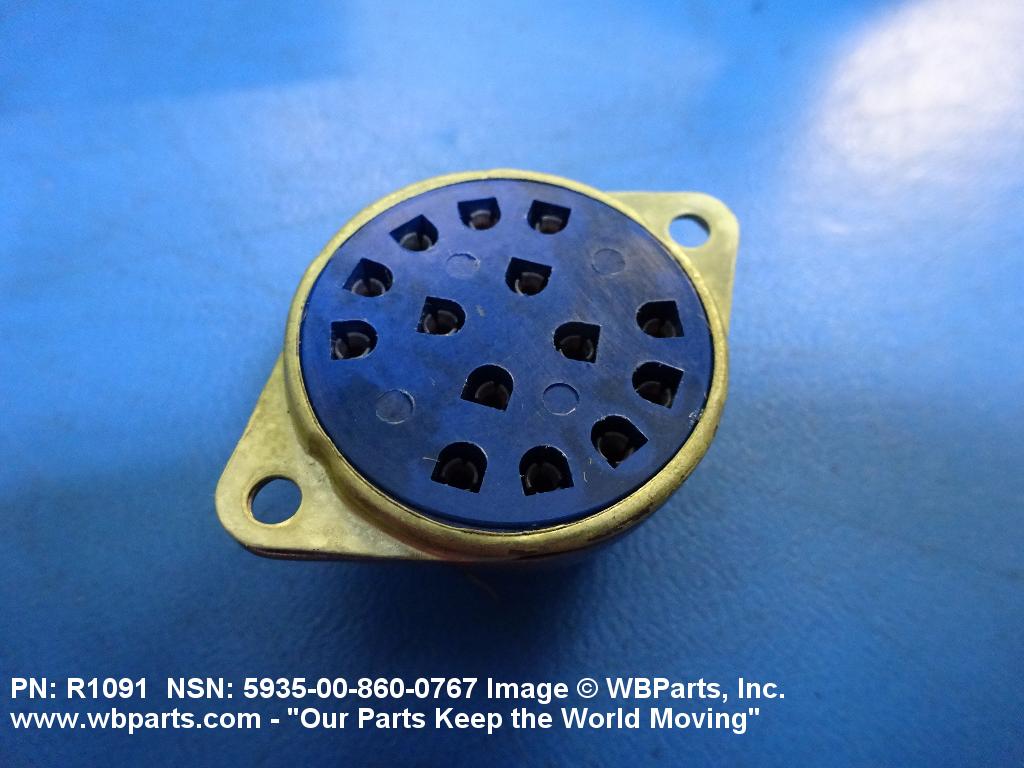

Drawings & Photos | NSN 5935-00-860-0767
Demand History | NSN 5935-00-860-0767
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-860-0767 | 2025-06-170 | 5 | United States |
| 5935-00-860-0767 | 2025-06-170 | 5 | US |
| 5935-00-860-0767 | 2025-06-170 | 15 | US |
| 5935-00-860-0767 | 2025-01-23 | 20 | US |
| 5935-00-860-0767 | 2022-03-74 | 10 | us |
| 5935-00-860-0767 | 2014-01-12 | 60 | DIBBS |
| 5935-00-860-0767 | 2012-08-241 | 11 | DIBBS |
| 5935-00-860-0767 | 2012-04-97 | 22 | DIBBS |
| 5935-00-860-0767 | 2011-12-339 | 12 | DIBBS |
| 5935-00-860-0767 | 2010-08-213 | 6 | DIBBS |
Cross Reference | NSN 5935-00-860-0767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 280006P1 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 3876-1009P154 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 3876-1009P154 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 3876-1009P154 | 94404 | RAYTHEON COMPANY DBA RAYTHEON |
| 911886 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| HRJA-35JV2 | 91663 | ARMEL ELECTRONICS INC |
| R1091 | 05587 | COUCH S H CO |
| R1091 | 99699 | DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-860-0767
Technical Data | NSN 5935-00-860-0767
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 1403A CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER |
| BODY STYLE | 3B TOP OR BOTTOM MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.719 INCHES NOMINAL |
| OVERALL HEIGHT | 0.688 INCHES NOMINAL |
| OVERALL WIDTH | 1.188 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.541 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | 8D ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | ANY ACCEPTABLE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.432 INCHES MINIMUM AND 1.442 INCHES MAXIMUM |
| POLARIZATION TYPE | CONTACT SHAPE |
| III SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| III TEMP RATING | -55.0 DEG CELSIUS AND 125.0 DEG CELSIUS |
| III SADDLE MATERIAL | STEEL |
| III SADDLE SURFACE TREATMENT | CADMIUM |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY AND 0.014 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD AND CONTACT SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-860-0767
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-860-0767
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
