NSN 5935-00-872-6872 KA5996, KA59-96, 443021
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-872-6872 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: KA5996, KA59-96, 443021, 44-302-1, 53014, 5-30-14, 5935-00-872-6872, 00-872-6872, 5935008726872, 008726872
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 NOV 1967 | 00-872-6872 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

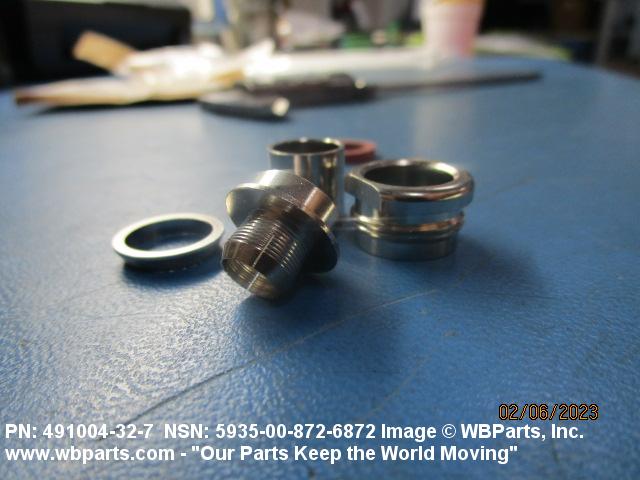

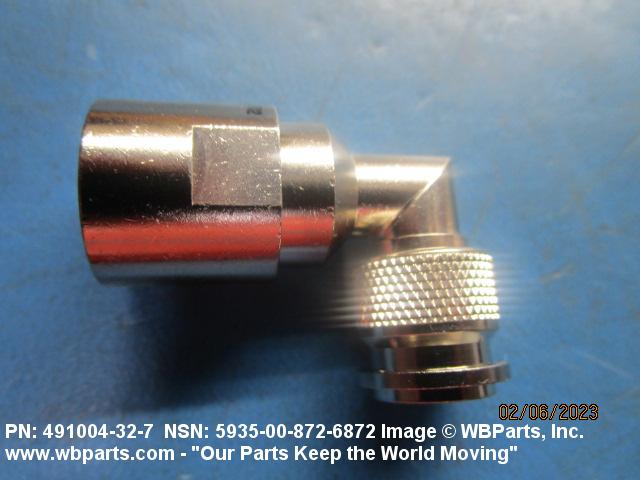

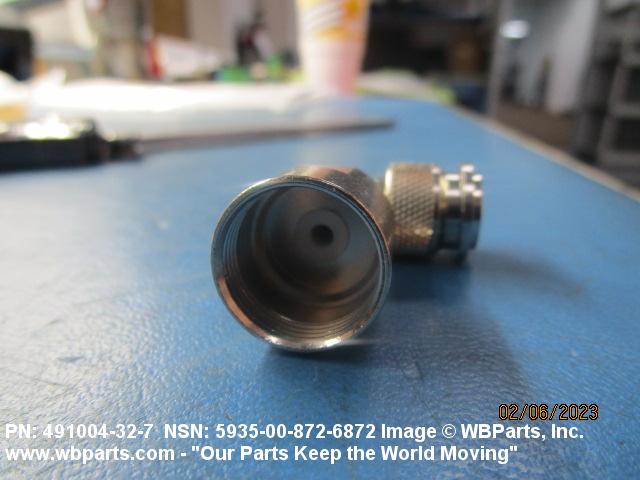

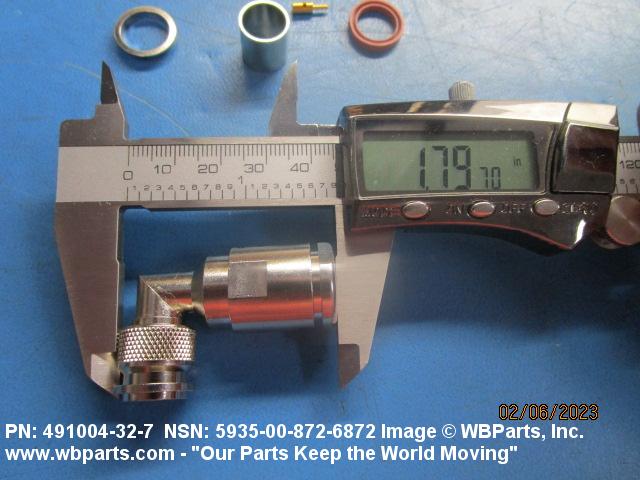

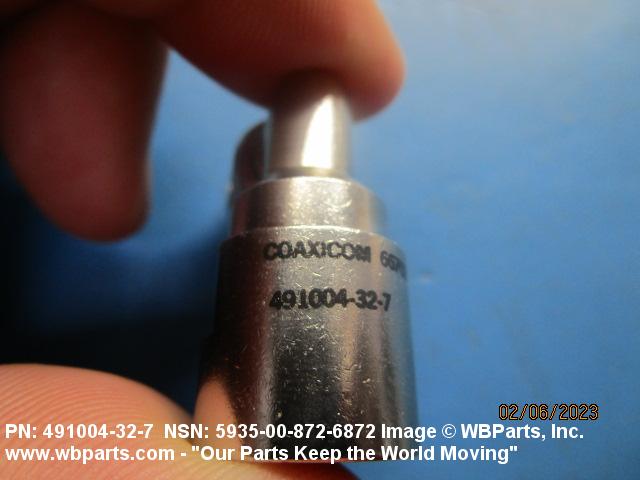

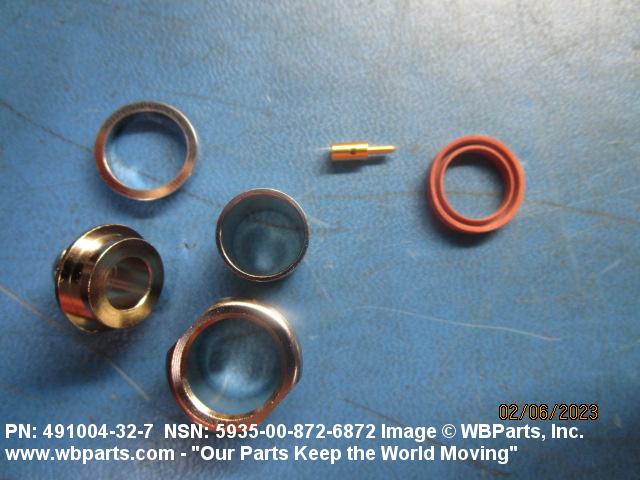

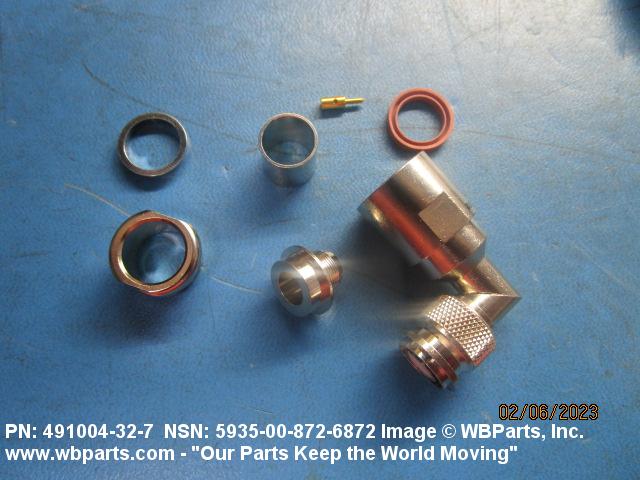

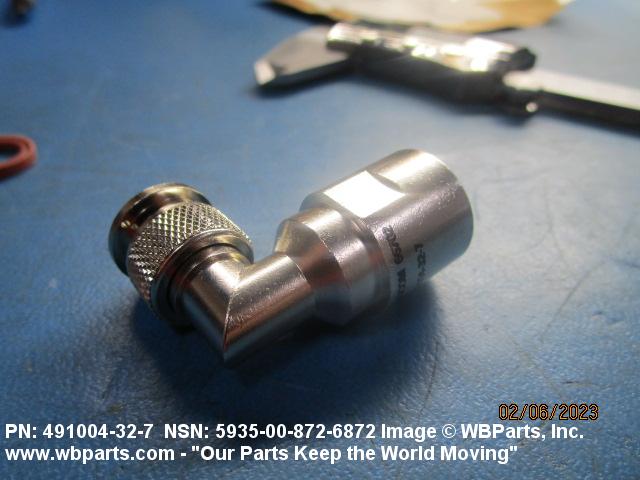

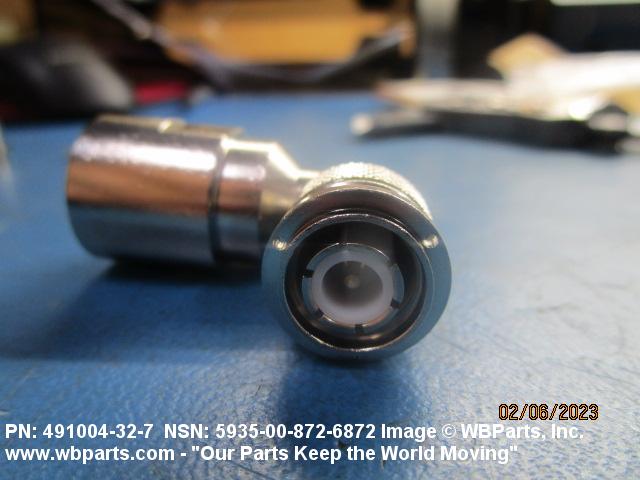

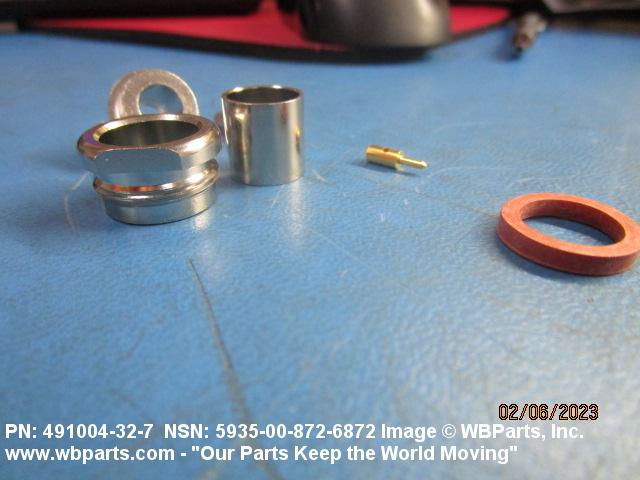

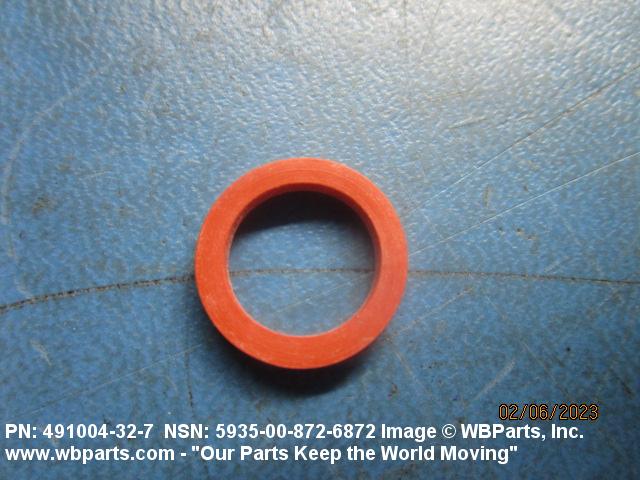

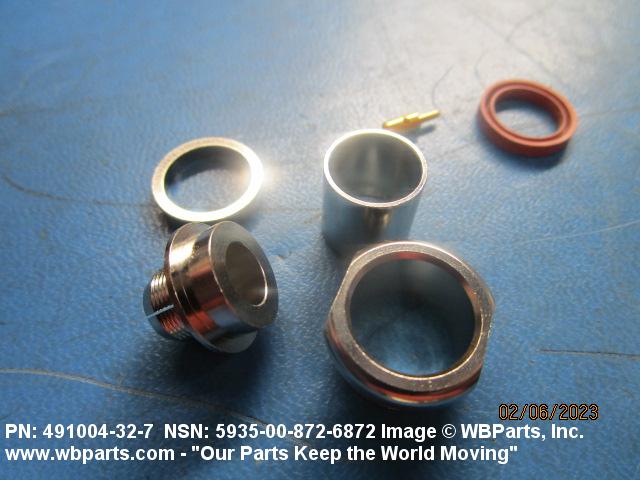

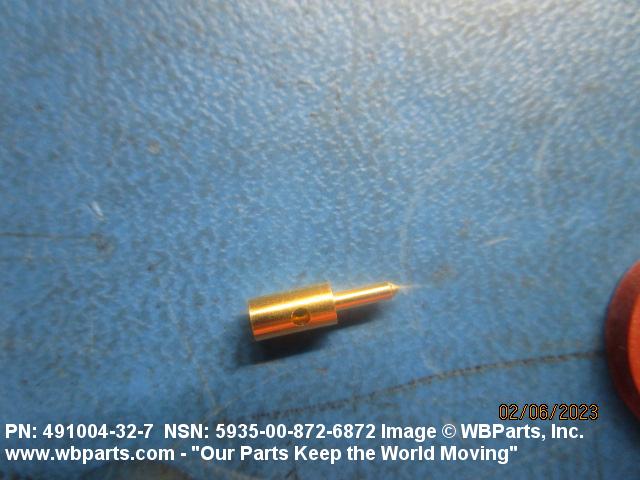

Drawings & Photos | NSN 5935-00-872-6872
Demand History | NSN 5935-00-872-6872
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 44-302-1 | 2024-03-67 | 95 | DIBBS |
| 5-30-14 | 2024-03-67 | 95 | DIBBS |
| 44-302-1 | 2023-12-341 | 140 | DIBBS |
| 5-30-14 | 2023-12-341 | 140 | DIBBS |
| 44-302-1 | 2023-08-215 | 81 | DIBBS |
| 5-30-14 | 2023-08-215 | 81 | DIBBS |
| 44-302-1 | 2023-04-107 | 25 | DIBBS |
| 5-30-14 | 2023-04-107 | 25 | DIBBS |
| 44-302-1 | 2023-03-75 | 25 | DIBBS |
| 5-30-14 | 2023-03-75 | 25 | DIBBS |
| 5935-00-872-6872 | 2023-02-32 | 62 | United States |
| 44-302-1 | 2023-01-09 | 62 | DIBBS |
| 5-30-14 | 2023-01-09 | 62 | DIBBS |
| 44-302-1 | 2023-01-03 | 62 | DIBBS |
| 5-30-14 | 2023-01-03 | 62 | DIBBS |
| 44-302-1 | 2022-12-354 | 62 | DIBBS |
| 5-30-14 | 2022-12-354 | 62 | DIBBS |
| 44-302-1 | 2022-11-305 | 140 | DIBBS |
| 5-30-14 | 2022-11-305 | 140 | DIBBS |
| 44-302-1 | 2021-11-320 | 19 | DIBBS |
| 5-30-14 | 2021-11-320 | 19 | DIBBS |
| 44-302-1 | 2021-11-305 | 19 | DIBBS |
| 5-30-14 | 2021-11-305 | 19 | DIBBS |
| 44-302-1 | 2020-11-313 | 54 | DIBBS |
| 5-30-14 | 2020-11-313 | 54 | DIBBS |
| 44-302-1 | 2020-01-30 | 106 | DIBBS |
| 5-30-14 | 2020-01-30 | 106 | DIBBS |
| 44-302-1 | 2019-07-192 | 47 | DIBBS |
| 5-30-14 | 2019-07-192 | 47 | DIBBS |
| 5935-00-872-6872 | 2018-03-74 | 95 | DIBBS |
| 5935-00-872-6872 | 2016-07-189 | 66 | DIBBS |
| 5935-00-872-6872 | 2016-05-130 | 39 | DIBBS |
| 5935-00-872-6872 | 2016-04-119 | 39 | DIBBS |
| 5935-00-872-6872 | 2008-11-318 | 124 | DIBBS |
| 5935-00-872-6872 | 2008-05-137 | 897 | DIBBS |
| 5935-00-872-6872 | 2007-09-248 | 309 | DIBBS |
| 5935-00-872-6872 | 2007-06-162 | 65 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-872-6872
Related Products | NSN 5935-00-872-6872
Technical Data | NSN 5935-00-872-6872
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3D ANGLE, SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.812 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| CABLE ENTRANCE DIAMETER | 0.430 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | NICKEL |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABCZ TNC SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | L-P-403 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | SIDE SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III OPERATING TEMP RATING | -65.0 DEG CELSIUS MINIMUM AND 165.0 DEG CELSIUS MAXIMUM |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY AND 0.005 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD AND CONTACT SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-872-6872
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | C | Item contains two or more precious metals |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-872-6872
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
