NSN 5935-00-900-1132 NRFJA0078, NRF-JA-0078, SFR16 2322-180-1327R0
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-900-1132 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: NRFJA0078, NRF-JA-0078, SFR16 2322-180-1327R0 , SFR1623221801327R0, TOR5001, TOR-5001, FX7850NF, FX78-50NF, FXA7850NF, FXA78-50NF, 2299100001, 229910-0001, 317-0270-00 , 50FP78NF, 592013CF05, 592013C-F-05, 734538, 735101, 5935-00-900-1132, 00-900-1132, 5935009001132, 009001132, 317027000
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-900-1132 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

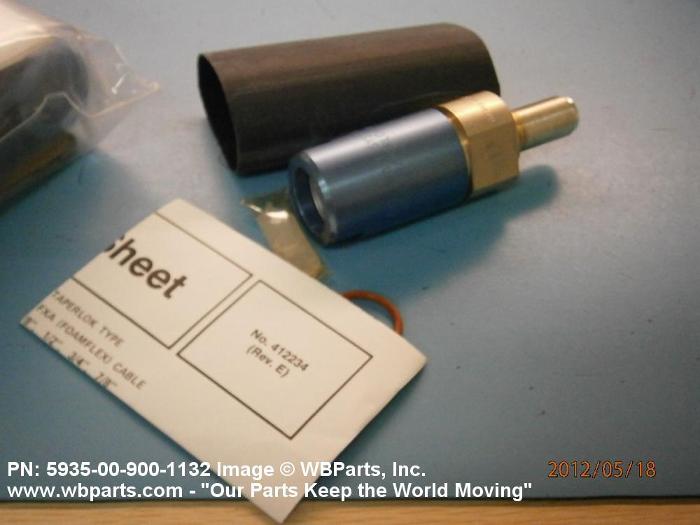

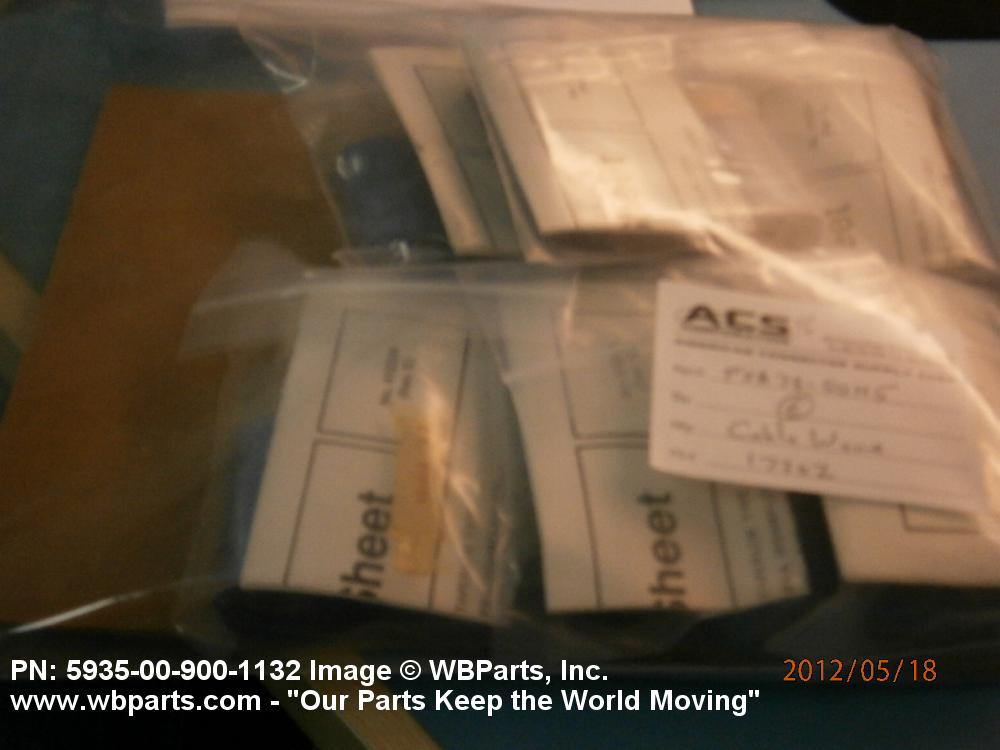

Drawings & Photos | NSN 5935-00-900-1132
Demand History | NSN 5935-00-900-1132
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 229910-0001 | 2021-05-143 | 124 | DIBBS |
| 50FP78NF | 2021-05-143 | 124 | DIBBS |
| 592013C-F-05 | 2021-05-143 | 124 | DIBBS |
| 735101 | 2021-05-143 | 124 | DIBBS |
| FX78-50NF | 2021-05-143 | 124 | DIBBS |
| FXA78-50NF | 2021-05-143 | 124 | DIBBS |
| NRF-JA-0078 | 2021-05-143 | 124 | DIBBS |
| 5935-00-900-1132 | 2012-05-135 | 6 | us |
| 5935-00-900-1132 | 2012-04-101 | 6 | US |
| 5935-00-900-1132 | 2007-09-250 | 785 | DIBBS |
| 5935-00-900-1132 | 2007-06-157 | 214 | DIBBS |
| 5935-00-900-1132 | 2007-05-138 | 47 | DIBBS |
| 5935-00-900-1132 | 2007-05-136 | 22 | DIBBS |
| 5935-00-900-1132 | 2007-04-99 | 21 | DIBBS |
Cross Reference | NSN 5935-00-900-1132
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 229910-0001 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 50FP78NF | 0ARB1 | ARBUS, INC |
| 592013C-F-05 | 66702 | COAXIAL COMPONENTS CORP. |
| 734538 | 71628 | RADIO FREQUENCY SYSTEMS INC |
| 735101 | 16733 | RADIO FREQUENCY SYSTEMS INC. |
| FX78-50NF | 16733 | RADIO FREQUENCY SYSTEMS INC. |
| FXA78-50NF | 16733 | RADIO FREQUENCY SYSTEMS INC. |
| NRF-JA-0078 | 0EFR2 | CONNECTEC COMPANY, INC. |
| TOR-5001 | 43608 | EDINBURGH CONNECTOR COMPANY DBA CONNECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-900-1132
Restrictions/Controls & Freight Information | NSN 5935-00-900-1132
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZK | United Kingdom ZL ZM |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-900-1132
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 4 | PROVISIONING ITEMS (Exclusive of Insurance Items). This code will identify new items introduced through the provisioning process for system stock which would normally be categorized as either nonreparable or reparable but for which sufficient experience has been obtained to manage on the basis of normal demand forecasts. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
