Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-901-4714 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: SMC3748193, SMC374819-3, 0003000317, 000300-0317, 5935-00-901-4714, 00-901-4714, 5935009014714, 009014714
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 FEB 1967 | 00-901-4714 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-901-4714
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-901-4714
Technical Data | NSN 5935-00-901-4714
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 809A SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| MISSING CONTACT DESIGNATION | 8TH CONTACT POSITION |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 54B PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 0.745 INCHES MINIMUM AND 0.755 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.090 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.470 INCHES NOMINAL |
| OVERALL WIDTH | 0.345 INCHES MINIMUM AND 0.355 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 7 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

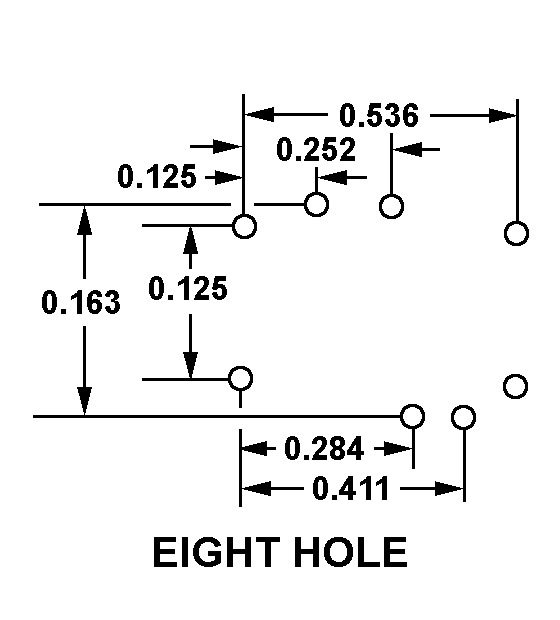

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 806E EIGHT HOLE |
| POLARIZATION TYPE | OFF CENTER HOLE |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.007 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
