NSN 5935-00-914-2737 MILC125203, MILC12520-3, UW1326FC25
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-914-2737 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MILC125203, MILC12520-3, UW1326FC25, 5L.4531.012.91, 5L453101291, 5935-00-914-2737, 00-914-2737, 5935009142737, 009142737
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JUL 1966 | 00-914-2737 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-914-2737
Cross Reference | NSN 5935-00-914-2737
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-914-2737
Related Products | NSN 5935-00-914-2737
Technical Data | NSN 5935-00-914-2737
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16A ANGLE SHAPE |
| OVERALL LENGTH | 2.125 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.438 INCHES MAXIMUM |
| OVERALL WIDTH | 1.875 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | SCREW |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.781 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

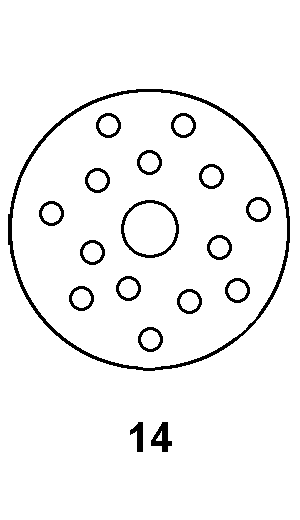

| CONTACT POSITION ARRANGEMENT STYLE | AQBP 14 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 14 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 22.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 900.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 1250.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| TEST DATA DOCUMENT | 81349-MIL-C-12520 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-12520/3 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY AND 0.014 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC12520-3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | UW1326FC25 |
