NSN 5935-00-928-3127 MS39012010005, MS39012-01-0005, MS905341185A

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-928-3127 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS39012010005, MS39012-01-0005, MS905341185A, MS90534-1185A, M30012/01-0005, M30012010005, M39012/01-0002, M39012/01-0005, M39012/1-0002, M39012/1-0005, M39012010002, M39012010005, M3901201005, M39012-01-005, M3901210002, M3901210005, M3901210008, M39012-1-0008, M3902010002, M3902-01-0002, NPL4M8, N-PL4-M-8, B4031296002, B4031296-002, KN59176, KN59-176, UG1185A, UG-1185A, UG1185AU, UG1185BU, UG1185U, UG-1682/U, UG1682U, UG21AU, UG-21B/U, UG21BU, UG21CU, UG21DU, UG21E, UG21E/U, UG-21E/U, UG21EU, UG21U, W41250A6101A4, W41250-A6101-A4, MIL-C-39012/1, MILC390121, 11N5076C, 11N-50-7-6C, 1205149, 1205-14-9, 1615785, 19C5139, 2605709002, 2605709-002, 2761031P1, 276-1031P1, 2761423P1, 276-1423P1, 2761423P2, 276-1423P2, 28P08752T001, 28-P08752T001, 301N1800Y, 32342681, 3234268-1, 357-9040-00, 3579040000, 357-9040-000, 3579261000, 357-9261-000, 3579326000, 357-9326-000, 39F019, 4186495, 418649-5, 5M458422025, 5M4584-220-25, 6050842, 739012010002, 739012-01-0002, 824352, 82-4352, 8750230002, 875023-0002, 8750460001, 875046-0001, 005CTR01P, 005-CTR-01P, 5935-00-928-3127, 00-928-3127, 5935009283127, 357904000, 038006026, 009283127

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	26 AUG 1966	00-928-3127	01938 ( CONNECTOR, PLUG, ELECTRICAL )

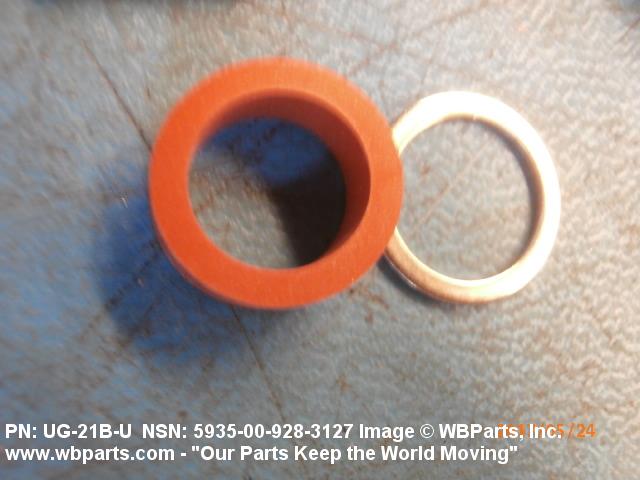

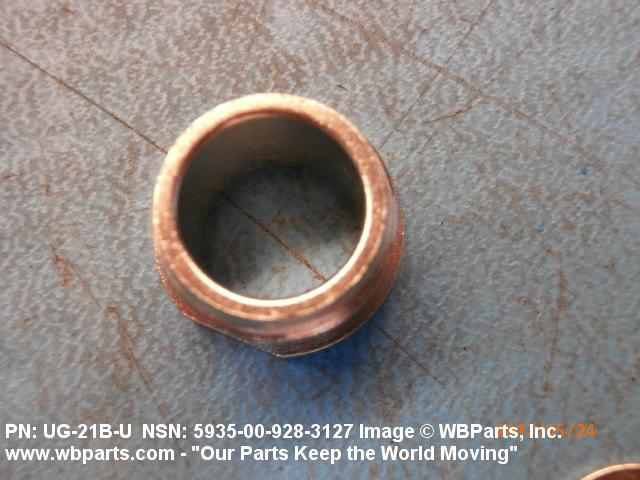

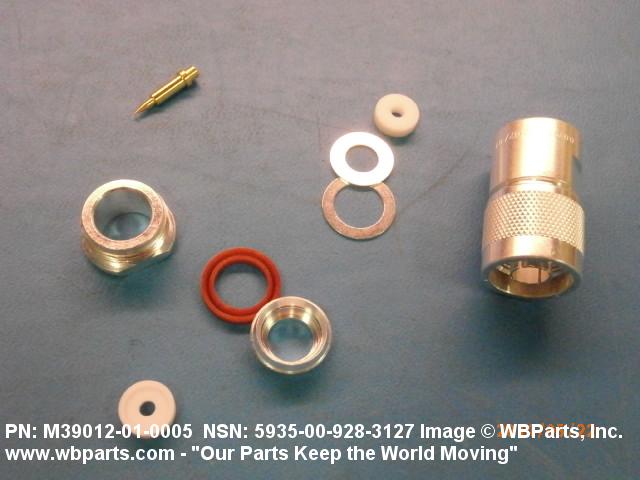

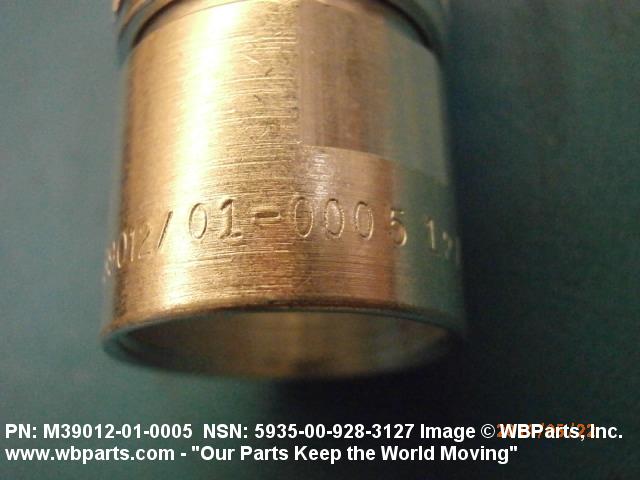

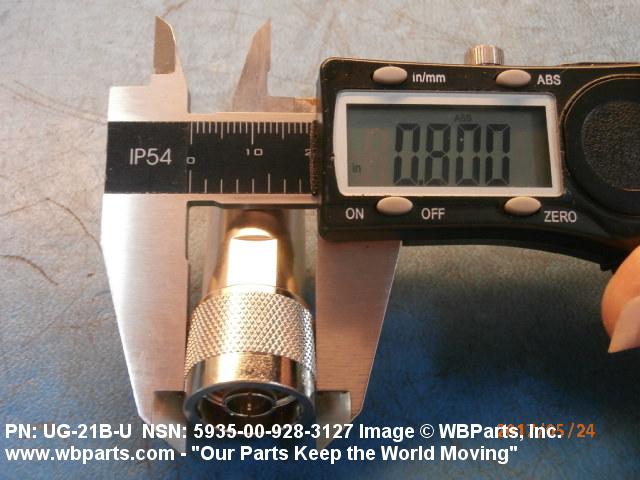

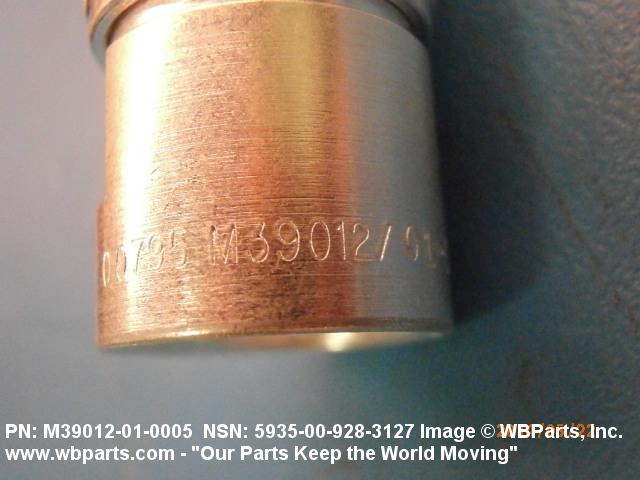

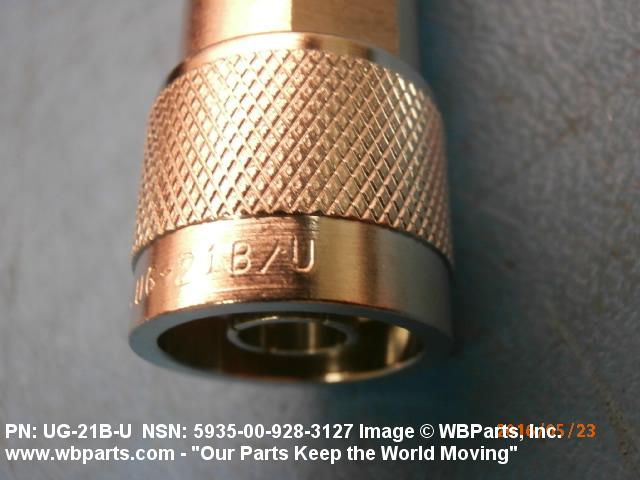

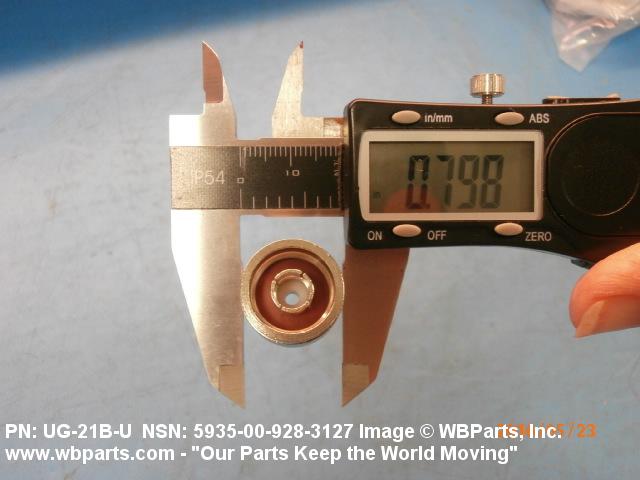

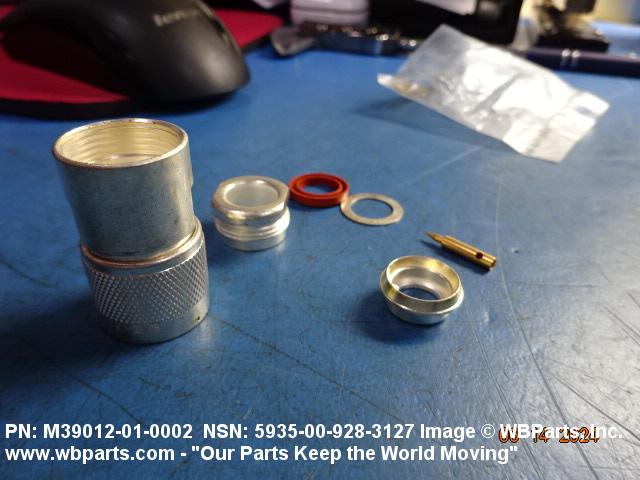

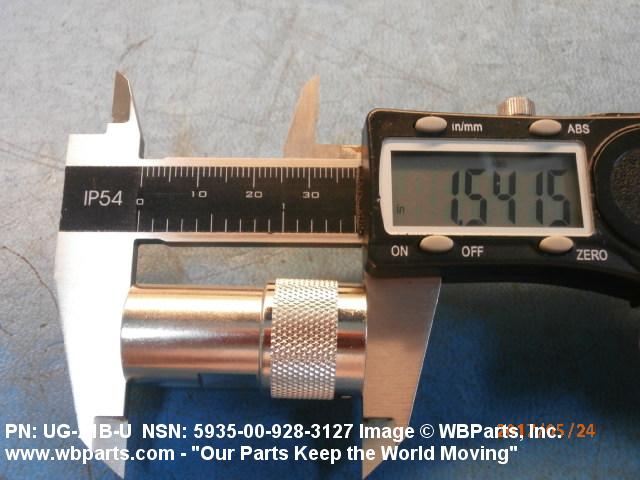

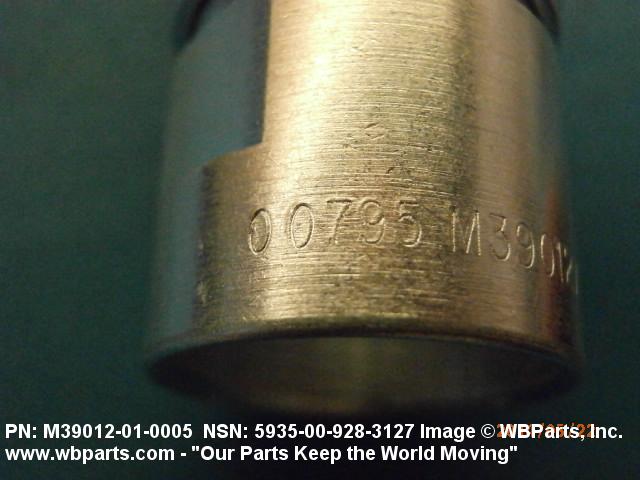

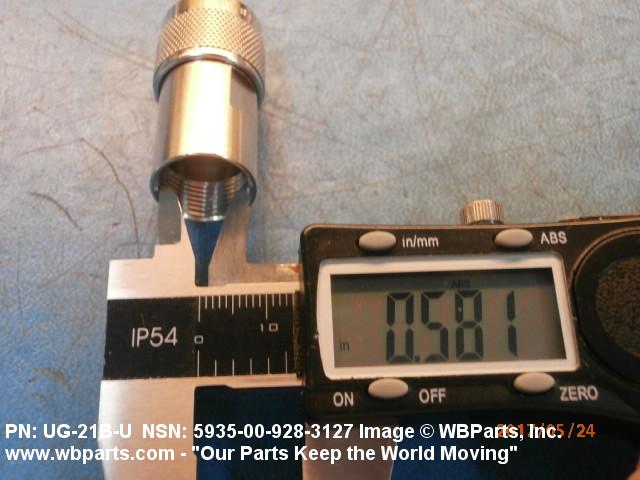

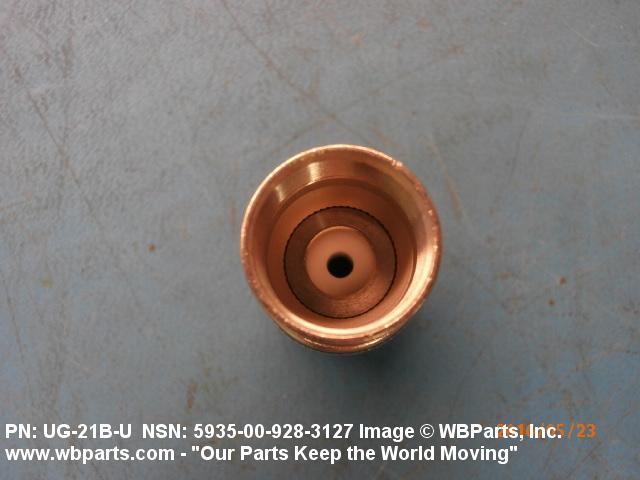

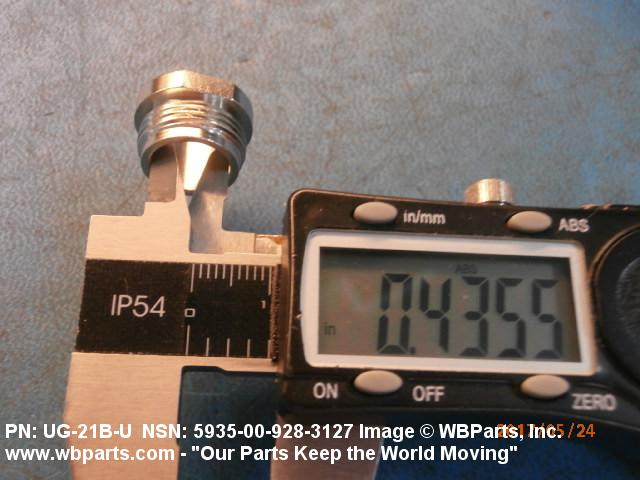

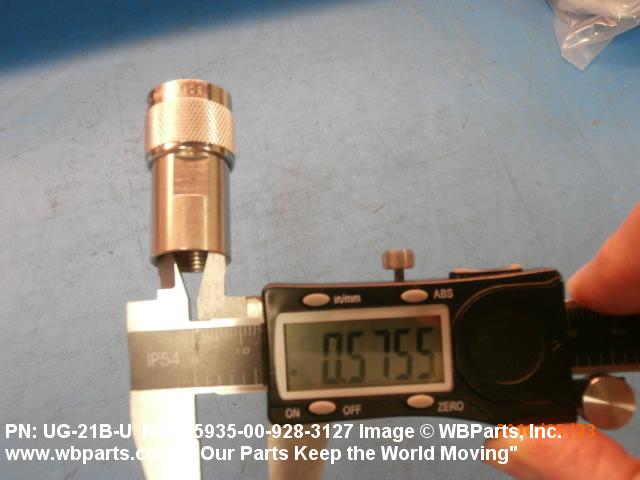

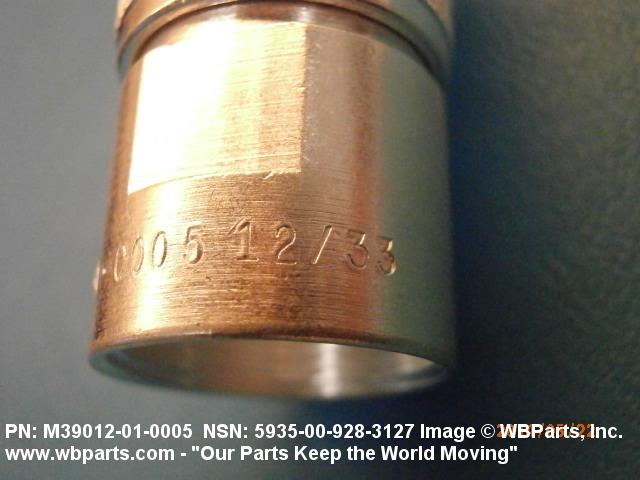

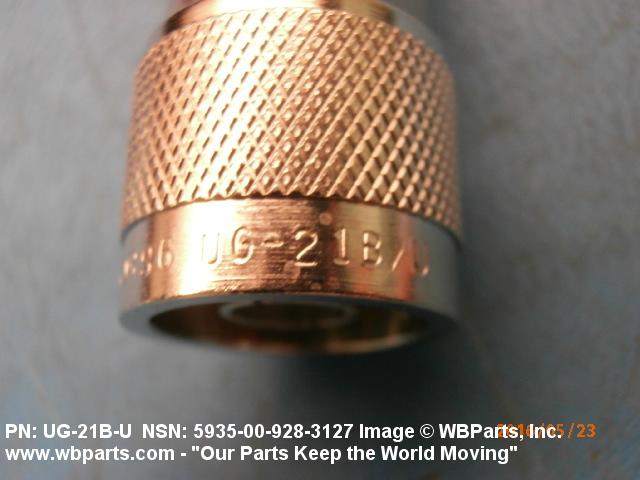

Drawings & Photos | NSN 5935-00-928-3127

Part Number	Request Date	QTY	Origin
5935-00-928-3127	2024-11-317	2738	DIBBS
5935-00-928-3127	2024-11-309	15	United States
5935-00-928-3127	2024-11-306	7	United States
5935-00-928-3127	2024-10-303	15	United States
5935-00-928-3127	2024-09-267	2	US
5935-00-928-3127	2024-08-214	5233	DIBBS
5935-00-928-3127	2024-05-145	5	Japan
5935-00-928-3127	2024-05-145	20	Japan
5935-00-928-3127	2024-04-121	10	IL
5935-00-928-3127	2023-11-316	4720	DIBBS
5935-00-928-3127	2023-08-243	5140	DIBBS
5935-00-928-3127	2023-07-201	4	Malaysia
5935-00-928-3127	2023-03-86	4619	DIBBS
5935-00-928-3127	2023-03-75	4619	DIBBS
5935-00-928-3127	2022-12-349	6717	DIBBS
5935-00-928-3127	2022-11-334	6717	DIBBS
5935-00-928-3127	2022-11-306	18	US
5935-00-928-3127	2022-10-300	18	PK
5935-00-928-3127	2022-08-214	2	United States
M39012010005	2022-07-192	2	US
M39012010005	2022-04-117	4	United States
5935-00-928-3127	2022-01-09	4292	DIBBS
5935-00-928-3127	2021-12-343	50	CN
5935-00-928-3127	2021-05-123	10	PK
5935-00-928-3127	2021-02-38	6498	DIBBS
M39012010005	2021-01-26	36	US
5935-00-928-3127	2020-11-315	1	DIBBS-RFPs
5935-00-928-3127	2020-08-225	3	United States
5935-00-928-3127	2020-03-83	3330	DIBBS
5935-00-928-3127	2020-03-68	3330	DIBBS
5935-00-928-3127	2020-02-55	1	United States
5935-00-928-3127	2019-07-190	9	United States
5935-00-928-3127	2019-06-161	1	DIBBS-RFPs
5935-00-928-3127	2019-05-135	1	United States
5935-00-928-3127	2018-05-137	11500	DIBBS
5935-00-928-3127	2017-11-306	6500	DIBBS
5935-00-928-3127	2017-09-272	6	TW
5935-00-928-3127	2017-08-239	5600	DIBBS
5935-00-928-3127	2017-08-223	5600	DIBBS
5935-00-928-3127	2017-05-142	2	United States
M3901210005	2017-05-142	2	United States
M39012010005	2016-07-209	38	us
M39012/01-0005	2016-07-207	38
5935-00-928-3127	2016-04-116	39	Taiwan
5935-00-928-3127	2016-02-55	1	United States
M39012010005	2015-06-159	24	US
5935-00-928-3127	2014-10-291	15	DO
M39012010005	2014-09-272	8	US
5935-00-928-3127	2014-09-247	6	Taiwan
M39012/01-0005	2014-07-210	8	India
5935-00-928-3127	2014-07-189	1	DIBBS-RFPs
5935-00-928-3127	2014-07-182	1672	DIBBS
5935-00-928-3127	2014-05-136	36	Taiwan
5935-00-928-3127	2014-05-132	36	Taiwan
5935-00-928-3127	2014-04-118	1137	DIBBS
5935-00-928-3127	2014-04-104	2953	DIBBS
UG21DU	2014-03-76	2	Taiwan
M39012/01-0005	2013-04-113	1	United States
5935-00-928-3127	2013-02-45	12	Pakistan
5935-00-928-3127	2012-08-240	5641	DIBBS
5935-00-928-3127	2012-02-55	2228	DIBBS
5935-00-928-3127	2011-11-313	50	IN
5935-00-928-3127	2011-07-210	4503	DIBBS
5935-00-928-3127	2011-06-172	2093	DIBBS
5935-00-928-3127	2011-05-132	4223	DIBBS
W41250A6101A4	2011-05-123	10	us
5935-00-928-3127	2011-05-123	10	Pakistan
W41250A6101A4	2011-04-115	10	PK
W41250A6101A4	2011-04-113	10	UK
W41250A6101A4	2011-04-112	10	Pakistan
MS39012010005	2011-04-110	20	US
5935-00-928-3127	2011-03-74	2143	DIBBS
W41250A6101A4	2011-03-66	50	PK
W41250A6101A4	2011-03-63	50	US
5935-00-928-3127	2010-12-361	10	PK
5935-00-928-3127	2010-12-341	20	Pakistan
W41250A6101A4	2010-11-306	10	PK
5935-00-928-3127	2010-10-298	1575	DIBBS
5935-00-928-3127	2010-10-297	10	PK
5935-00-928-3127	2010-10-280	3787	DIBBS
5935-00-928-3127	2010-09-245	2892	DIBBS
5935-00-928-3127	2010-07-209	4812	DIBBS
5935-00-928-3127	2010-04-95	4752	DIBBS
5935-00-928-3127	2010-02-49	3876	DIBBS
5935-00-928-3127	2009-12-336	39	PK
5935-00-928-3127	2009-11-316	4	US
5935-00-928-3127	2009-11-314	2945	DIBBS
5935-00-928-3127	2009-09-245	2641	DIBBS
5935-00-928-3127	2009-07-197	2986	DIBBS
5935-00-928-3127	2009-06-174	20	US
5935-00-928-3127	2009-06-169	4221	DIBBS
5935-00-928-3127	2009-05-133	3040	DIBBS
5935-00-928-3127	2009-03-84	1913	DIBBS
5935-00-928-3127	2008-11-316	3680	DIBBS
5935-00-928-3127	2008-10-295	3255	DIBBS
5935-00-928-3127	2008-10-289	1198	DIBBS
5935-00-928-3127	2008-04-99	4436	DIBBS
5935-00-928-3127	2008-02-37	3517	DIBBS
5935-00-928-3127	2007-11-317	4834	DIBBS
5935-00-928-3127	2007-08-220	7217	DIBBS
5935-00-928-3127	2007-07-192	6564	DIBBS

Cross Reference | NSN 5935-00-928-3127

Part Number	Cage Code	Manufacturer
005-CTR-01P	30103	TECHNLOGY FOR CMMNCATIONS INTL
038006026	92110	SERVO CORPORATION OF AMERICA
11N-50-7-6C	C1375	HUBER + SUHNER GMBH
1205-14-9	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
1615785	D1765	HAGENUK MARINEKOMMUNIKATION GMBH
19C5139	9A102	NEWARK ELECTRONICS
2605709-002	06424	ALLIANT TECHSYSTEMS OPERATIONS LLC DIV DEFENSE ELECTRONIC SYSTEMS
276-1031P1	49956	RAYTHEON COMPANY DBA RAYTHEON
276-1423P1	49956	RAYTHEON COMPANY DBA RAYTHEON
276-1423P2	49956	RAYTHEON COMPANY DBA RAYTHEON
28-P08752T001	94990	MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS
301N1800Y	94375	AUTOMATIC CONNECTOR
3234268-1	53711	NAVAL SEA SYSTEMS COMMAND
357-9040-00	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
357-9040-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
357-9040-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
357-9261-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
357-9326-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
357-9326-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
39F019	02929	NEWARK ELECTRONICS CORPORATION DBA NEWARK
418649-5	96214	RAYTHEON COMPANY DBA RAYTHEON
5M4584-220-25	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
6050842	0B6S1	INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54
6050842	30874	INTERNATIONAL BUSINESS MACHINES CORP
739012-01-0002	80244	GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
82-4352	0JSV4	HAMILTON AVNET ELECTRONICS
875023-0002	65597	THALES DEFENSE & SECURITY, INC.
875046-0001	65597	THALES DEFENSE & SECURITY, INC.
B4031296-002	56996	DEPARTMENT OF THE ARMY HQ UNITED STATES ARMY COMMUNICATIONS
KN59-176	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
M30012/01-0005	00795	DELTA ELECTRONICS MFG CORP
M30012/01-0005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39012-01-005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39012-1-0008	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39012/01-0002	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39012/01-0005	02549	ASTREX ELECTRONICS INC. DIV TTI INC
M39012/01-0005	24930	EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA
M39012/01-0005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39012/01-0005	84147	ANDREW LLC
M39012/1-0002	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39012/1-0005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M3902-01-0002	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-39012/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS39012-01-0005	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90534-1185A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N-PL4-M-8	71468	ITT CORPORATION DBA I T T CANNON
UG-1185A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG-1682/U	74868	AMPHENOL CORPORATION
UG-21B/U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG-21E/U	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
UG1185AU	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG1185BU	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
UG1185U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG21AU	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG21BU	74868	AMPHENOL CORPORATION
UG21CU	81350	JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS
UG21DU	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG21DU	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
UG21E	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG21E/U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG21EU	80064	NAVAL SHIP SYSTEMS COMMAND
UG21U	80064	NAVAL SHIP SYSTEMS COMMAND
W41250-A6101-A4	C0426	AIRBUS DEFENCE AND SPACE GMBHELECTRONICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-928-3127

Compare

Related Products | NSN 5935-00-928-3127

5935-00-928-3128, 5935-00-928-3137, 5935-00-928-3146, 5935-00-928-3178, 5935-00-928-3219

Technical Data | NSN 5935-00-928-3127

Characteristic	Specifications
BODY STYLE	5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.875 INCHES MAXIMUM
OVERALL DIAMETER	0.827 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
CABLE ENTRANCE DIAMETER	0.444 INCHES NOMINAL
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY
SHELL SURFACE TREATMENT	SILVER AND COPPER
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-S-365 FED SPEC 1ST TREATMENT RESPONSE
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ABCE N SINGLE MATING END
INSERT MATERIAL	PLASTIC FLUORINATED ETHYLENE PROPYLENE OR PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	L-P-389 FED SPEC 1ST MATERIAL RESPONSE OR L-P-403 FED SPEC 2ND MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM FREQUENCY RATING	11000.0 MEGAHERTZ SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	CORROSION RESISTANT AND VIBRATION RESISTANT AND MOISTURE RESISTANT AND THERMAL SHOCK RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-39012 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-39012/1 GOVERNMENT SPECIFICATION
III OPERATING TEMP RATING	-65.0 DEG CELSIUS MINIMUM AND 165.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL	GOLD AND SILVER

Restrictions/Controls & Freight Information | NSN 5935-00-928-3127

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-928-3127

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
