NSN 5935-00-931-1947 GPS1001, KA19, 922612-0001-000
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-931-1947 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: GPS1001, KA19, 922612-0001-000, 9HK1, 9KH1, 016837B, 13101ST, 1310-1ST, 15M131, 16837B, 67000011390021, 670-0001-139-0021, 6700002, 670-0002, 2030087-00, 2036115060, 20517490701, 2051749-0701, 20517490702, 2051749-0702, 20517500701, 2051750-0701, 24A032, 26423241, 2642324-1, 27E006 3-8, 27E00624A032, 27E006-24A032, 27E0063/8, 27E00638, 47A529802P8, 503938, 5935-00-931-1947, 00-931-1947, 9226120001000, 5935009311947, 203008700, 009311947
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 APR 1968 | 00-931-1947 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

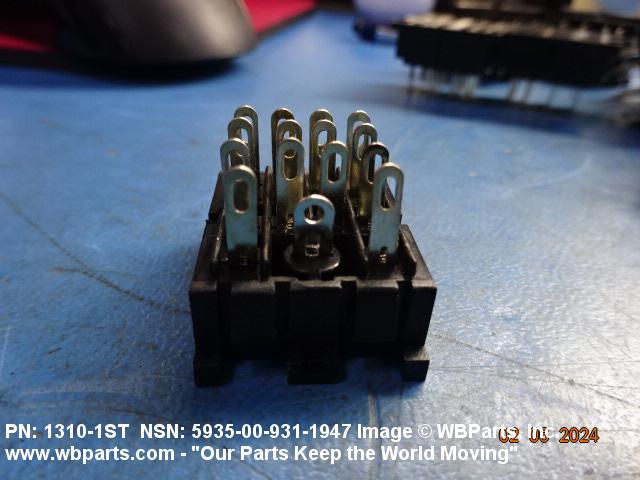

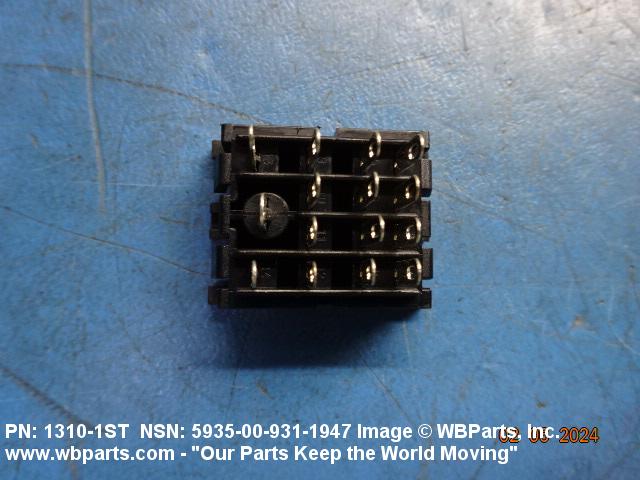

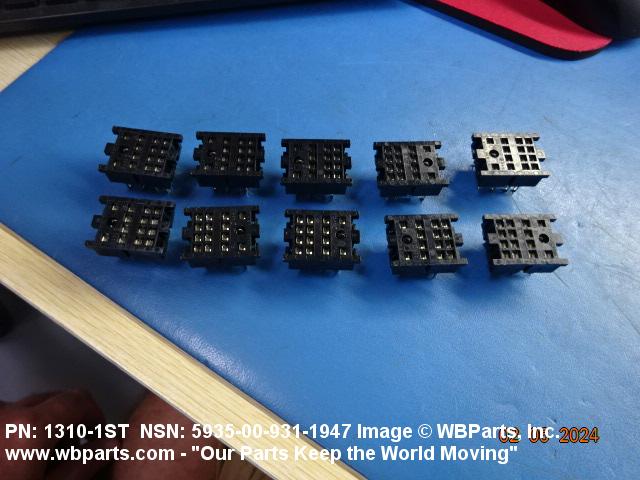

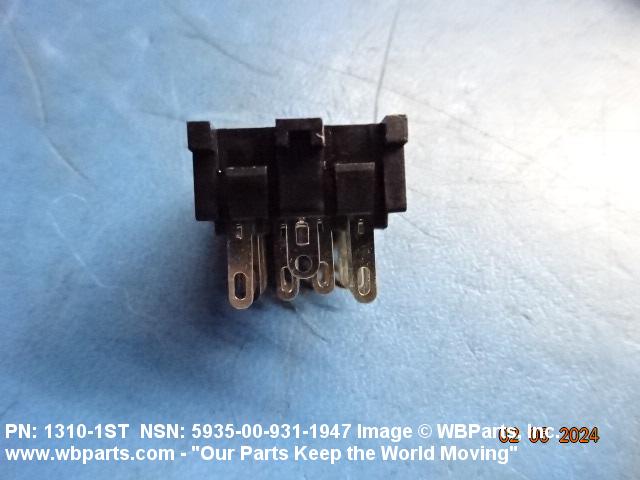

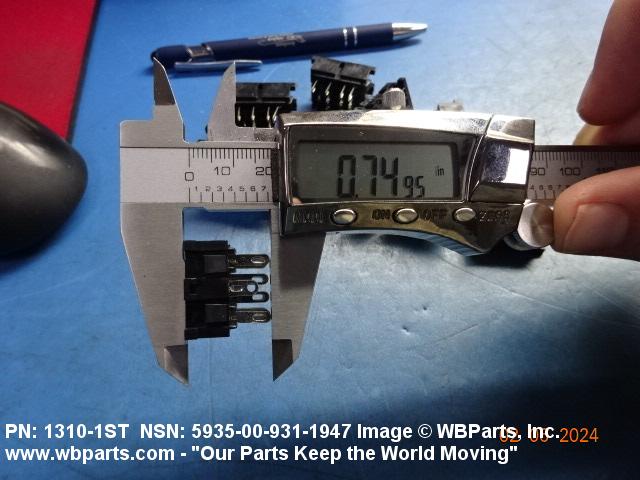

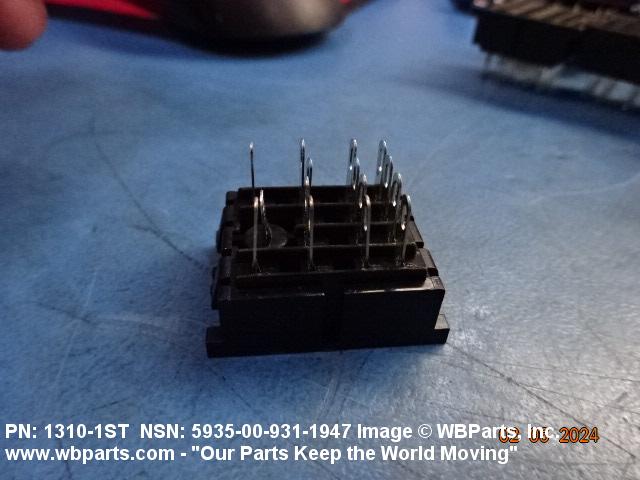

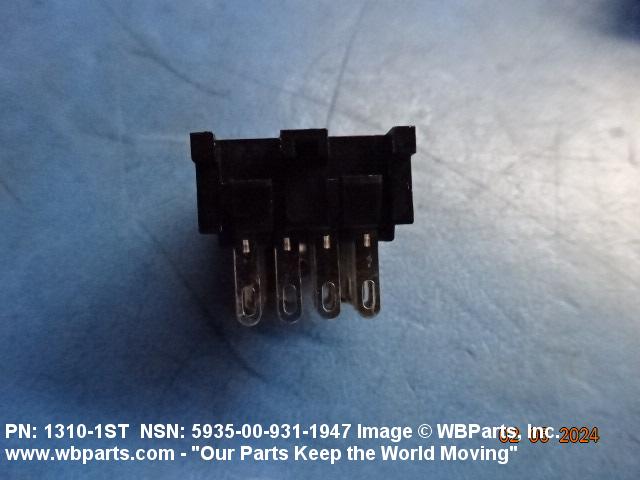

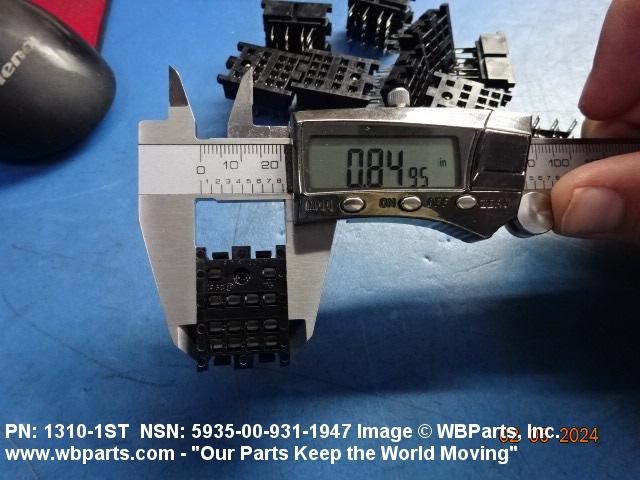

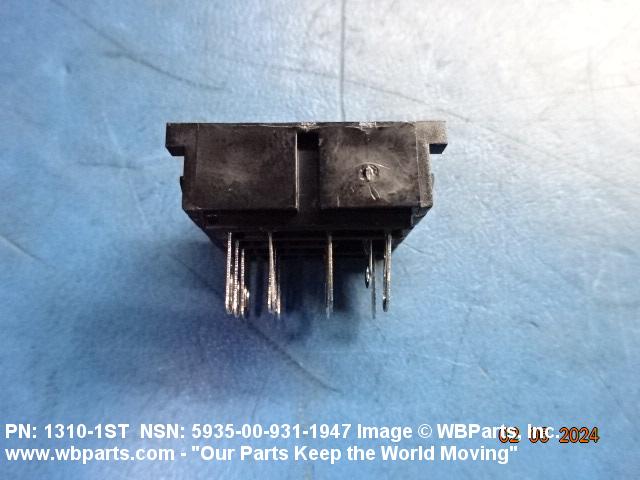

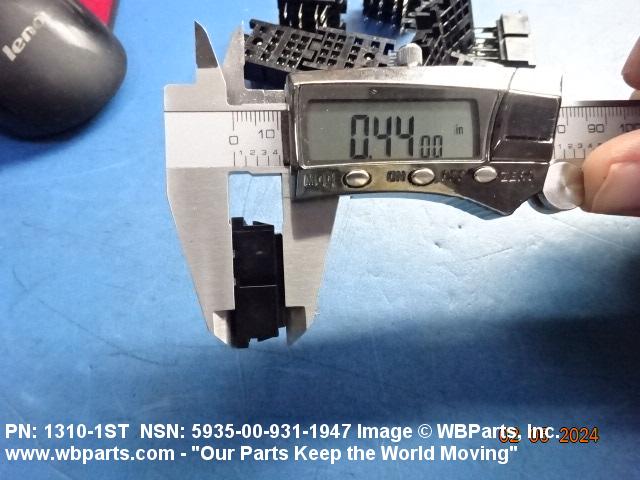

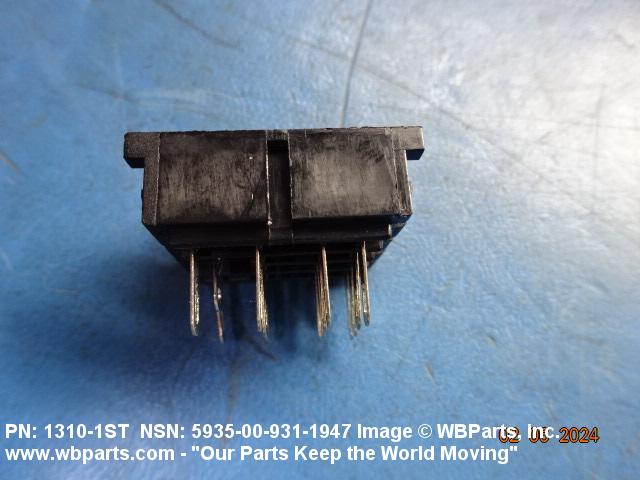

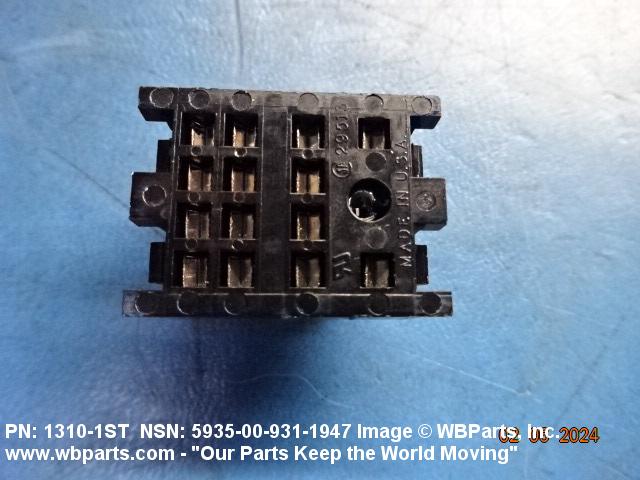

Drawings & Photos | NSN 5935-00-931-1947
Demand History | NSN 5935-00-931-1947
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-931-1947 | 2023-11-317 | 10 | United States |
Cross Reference | NSN 5935-00-931-1947
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 016837B | K0526 | COGENT DEFENCE SYSTEMS PART OF NORTEL NETWORKS PLC |
| 016837B | U4756 | CASSIDIAN LIMITED |
| 1310-1ST | 73949 | GUARDIAN ELECTRIC MANUFACTURING CO. |
| 15M131 | 98437 | ELLIS & WATTS INTERNATIONAL, LLC |
| 16837B | K0526 | COGENT DEFENCE SYSTEMS PART OF NORTEL NETWORKS PLC |
| 16837B | U4756 | CASSIDIAN LIMITED |
| 2030087-00 | 01749 | UNISYS CORP COMPUTER SYSTEMS DIV |
| 2030087-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 2036115060 | 71785 | CINCH CONNECTORS, INC. |
| 2051749-0701 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| 2051749-0702 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| 2051750-0701 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| 24A032 | 12300 | POTTER AND BRUMFIELD DIV AMF CANADA LTD |
| 24A032 | 12338 | RIIMIC, LLC DBA SUNAIR ELECTRONICS |
| 2642324-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 27E006 3-8 | 12300 | POTTER AND BRUMFIELD DIV AMF CANADA LTD |
| 27E006-24A032 | 77342 | TYCO ELECTRONICS CORPORATION |
| 27E0063/8 | 77342 | TYCO ELECTRONICS CORPORATION |
| 47A529802P8 | 23991 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 503938 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 670-0001-139-0021 | 04221 | MIDLAND-ROSS CORP MIDTEX DIV |
| 670-0002 | 04221 | MIDLAND-ROSS CORP MIDTEX DIV |
| 922612-0001-000 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 9HK1 | 77342 | TYCO ELECTRONICS CORPORATION |
| 9KH1 | 71785 | CINCH CONNECTORS, INC. |
| 9KH1 | 77342 | TYCO ELECTRONICS CORPORATION |
| GPS1001 | 71482 | CP CLARE CORP NORTH AMERICAN SALES OPERATIONS |
| KA19 | 37338 | NAUTEL LIMITED |
| KA19 | 57655 | NAUTEL MAINE INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-931-1947
Related Products | NSN 5935-00-931-1947
Technical Data | NSN 5935-00-931-1947
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 1418A SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | 54B PCB, STANDOFF TERMINALS |

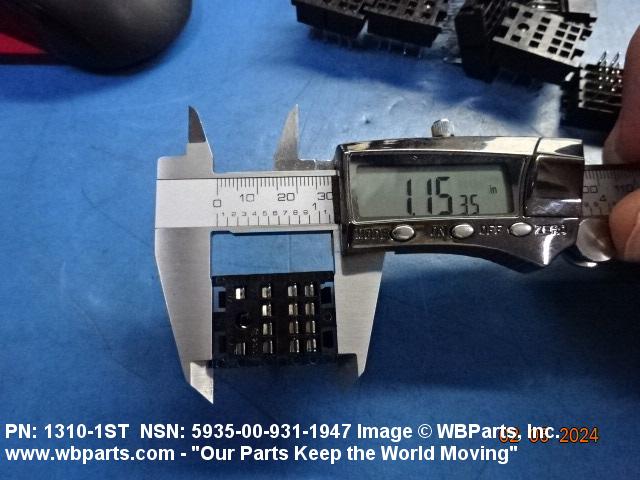

| OVERALL LENGTH | 1.156 INCHES NOMINAL |
| TERMINAL LENGTH | 0.062 INCHES NOMINAL |
| OVERALL HEIGHT | 0.812 INCHES NOMINAL |
| OVERALL WIDTH | 0.843 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 14 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | RETAINER RING |
| MOUNTING HOLE STYLE | 22D RECTANGLAR |
| MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.312 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.875 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| MANUFACTURERS CODE | 98437 |
| MFR SOURCE CONTROLLING REFERENCE | 15M131 |
Restrictions/Controls & Freight Information | NSN 5935-00-931-1947
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-931-1947
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
