NSN 5935-00-931-6859 2761483P2, 276-1483P2, 33058
Product Details | TIP PLUG

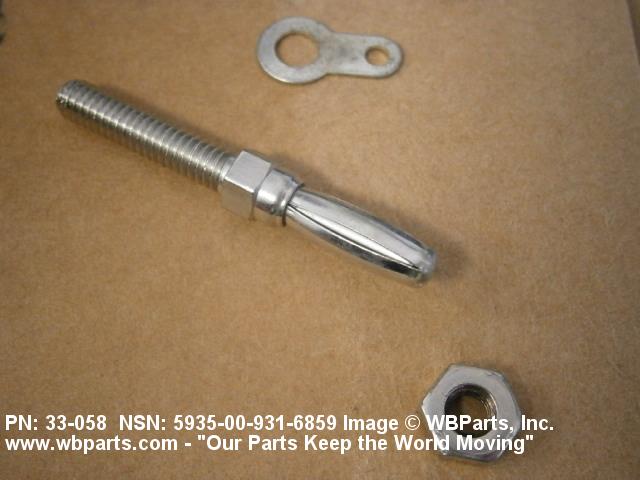

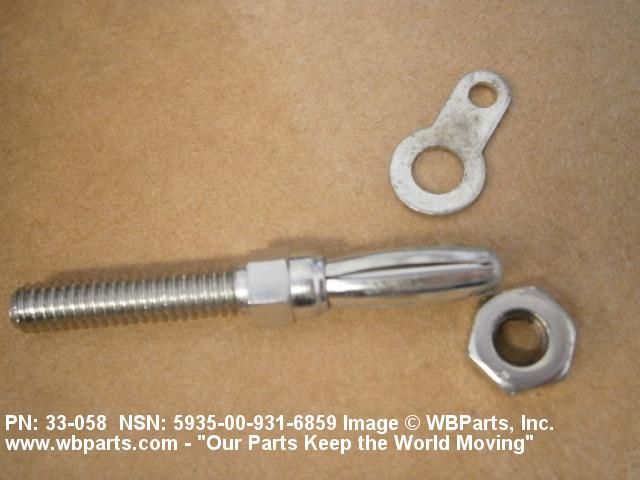

5935-00-931-6859 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: 2761483P2, 276-1483P2, 33058, 33-058, 407, 5935-00-931-6859, 00-931-6859, 5935009316859, 009316859
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 MAY 1972 | 00-931-6859 | 15046 ( PLUG, TIP ) |
Drawings & Photos | NSN 5935-00-931-6859
Demand History | NSN 5935-00-931-6859
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 33058 | 2014-04-114 | 5 | United States |
| 33058 | 2012-11-310 | 9 | JP |
| 5935-00-931-6859 | 2011-12-356 | 1 | United States |
| 407 | 2010-03-78 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-931-6859
Related Products | NSN 5935-00-931-6859
Technical Data | NSN 5935-00-931-6859
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | BANANA SPRING SINGLE FINGER |
| FINGER LENGTH | 0.531 INCHES NOMINAL SINGLE FINGER |
| FINGER DIAMETER | 0.170 INCHES MINIMUM AND 0.180 INCHES MAXIMUM SINGLE FINGER |
| BODY STYLE | 9 STRAIGHT W/O HANDLE |
| OVERALL LENGTH | 1.281 INCHES NOMINAL |
| BODY LENGTH | 0.250 INCHES NOMINAL |
| OVERALL DIAMETER | 0.313 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.164 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| BUSHING THRU-HOLE ACCOMMODATION DIAMETER | 0.164 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | PHOSPHOR BRONZE FINGER BRASS INSULATOR |
| SURFACE TREATMENT | NICKEL FINGER |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
| MANUFACTURERS CODE | 72653 |
| DESIGN CONTROL REFERENCE | 33-058 |
