5935-00-935-2235 - ELECTRICAL PLUG CONNECTOR, M2726/3-001, M2726/3-001 SYM 717., M27263001

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-935-2235 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: M2726/3-001, M2726/3-001 SYM 717., M27263001, M27263001SYM717, NSECSK6157E041668, CB9041001PC13, CB90-41001PC13, MIL-DTL-2726/3, MILDTL27263, MIL-R-2726/3, MILR27263, 58066411230193, 580-6641123-0193, 5806641123ECHGA60, 580-6641123-ECHG-A60, 5935-00-935-2235, 00-935-2235, 5935009352235, 211019411, 009352235

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	05 JUN 1968	00-935-2235	01938 ( CONNECTOR, PLUG, ELECTRICAL )

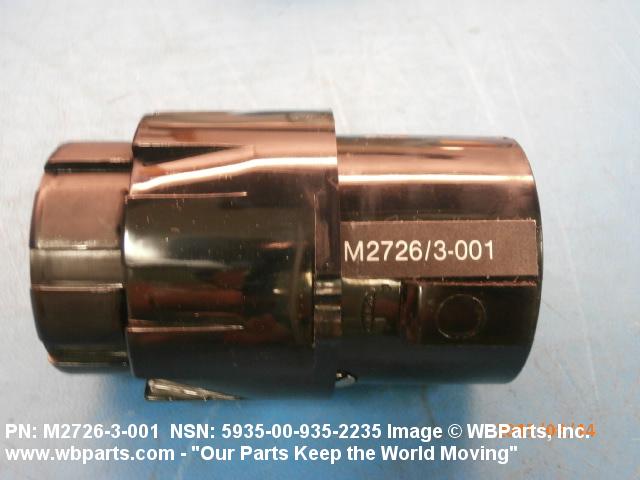

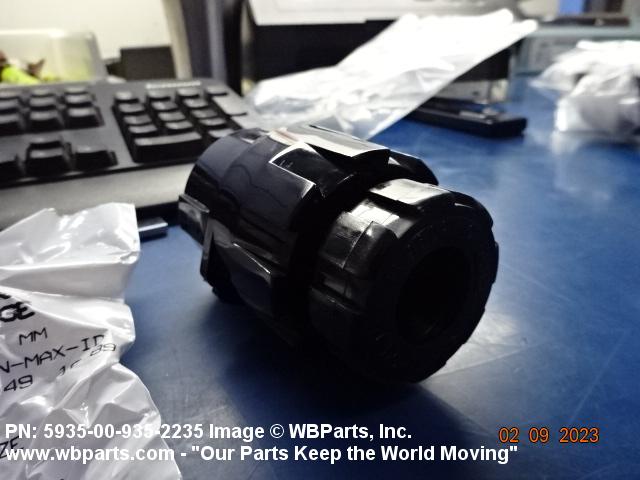

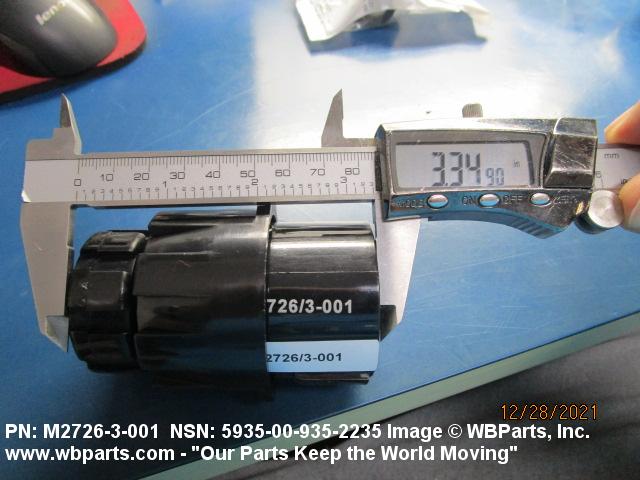

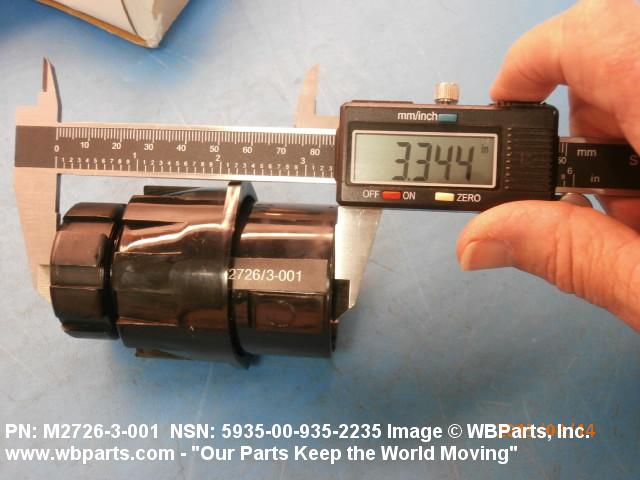

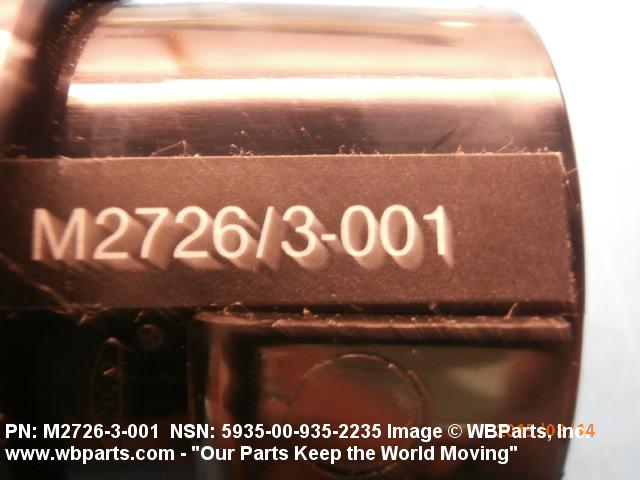

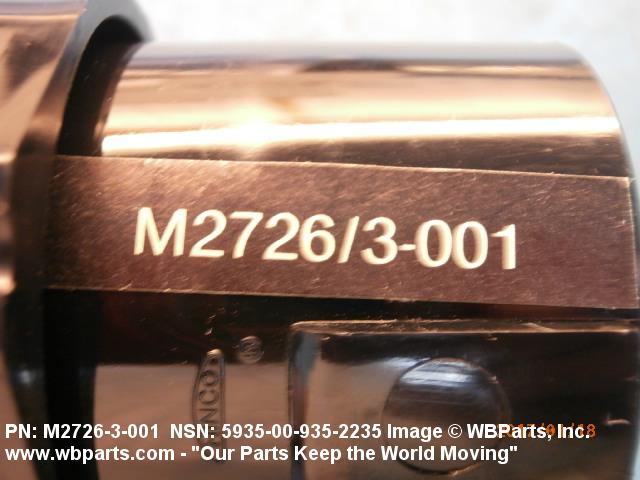

Drawings & Photos | NSN 5935-00-935-2235

Part Number	Request Date	QTY	Origin
M27263001	2024-05-24	5	US
5935-00-935-2235	2024-05-01	1	IL
5935-00-935-2235	2024-02-28	2	US
5935-00-935-2235	2024-01-11	7	us
5935-00-935-2235	2023-11-01	3	KR
5935-00-935-2235	2023-08-30	2	United States
5935-00-935-2235	2023-05-30	1	US
5935-00-935-2235	2023-03-07	4	US
5935-00-935-2235	2023-02-16	4	US
5935-00-935-2235	2023-02-15	10	US
5935-00-935-2235	2023-02-10	1	United States
5935-00-935-2235	2023-01-26	4	us
5935-00-935-2235	2022-08-08	1	US
5935-00-935-2235	2022-06-02	150	us
5935-00-935-2235	2021-12-20	4	United States
5935-00-935-2235	2021-11-29	1	United States
5935-00-935-2235	2021-11-17	1	TH
5935-00-935-2235	2021-11-17	4	TH
M27263001	2021-11-04	20	US
5935-00-935-2235	2021-11-02	4	United States
5935-00-935-2235	2021-10-11	4	United States
5935-00-935-2235	2021-05-05	10	US
5935-00-935-2235	2021-02-25	1	Spain
5935-00-935-2235	2020-06-12	2	US
5935-00-935-2235	2019-10-21	27	KR
M27263001	2019-10-15	30	Korea
5935-00-935-2235	2019-09-25	27	KR
5935-00-935-2235	2019-07-29	4	US
5935-00-935-2235	2019-05-12	1000	DIBBS
5935-00-935-2235	2019-05-10	1	DIBBS-RFPs
5935-00-935-2235	2019-01-31	3	US
5935-00-935-2235	2018-10-30	2000	DIBBS
5935-00-935-2235	2017-08-31	974	DIBBS
5935-00-935-2235	2017-04-05	360	DIBBS
5935-00-935-2235	2017-01-09	1	United States
5935-00-935-2235	2016-10-05	3	US
5935-00-935-2235	2016-03-03	1476	DIBBS
M27263001	2015-08-10	5	United States
5935-00-935-2235	2015-06-18	816	DIBBS
5935-00-935-2235	2014-11-03	896	DIBBS
5935-00-935-2235	2014-01-23	281	DIBBS
5935-00-935-2235	2013-10-31	194	DIBBS
5935-00-935-2235	2013-10-01	342	DIBBS
5935-00-935-2235	2013-04-16	13	US
5935-00-935-2235	2013-03-01	1404	DIBBS
5935-00-935-2235	2012-08-31	398	DIBBS
5935-00-935-2235	2012-08-14	4	United States
5935-00-935-2235	2011-10-13	4	Canada
M27263001	2011-06-21	9	CA
5935-00-935-2235	2011-06-14	4	Canada
5935-00-935-2235	2011-06-13	120	DIBBS
5935-00-935-2235	2010-10-20	5	US
5935-00-935-2235	2010-10-19	10	us
5935-00-935-2235	2009-10-27	2	US
5935-00-935-2235	2007-03-06	350	DIBBS

Cross Reference | NSN 5935-00-935-2235

Part Number	Cage Code	Manufacturer
211019411	53711	NAVAL SEA SYSTEMS COMMAND
580-6641123-0193	53711	NAVAL SEA SYSTEMS COMMAND
580-6641123-ECHG-A60	53711	NAVAL SEA SYSTEMS COMMAND
CB90-41001PC13	97384	AAI CORPORATION DBA TEXTRON SYSTEMS
M2726/3-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M2726/3-001 SYM 717.	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-2726/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-2726/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NSECSK6157E041668	80064	NAVAL SHIP SYSTEMS COMMAND

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5935-00-935-2235

Compare

Related Products | NSN 5935-00-935-2235

5935-00-935-2236, 5935-00-935-2240, 5935-00-935-2241, 5935-00-935-2250, 5935-00-935-2251

Technical Data | NSN 5935-00-935-2235

Characteristic	Specifications

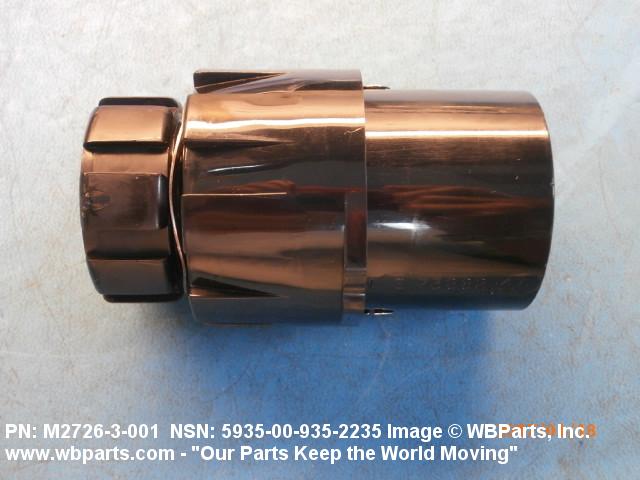

BODY STYLE	11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF

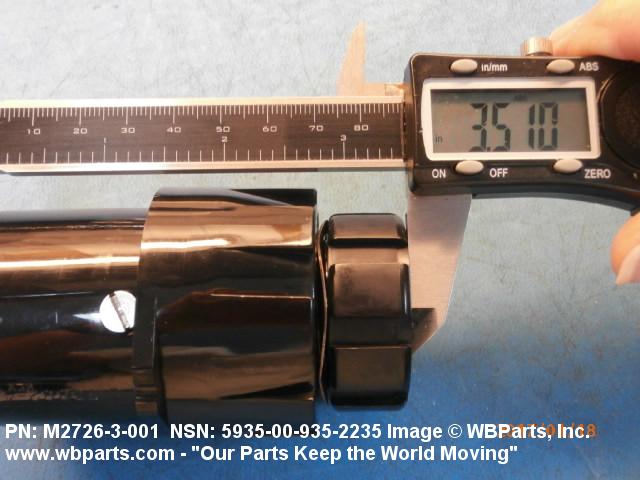

BODY LENGTH	3.500 INCHES NOMINAL

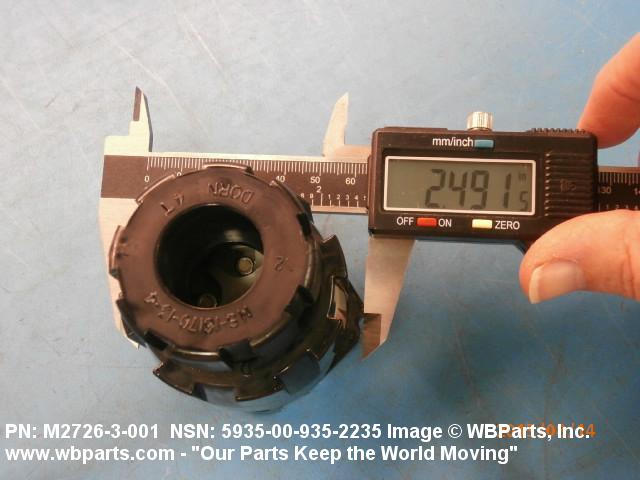

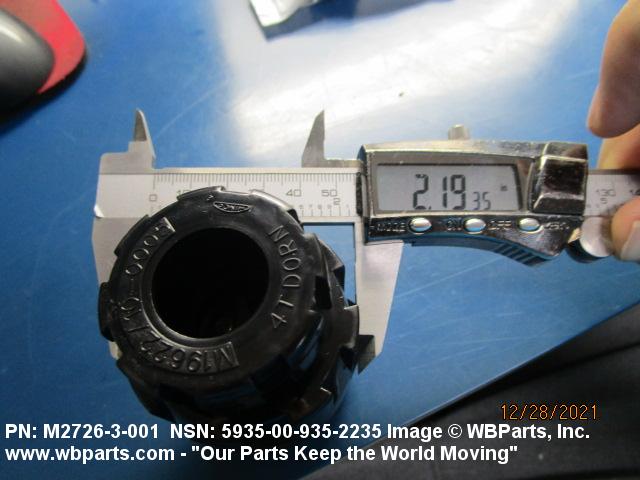

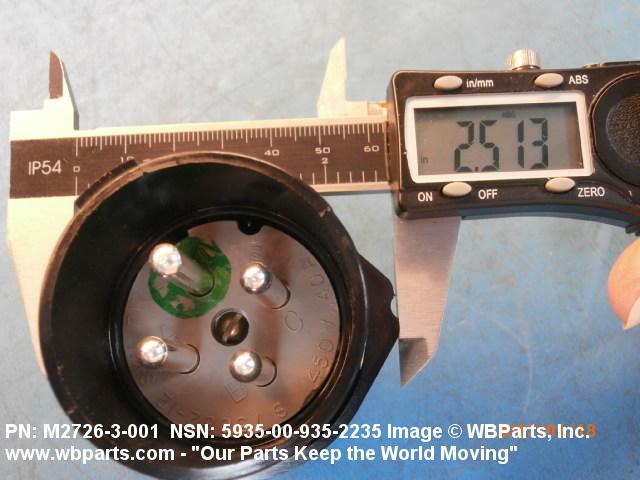

OVERALL DIAMETER	2.500 INCHES NOMINAL
CONNECTOR LOCKING METHOD	FRICTION
CONNECTOR CABLE STRAIN RELIEF METHOD	CABLE CLAMP

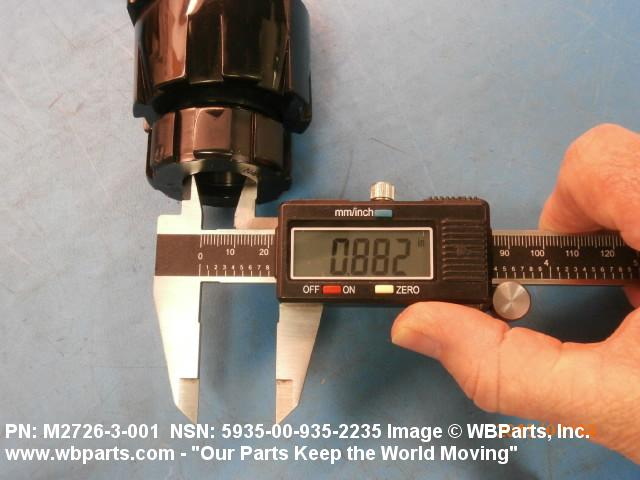

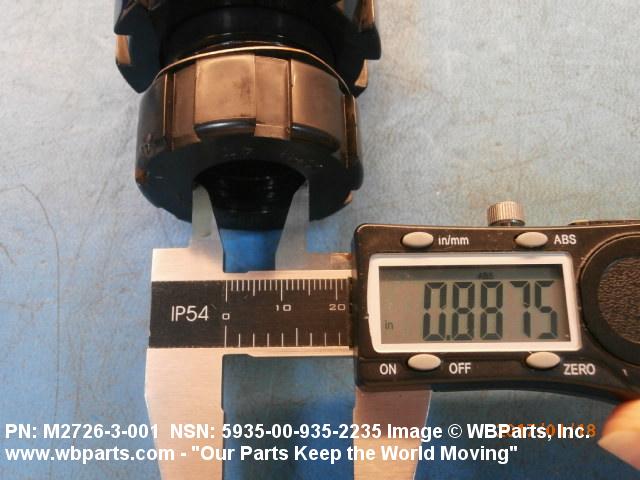

CABLE ENTRANCE DIAMETER	0.887 INCHES NOMINAL
SHELL TYPE	SOLID
SHELL MATERIAL	PLASTIC POLYAMIDE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	AEEA B4S SINGLE MATING END
INSERT MATERIAL	PLASTIC POLYESTER AND GLASS FIBER SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	MIL-M-14,TY MAI-60 MIL SPEC ALL MATERIAL RESPONSES SINGLE MATING END

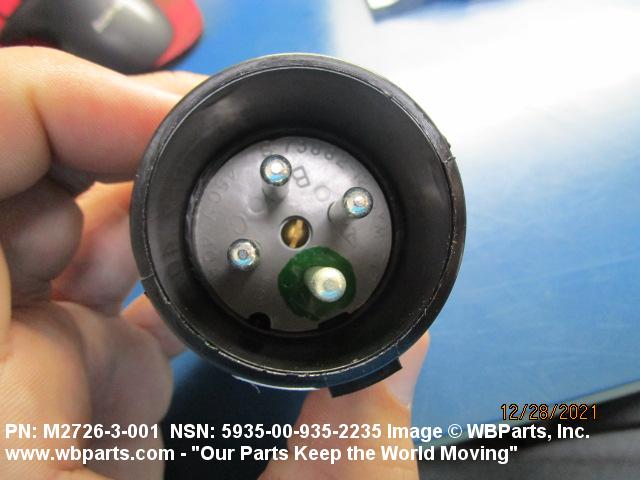

INCLUDED CONTACT QUANTITY	4 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING

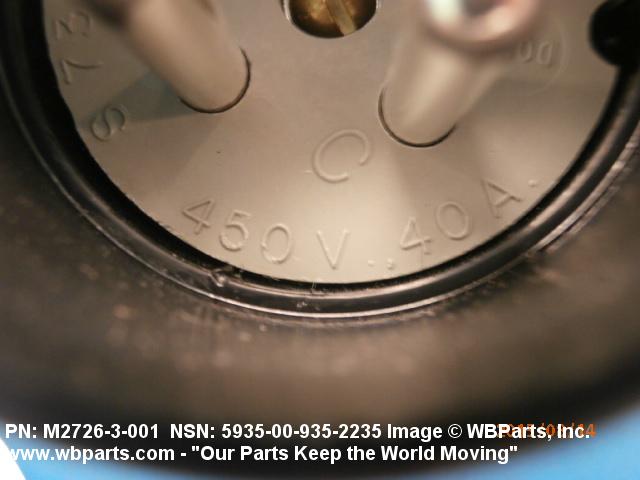

CONTACT MAXIMUM CURRENT RATING IN AMPS	40.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	450.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	WATERTIGHT
TEST DATA DOCUMENT	81349-MIL-R-2726 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-2726/3 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND WEIGHT	0.004 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES SILVER
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-R-2726/3
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M2726/3-001

Restrictions/Controls & Freight Information | NSN 5935-00-935-2235

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	HD	Naval Inventory Control Point Mechanicsburg, PA 17055-0788
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-935-2235

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Schedule B No. and Headings	Commodity Description	Unit of Quantity
85.36	- Electrical apparatus for switching or protecting electrical circuits, or for making connections to or in electrical circuits (for example, switches, relays, fuses, surge suppressors, plugs, sockets, lamp- holders and other
	connectors, junction boxes), for a voltage not exceeding 1,000 V; connectors for optical fibers, optical fiber bundles or cables:
8536.10	- - Fuses:
8536.10.0020	- - - Glass cartridge	No.
8536.10.0040	- - - Other	No.
8536.20	- - Automatic circuit breakers:
8536.20.0020	- - - Molded case	No.
8536.20.0040	- - - Other	No.
8536.30.0000	- - Other apparatus for protecting electrical circuits	X
	- - Relays:
8536.41	- - - For a voltage not exceeding 60 V:
8536.41.0005	- - - - Automotive signaling flashers	No.
	- - - - Other:
	- - - - - With contacts rated at less than 10 A:
8536.41.0020	- - - - - - Electromechanical	No.
8536.41.0030	- - - - - - Other	No.
	- - - - - Other:
8536.41.0045	- - - - - - Contactors	No.
	- - - - - - Other:
8536.41.0050	- - - - - - - Electromechanical	No.
8536.41.0060	- - - - - - - Other	No.
8536.49	- - - Other:
	- - - - With contacts rated at less than 10 A:
8536.49.0050	- - - - - Electromechanical	No.
8536.49.0055	- - - - - Other	No.
	- - - - Other:
8536.49.0065	- - - - - Contactors	No.
	- - - - - Other:
8536.49.0075	- - - - - - Electromechanical	No.
8536.49.0080	- - - - - - Other	No.
8536.50	- - Other switches:
8536.50.4000	- - - Motor starters	No.
	- - - Other:
8536.50.7000	- - - - Electronic AC switches consisting of optically coupled input and output circuits (insulated thyristor AC switches); electronic switches, including temperature protected switches, consisting of a transistor and a logic
	chip (chip-on-chip technology); electro- mechanical snap-action switches for a current not exceeding 11 amps	No.
	- - - - Other:
	- - - - - Rotary:
8536.50.9020	- - - - - - Rated at not over 5 A	No.
8536.50.9025	- - - - - - Rated at over 5 A	No.
	- - - - - Push-button:
8536.50.9030	- - - - - - Rated at not over 5 A	No.
8536.50.9035	- - - - - - Rated at over 5 A	No.
8536.50.9040	- - - - - Snap-action, other than limit	No.
8536.50.9045	- - - - - Knife	No.
8536.50.9050	- - - - - Slide	No.
8536.50.9055	- - - - - Limit	No.
8536.50.9065	- - - - - Other	No.
	- - Lamp-holders, plugs and sockets:
8536.61.0000	- - - Lamp-holders	No.
8536.69	- - - Other:
8536.69.4010	- - - - Coaxial connectors	No.
8536.69.4020	- - - - Cylindrical multicontact connectors	No.
8536.69.4030	- - - - Rack and panel connectors	No.
8536.69.4040	- - - - Printed circuit connectors	No.
8536.69.5050	- - - - Other	X
8536.70.0000	- - Connectors for optical fibers, optical fiber bundles or cables	X
8536.90	- - Other apparatus:
8536.90.4000	- - - Terminals, electrical splices and electrical couplings, wafer probers	X
	- - - Other:
8536.90.8010	- - - - Electrical distribution ducts	X
8536.90.8030	- - - - Junction boxes	No.
8536.90.8085	- - - - Other	X

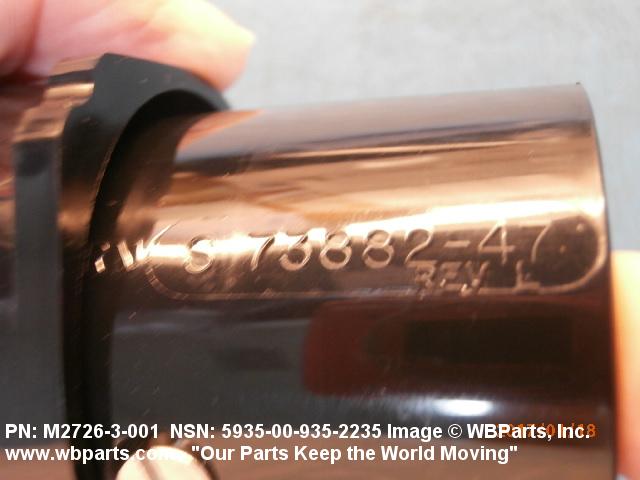

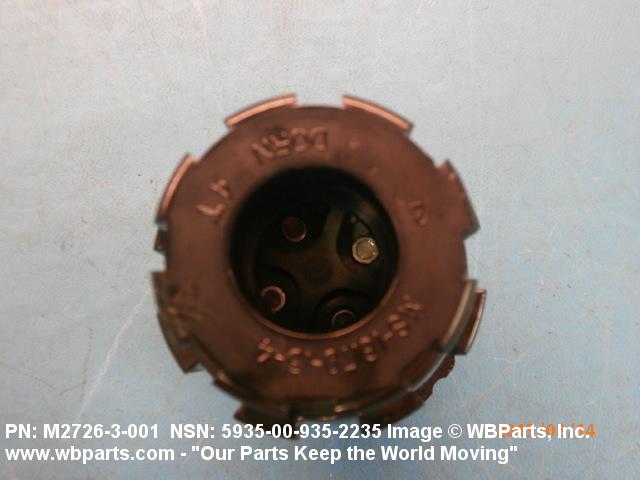

NSN 5935-00-935-2235 M2726/3-001, M2726/3-001 SYM 717., M27263001
