5935-00-947-1036 - RECEPTACLE DUMMY CONNECTOR, MS311514A, MS3115-14A, MS311514W

Product Details | RECEPTACLE DUMMY CONNECTOR

5935-00-947-1036 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.

Part Alternates: MS311514A, MS3115-14A, MS311514W, MS3115-14W, VG95328T07C14, KPT1514A, KPT15-14A, MILC26482, MIL-C-26482, MILDTL26482, MIL-DTL-26482 , 704AS4035, 10135498 , 10263999143, 10-263999-143, 2433924010, 3718393040, 371-8393-040, 57315461, 573154-61, 5935-00-947-1036, 00-947-1036, 5935009471036, 009471036

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	25 MAR 1966	00-947-1036	15092 ( DUMMY CONNECTOR, RECEPTACLE )

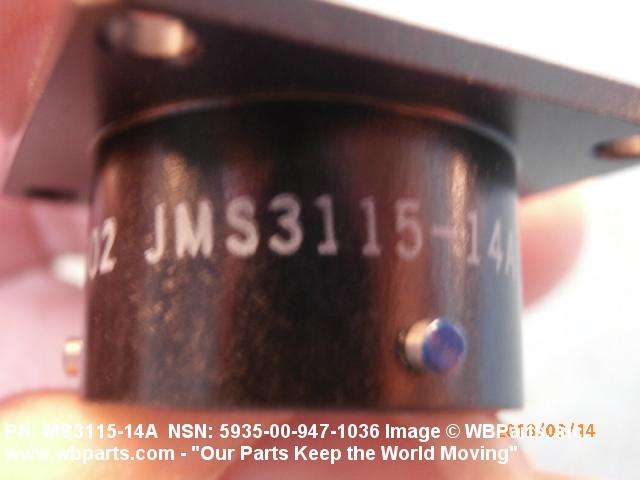

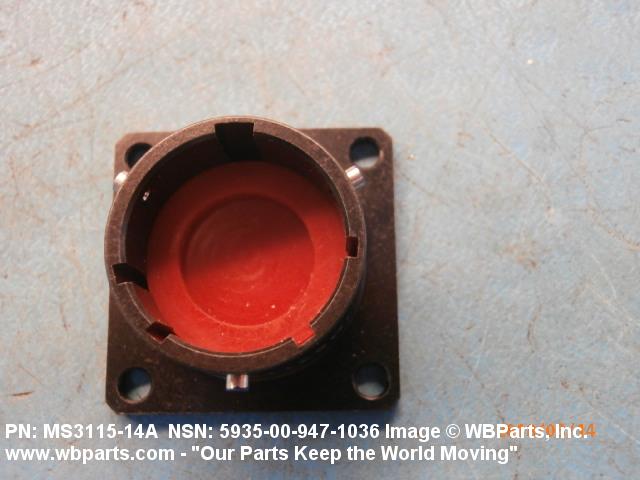

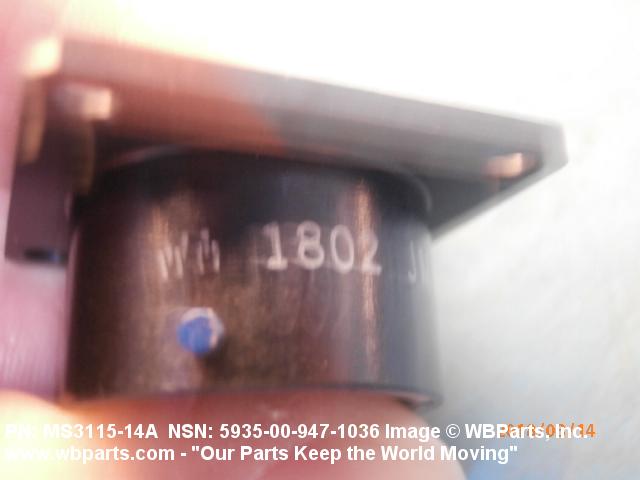

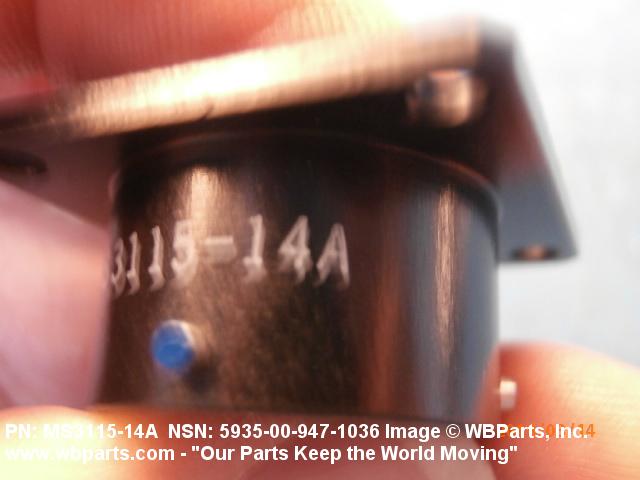

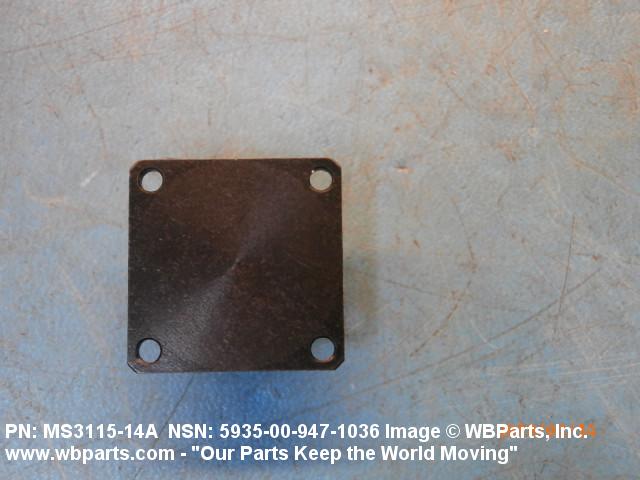

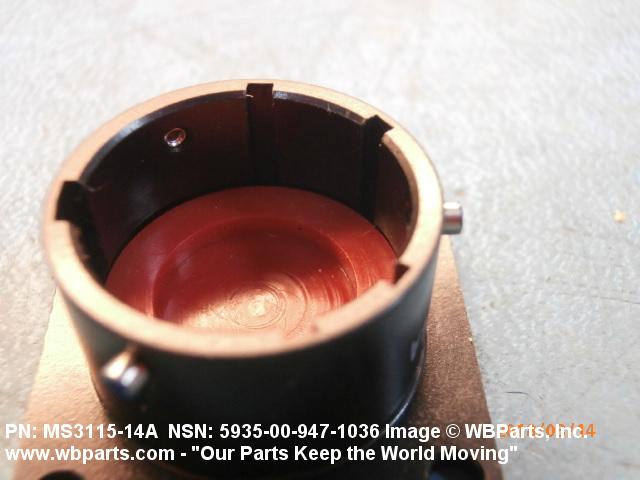

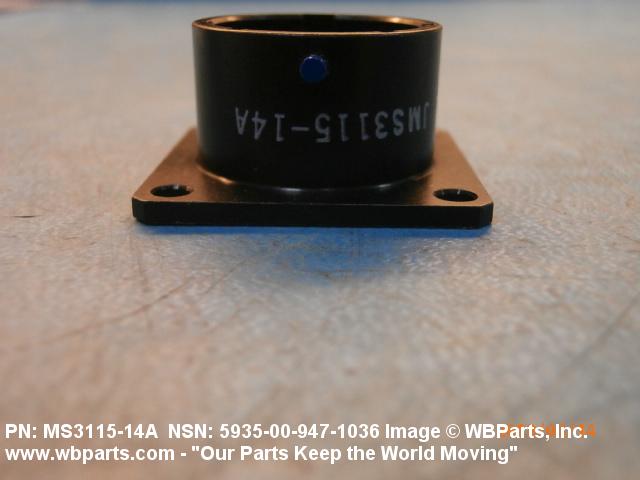

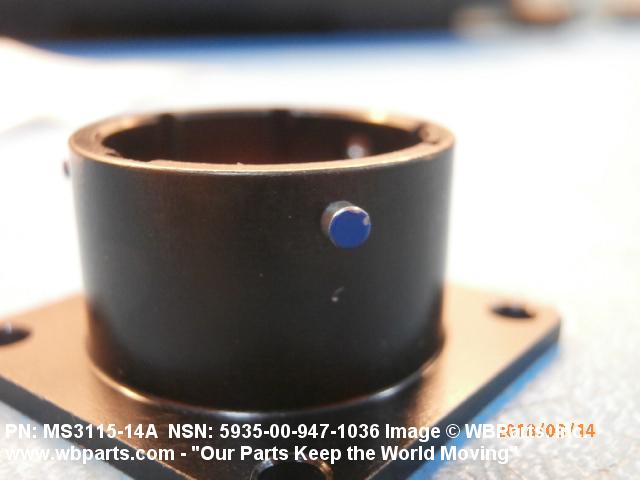

Drawings & Photos | NSN 5935-00-947-1036

Part Number	Request Date	QTY	Origin
5935-00-947-1036	2024-04-04	75	DIBBS
5935-00-947-1036	2023-12-17	29	DIBBS
5935-00-947-1036	2023-06-13	37	DIBBS
5935-00-947-1036	2023-05-29	37	DIBBS
5935-00-947-1036	2022-07-27	4	IT
5935-00-947-1036	2022-05-12	16	DIBBS
5935-00-947-1036	2022-03-29	12	DIBBS
5935-00-947-1036	2022-03-14	12	DIBBS
5935-00-947-1036	2021-03-28	43	DIBBS
5935-00-947-1036	2020-03-09	217	KR
5935-00-947-1036	2020-02-20	378	DIBBS
5935-00-947-1036	2019-08-12	302	Korea
5935-00-947-1036	2019-08-05	299	KR
5935-00-947-1036	2019-08-02	299	MANUAL
5935-00-947-1036	2019-07-11	157	DIBBS
MS311514W	2019-06-20	8	us
5935-00-947-1036	2018-11-01	43	DIBBS
5935-00-947-1036	2018-08-30	48	DIBBS
MS311514A	2018-02-23	3	United States
MS311514W	2017-07-13	60	United States
5935-00-947-1036	2017-06-22	332	DIBBS
5935-00-947-1036	2016-06-14	233	DIBBS
5935-00-947-1036	2016-03-31	141	DIBBS
5935-00-947-1036	2014-03-21	31	DIBBS
5935-00-947-1036	2014-02-24	167	DIBBS
MILDTL26482	2012-06-27	20	US
MS311514A	2011-12-19	106	US
MILC26482	2011-01-27	4	Portugal
MILDTL26482	2011-01-27	4	Portugal
MS311514A	2010-09-24	12	United States
MS311514A	2008-01-09	300	United States
5935-00-947-1036	2007-11-28	454	DIBBS
5935-00-947-1036	2007-07-03	151	DIBBS

Cross Reference | NSN 5935-00-947-1036

Part Number	Cage Code	Manufacturer
10-263999-143	D9853	ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH
2433924010	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
573154-61	D3683	ESW GMBH DIV JENOPTIK DEFENSE AND CIVIL
KPT15-14A	D1371	ITT CANNON GMBH
KPT15-14A	D8348	KUKA WEHRTECHNIK GMBH
KPT15-14A	D9448	RHEINMETALL LANDSYSTEME GMBH DBA RHEINMETALL LAND- UN
MIL-C-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3115-14A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
VG95328T07C14	A6854	GLENAIR ITALIA SPA
VG95328T07C14	D9477	BUNDESAMT FUER AUSRUESTUNG,

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5935-00-947-1036

Compare

Related Products | NSN 5935-00-947-1036

5935-00-947-1037, 5935-00-947-1040, 5935-00-947-1049, 5935-00-947-1051, 5935-00-947-1052

Technical Data | NSN 5935-00-947-1036

Characteristic	Specifications
BODY STYLE	3G STRAIGHT SHAPE, EXTERNAL COUPLING

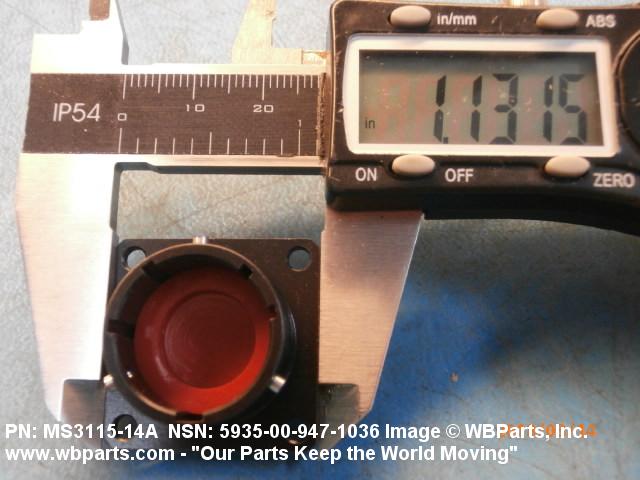

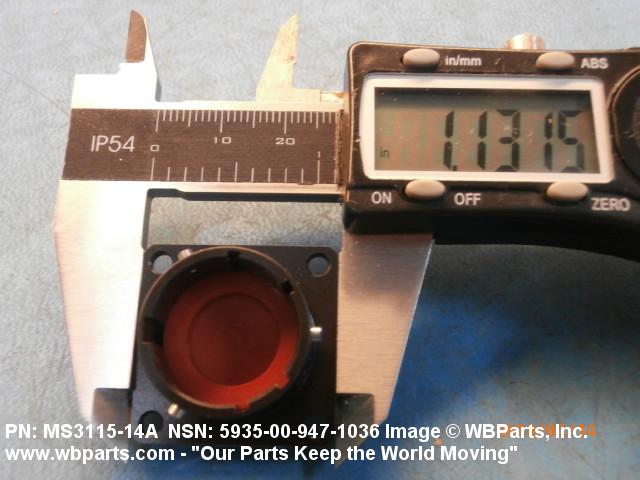

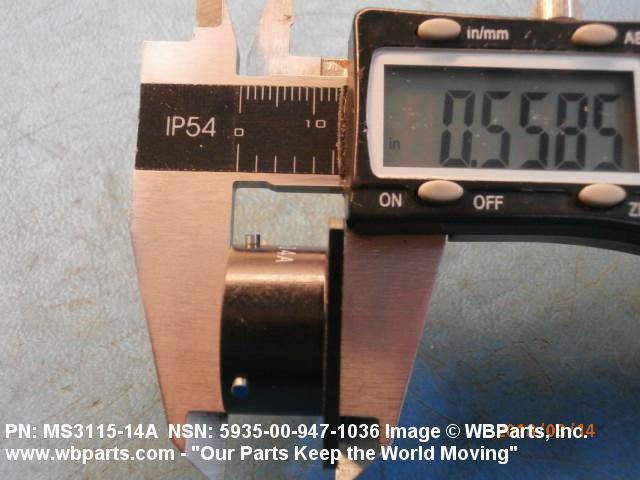

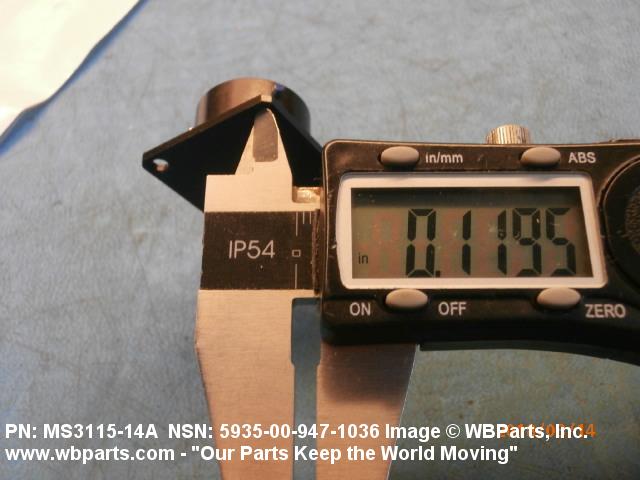

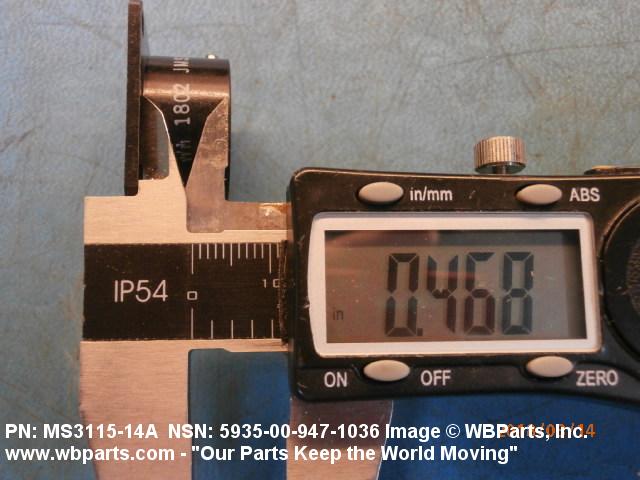

OVERALL LENGTH	0.571 INCHES MAXIMUM
OVERALL HEIGHT	1.141 INCHES MAXIMUM
OVERALL WIDTH	1.141 INCHES MAXIMUM

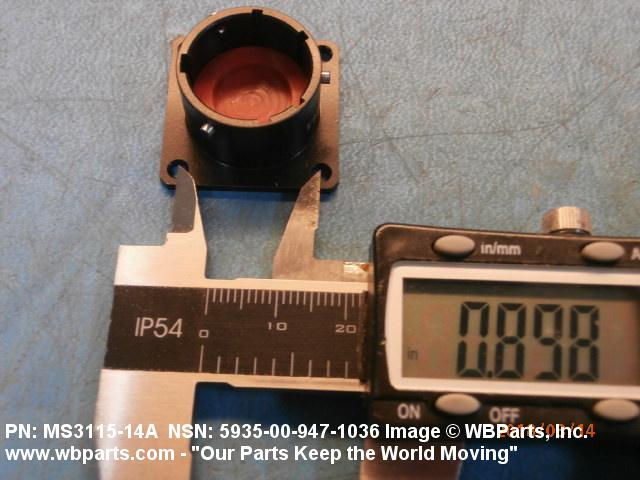

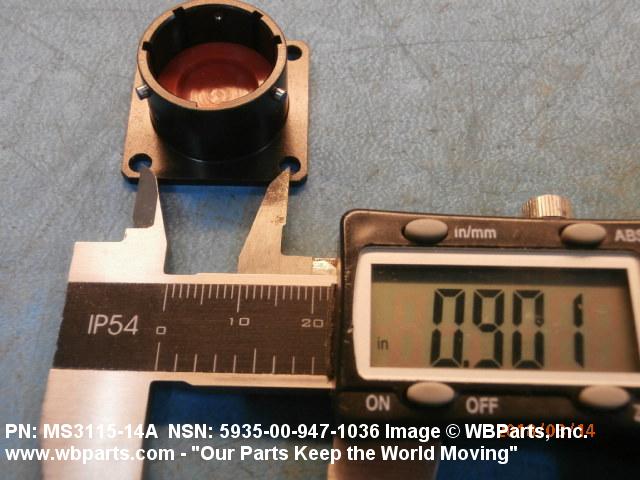

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	0.906 INCHES NOMINAL
