NSN 5935-00-957-2920 B2228398G2, 00-957-2920, 009572920
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-957-2920 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: B2228398G2, 5935-00-957-2920, 00-957-2920, 5935009572920, 009572920
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAY 1966 | 00-957-2920 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-957-2920
Cross Reference | NSN 5935-00-957-2920
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B2228398G2 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-957-2920
Technical Data | NSN 5935-00-957-2920
| Characteristic | Specifications |
|---|---|

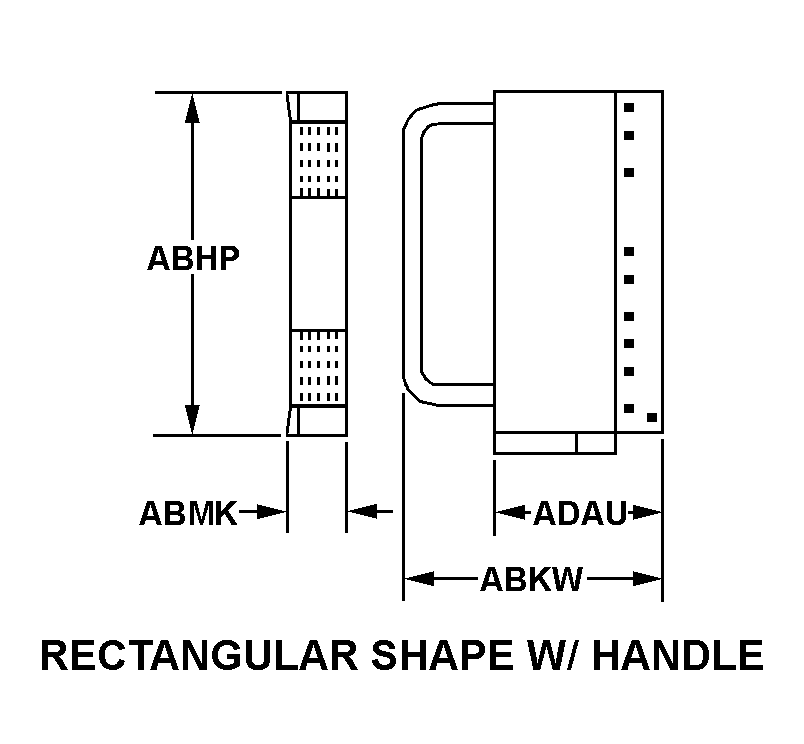

| BODY STYLE | 55A RECTANGULAR SHAPE W/HANDLE |
| OVERALL LENGTH | 4.625 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| OVERALL WIDTH | 1.156 INCHES NOMINAL |
| BODY HEIGHT | 1.344 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| POLARIZATION METHOD | JACKSCREW |
| JACKSCREW TYPE AND LOCATION | MALE CENTER |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | BMAF 35 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 35 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | HERMAPHRODITE SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | TAB, SOLDER LUG SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| MANUFACTURERS CODE | 28527 |
| DESIGN CONTROL REFERENCE | B2228398G2 |
