NSN 5935-00-970-0316 1022997924, 10-229979-24, 10596870-1
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-970-0316 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 1022997924, 10-229979-24, 10596870-1, 10932334, 5935-00-970-0316, 00-970-0316, 5935009700316, 009700316, 105968701
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-970-0316 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

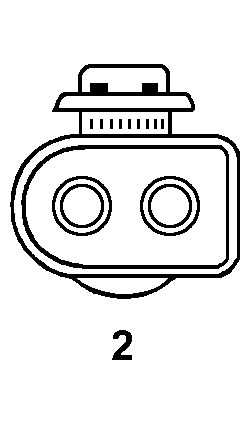

Drawings & Photos | NSN 5935-00-970-0316
Demand History | NSN 5935-00-970-0316
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10-229979-24 | 2025-09-259 | 7 | DIBBS |
| 10-229979-24 | 2025-09-259 | 50 | DIBBS |
| 10932334 | 2025-09-259 | 7 | DIBBS |
| 10932334 | 2025-09-259 | 50 | DIBBS |
| 10-229979-24 | 2025-09-253 | 7 | DIBBS |
| 10-229979-24 | 2025-09-253 | 50 | DIBBS |
| 10932334 | 2025-09-253 | 7 | DIBBS |
| 10932334 | 2025-09-253 | 50 | DIBBS |
| 10-229979-24 | 2025-06-153 | 50 | DIBBS |
| 10932334 | 2025-06-153 | 50 | DIBBS |
| 10-229979-24 | 2025-05-142 | 7 | DIBBS |
| 10-229979-24 | 2025-05-142 | 50 | DIBBS |
| 10932334 | 2025-05-142 | 7 | DIBBS |
| 10932334 | 2025-05-142 | 50 | DIBBS |
| 5935-00-970-0316 | 2024-12-366 | 470 | IL |
| 5935-00-970-0316 | 2024-12-361 | 470 | IL |
| 10-229979-24 | 2024-11-317 | 7 | DIBBS |
| 10-229979-24 | 2024-11-317 | 50 | DIBBS |
| 10932334 | 2024-11-317 | 7 | DIBBS |
| 10932334 | 2024-11-317 | 50 | DIBBS |
| 10-229979-24 | 2024-10-275 | 50 | DIBBS |
| 10932334 | 2024-10-275 | 50 | DIBBS |
| 10-229979-24 | 2024-09-261 | 50 | DIBBS |
| 10932334 | 2024-09-261 | 50 | DIBBS |
| 10-229979-24 | 2024-09-255 | 7 | DIBBS |
| 10932334 | 2024-09-255 | 7 | DIBBS |
| 10-229979-24 | 2024-06-163 | 7 | DIBBS |
| 10932334 | 2024-06-163 | 7 | DIBBS |
| 10-229979-24 | 2024-01-31 | 7 | DIBBS |
| 10932334 | 2024-01-31 | 7 | DIBBS |
| 10-229979-24 | 2023-03-67 | 7 | DIBBS |
| 10932334 | 2023-03-67 | 7 | DIBBS |
| 5935-00-970-0316 | 2014-01-07 | 8 | IL |
| 5935-00-970-0316 | 2008-04-112 | 74 | DIBBS |
Cross Reference | NSN 5935-00-970-0316
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-229979-24 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 10596870-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10932334 | 0XY75 | YESCO ELECTRIC PRODUCTS |
| 10932334 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 10932334 | 22888 | FMC CORP |
| 10932334 | 5A910 | ELC INDUSTRIES CORP. DBA AURORA CORD AND CABLE COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-970-0316
Related Products | NSN 5935-00-970-0316
Technical Data | NSN 5935-00-970-0316
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1A STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 7.219 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.625 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 2.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 12 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 1.059 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ACCU 2 SINGLE MATING END |
| INSERT MATERIAL | RUBBER SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 245.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 700.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| FURNISHED ITEMS | PROTECTIVE COVER AND CHAIN |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.010 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-970-0316
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-970-0316
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
