NSN 5935-00-976-1298 SRC14, SRC-14, 0404010003
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-976-1298 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: SRC14, SRC-14, 0404010003, 040401-0003, 5935-00-976-1298, 00-976-1298, 5935009761298, 009761298
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-976-1298 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-976-1298
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-976-1298
Technical Data | NSN 5935-00-976-1298
| Characteristic | Specifications |
|---|---|

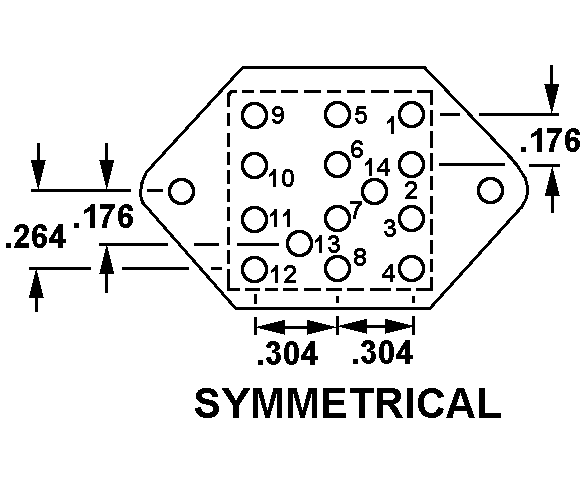

| CONTACT POSITION ARRANGEMENT STYLE | 1407A SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 19B TOP MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 2.281 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.310 INCHES MAXIMUM |
| OVERALL WIDTH | 1.062 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | ANY ACCEPTABLE |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 CRIMP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |

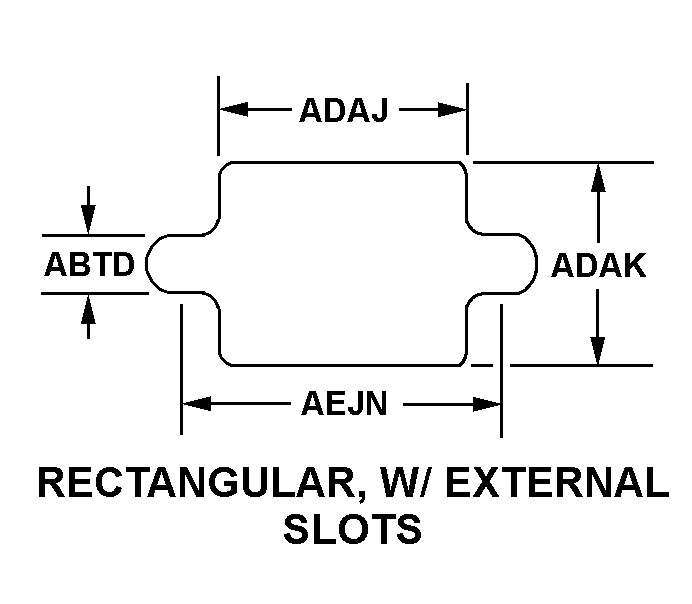

| MOUNTING HOLE STYLE | 24D RECTANGLAR, W/EXTERNAL SLOTS |
| MOUNTING SLOT WIDTH | 0.218 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.515 INCHES MINIMUM AND 1.535 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 1.021 INCHES MINIMUM AND 1.041 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.834 INCHES MINIMUM AND 1.854 INCHES MAXIMUM |
| POLARIZATION TYPE | OFF CENTER HOLE |
| III SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| III FABRICATION METHOD | MOLDED |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SURFACES GOLD |
