NSN 5935-00-977-5818 126-10345-1, 00-977-5818, 126103451
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-977-5818 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 126-10345-1, 5935-00-977-5818, 00-977-5818, 5935009775818, 126103451, 009775818
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-977-5818 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-977-5818
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-977-5818
Technical Data | NSN 5935-00-977-5818
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 40G RECTANGULAR SHAPE |
| OVERALL LENGTH | 3.866 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.427 INCHES NOMINAL |
| OVERALL HEIGHT | 1.110 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.625 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.164 INCHES NOMINAL |
| THREADED DEVICE TYPE | MOUNTING HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.250 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CLASS 2 TYPE 2 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |

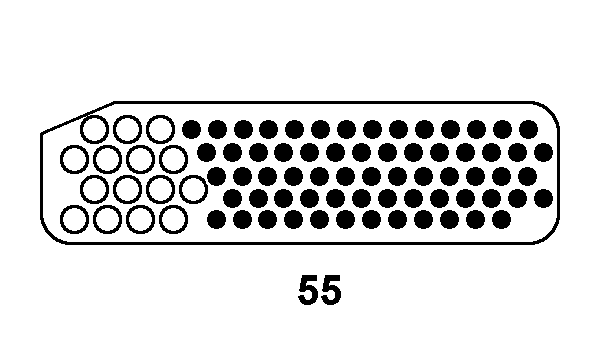

| CONTACT POSITION ARRANGEMENT STYLE | CJAC 55 SINGLE MATING END |
