NSN 5935-00-980-0434 MS253244, MS25324-4, 41823004

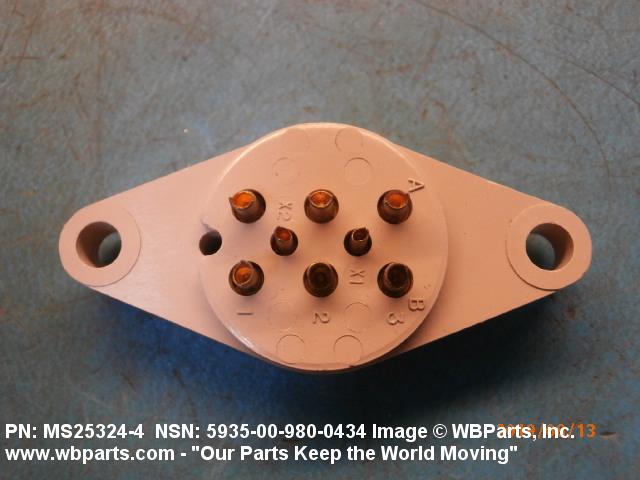

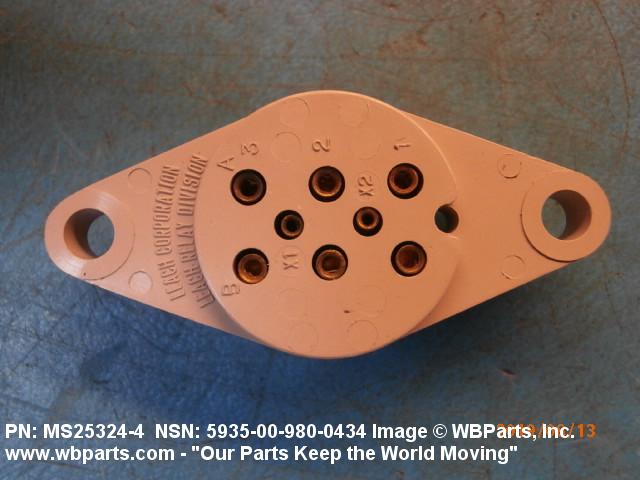

Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-980-0434 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: MS253244, MS25324-4, 41823004, 4182300-4, 5935-00-980-0434, 00-980-0434, 5935009800434, 009800434
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-980-0434 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

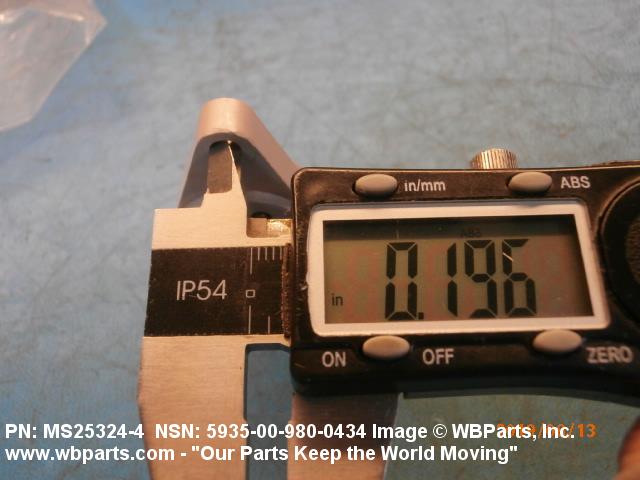

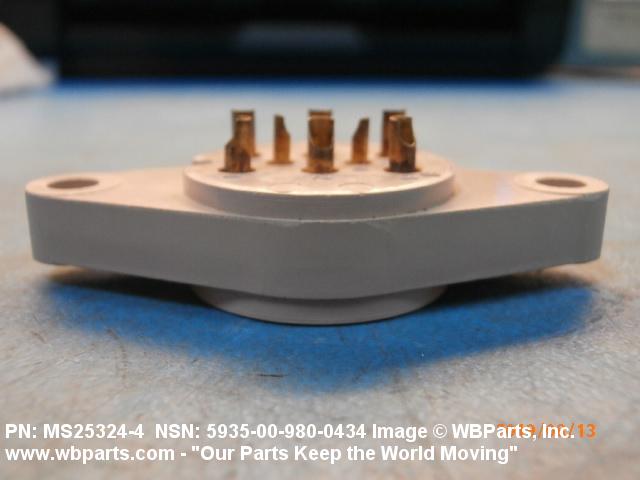

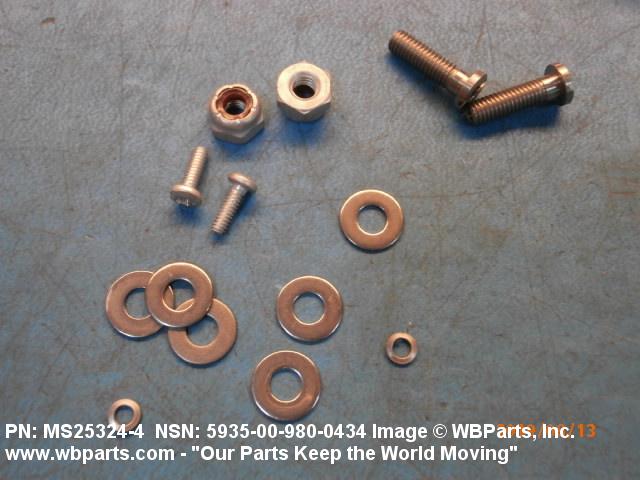

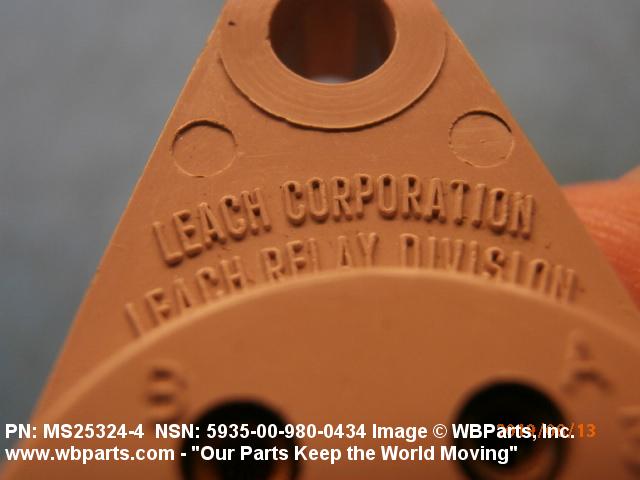

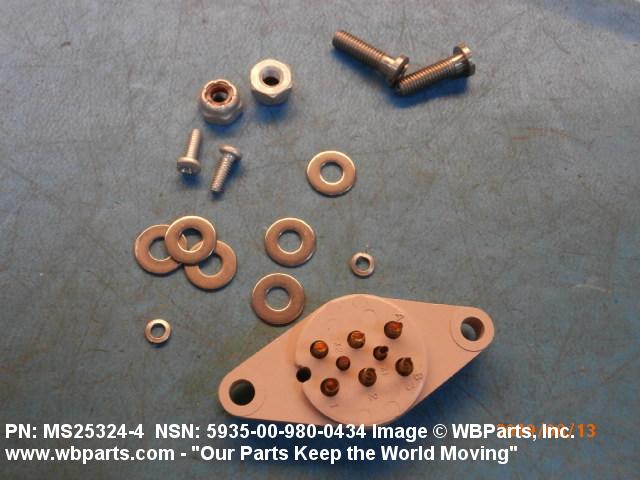

Drawings & Photos | NSN 5935-00-980-0434
Demand History | NSN 5935-00-980-0434
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-980-0434 | 2025-12-338 | 1 | US |
| 5935-00-980-0434 | 2019-09-253 | 2 | United States |
| 5935-00-980-0434 | 2019-09-253 | 2 | United States |
| 5935-00-980-0434 | 2019-07-203 | 2 | United States |
| MS253244 | 2014-08-223 | 5 | United Arab Emirates |
| 5935-00-980-0434 | 2014-05-146 | 5 | AE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-980-0434
Technical Data | NSN 5935-00-980-0434

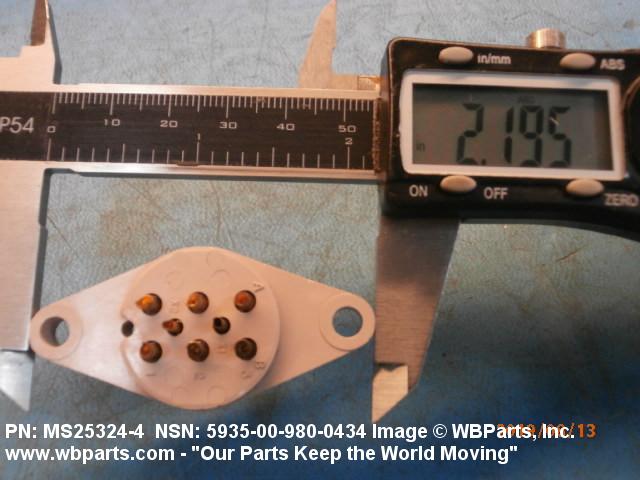

| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 801A TRIPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER |
| BODY STYLE | 21B TOP MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 2.218 INCHES MAXIMUM |

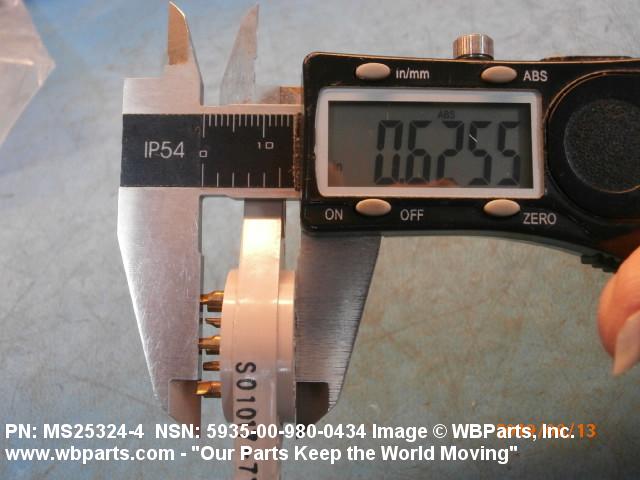

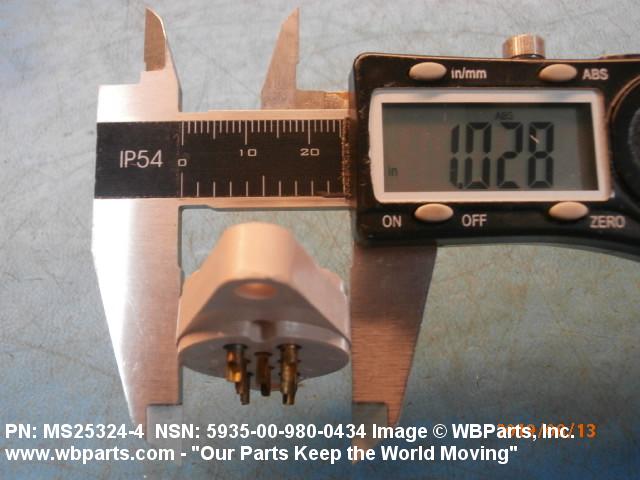

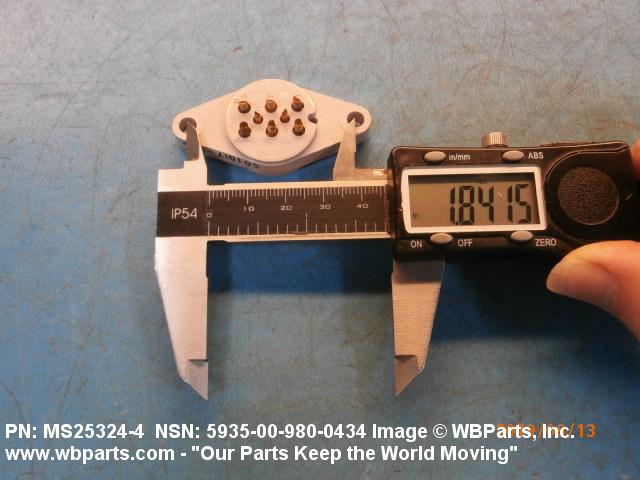

| OVERALL HEIGHT | 0.659 INCHES MAXIMUM |
| OVERALL WIDTH | 1.062 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.083 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | 8D ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.191 INCHES MINIMUM AND 0.201 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.834 INCHES MINIMUM AND 1.854 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.839 INCHES MINIMUM AND 1.849 INCHES MAXIMUM |
| POLARIZATION TYPE | OFF CENTER HOLE |
| TEST DATA DOCUMENT | 96906-MS25324 STANDARD |
| SPECIFICATION/STANDARD DATA | 96906-MS26324 GOVERNMENT STANDARD |
| III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| III CONTACT MAXIMUM VOLTAGE IN VOLTS AND CURRENT TYPE | 2500.0 AC AND 2500.0 DC |
| III FABRICATION METHOD | MOLDED |
| III TEMP RATING | -65.0 DEG CELSIUS AND 120.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY AND 0.008 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25324-4 |
