NSN 5935-00-991-7770 00850-0027-0004, 85027, 850-27

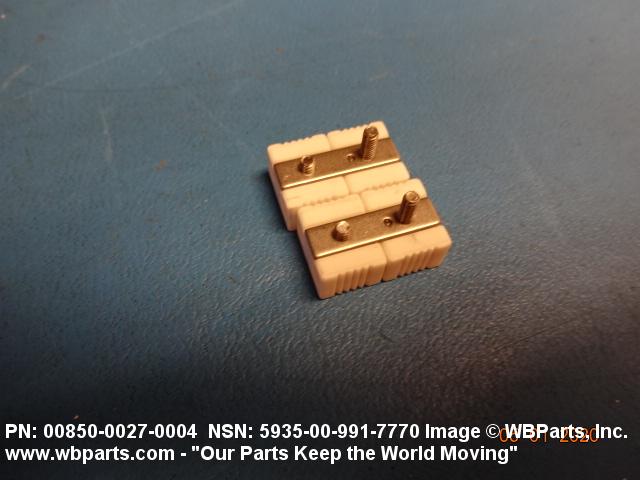

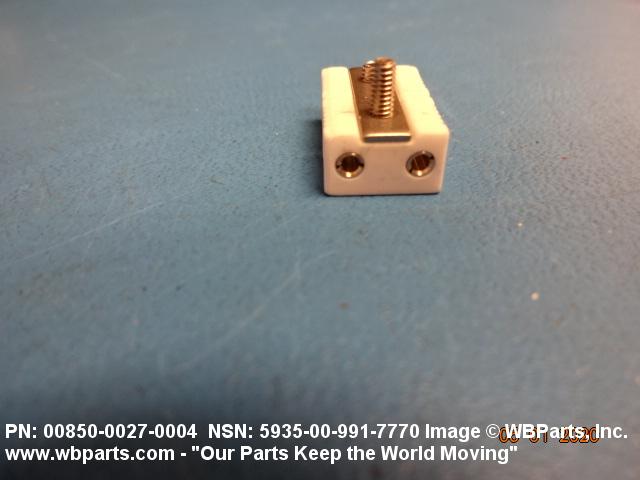

Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-991-7770 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 00850-0027-0004, 85027, 850-27, 850274, 850-27-4, 10179785 , 5935-00-991-7770, 00-991-7770, 0085000270004, 5935009917770, 009917770
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-991-7770 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

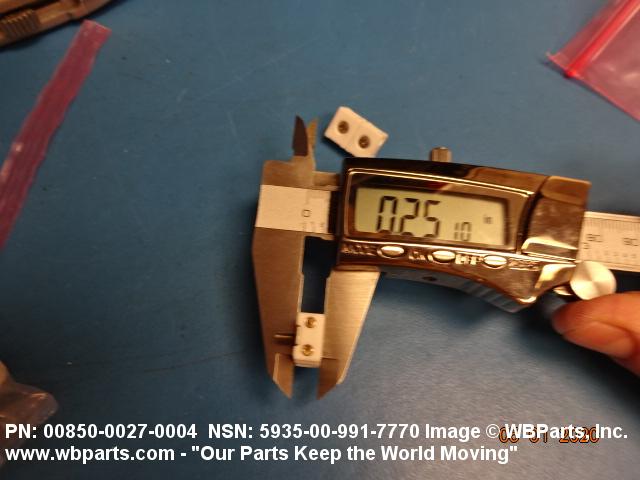

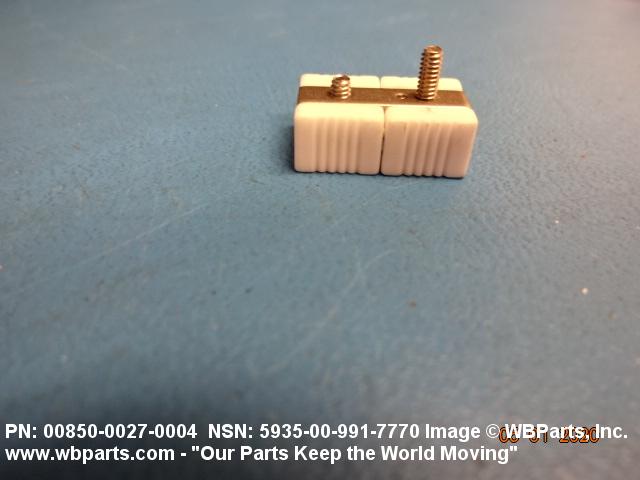

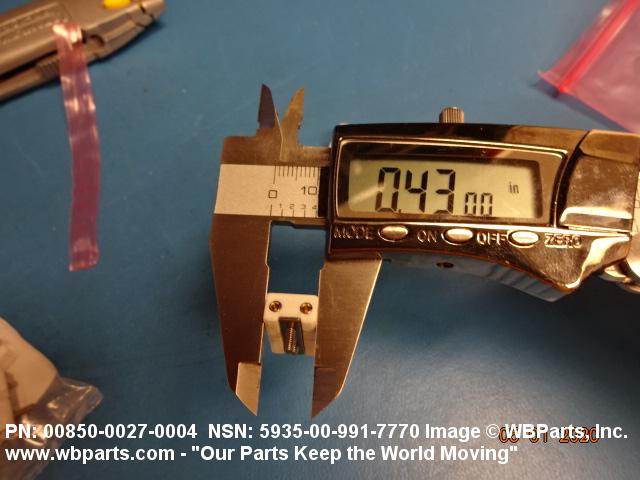

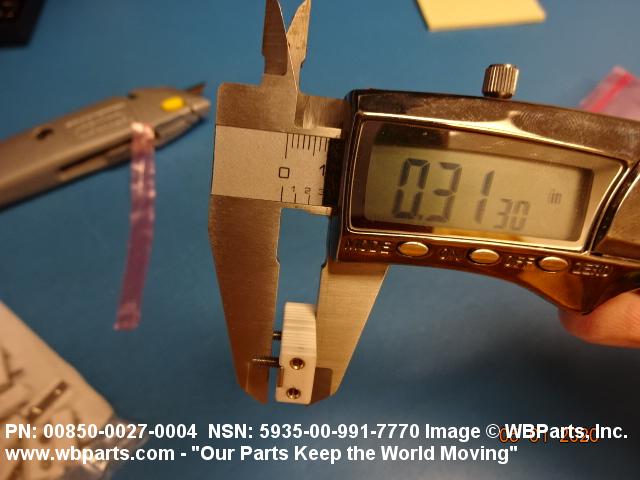

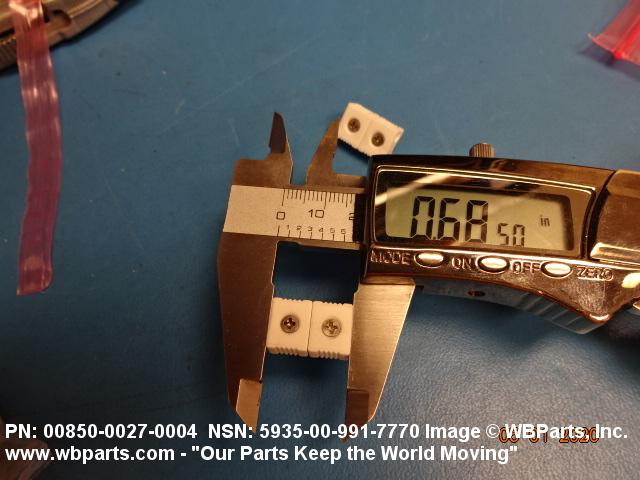

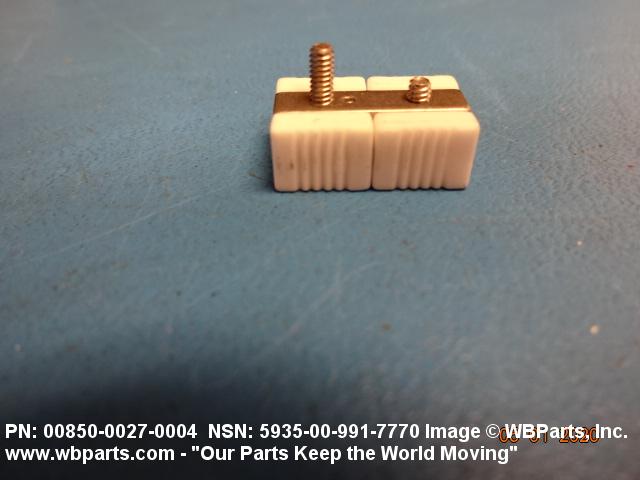

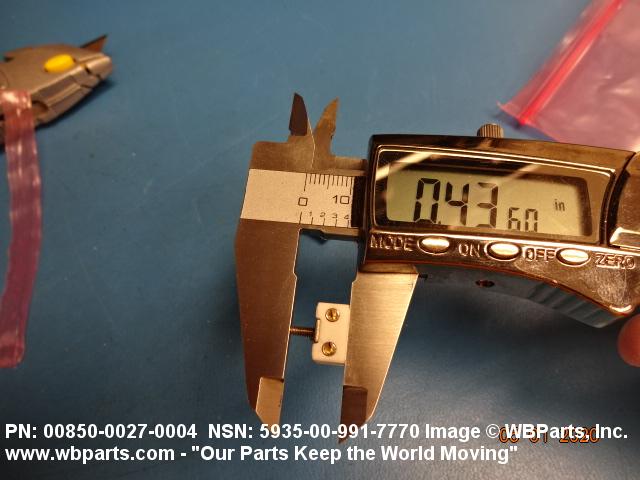

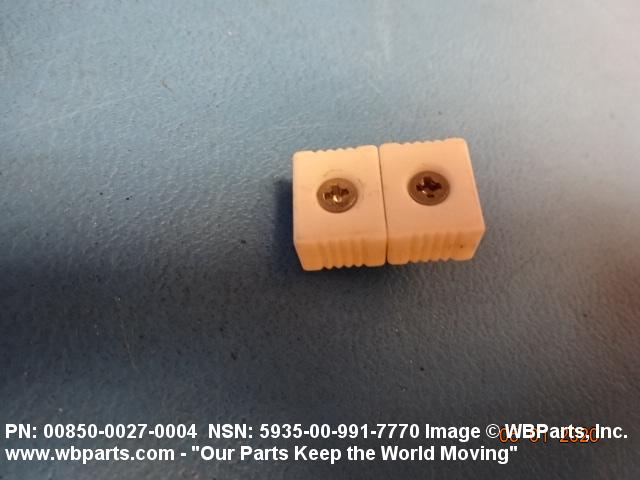

Drawings & Photos | NSN 5935-00-991-7770
Demand History | NSN 5935-00-991-7770
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 00850-0027-0004 | 2025-05-148 | 31 | DIBBS |
| 00850-0027-0004 | 2025-05-140 | 31 | DIBBS |
| 00850-0027-0004 | 2024-12-346 | 42 | DIBBS |
| 00850-0027-0004 | 2024-05-150 | 42 | DIBBS |
| 00850-0027-0004 | 2024-05-142 | 42 | DIBBS |
| 5935-00-991-7770 | 2020-04-99 | 19 | Thailand |
| 5935-00-991-7770 | 2020-01-15 | 1 | US |
| 5935-00-991-7770 | 2019-03-64 | 16 | TH |
| 00850-0027-0004 | 2019-01-17 | 78 | DIBBS |
| 0085-00-027-0004 | 2018-03-74 | 6 | United States |
| 5935-00-991-7770 | 2016-12-357 | 9 | DIBBS |
| 5935-00-991-7770 | 2016-09-273 | 103 | DIBBS |
| 5935-00-991-7770 | 2015-09-249 | 74 | DIBBS |
| 5935-00-991-7770 | 2015-08-231 | 74 | DIBBS |
| 5935-00-991-7770 | 2015-08-216 | 74 | DIBBS |
| 5935-00-991-7770 | 2015-07-194 | 53 | DIBBS |
| 5935-00-991-7770 | 2015-07-182 | 53 | DIBBS |
| 5935-00-991-7770 | 2015-05-140 | 19 | DIBBS |
| 0085-00-027-0004 | 2015-03-82 | 8 | US |
| 0085-00-027-0004 | 2013-08-226 | 50 | US |
| 5935-00-991-7770 | 2013-08-225 | 50 | US |
| 5935-00-991-7770 | 2012-12-352 | 0 | DIBBS |
| 5935-00-991-7770 | 2012-10-278 | 20 | DIBBS |
| 0085-00-027-0004 | 2012-09-271 | 1 | US |
| 5935-00-991-7770 | 2012-05-123 | 1 | US |
| 5935-00-991-7770 | 2012-04-107 | 34 | DIBBS |
| 5935-00-991-7770 | 2012-02-38 | 18 | DIBBS |
| 5935-00-991-7770 | 2011-12-354 | 13 | DIBBS |
| 0085-00-027-0004 | 2010-12-350 | 2 | US |
| 5935-00-991-7770 | 2010-05-140 | 30 | DIBBS |
| 5935-00-991-7770 | 2009-04-97 | 50 | DIBBS |
| 5935-00-991-7770 | 2008-01-08 | 48 | DIBBS |
Cross Reference | NSN 5935-00-991-7770
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00850-0027-0004 | 04274 | ROSEMOUNT INC DBA FISHER ROSEMOUNT SERVICE AND |
| 00850-0027-0004 | 59885 | ROSEMOUNT AEROSPACE INC. DBA A UTC AEROSPACE SYSTEMS COMPANY |
| 00850-0027-0004 | U8539 | ROSEMOUNT AEROSPACE LTD |
| 850-27 | 04274 | ROSEMOUNT INC DBA FISHER ROSEMOUNT SERVICE AND |
| 850-27 | 59885 | ROSEMOUNT AEROSPACE INC. DBA A UTC AEROSPACE SYSTEMS COMPANY |
| 850-27-4 | 04274 | ROSEMOUNT INC DBA FISHER ROSEMOUNT SERVICE AND |
| 850-27-4 | 59885 | ROSEMOUNT AEROSPACE INC. DBA A UTC AEROSPACE SYSTEMS COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-991-7770
Related Products | NSN 5935-00-991-7770
Technical Data | NSN 5935-00-991-7770
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 28A STRAIGHT SHAPE |
| OVERALL LENGTH | 0.430 INCHES NOMINAL |
| OVERALL HEIGHT | 0.670 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| OVERALL WIDTH | 0.430 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ACCN 2 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 15.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | STEEL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
Restrictions/Controls & Freight Information | NSN 5935-00-991-7770
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
