NSN 5935-01-009-1956 STD9464, STD946-4, RE04106P

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-009-1956 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: STD9464, STD946-4, RE04106P, RE04-106P, 5935-01-009-1956, 01-009-1956, 5935010091956, 010091956

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	05 SEP 1975	01-009-1956	01938 ( CONNECTOR, PLUG, ELECTRICAL )

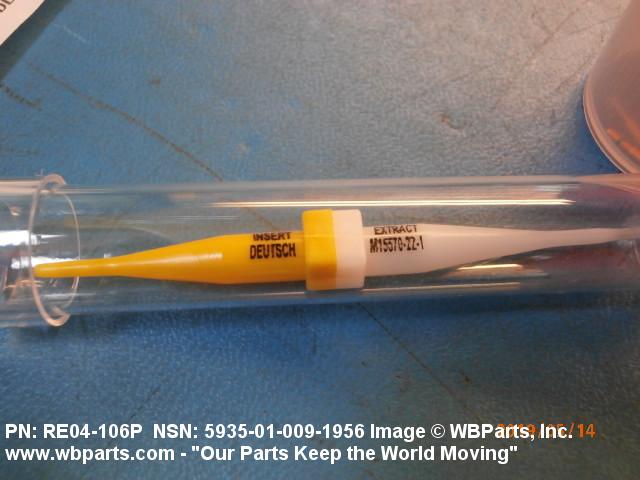

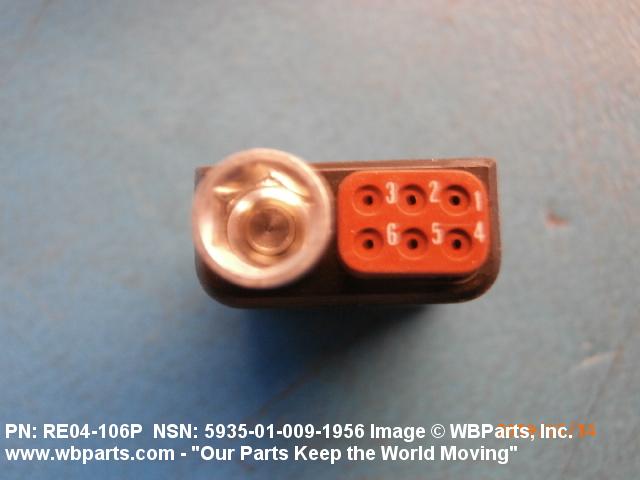

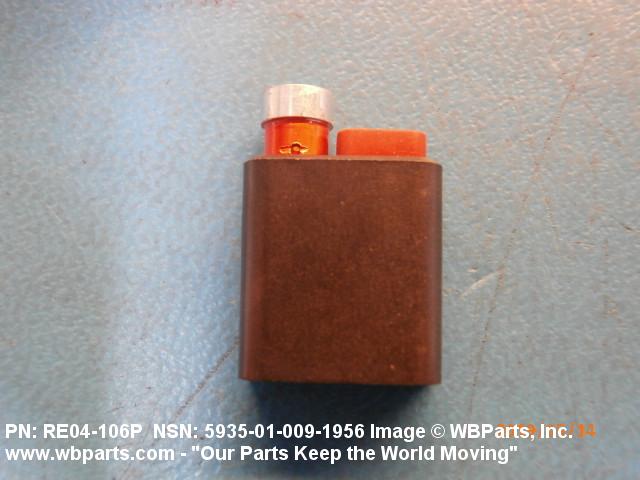

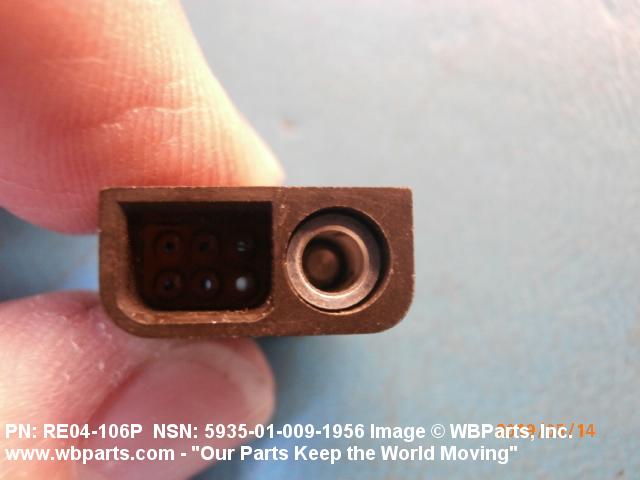

Drawings & Photos | NSN 5935-01-009-1956

Part Number	Request Date	QTY	Origin
RE04-106P	2024-04-103	346	DIBBS
STD946-4	2024-04-103	346	DIBBS
RE04-106P	2024-04-102	346	DIBBS
STD946-4	2024-04-102	346	DIBBS
RE04-106P	2024-04-99	346	DIBBS
STD946-4	2024-04-99	346	DIBBS
RE04-106P	2024-03-87	346	DIBBS
STD946-4	2024-03-87	346	DIBBS
RE04-106P	2023-08-221	446	DIBBS
STD946-4	2023-08-221	446	DIBBS
RE04-106P	2023-07-187	346	DIBBS
STD946-4	2023-07-187	346	DIBBS
RE04-106P	2019-09-269	334	DIBBS
STD946-4	2019-09-269	334	DIBBS
RE04-106P	2019-04-112	496	DIBBS
STD946-4	2019-04-112	496	DIBBS
RE04106P	2019-04-101	25	United States
RE04-106P	2019-04-101	496	DIBBS
STD946-4	2019-04-101	496	DIBBS
RE04-106P	2019-02-42	368	DIBBS
STD946-4	2019-02-42	368	DIBBS
RE04-106P	2019-01-31	368	DIBBS
STD946-4	2019-01-31	368	DIBBS
RE04-106P	2019-01-07	444	DIBBS
STD946-4	2019-01-07	444	DIBBS
5935-01-009-1956	2018-12-361	444	DIBBS
5935-01-009-1956	2018-05-151	148	DIBBS
5935-01-009-1956	2018-05-126	144	DIBBS
5935-01-009-1956	2018-03-87	87	DIBBS
5935-01-009-1956	2018-03-66	99	DIBBS
5935-01-009-1956	2018-02-53	99	DIBBS
5935-01-009-1956	2017-09-271	108	DIBBS
5935-01-009-1956	2017-01-26	146	DIBBS
5935-01-009-1956	2016-11-314	130	DIBBS
5935-01-009-1956	2013-06-177	13	DIBBS
RE04106P	2013-05-150	2	US
RE04106P	2013-05-150	2	US
5935-01-009-1956	2013-05-142	14	DIBBS
5935-01-009-1956	2013-01-02	0	DIBBS
5935-01-009-1956	2011-06-171	45	DIBBS
5935-01-009-1956	2011-06-162	0	DIBBS
5935-01-009-1956	2011-06-153	45	DIBBS
5935-01-009-1956	2011-05-129	159	DIBBS
5935-01-009-1956	2010-09-267	250	CA
5935-01-009-1956	2008-10-281	30	DIBBS
5935-01-009-1956	2008-05-129	1	US
RE04106P	2008-05-129	152	US
5935-01-009-1956	2008-02-38	106	DIBBS
5935-01-009-1956	2007-10-278	18	DIBBS
5935-01-009-1956	2007-09-268	46	DIBBS
5935-01-009-1956	2007-09-260	39	DIBBS
5935-01-009-1956	2007-09-255	34	DIBBS
5935-01-009-1956	2007-06-176	7	DIBBS
5935-01-009-1956	2007-05-145	3	DIBBS

Cross Reference | NSN 5935-01-009-1956

Part Number	Cage Code	Manufacturer
RE04-106P	11139	DEUTSCH ENGINEERED CONNECTING DEVICES INC
RE04-106P	F1983	CONNECTEURS ELECTRIQUES DEUTSCH DBA CED
STD946-4	81579	MASON ELECTRIC COMPANY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-009-1956

Compare

Related Products | NSN 5935-01-009-1956

5935-01-009-1957, 5935-01-009-1958, 5935-01-009-1959, 5935-01-009-1960, 5935-01-009-1961

Technical Data | NSN 5935-01-009-1956

Characteristic	Specifications
BODY STYLE	28A STRAIGHT SHAPE
OVERALL LENGTH	0.582 INCHES MINIMUM AND 0.602 INCHES MAXIMUM
OVERALL HEIGHT	0.900 INCHES NOMINAL
OVERALL WIDTH	0.270 INCHES MINIMUM AND 0.290 INCHES MAXIMUM
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	AGAZ 6 SINGLE MATING END
INSERT MATERIAL	PLASTIC SILICONE MINERAL FILLED SINGLE MATING END
INCLUDED CONTACT QUANTITY	6 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	5.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
FURNISHED ITEMS	GUIDE SOCKET
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.006 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5935-01-009-1956

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-009-1956

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
