NSN 5935-01-014-4785 AV6282, AV628-2, CN0900247B1P1
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-014-4785 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: AV6282, AV628-2, CN0900247B1P1, CN0900-247B1-P1, ST5M1381002, ST5M1381-002, ST5M1381003, ST5M1381-003, GC354, GC3541, GC354-1, 10138806 , 8880446241P, 88-804462-41P, 5935-01-014-4785, 01-014-4785, 5935010144785, 010144785
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 DEC 1975 | 01-014-4785 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

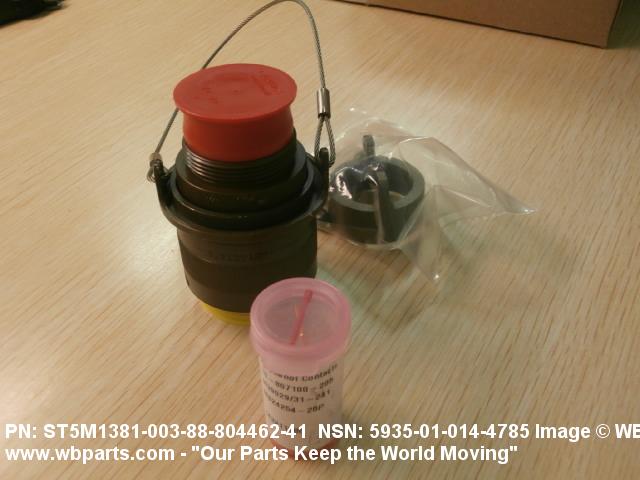

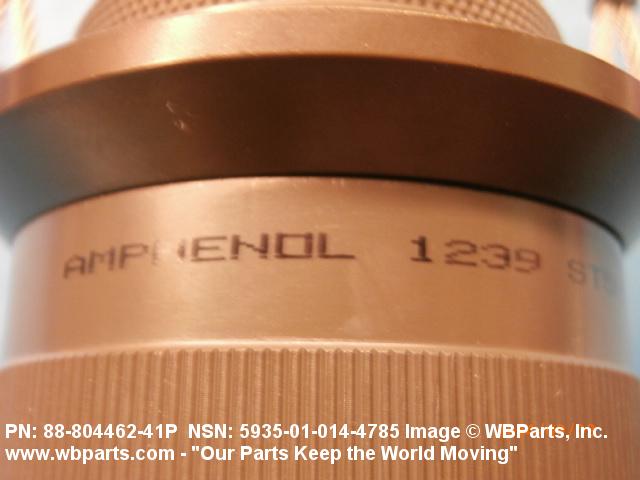

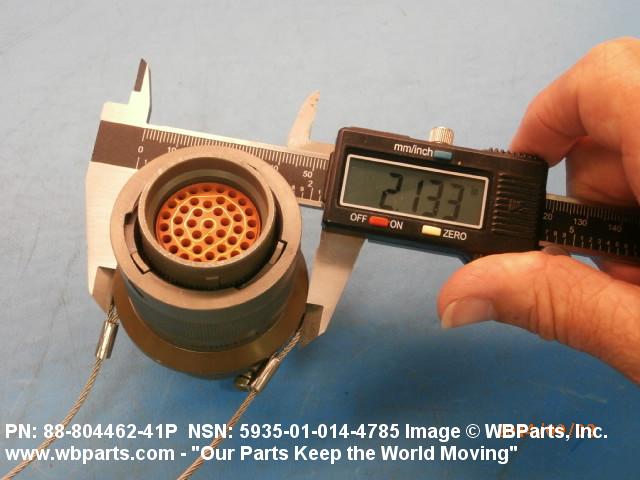

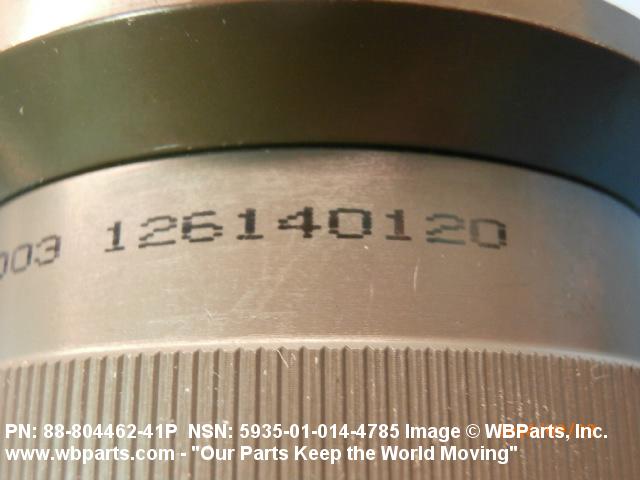

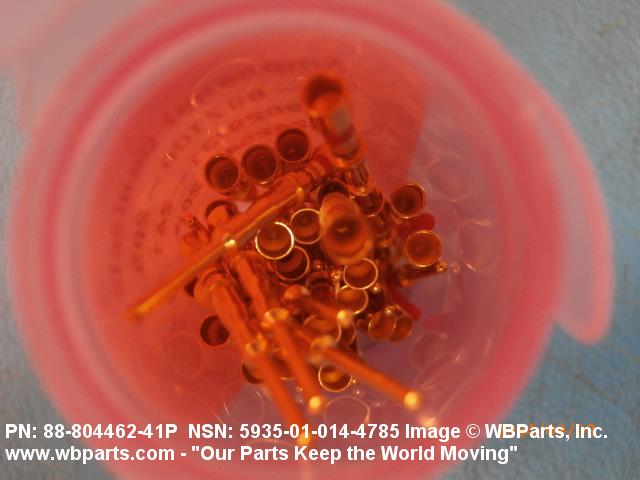

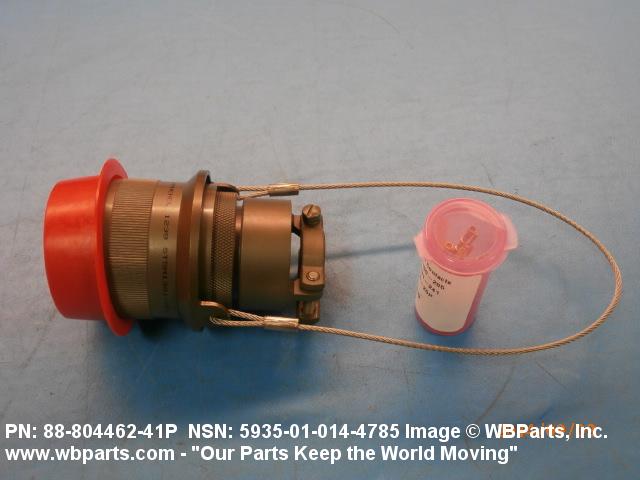

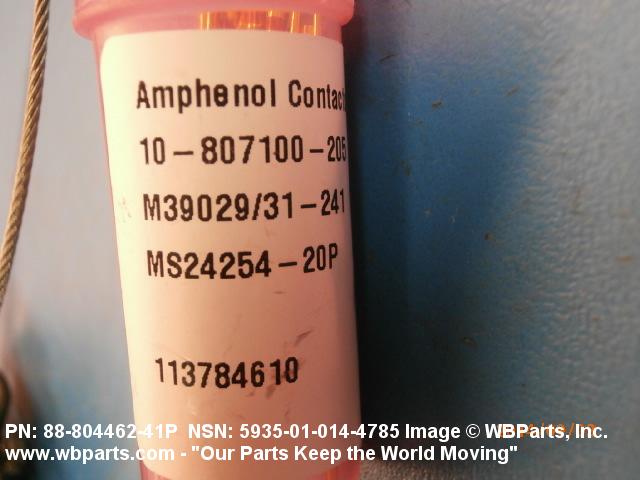

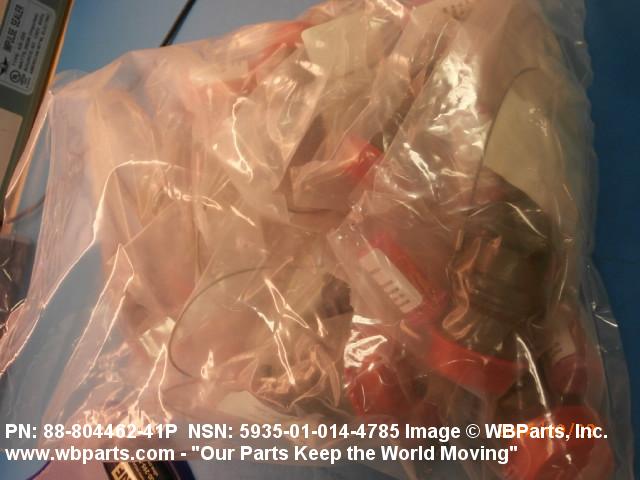

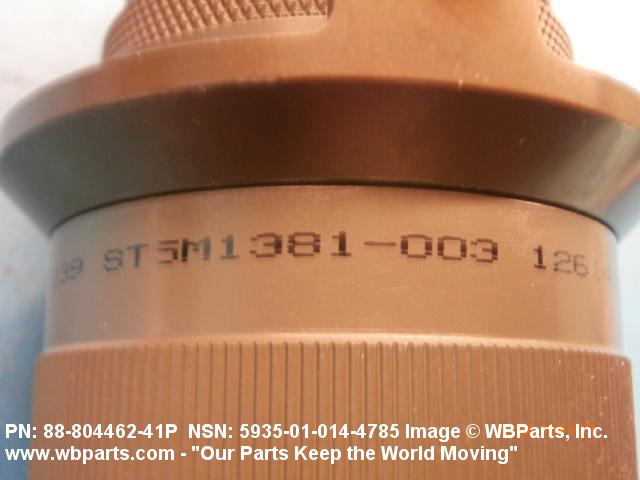

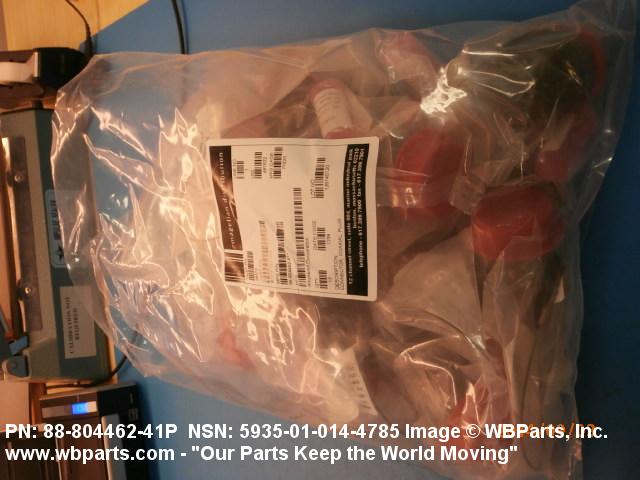

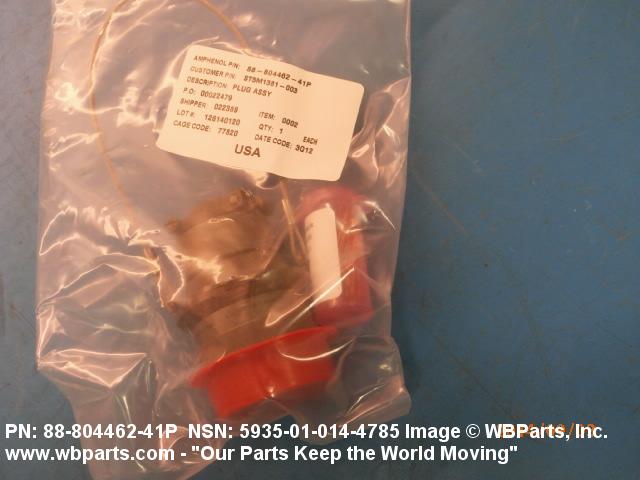

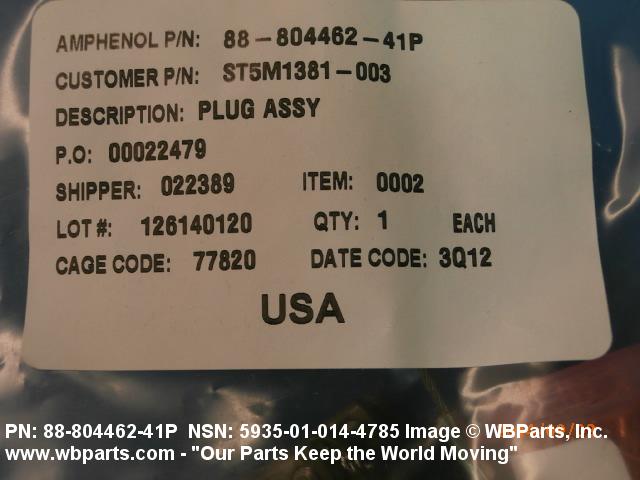

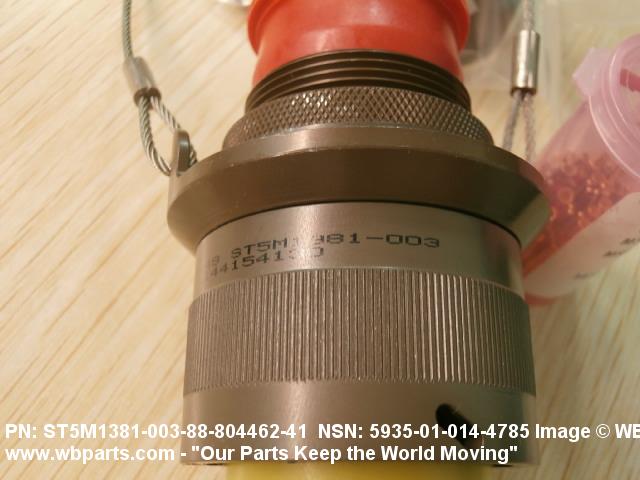

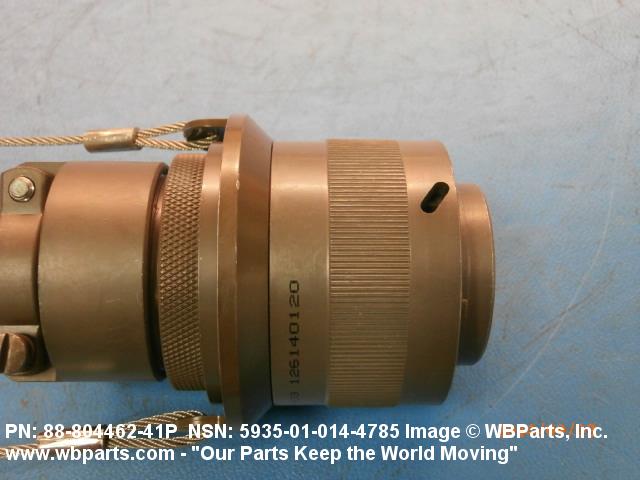

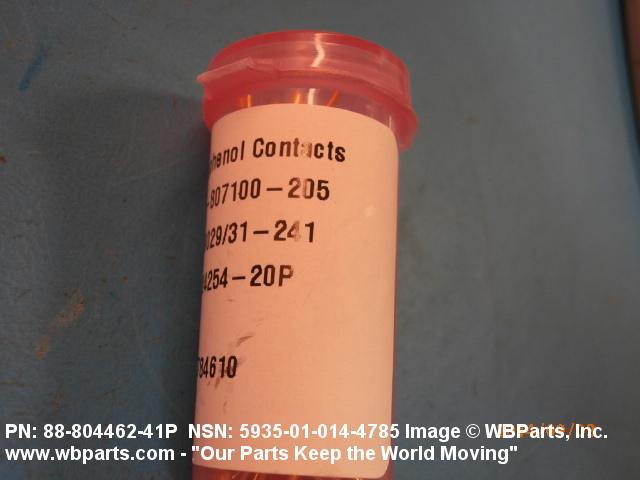

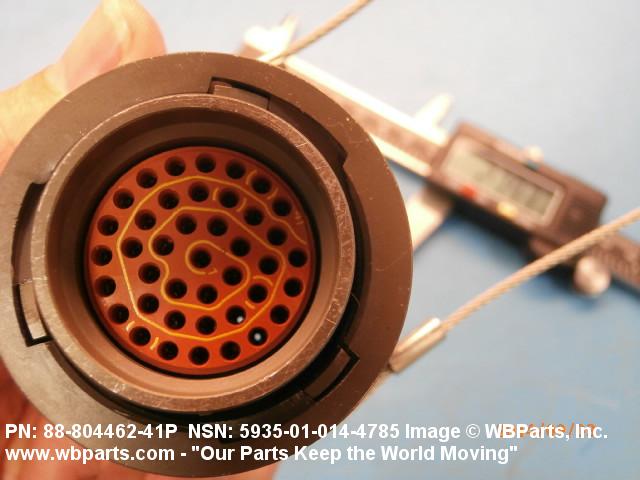

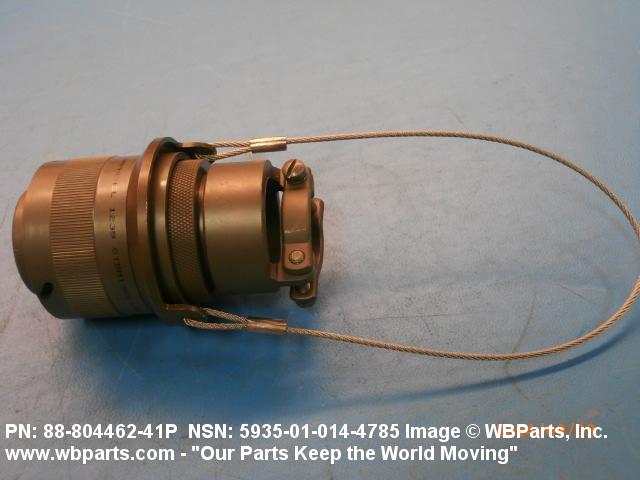

Drawings & Photos | NSN 5935-01-014-4785
Demand History | NSN 5935-01-014-4785
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-014-4785 | 2024-08-218 | 100 | US |
| 8880446241P | 2023-08-215 | 2 | United States |
| 88-804462-41P | 2023-04-114 | 10 | DIBBS |
| AV628-2 | 2023-04-114 | 10 | DIBBS |
| CN0900-247B1-P1 | 2023-04-114 | 10 | DIBBS |
| ST5M1381-003 | 2023-04-114 | 10 | DIBBS |
| 88-804462-41P | 2023-04-101 | 10 | DIBBS |
| AV628-2 | 2023-04-101 | 10 | DIBBS |
| CN0900-247B1-P1 | 2023-04-101 | 10 | DIBBS |
| ST5M1381-003 | 2023-04-101 | 10 | DIBBS |
| 88-804462-41P | 2022-11-329 | 10 | DIBBS |
| AV628-2 | 2022-11-329 | 10 | DIBBS |
| CN0900-247B1-P1 | 2022-11-329 | 10 | DIBBS |
| ST5M1381-003 | 2022-11-329 | 10 | DIBBS |
| 88-804462-41P | 2022-11-317 | 10 | DIBBS |
| AV628-2 | 2022-11-317 | 10 | DIBBS |
| CN0900-247B1-P1 | 2022-11-317 | 10 | DIBBS |
| ST5M1381-003 | 2022-11-317 | 10 | DIBBS |
| 88-804462-41P | 2022-09-263 | 6 | DIBBS |
| AV628-2 | 2022-09-263 | 6 | DIBBS |
| CN0900-247B1-P1 | 2022-09-263 | 6 | DIBBS |
| ST5M1381-003 | 2022-09-263 | 6 | DIBBS |
| 88-804462-41P | 2022-07-195 | 3 | DIBBS |
| AV628-2 | 2022-07-195 | 3 | DIBBS |
| CN0900-247B1-P1 | 2022-07-195 | 3 | DIBBS |
| ST5M1381-003 | 2022-07-195 | 3 | DIBBS |
| 88-804462-41P | 2021-08-243 | 1 | DIBBS |
| AV628-2 | 2021-08-243 | 1 | DIBBS |
| CN0900-247B1-P1 | 2021-08-243 | 1 | DIBBS |
| ST5M1381-003 | 2021-08-243 | 1 | DIBBS |
| 88-804462-41P | 2021-08-227 | 3 | DIBBS |
| AV628-2 | 2021-08-227 | 3 | DIBBS |
| CN0900-247B1-P1 | 2021-08-227 | 3 | DIBBS |
| ST5M1381-003 | 2021-08-227 | 3 | DIBBS |
| 88-804462-41P | 2021-06-179 | 11 | DIBBS |
| AV628-2 | 2021-06-179 | 11 | DIBBS |
| CN0900-247B1-P1 | 2021-06-179 | 11 | DIBBS |
| ST5M1381-003 | 2021-06-179 | 11 | DIBBS |
| 88-804462-41P | 2021-06-164 | 11 | DIBBS |
| AV628-2 | 2021-06-164 | 11 | DIBBS |
| CN0900-247B1-P1 | 2021-06-164 | 11 | DIBBS |
| ST5M1381-003 | 2021-06-164 | 11 | DIBBS |
| 88-804462-41P | 2021-05-129 | 1 | DIBBS |
| AV628-2 | 2021-05-129 | 1 | DIBBS |
| CN0900-247B1-P1 | 2021-05-129 | 1 | DIBBS |
| ST5M1381-003 | 2021-05-129 | 1 | DIBBS |
| 5935-01-014-4785 | 2021-02-57 | 3 | United States |
| 88-804462-41P | 2020-11-310 | 3 | DIBBS |
| AV628-2 | 2020-11-310 | 3 | DIBBS |
| CN0900-247B1-P1 | 2020-11-310 | 3 | DIBBS |
| ST5M1381-003 | 2020-11-310 | 3 | DIBBS |
| 88-804462-41P | 2020-10-294 | 4 | DIBBS |
| AV628-2 | 2020-10-294 | 4 | DIBBS |
| CN0900-247B1-P1 | 2020-10-294 | 4 | DIBBS |
| ST5M1381-003 | 2020-10-294 | 4 | DIBBS |
| 88-804462-41P | 2020-06-156 | 70 | DIBBS |
| AV628-2 | 2020-06-156 | 70 | DIBBS |
| CN0900-247B1-P1 | 2020-06-156 | 70 | DIBBS |
| ST5M1381-003 | 2020-06-156 | 70 | DIBBS |
| 5935-01-014-4785 | 2018-01-31 | 2 | US |
| 5935-01-014-4785 | 2017-03-73 | 6 | DIBBS |
| 5935-01-014-4785 | 2015-09-264 | 10 | United States |
| 8880446241P | 2015-02-42 | 5 | United States |
| ST5M1381003 | 2015-02-42 | 5 | United States |
| ST5M1381003 | 2015-02-42 | 10 | United States |
| 5935-01-014-4785 | 2014-08-237 | 13 | United States |
| 8880446241P | 2012-04-96 | 1 | United States |
| ST5M1381003 | 2010-09-245 | 7 | US |
Cross Reference | NSN 5935-01-014-4785
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 88-804462-41P | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| AV628-2 | 84256 | AVIBANK MFG., INC. |
| CN0900-247B1-P1 | 13556 | LABINAL COMPONENTS AND SYSTEMS INC CINCH MILITARY AEROSPACE DIV |
| GC354 | 06324 | GLENAIR, INC. |
| GC354-1 | 06324 | GLENAIR, INC. |
| ST5M1381-002 | 12464 | MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS ELECTRONIC SYSTEMS |
| ST5M1381-003 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-014-4785
Related Products | NSN 5935-01-014-4785
Technical Data | NSN 5935-01-014-4785
| Characteristic | Specifications |
|---|---|

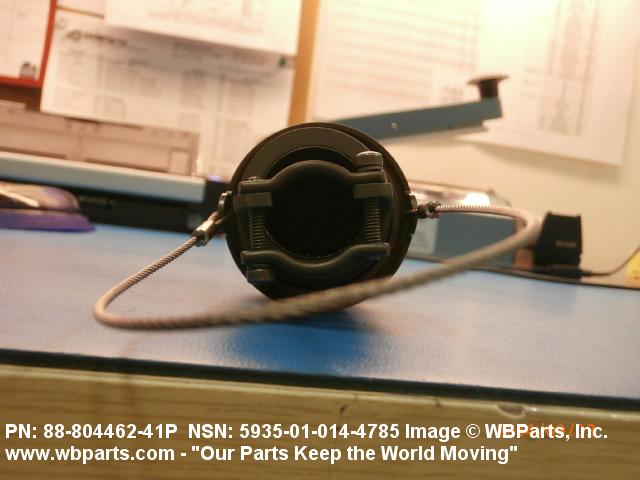

| BODY STYLE | 9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL |

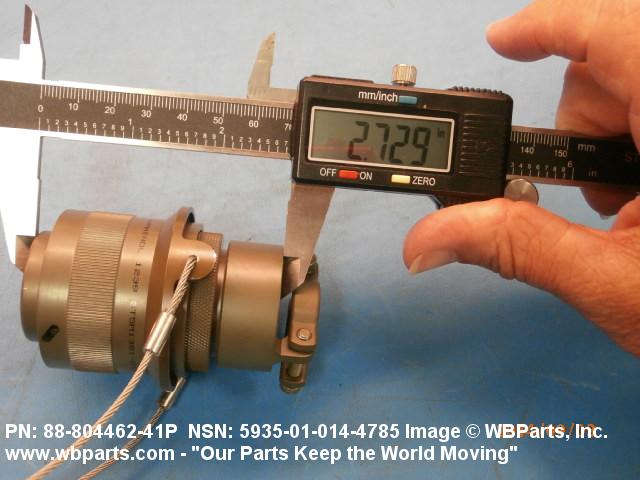

| OVERALL LENGTH | 2.880 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.300 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY 6061 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

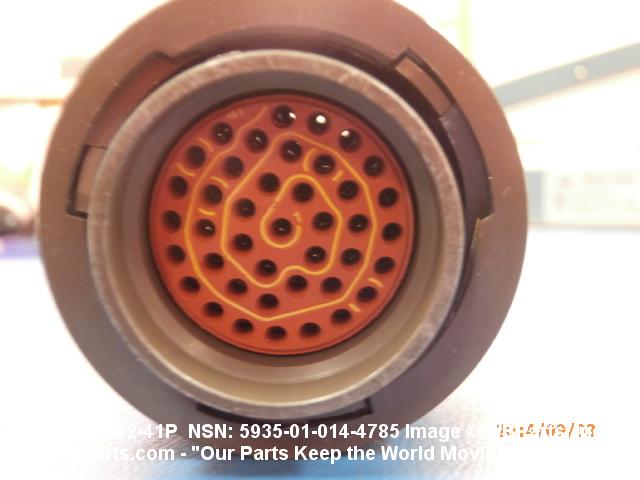

| CONTACT POSITION ARRANGEMENT STYLE | BTAE 41 NUMBER 20 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 41 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 TY 2 CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND SHOCK PROOF AND THERMAL SHOCK RESISTANT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.041 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-014-4785
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-014-4785
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
