NSN 5935-01-017-3277 WC596, WC596/39-2, WC59639
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-017-3277 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: WC596, WC596/39-2, WC59639, WC596-39, WC596392, 4516, 5935-01-017-3277, 01-017-3277, 5935010173277, 010173277
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 MAR 1976 | 01-017-3277 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-017-3277
Demand History | NSN 5935-01-017-3277
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4516 | 2025-09-272 | 1 | us |
| 4516 | 2025-08-219 | 1 | us |
| 4516 | 2022-05-146 | 1 | United States |
| 4516 | 2022-05-146 | 2 | United States |
| 4516 | 2021-10-291 | 1 | United States |
| 4516 | 2021-10-291 | 2 | United States |
| 5935-01-017-3277 | 2016-09-251 | 2 | DIBBS |
| 5935-01-017-3277 | 2016-01-06 | 11 | DIBBS |
| 5935-01-017-3277 | 2015-11-327 | 7 | DIBBS |
| 5935-01-017-3277 | 2015-11-316 | 7 | DIBBS |
| 4516 | 2014-06-162 | 1 | United States |
| 4516 | 2011-01-26 | 8 | us |
Cross Reference | NSN 5935-01-017-3277
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4516 | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| WC596 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| WC596-39 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| WC596/39-2 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-017-3277
Related Products | NSN 5935-01-017-3277
Technical Data | NSN 5935-01-017-3277
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16A ANGLE SHAPE |
| OVERALL LENGTH | 3.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 4.500 INCHES MAXIMUM |
| OVERALL WIDTH | 3.312 INCHES MAXIMUM |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 1.070 INCHES MINIMUM AND 1.380 INCHES MAXIMUM |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

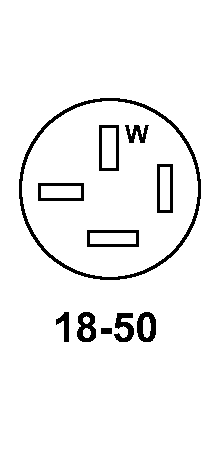

| CONTACT POSITION ARRANGEMENT STYLE | AEFA 18-50 SINGLE MATING END |
