NSN 5935-01-019-7815 G3661, G366-1, 01-019-7815
Product Details | ELECTRICAL CONNECTOR SHELL
5935-01-019-7815 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: G3661, G366-1, 5935-01-019-7815, 01-019-7815, 5935010197815, 010197815
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 APR 1976 | 01-019-7815 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-019-7815
Cross Reference | NSN 5935-01-019-7815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G366-1 | 06324 | GLENAIR, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-019-7815
Technical Data | NSN 5935-01-019-7815
| Characteristic | Specifications |
|---|---|

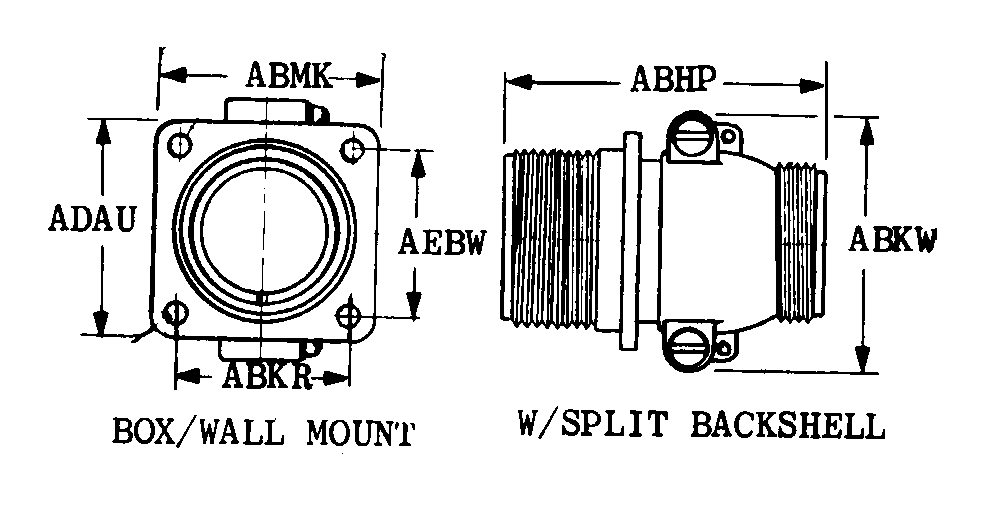

| STYLE DESIGNATOR | 8D BOX/WALL MOUNT W/SPLIT BACKSHELL |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.497 INCHES MINIMUM AND 0.503 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.750 INCHES NOMINAL |
| CABLE OPENING LENGTH | 1.250 INCHES NOMINAL |
| SIZE DESIGNATION | A |
| SPECIAL FEATURES | SURFACE COLOR IRIDESCENT GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-019-7815
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | 85 | Department of Energy West Mifflin, PA 15122 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
