NSN 5935-01-030-1868 BE1H1419PW3036, BE1H14-19PW-3036, C201419PW50B1B
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-030-1868 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: BE1H1419PW3036, BE1H14-19PW-3036, C201419PW50B1B, C20-14-19PW-50B-1B, 10030132102, 10030132-102, 10131715 , 3007562, 300-756-2, 70051419PW, 7005-14-19PW, 83121419PWPT2A2, 8312-14-19PW-PT2-A2, 832214A19PWPT2A2, 8322-14-A19PW-PT2-A2, 5935-01-030-1868, 01-030-1868, 5935010301868, 010301868
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 OCT 1976 | 01-030-1868 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

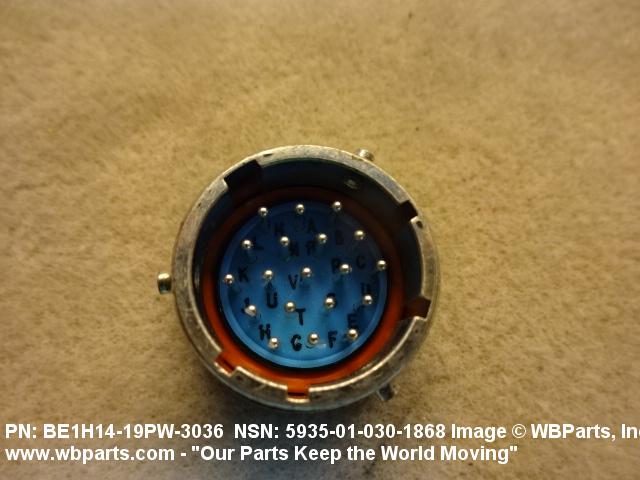

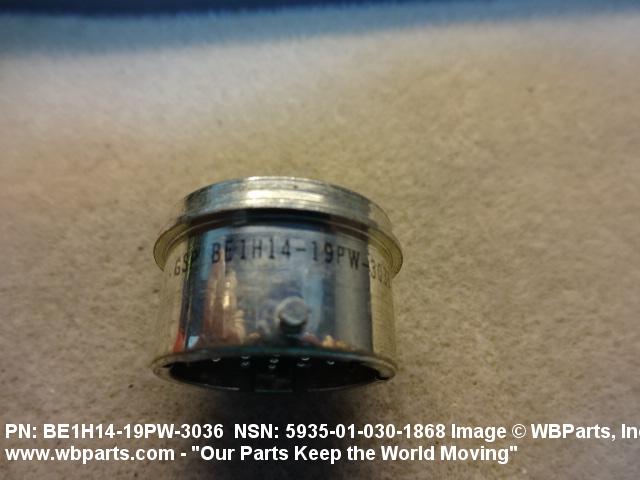

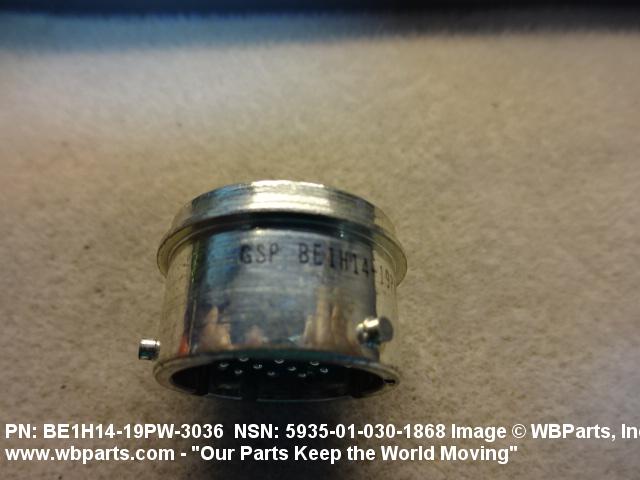

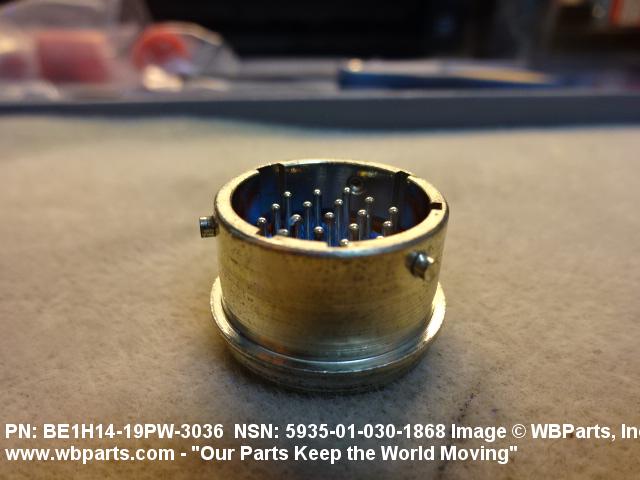

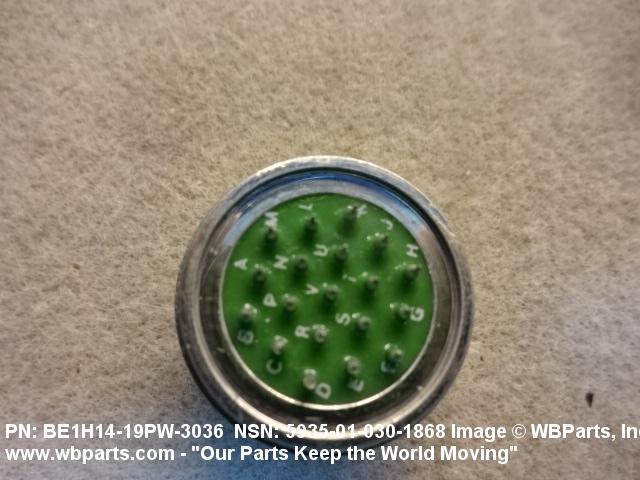

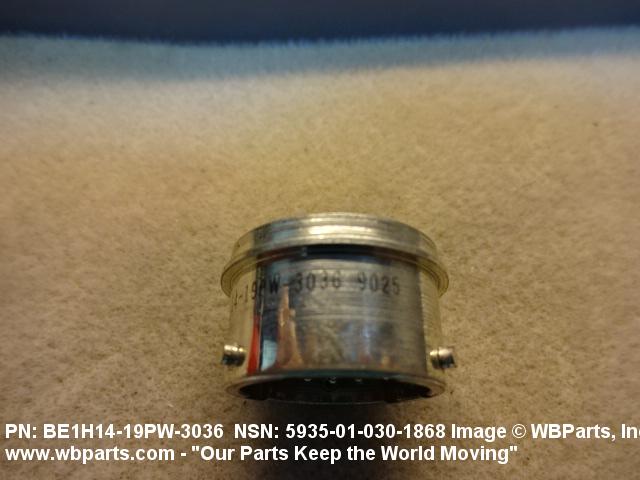

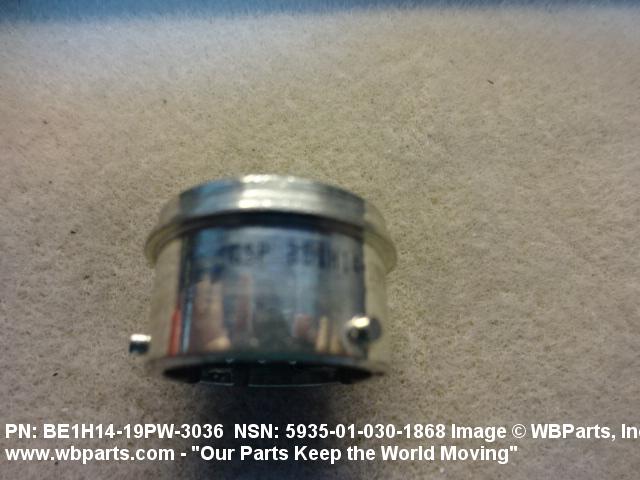

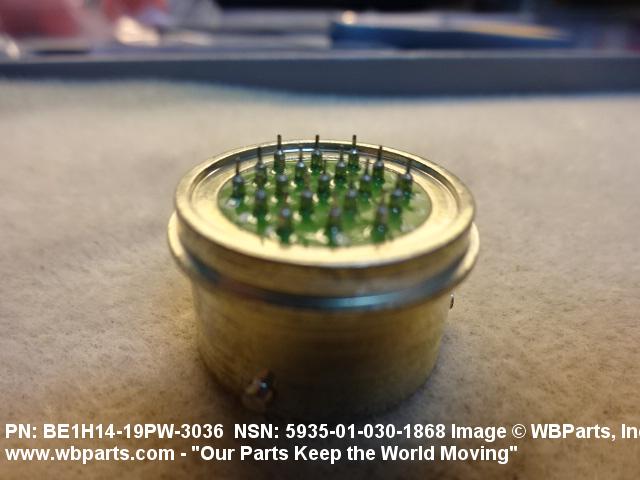

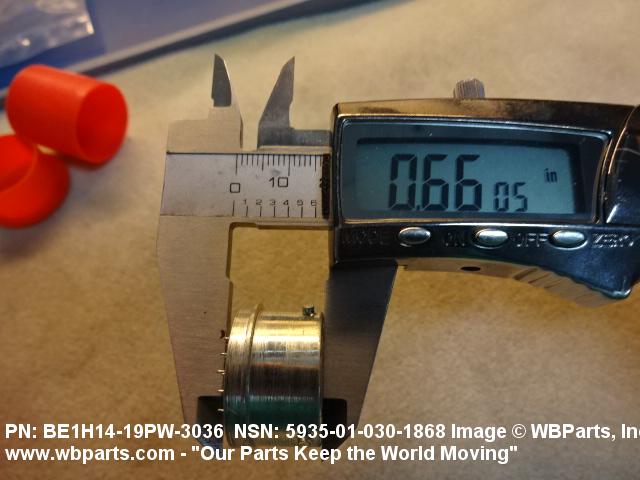

Drawings & Photos | NSN 5935-01-030-1868
Demand History | NSN 5935-01-030-1868
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10030132-102 | 2020-01-02 | 36 | DIBBS |
| 300-756-2 | 2020-01-02 | 36 | DIBBS |
| 7005-14-19PW | 2020-01-02 | 36 | DIBBS |
| 8312-14-19PW-PT2-A2 | 2020-01-02 | 36 | DIBBS |
| BE1H14-19PW-3036 | 2020-01-02 | 36 | DIBBS |
| C20-14-19PW-50B-1B | 2020-01-02 | 36 | DIBBS |
| 10030132-102 | 2019-06-153 | 14 | DIBBS |
| 300-756-2 | 2019-06-153 | 14 | DIBBS |
| 7005-14-19PW | 2019-06-153 | 14 | DIBBS |
| 8312-14-19PW-PT2-A2 | 2019-06-153 | 14 | DIBBS |
| BE1H14-19PW-3036 | 2019-06-153 | 14 | DIBBS |
| C20-14-19PW-50B-1B | 2019-06-153 | 14 | DIBBS |
| BE1H1419PW3036 | 2018-03-85 | 10 | United States |
| 5935-01-030-1868 | 2016-09-262 | 9 | DIBBS |
| 5935-01-030-1868 | 2016-08-231 | 6 | DIBBS |
| 5935-01-030-1868 | 2016-08-217 | 6 | DIBBS |
| 5935-01-030-1868 | 2015-10-301 | 2 | US |
| 5935-01-030-1868 | 2013-05-121 | 23 | DIBBS |
| 5935-01-030-1868 | 2011-11-313 | 7 | DIBBS |
| 5935-01-030-1868 | 2010-02-40 | 5 | DIBBS |
| 5935-01-030-1868 | 2010-01-07 | 5 | DIBBS |
| 5935-01-030-1868 | 2009-01-28 | 6 | DIBBS |
| 5935-01-030-1868 | 2008-12-347 | 5 | us |
| 5935-01-030-1868 | 2008-12-347 | 5 | us |
| 5935-01-030-1868 | 2008-11-331 | 5 | DIBBS |
Cross Reference | NSN 5935-01-030-1868
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10030132-102 | 94580 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 300-756-2 | 99564 | AMETEK, INC. DBA AEROSPACE GST |
| 7005-14-19PW | 04820 | HERMETIC SEAL CORPORATION DBA AMETEK HCC |
| 8312-14-19PW-PT2-A2 | 97814 | SEALTRON INC |
| 8322-14-A19PW-PT2-A2 | 97814 | SEALTRON INC |
| BE1H14-19PW-3036 | 10025 | GLASSEAL PRODUCTS INC SUB OF HCC INDUSTRIES |
| C20-14-19PW-50B-1B | 32076 | CONNECTOR INDUSTRIES OF AMERICA INC DIV OF MICRODOT CONNECTOR GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-030-1868
Related Products | NSN 5935-01-030-1868
Technical Data | NSN 5935-01-030-1868
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7G STRAIGHT SHAPE THREADED |

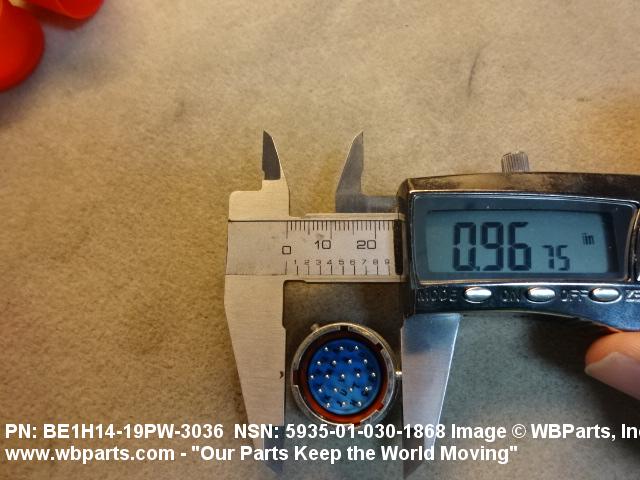

| OVERALL LENGTH | 0.689 INCHES NOMINAL |
| OVERALL DIAMETER | 0.969 INCHES NOMINAL |

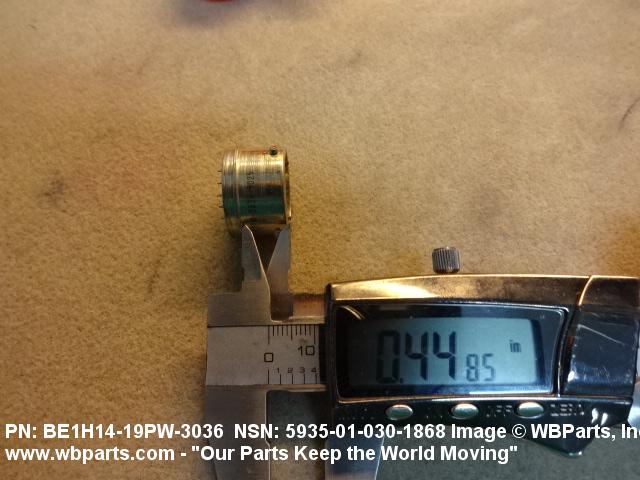

| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.458 INCHES NOMINAL |
