NSN 5935-01-042-9067 G8022114N, G8022-114N , G8022-11-4N
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-042-9067 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: G8022114N, G8022-114N , G8022-11-4N, 5935-01-042-9067, 01-042-9067, 5935010429067, 010429067
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JUN 1977 | 01-042-9067 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |

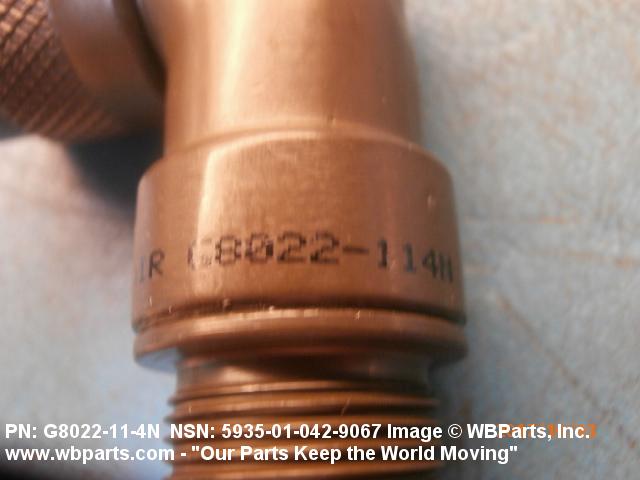

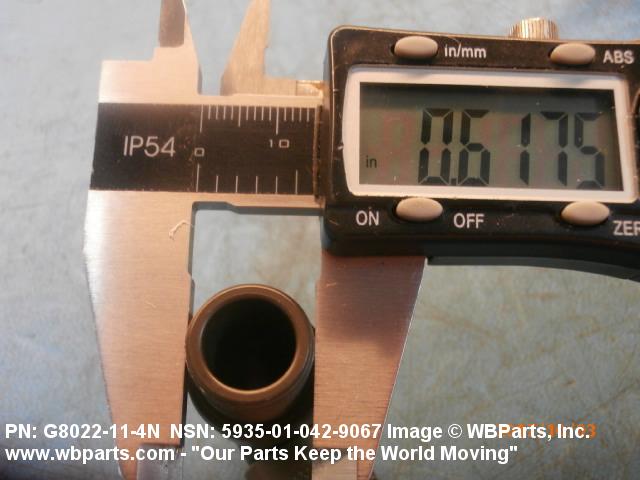

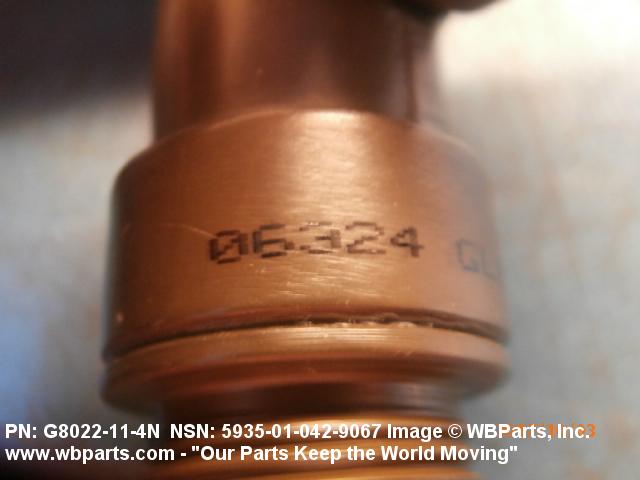

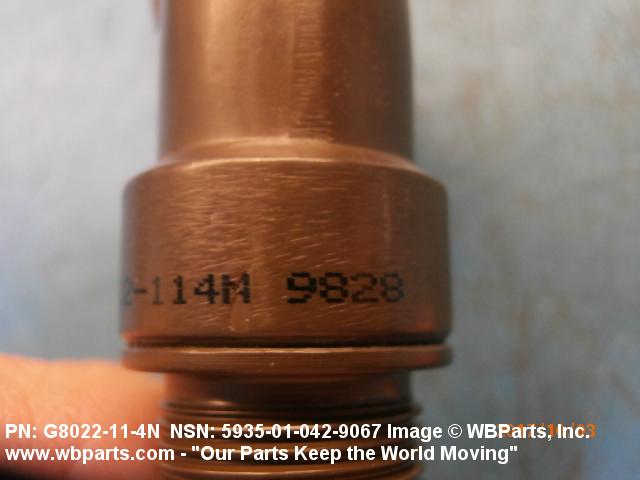

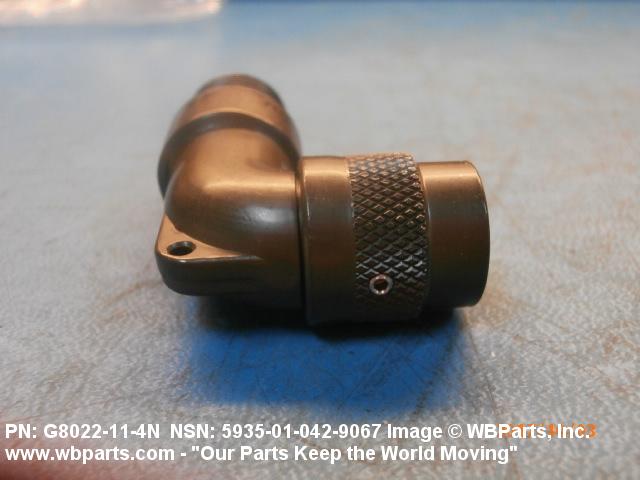

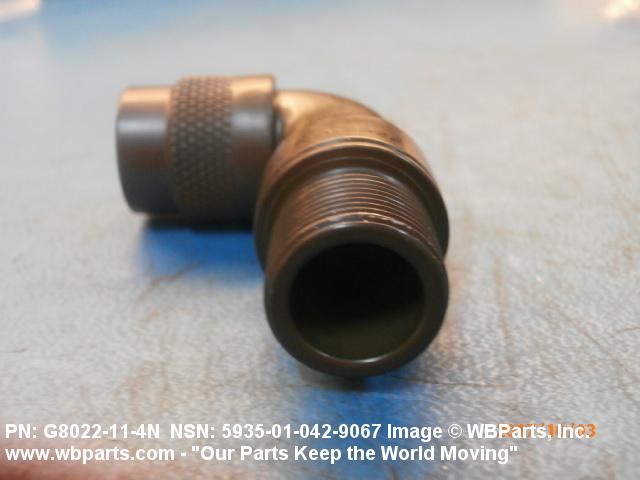

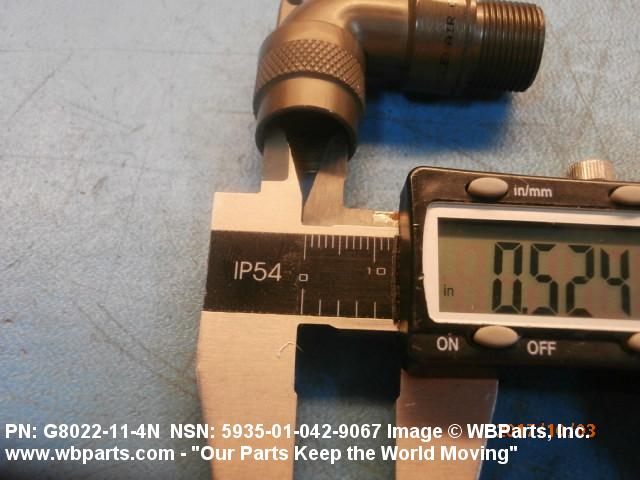

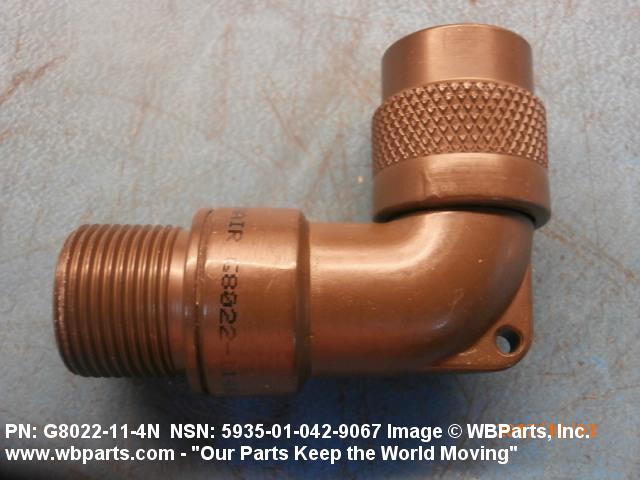

Drawings & Photos | NSN 5935-01-042-9067
Demand History | NSN 5935-01-042-9067
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-042-9067 | 2025-04-100 | 4 | DE |
| G8022-114N | 2023-02-33 | 5 | DIBBS |
| G8022-114N | 2022-03-79 | 4 | DIBBS |
| G8022-114N | 2022-02-32 | 1 | DIBBS |
| G8022-114N | 2022-01-20 | 2 | DIBBS |
| 5935-01-042-9067 | 2017-08-240 | 2 | Germany |
| 5935-01-042-9067 | 2017-08-228 | 2 | Germany |
| 5935-01-042-9067 | 2017-03-79 | 4 | DIBBS |
| 5935-01-042-9067 | 2010-12-340 | 2 | DIBBS |
| 5935-01-042-9067 | 2010-05-144 | 2 | DIBBS |
| 5935-01-042-9067 | 2010-05-141 | 4 | DIBBS |
| 5935-01-042-9067 | 2009-09-244 | 4 | DIBBS |
| 5935-01-042-9067 | 2009-07-200 | 1 | DIBBS |
| 5935-01-042-9067 | 2009-05-147 | 1 | DIBBS |
| 5935-01-042-9067 | 2009-04-103 | 1 | DIBBS |
| 5935-01-042-9067 | 2007-11-326 | 1 | DIBBS |
| 5935-01-042-9067 | 2007-05-147 | 9 | DIBBS |
Cross Reference | NSN 5935-01-042-9067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G8022-114N | 06324 | GLENAIR, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-042-9067
Related Products | NSN 5935-01-042-9067
Technical Data | NSN 5935-01-042-9067
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1C ANGLE TYPE |
| BODY ANGLE IN DEG | 90.0 |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | NICKEL PLATED AND CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING AND 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF AND UNEF |
| NOMINAL THREAD SIZE | 0.562 INCHES AND 0.625 INCHES |
| THREAD CLASS | 2B AND 2A |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.260 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5935-01-042-9067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC SUB2 |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-042-9067
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
