NSN 5935-01-045-1641 M83733/04RB101, M83733/4RB101, M8373304RB101

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-045-1641 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: M83733/04RB101, M83733/4RB101, M8373304RB101, M837334RB101, MIL-C-83733/4, MILC837334, MIL-DTL-83733/4 , MILDTL837334, DPKB101SK7, DPKB-101SK-7, 8088631, 808863-1, 5935-01-045-1641, 01-045-1641, 5935010451641, 010451641

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	28 JUL 1977	01-045-1641	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

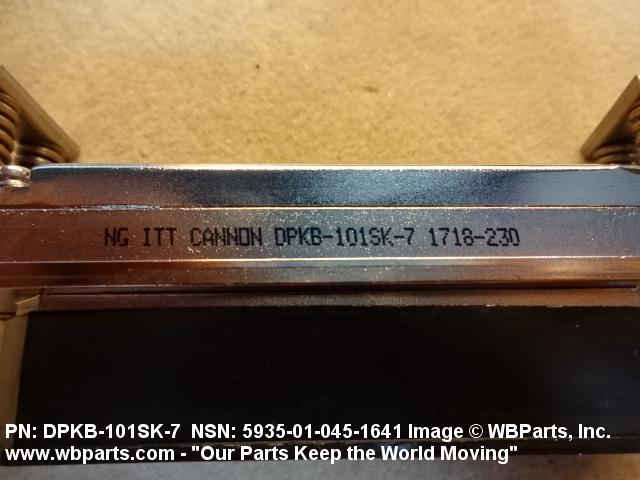

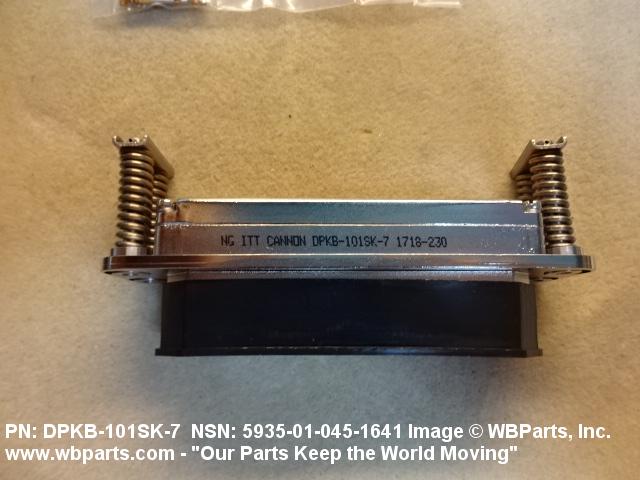

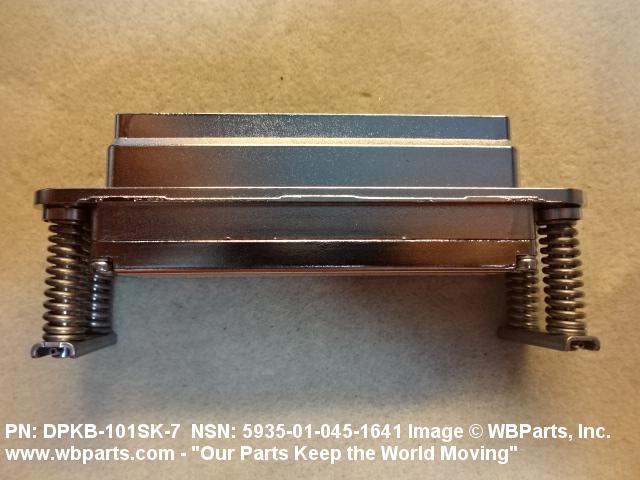

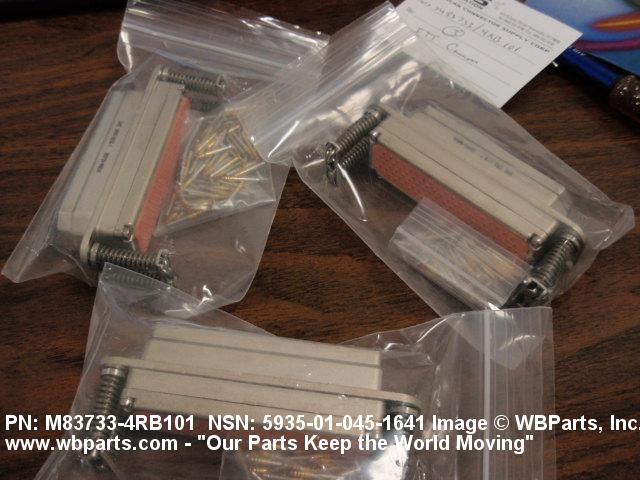

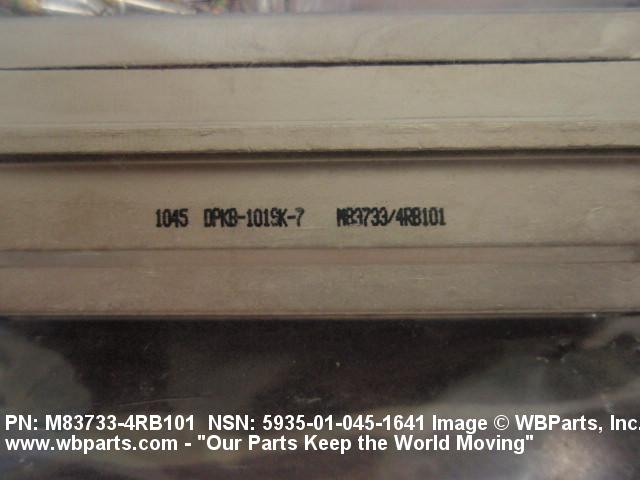

Drawings & Photos | NSN 5935-01-045-1641

Part Number	Request Date	QTY	Origin
5935-01-045-1641	2025-07-182	1	UK
5935-01-045-1641	2025-06-167	1	UK
5935-01-045-1641	2025-06-167	1	UK
DPKB-101SK-7	2024-08-235	14	DIBBS
DPKB-101SK-7	2022-05-125	16	DIBBS
DPKB-101SK-7	2021-01-03	15	DIBBS
DPKB-101SK-7	2020-05-128	8	DIBBS
5935-01-045-1641	2019-10-283	5	DIBBS
5935-01-045-1641	2019-09-269	14	DIBBS
5935-01-045-1641	2019-05-147	10	DIBBS
5935-01-045-1641	2018-10-284	5	DIBBS
5935-01-045-1641	2018-09-256	5	DIBBS
5935-01-045-1641	2018-08-214	5	DIBBS
5935-01-045-1641	2018-06-164	2	US
5935-01-045-1641	2017-12-356	20	DIBBS
5935-01-045-1641	2017-12-355	20	DIBBS
5935-01-045-1641	2017-11-306	16	DIBBS
5935-01-045-1641	2017-10-298	3	United States
5935-01-045-1641	2017-05-124	3	DIBBS
5935-01-045-1641	2015-04-111	1	US
5935-01-045-1641	2014-09-251	17	DIBBS
5935-01-045-1641	2014-08-225	16	China
5935-01-045-1641	2014-04-98	17	DIBBS
5935-01-045-1641	2013-04-112	18	DIBBS
M837334RB101	2010-12-349	3	China
M837334RB101	2010-12-349	3	China
M837334RB101	2010-11-318	3	China
DPKB101SK7	2010-10-300	3	United Kingdom
M837334RB101	2009-04-114	2	Hong Kong
DPKB101SK7	2009-02-49	10	China
5935-01-045-1641	2009-01-14	21	DIBBS
5935-01-045-1641	2008-11-317	26	DIBBS
5935-01-045-1641	2007-11-309	21	DIBBS
5935-01-045-1641	2007-07-187	16	DIBBS
5935-01-045-1641	2007-06-157	11	DIBBS
5935-01-045-1641	2007-05-127	12	DIBBS
5935-01-045-1641	2007-03-71	9	DIBBS
5935-01-045-1641	2007-02-47	9	DIBBS

Cross Reference | NSN 5935-01-045-1641

Part Number	Cage Code	Manufacturer
M83733/04RB101	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83733/4RB101	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-83733/4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-83733/4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-045-1641

Compare

Related Products | NSN 5935-01-045-1641

5935-01-045-1642, 5935-01-045-1643, 5935-01-045-1644, 5935-01-045-1645, 5935-01-045-1646

Technical Data | NSN 5935-01-045-1641

Characteristic	Specifications
BODY STYLE	18G STRAIGHT SHAPE

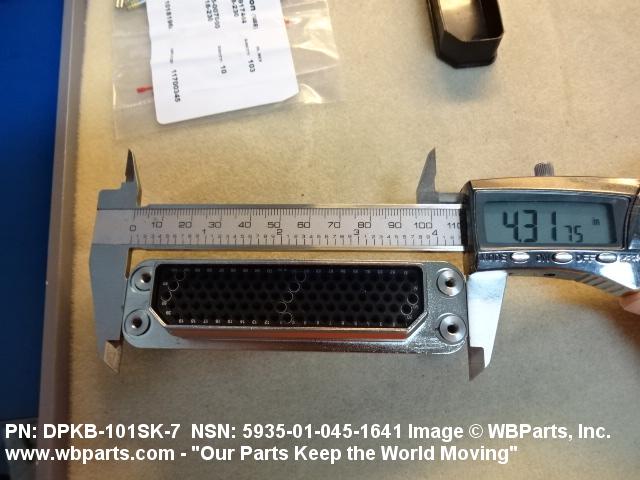

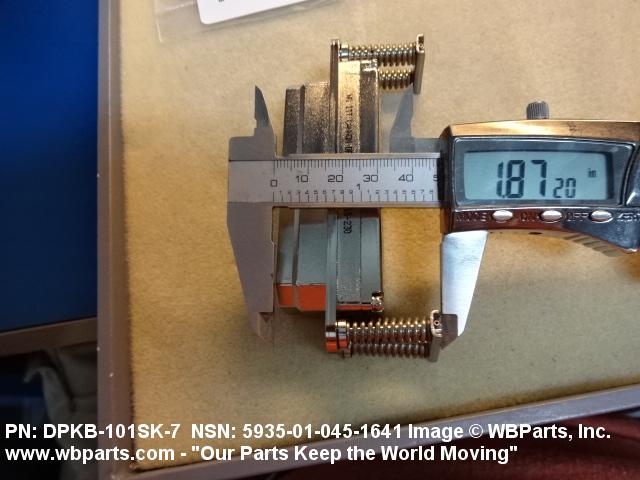

OVERALL LENGTH	1.880 INCHES MAXIMUM

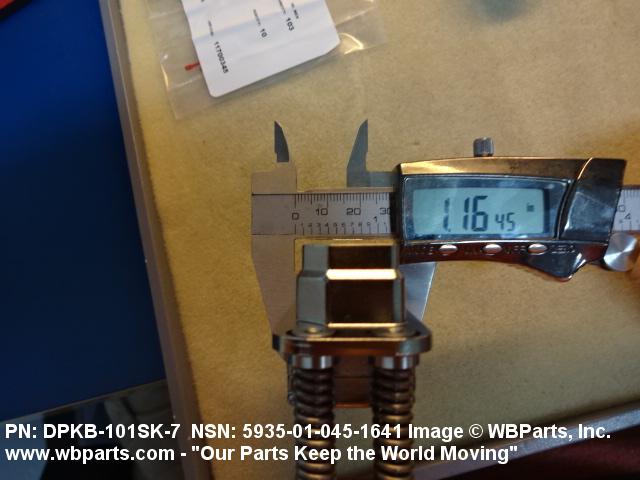

OVERALL HEIGHT	1.146 INCHES MINIMUM AND 1.170 INCHES MAXIMUM
OVERALL WIDTH	4.300 INCHES MINIMUM AND 4.330 INCHES MAXIMUM

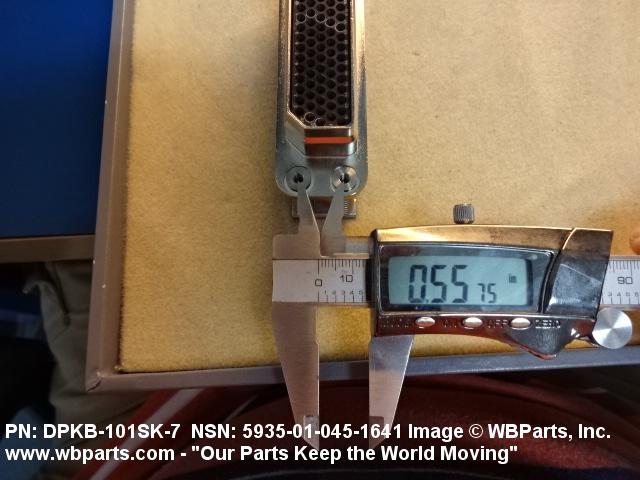

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	0.558 INCHES MINIMUM AND 0.566 INCHES MAXIMUM

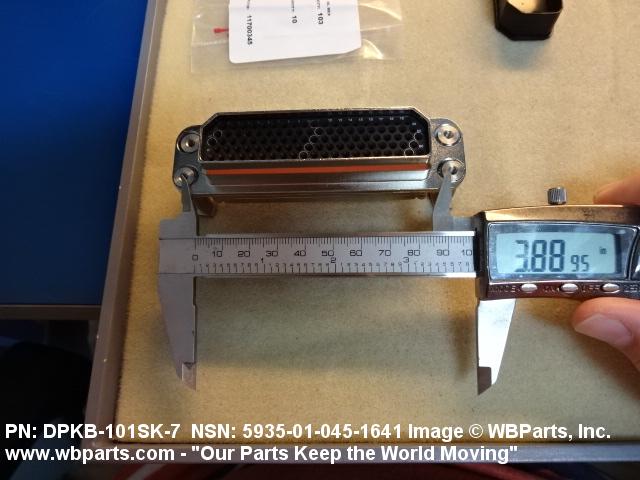

DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	3.870 INCHES MINIMUM AND 3.880 INCHES MAXIMUM

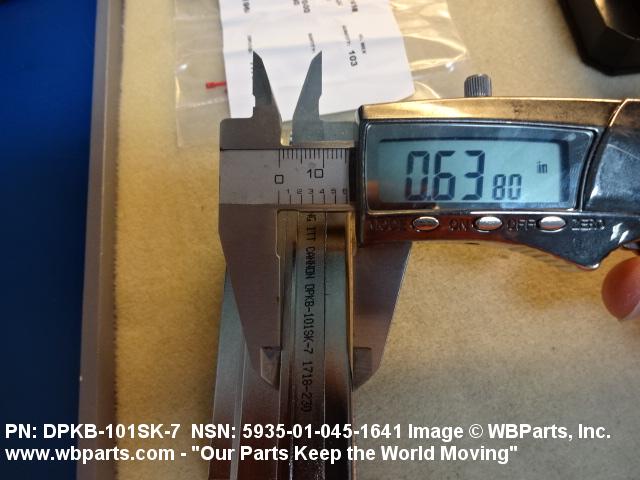

DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.615 INCHES MINIMUM AND 0.630 INCHES MAXIMUM

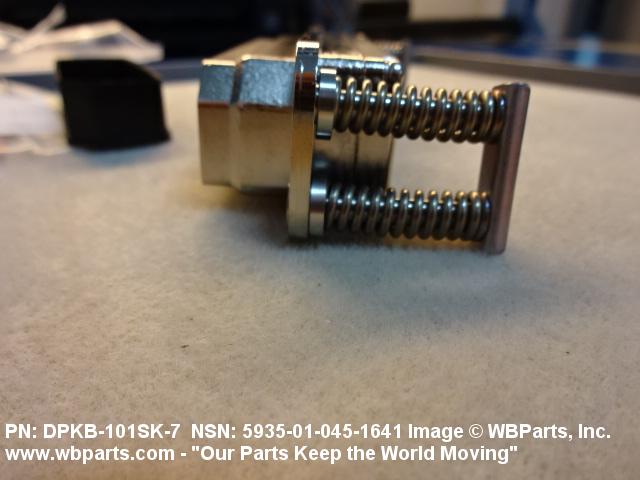

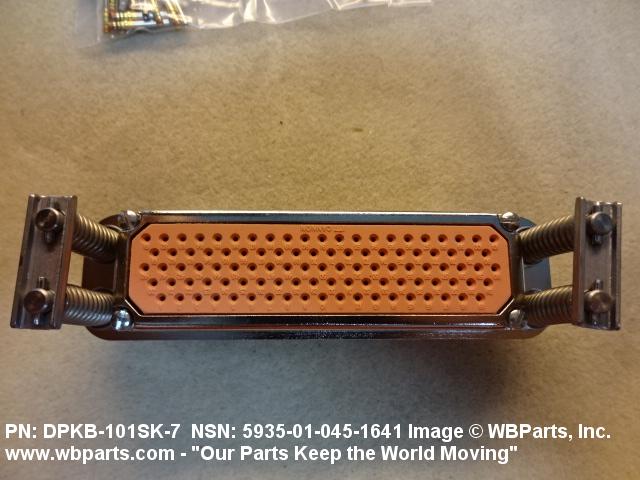

MOUNTING METHOD	SPRING
CONNECTOR LOCKING METHOD	FRICTION
THREADED DEVICE TYPE	MOUNTING HOLE
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	NICKEL
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-26074,GRADE A,CL 3 OR 4 MIL SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	MATING END
MATING END QUANTITY	1

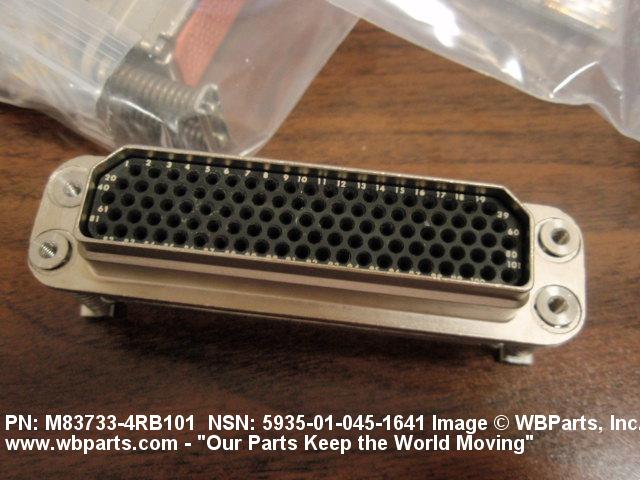

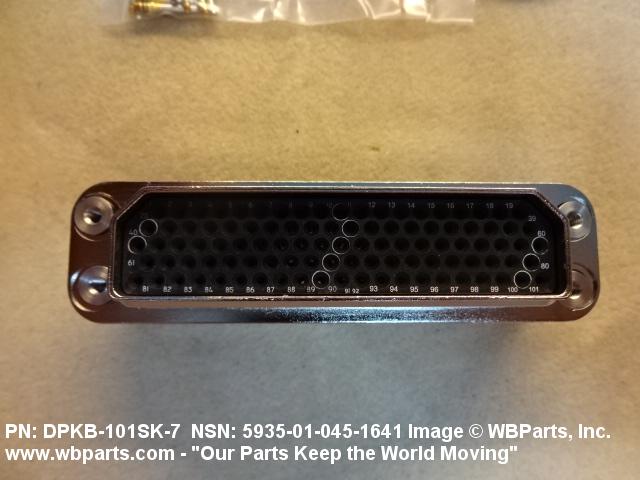

CONTACT POSITION ARRANGEMENT STYLE	EGAA 101 SINGLE MATING END
INCLUDED CONTACT QUANTITY	101 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,GRADE C,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING

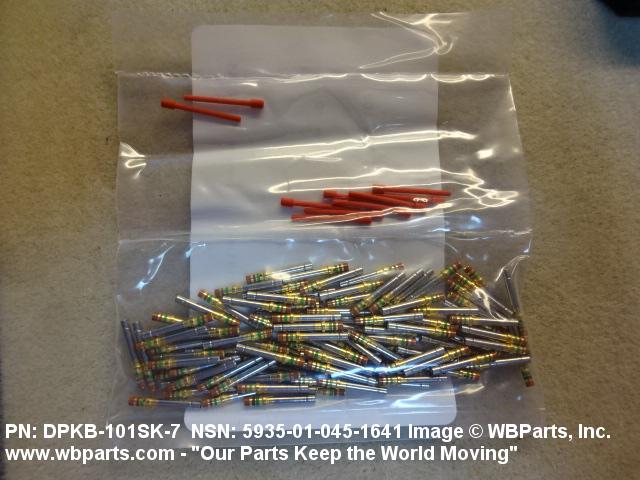

FURNISHED ITEMS	SPARE CONTACT
ENVIRONMENTAL PROTECTION	HUMIDITY RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND CORROSION RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-83733 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-83733/4 GOVERNMENT SPECIFICATION
III OPERATING TEMP RATING	-65.0 DEG CELSIUS MINIMUM AND
